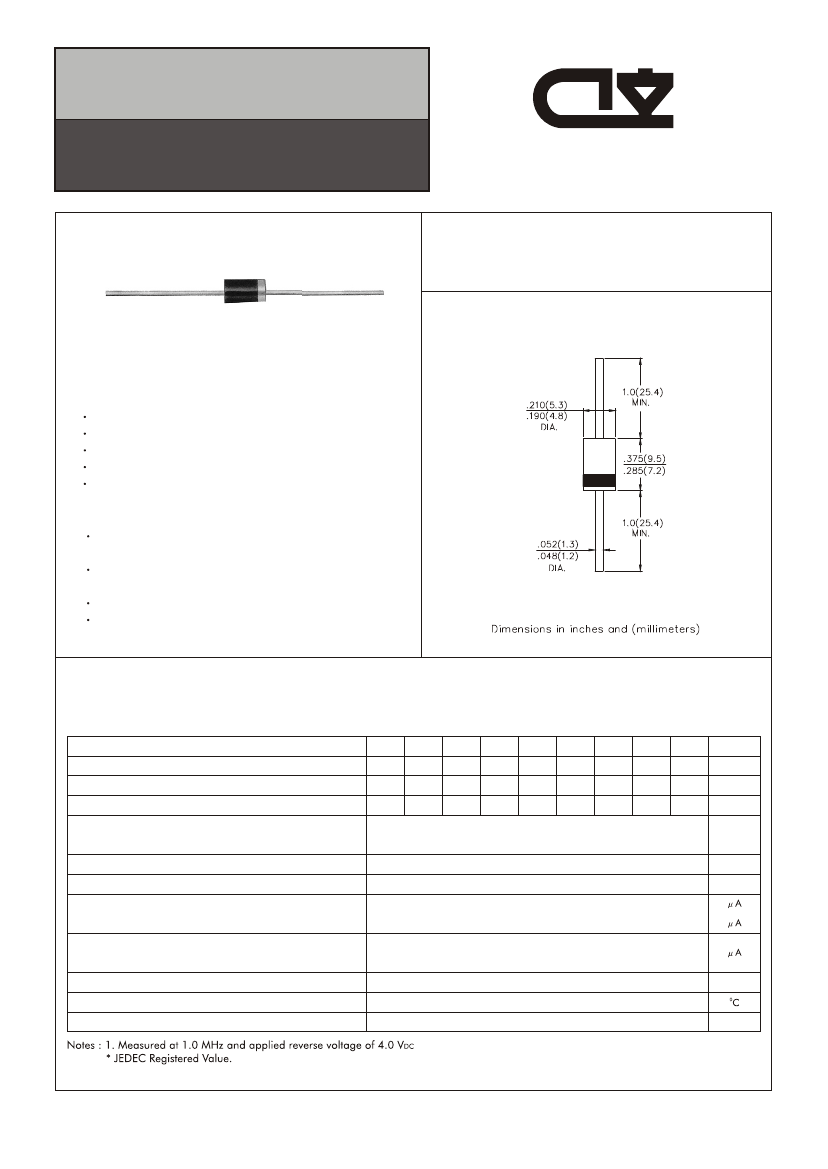

IN5400 thru IN5408
PLASTIC SILICON RECTIFIER
CHENG- YI
ELECTRONIC
VOLTAGE RANGE 50 TO 1000 Volts
CURRENT 3.0 Amperes
DO-201AD
FEATURE
Low forward voltage
High current capability
Low leakage current
High surge capability
Low cost
MECHANICAL DATA
Case:Mold plastic use UL 94V-0 recognized
flame retardant epoxy
Terminals:Axial leads, solderable per
MIL-STD-202, method 208
Polarity:Color band denotes cathode
Mounting Position:Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
0
C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
IN5400 IN5401 IN5402 IN5403 IN5404 IN5405 IN5406 IN5407 IN5408
UNITS
V
V
V
A
A
V
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage to
TA =150 C
0
50
35
50
100
70
100
200
140
200
300
210
300
400
280
400
3.0
150
1.2
10
500
500
50
-65 to +175
-65 to +170
500
350
500
600
420
600
800
560
800
1000
700
1000
Maximum Average Forward Rectified Current
.5", (12.5mm) Lead Length at
TA =75 C
0
Peak Forward Surge Current 8.3 ms single half sine-wave
Maximum Forward Voltage at 3.0A Peak
Maximum Reverse Current,
TA =25 C
at Rated DC Blocking Voltage
TA =55 C
0
0
Maximum Full Load Reverse Current, Full Cycle Averge,
.5", (12.5mm) Lead Length
T A =105 C
0
Typical Junction Capacitance (Note 1)
Storage Temperature Range TA
Operating Temperature Range TJ
pF
0
C
IN5400 thru IN5408
PLASTIC SILICON RECTIFIER
CHENG- YI
ELECTRONIC
RATING AND CHARACTERISTICS CURVES
IN5400 THRU IN5408
Fig. 1 - TYPICAL FORWARD CHARACTERISTICS
10
Fig. 2 - PEAK FORWARD SURGE CURRENT
PEAK FORWARD SURGE CURRENT
AMPERES
250
INSTANTANEOUS FORWARD CURRENT,
AMPERES
200
1.0
T
J
=25C
150
0
100
0.1
TJ = 25 C
0
50
0
1
10
100
.01
.4
.6
.8
1.0
1.2
1.4
1.6
NUMBER OF CYCLES AT 60Hz
INSTANTANEOUS FORWARD VOLT
AGE, VOLTS
Fig. 3 - FORWARD CURRENT DERATING CURVE
3.0
Fig. 4 - TYPICAL JUNCTION CAPACITANCE
100
AVERAGE FORWARD RECTIFIED
CURRENT, AMPERES
2.5
2.0
1.5
1.0
SINGLE PHASE
HALF WAVE
60Hz
RESISTIVE OR
INOUCTIVE LOAD
.375" 9.5mm LEAD LENGTH
25
50
75
100
125
150
0
CAPACITANCE-pF
10
T
J
=25C
0
0.5
0
175
1
1
10
100
AMBIENT TEMPERATURE, C
REVERSE VOLTAGE. VOLTS
