Optiva Standard, 1 SDI 270 Mbps
and 1 Duplex 10/100 Mbps Ethernet
™
OTS-1SD1ETR
SDI Video and Ethernet Transmission
The OTS-1SD1ETR provides for the digital
transmission of 1 Channel of uncompressed
SDI Video and 1 Channel of duplex 10/100
Ethernet, at absolute broadcast quality.
Ethernet
Data
In
Ethernet
Data
Out
Video
System Design
All units come in an insert card version.
The cards can be inserted into our 16-slot,
19” rack-mountable card cage (OT-CC-16-100)
or one of our smaller Optiva
™
Desktop
Card Racks (OT-DTCR Series).
The Optiva
™
Desktop Card Racks can handle
one, two or four insert cards, creating
compact, mountable, stand alone systems.
The use of separate OT-DTCR enclosures
allows for future flexibility and expansion as
all cards are hot-swappable and can be used
in any enclosure. Each one of our card
housing units operate with an appropriate
power supply. See “Accessories” for power
supply specifications.
Optiva
™
Upgrade Path
This system can be purchased without
an optical port as an add-on to an existing
Optiva
™
system daisy-chain.
(See “Non-Optical Version” below).
The Optiva
™
bandwidth requirement
of this system is 523 Mbps.
S
T
A
T
U
S
A
L
E
R
T
S
T
A
T
U
S
A
L
E
R
T
Each insert card comes with a label
identifying the specific protocols
handled, connector pin-out and other
vital information.

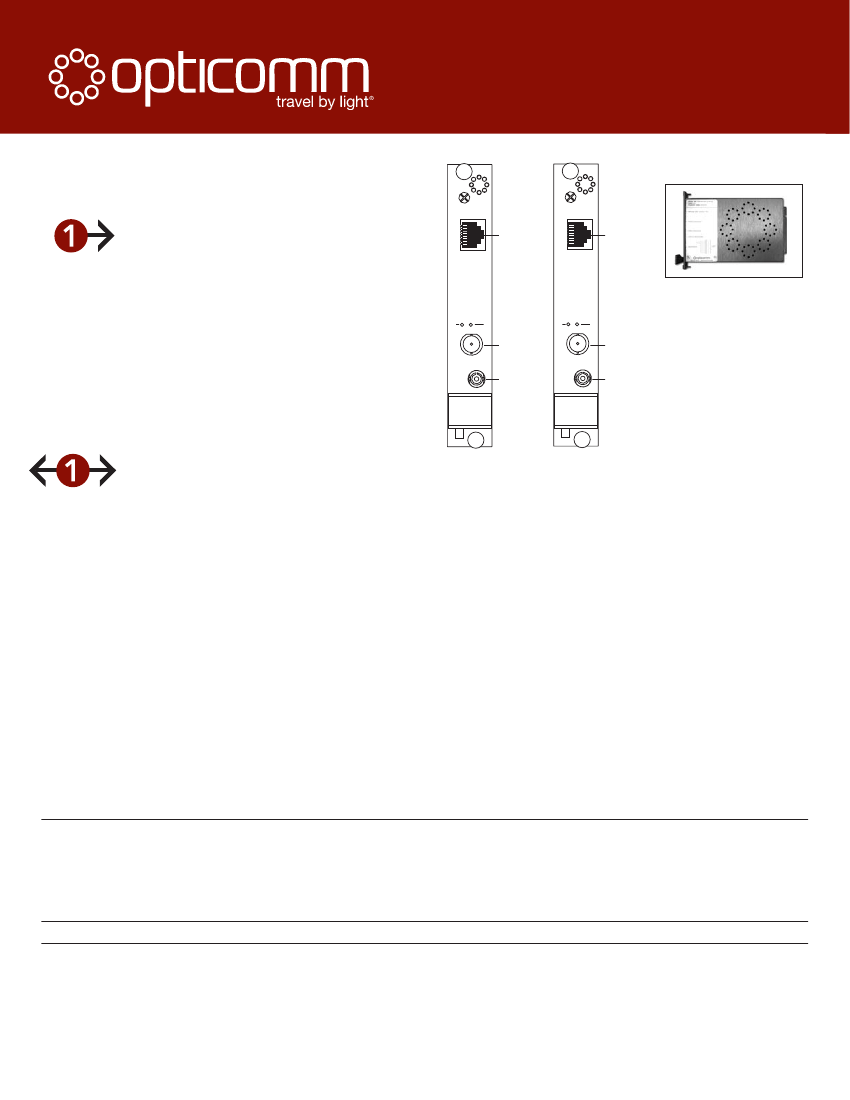

SDI Video
Out
ST, LC,
SC or FC
For optimal bandwidth allocation,
each insert card can daisy-chain with
an additional card in the same chassis.
See “Optiva
™
Upgrade Path”.
Audio
SDI Video
In
ST, LC,
SC or FC
™
Optiv
a
™
Optiv
a
Data

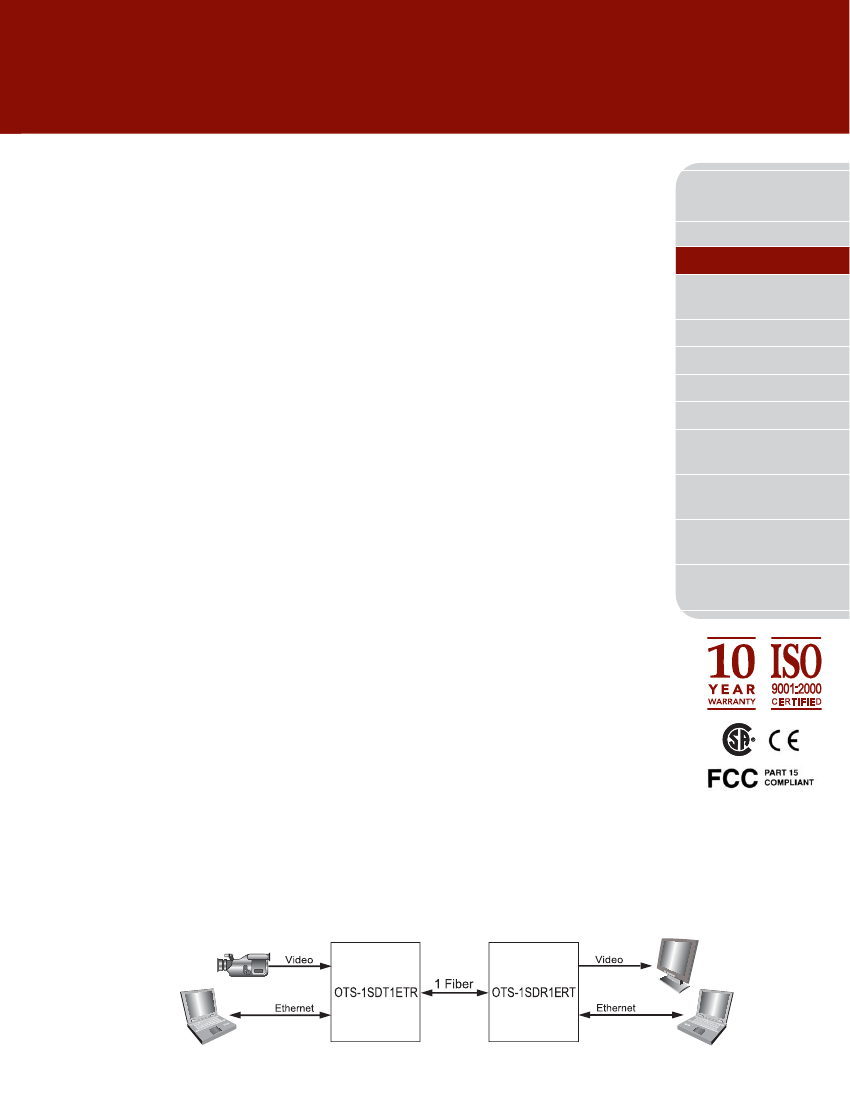

VAD Transmission
VAD Transmission
OTS-1SDT1ETR
OTS-1SDR1ERT
Ethernet
Features
• Uncompressed SDI Video and 10/100 Ethernet over one
fiber
• TDM - Single fiber, dual wavelength
• Complies with SMPTE standards for Video transmission
• Compatible with MDM-7000 Series for WDM and CWDM
multiplexing
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
• Ideal for Broadcast/Studio and Professional AV applications
Versions Available*
Wavelength (nm)
& Fiber
1310/1550 Multimode
1310/1550 Singlemode
1310/1550 SM (
D
)
1310/1550 SM (
H
)
1270-1610 SM (
CWDM
)
Non-Optical Version
Transmit/Receive**
OTS-1SDT1ETR-A2/A3M-XX-IC
OTS-1SDT1ETR-A2/A3-XX-IC
OTS-1SDT1ETR-A2/A3D-XX-IC
OTS-1SDT1ETR-A2/A3H-XX-IC
OTS-1SDT1ETR-L4/L4-XX-IC
OTS-1SDT1ETR-NOC-IC
Receive/Transmit**
OTS-1SDR1ERT-A3M/A2-XX-IC
OTS-1SDR1ERT-A3/A2-XX-IC
OTS-1SDR1ERT-A3D/A2-XX-IC
OTS-1SDR1ERT-A3H/A2-XX-IC
OTS-1SDR1ERT-L4/L4-XX-IC
OTS-1SDR1ERT-NOC-IC
Optical
Connector
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
N/A
Optical Budget
(dB)
10
12
17
25
Varies
N/A
Range***
(km) Form Factor
3
20
40
60
20-70
N/A
IC (1-slot)
IC (1-slot)
IC (1-slot)
IC (1-slot)
IC (1-slot)
IC (1-slot)
* Contact Opticomm for other versions available.
** XX indicates the type of optical connector. Each of ST, FC, LC or SC are available.
*** Chromatic dispersion and additional losses should be taken into account; link budget and range may be affected by bandwidth required.
800-867-8426 • info@opticomm.com • www.opticomm.com • Contact Opticomm for custom requirements.
Opticomm reserves the right to change specifications without notice
