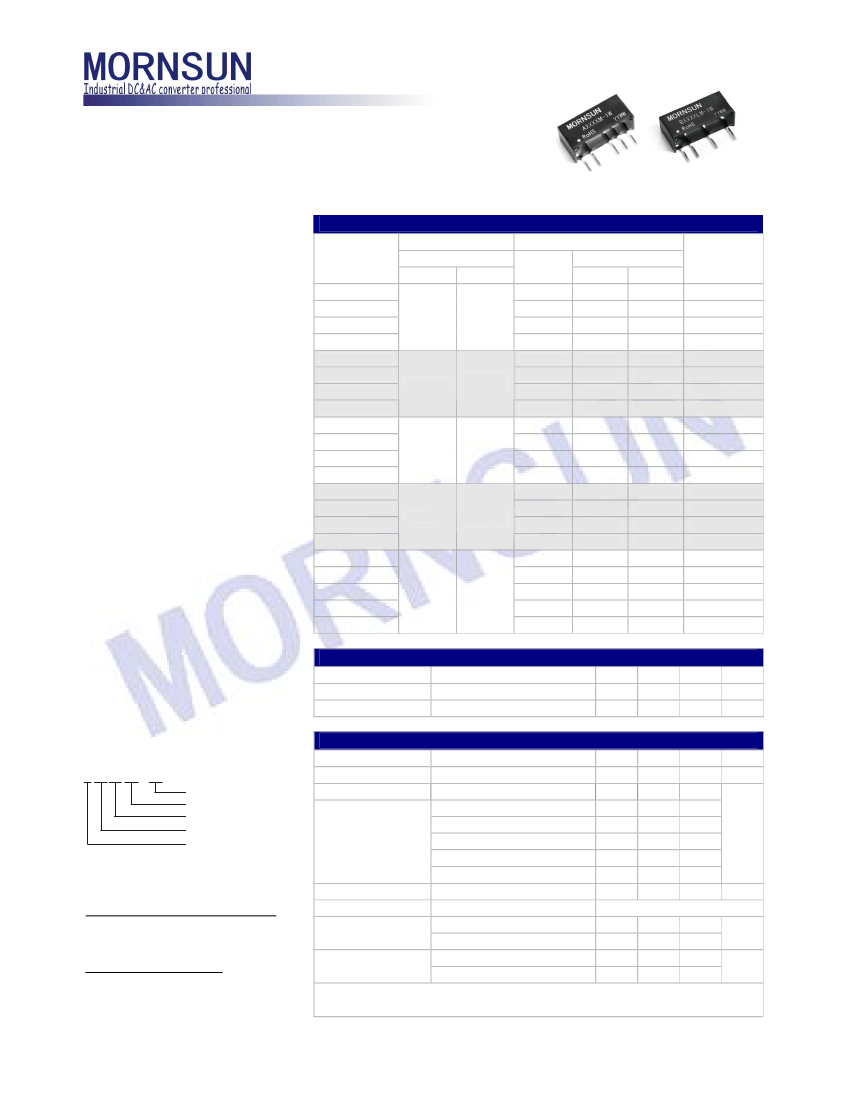

A_M-1W & B_LM-1W Series
1W, FIXED INPUT, ISOLATED & UNREGULATED
DUAL/SINGLE OUTPUT,SUPERMINIATURE SIP PACKAGE
multi-country patent protection
RoHS
FEATURES
Efficiency up to 80%
Miniature SIP Package Style
Temperature Range: -40°C to+85°C
Internal SMD Construction
Industry Standard Pinout
No Heat sink Required
No External Component Required
RoHS Compliance
PRODUCT PROGRAM
Input
Part
Number
A0505M-1W
A0509M-1W
A0512M-1W
A0515M-1W
A1205M-1W
A1209M-1W
A1212M-1W
A1215M-1W
B0505LM-1W
B0509LM-1W
B0512LM-1W
B0515LM-1W
B1205LM-1W
B1209LM-1W
B1212LM-1W
B1215LM-1W
B2405LM-1W
B2409LM-1W
B2412LM-1W
B2415LM-1W
B2424LM-1W
24
21.6-26.4
12
10.8-13.2
5
4.5-5.5
12
10.8-13.2
5
4.5-5.5
Voltage (VDC)
Nominal
Range
Voltage
(VDC)
±5
±9
±12
±15
±5
±9
±12
±15
5
9
12
15
5
9
12
15
5
9
12
15
24
Output
Current (mA)
Max
±100
±56
±42
±33
±100
±56
±42
±33
200
111
83
67
200
111
83
67
200
111
83
67
42
Min
±10
±6
±5
±4
±10
±6
±5
±4
20
12
9
7
20
12
9
7
20
12
9
7
5
70
75
78
79
72
75
77
79
70
75
79
80
72
75
77
79
70
73
75
78
77
Efficiency
(%, Typ)
APPLICATIONS
The A_M-1W & B_LM-1W Series are
specially designed for applications where a
group of polar power supplies are isolated
from the input power supply in a distributed
power supply system on a circuit board.
These products apply to:
1) Where the voltage of the input power
supply is fixed (voltage variation
≤ ±10%);
2) Where isolation is necessary between
input
and
output
(isolation
voltage
≤1000VDC);
3) Where the regulation of the output voltage
and the output ripple noise are not
demanding.
Such as: purely digital circuits, ordinary low
frequency analog circuits, and IGBT power
device driving circuits.
ISOLATION SPECIFICATIONS
Item
Isolation voltage
Isolation resistance
Test conditions
Tested for 1 minute and 1mA max
Test at 500VDC
Min
1000
1000
Typ
Max
Units
VDC
MΩ
OUTPUT SPECIFICATION
MODEL SELECTION
B0505LM-1W
Rated Pow er
Package Style
Output Voltage
Input Voltage
Product Series
Item
Output power
Line regulation
For Vin change of 1%
10% to 100% full load(5V output)
10% to 100% full load(9V output)
Load regulation
10% to 100% full load(12V output)
10% to 100% full load(15V output)
10% to 100% full load(24V output)
Temperature drift
MORNSUN Science& Technology co.,Ltd.
Address:
2th floor 6th building, Hangzhou
Industrial District, Guangzhou, China
Tel: 86-20-38601850
Fax: 86-20-38601272
http://www.mornsun-power.com
Test Conditions
Min
0.1
Typ
Max
1
1.2
Units
W
10
8.3
6.8
6.3
5
15
10
10
10
10
0.03
%/°C
%
100% full load
20MHz Bandwidth(AXXXXM-1W)
20MHz Bandwidth(BXXXXLM-1W)
100% load, nominal input(5V,12V)
100% load, nominal input(24V)
50
75
100
500
Output voltage accuracy
Ripple & Noise*
Switching frequency
Converter
section, application notes.
See tolerance envelope graph
75
100
mVp-p
KHz
*
Test ripple and noise by
“parallel
cable” method. See detailed operation instructions at Testing of Power
MORNSUN reserves the copyright
Specifications subject to change without notice.
A_M-1W & B_LM-1W
A/1-2008
Page 1 of 2

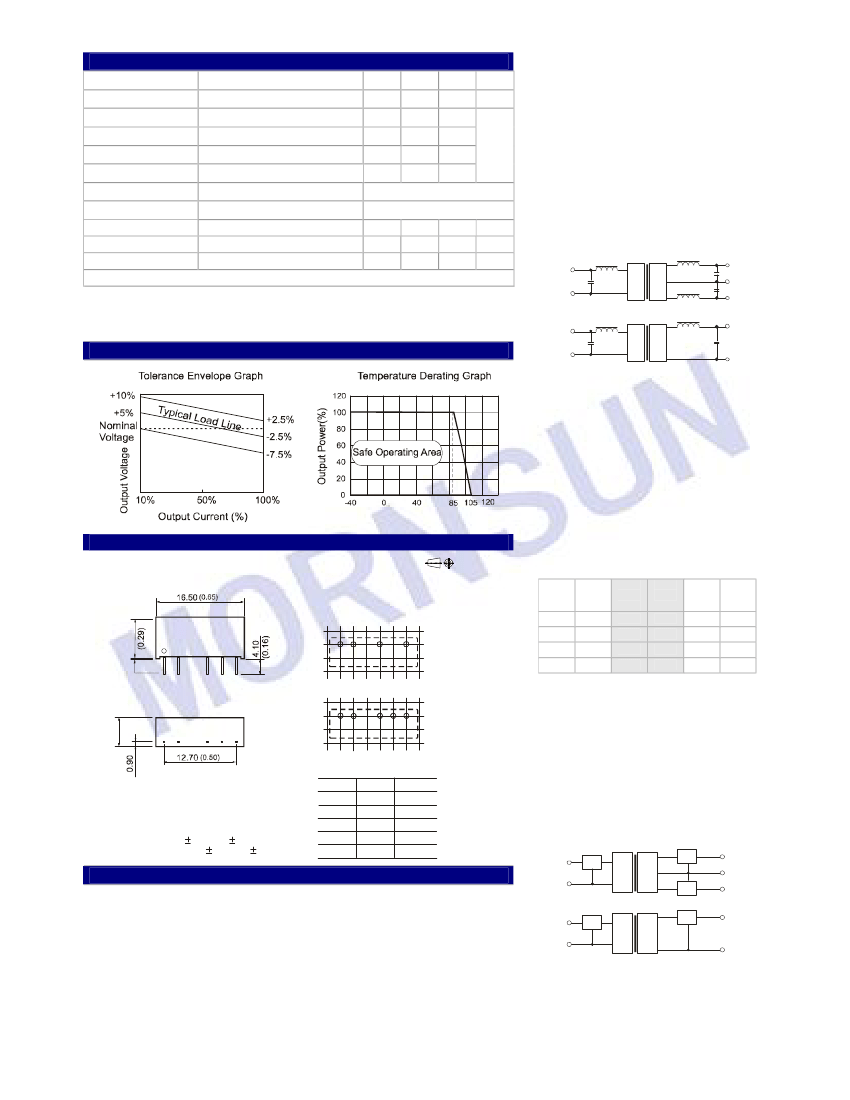

COMMON SPECIFICATION
Item
Storage humidity
Operating temperature
Storage temperature
Lead temperature
Temp. rise at full load
Cooling
Case material
Short circuit protection*
MTBF
Weight
*
Supply voltage must be discontinued at the end of short circuit duration.
Note:
1.All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output
load unless otherwise specified.
2. See below recommended circuits for more details.
Test Conditions
Min
Typ
Max
95
Units
%
Overload Protection
Under normal operating conditions, the output
circuit of these products has no protection against
overload. The simplest method is to connect a
self-recovery fuse in series at the input end or add a
circuit breaker to the circuit.
Recommended testing and application circuit
If you want to further decrease the input/output
ripple, an
“LC”
filtering network may be connected
to the input and output ends of the DC/DC
converter, see (Figure 1).
Dual Out put
Vin
Cin
L
L
-40
-55
15
1.5mm from case for 10 seconds
85
125
25
300
Free air convection
Plastic(UL94-V0)
1
S
K hours
2.1
g
°C
3500
+Vo
Cout
DC DC
GND
Singl e Output
L
L Cout
L
0V
-Vo
+Vo
Vin
Cin
TYPICAL CHARACTERISTICS
DC DC
(Figure 1)
Cout
GND
0V
It should also be noted that the inductance and the
frequency of the
“LC”
filtering network should be
staggered with the DC/DC frequency to avoid
mutual interference. However, the capacitance of
the output filter capacitor must be proper. If the
capacitance is too big, a startup problem might
arise. For every channel of output, provided the
Operating Temp.(
o
C)
safe
and
reliable
operation
is
ensured,
the
recommended capacitance of its filter capacitor
OUTLINE DIMENSIONS & PIN CONNECTIONS
First Angle Projection
RECOMMENDED FOOTPRINT
Top
view,grid:2.54*2.54mm(0.1 *0.1inch),
diameter:1.00mm(0 .039inch)
Single
7.50
1 2
0.50
(0.020)
4
6
sees (Table 1).
EXTERNAL CAPACITOR TABLE (Table 1)
Vin
(VDC)
5
12
24
-
Cin
(uF)
4.7
2.2
1
-
Single
Vout
(VDC)
5
9
12
15
Cout
(uF)
10
4.7
2.2
1
Dual
Vout
(VDC)
±5
±9
±12
±15
Cout
(uF)
4.7
2.2
1
0.47
It’s not recommended to connect any external capacitor in
Dua l
the application field with less than 0.5 watt output.
4
5
6
6.00
(0.24)
1 2
1
(0.035)
2
4
5
6
Output Voltage Regulation and Over-voltage
Protection Circuit
The simplest device for output voltage regulation,
over-voltage and over-current protection is a linear
voltage regulator with overheat protection that is
connected to the input or output end in series
(Figure 2).
Du al Ou t pu t
Vin
RE G
RE G
FOOTPRINT DETAILS
Pin
Single
Dual
1
Vin
GND
0V
NC
+Vo
Vin
GND
-Vo
0V
+Vo
2
4
5
6
Note:
Unit:mm(inch)
Pin section :0.50*0.30mm(0.020*0.012inch)
Pin tolerances: 0.10mm( 0.004inch)
General tolerance s: 0.25mm( 0.010inch)
+Vout
0V
APPLICATION NOTE
Requirement on output load
To ensure this module can operate efficiently and reliably, During operation, the minimum
output load is
not less than 10%
of the full load, and that
this product should never be
operated under no load!
If the actual output power is very small, please connect a resistor
with proper resistance at the output end in parallel to increase the load, or use our company’s
products with a lower rated output power (A_M
–W2/B_LM-W2
series).
D C DC
GND
Si ng le O ut put
Vin
GND
RE G
RE G
RE G
-Vout
+Vout
D C DC
0V
(Figure 2)
No parallel connection or plug and play.
MORNSUN reserves the copyright
Specifications subject to change without notice.
A_M-1W & B_LM-1W
A/1-2008
Page 2 of 2
