SAW Bandpass Filter 242003B
1. Features
IF Bandpass Filter
High Attenuation
Single-Ended Operation
DIP Package
Maximum Storage Temperature Range : -40
℃
~ 85
℃
Electrostatics Sensitive Device (ESD)
2. Package Dimension
12.7±0.5
5.5max 6.0max
7.6±0.2
ITF 06A001
242003B
0.45±0.05
20.3±0.5
2.5±0.2
Package : D2012
Pin Configuration
1
Input
Output
Ground
Case ground
Dimensions shown are nominal in millimeters
Base : Fe(SPCC), Au plating over Ni plated
Cap : Cu & Cr Alloy, Ni Plated
Termination : Kovar, Au Plated
5
2, 4
3, 6
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
12.7±0.2
2.5±0.2
242003B
2006-05-02
NM6015-CS01
1/5
SAW Bandpass Filter 242003B
3. Specifications
Fo = 89.0 MHz
Terminating source impedance
Terminating load impedance
: 50Ω and matching network
: 50Ω and matching network
Minimum
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Amplitude Ripple (Fo +/- 9.75 MHz)
Group Delay Variation (Fo +/- 9.75 MHz)
Absolute Delay
Ultimate Rejection
Temperature Coefficient of Frequency
MHz
dB
MHz
MHz
MHz
dB
nsec
usec
dB
ppm/°C
Typical
Maximum
-
-
-
20.1
-
-
-
-
50
-
89
24.0
20.0
20.35
21.85
0.6
50
2.12
55
-72
-
26.0
-
-
22.0
1.0
100
-
-
-
Notes :
1)
2)
3)
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration at room temperature
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
242003B
2006-05-02
NM6015-CS01
2/5
SAW Bandpass Filter 242003B
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
L1
L2
Output
50
Ω
C1
C2
L1 = 100nH, L2 = 82nH
C1 = 10pF, C2 = 30pF
5. Marking Configuration
ITF
1)
06A001
2)
242003B
3)
1) Manufacturer name
2) Lot Number
3) Part Number
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
242003B
2006-05-02
NM6015-CS01
3/5

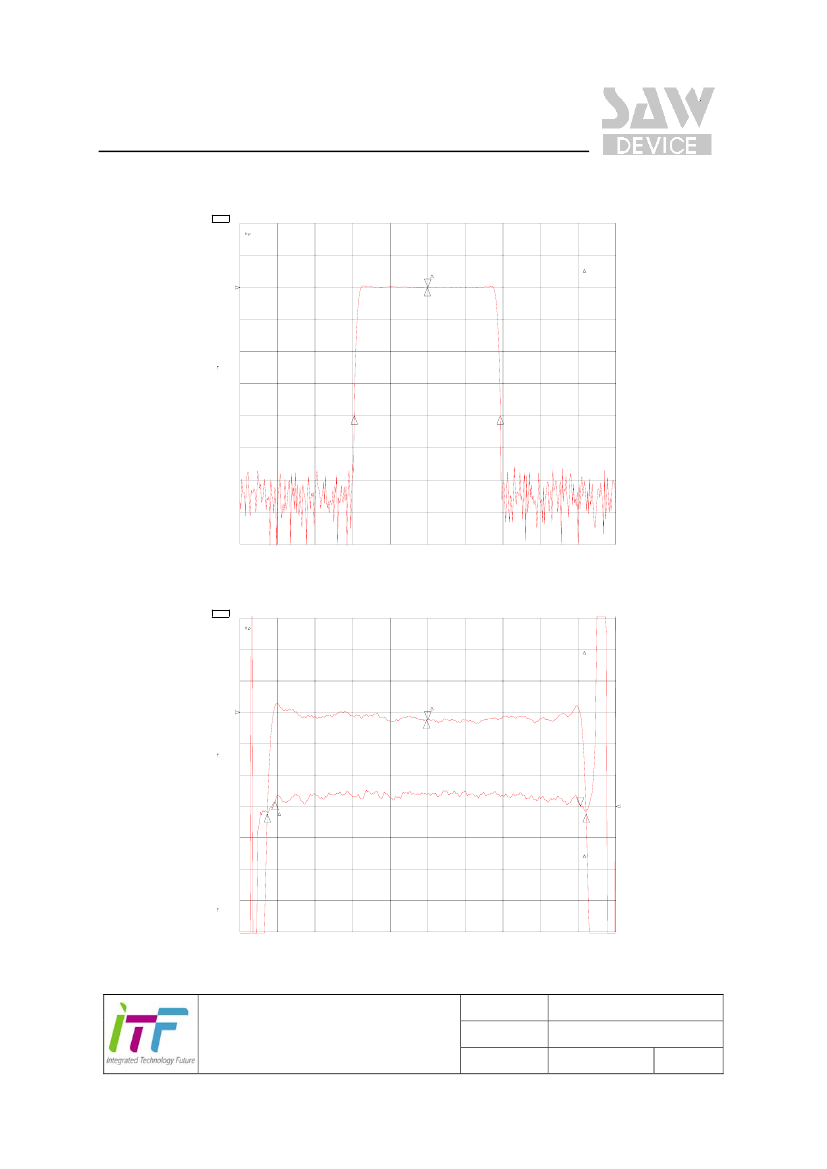

SAW Bandpass Filter 242003B
6. Typical Performance ( at +25℃ )
CH1
S21
LOG
10 dB/
REF -23.86 dB
25 Apr 2006 15:00:25
1: 0. 0000 dB
0. 000 000 MHz
CH1 Markers
1
Cor
2
BW
:
cent :
21. 760267
88. 923320
MHz
MHz
REF=1
Q: 4. 0865
1_loss : -23 . 812 dB
3
4
CENTER 89. 000 000 MHz
SPAN 56. 000 000 MHz
CH1
CH2
S21
S21
LOG
DEL
1 dB/
50 ns/
REF -23.55 dB
REF 2.11 us
25 Apr 2006 15:02:24
1: 0. 0000 dB
0. 000 000 MHz
3: -7 . 5656 ns
19. 500 000 MHz
CH1 Markers
BW
:
Cor
cent :
20. 351527
88. 931043
MHz
MHz
REF=1
Q: 4. 3697
1
2
1_loss : -23 . 798 dB
3
Smo
Cor
3
CH2 Markers
mean : 2. 1267 us
s. dev : 4. 9732 ns
p-p : 27. 339 ns
2
4
REF=2
CENTER 89. 000 000 MHz
SPAN 24. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
242003B
2006-05-02
NM6015-CS01
4/5

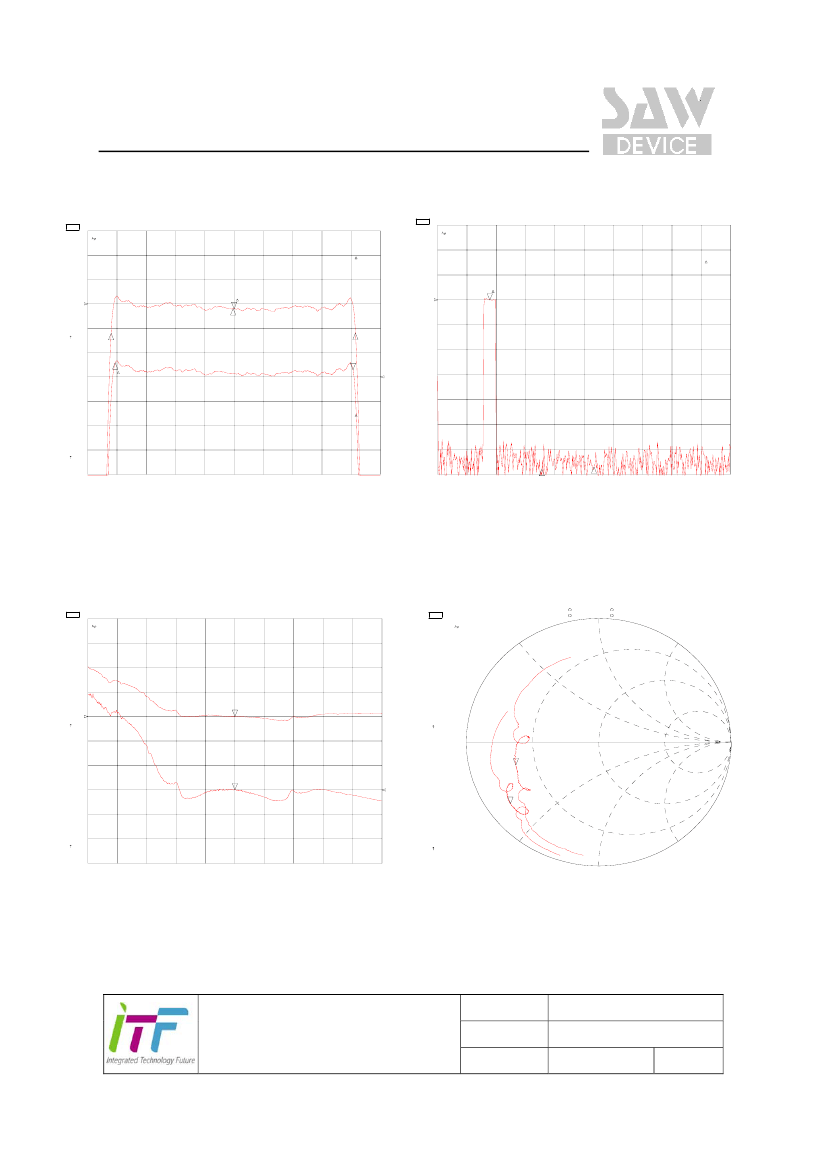

SAW Bandpass Filter 242003B
CH1
CH2
S21
S21
LOG
LOG
1 dB/
1 dB/
REF -23.59 dB
REF -23.93 dB
25 Apr 2006 15:01:49
1: 0. 0000 dB
0. 000 000 MHz
3: - . 29130 dB
19. 500 000 MHz
CH1
S21
LOG
10 dB/
REF -23.37 dB
25 Apr 2006 15:04:59
1: 0. 0000 dB
0. 000 000 MHz
CH1 Markers
BW
:
Cor
cent :
20. 032291
88. 932480
MHz
MHz
REF=1
CH1 Markers
2: -73 . 288 dB
89. 0000 MHz
1
3: -66 . 918 dB
178 . 000 MHz
REF=1
Q: 4. 4395
1
2
1_loss : -23 . 796 dB
3
4
3
2
Cor
CH2 Markers
mean : -23 . 704 dB
s. dev : . 12120 dB
p-p : . 63140 dB
REF=2
CENTER 89. 000 000 MHz
SPAN
24. 000 000 MHz
START
. 010 000 MHz
2
3
STOP 500 . 000 000 MHz
CH1
CH2
S11
S22
SWR
SWR
10 /
10 /
REF 4.778
REF 10.96
25 Apr 2006 15:04:05
1: 4. 7844
89. 000 000 MHz
2: 10. 961
89. 000 000 MHz
CH1
CH2
S11
S22
1 U FS
1 U FS
1: 10. 664
2: 5. 0391
-6 . 9404
-16 . 408
25 Apr 2006 15:04:17
257 . 66 pF
89. 000 000 MHz
108 . 99 pF
89. 000 000 MHz
Cor
Cor
1
1
Cor
2
Cor
2
CENTER 89. 000 000 MHz
SPAN
56. 000 000 MHz
CENTER 89. 000 000 MHz
SPAN 56. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
242003B
2006-05-02
NM6015-CS01
5/5
