AWP26-7241-T-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> AWP26-7241-T-R

AWP26-7241-T-R: Descriptionconn socket idc 26pos W/str gold; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric Compare View All

AWP26-7241-T-R Overview

conn socket idc 26pos W/str gold

AWP26-7241-T-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ASSMANN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.234 inch
subject depth	0.413 inch
body length	1.48 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact point gender	FEMALE
Contact material	BRASS/PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	AWP
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	W/STRAIN RELIEF
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	26

Preview

Download Datasheet

View All

37.58±0.30

3.75

5.05

6.00

13.10

3.00

3.55

37.58±0.30

10.50

5.95

1.27

2.40

37.58±0.30

Material:

5.95

6.95

• Insulator: P.B.T. 30% Glass Fiber, UL 94V-0

• Contact Material: Phosphor Bronze, Gold flash

over Nickel

Electrical:

37.58±0.30

30.48

3.60

6.95

5.95

• Current Rating: 1Amp

2.54

• Dielectric Withstanding: 500V AC

• Operating Temperature: -40°C ~ +85°C

Unit: MM±0.20MM

Scale

1:1

Drawn

Approved

10.19.11

Name

Chappell

Item No.

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

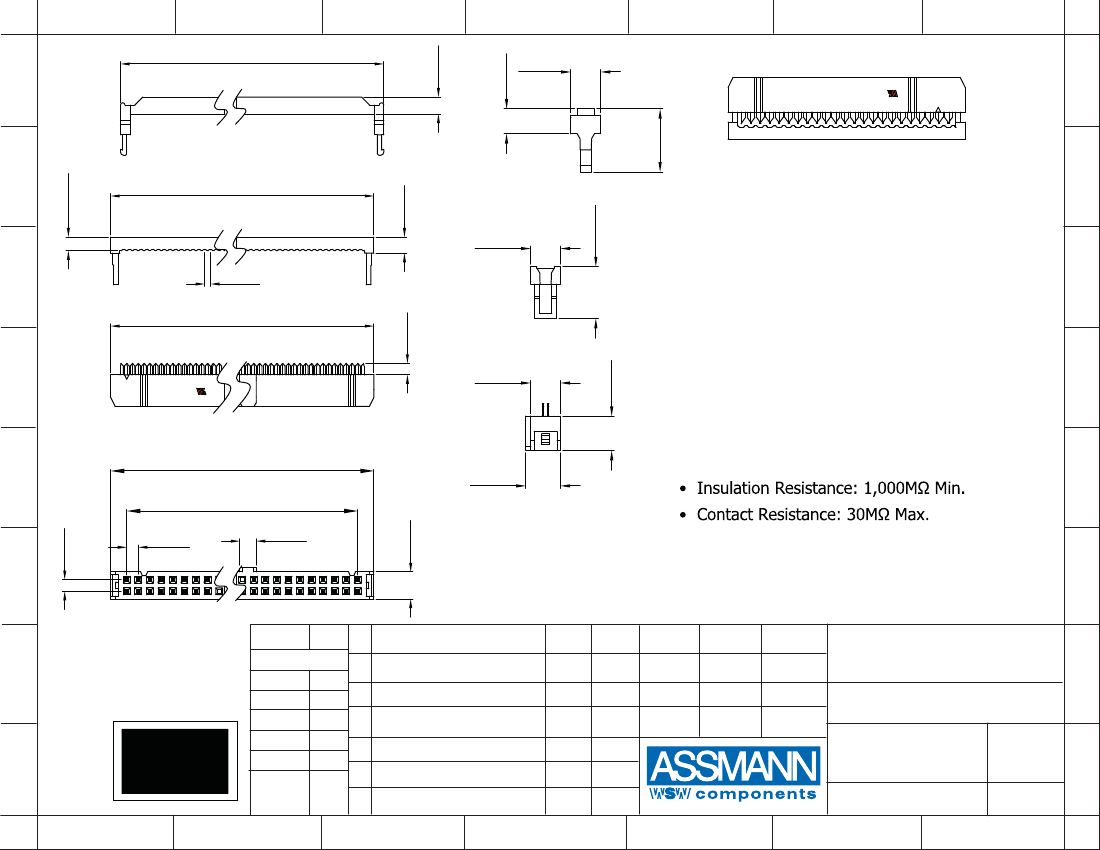

AWP26-7241-T-R

Title

IDC-Socket - 2.54MM Pitch,

Gold Flash, Central Lug w/Strain Relief,

26 Contacts

Drawing No.

RoHS

Complaint

Angle

rev00

Modification

Date

Name

Replace

Sheet

AWP26-7241-T-R Related Products

	AWP26-7241-T-R
Description	conn socket idc 26pos W/str gold
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ASSMANN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.234 inch
subject depth	0.413 inch
body length	1.48 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact point gender	FEMALE
Contact material	BRASS/PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	AWP
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	W/STRAIN RELIEF
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	26
