TC9270F datasheet, PDF - EEWORLD Datasheet

TC9270F: DescriptionTOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC; CategoryAnalog mixed-signal IC converter; File Size679KB，19 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

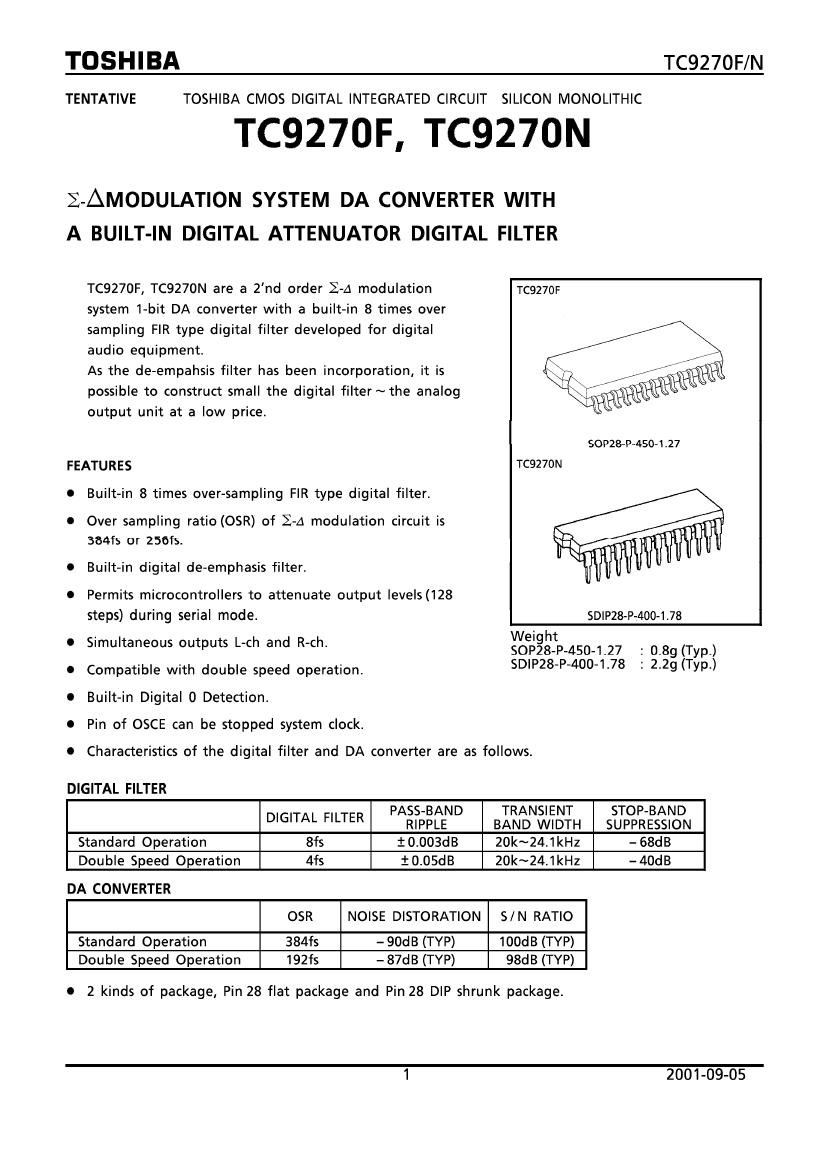

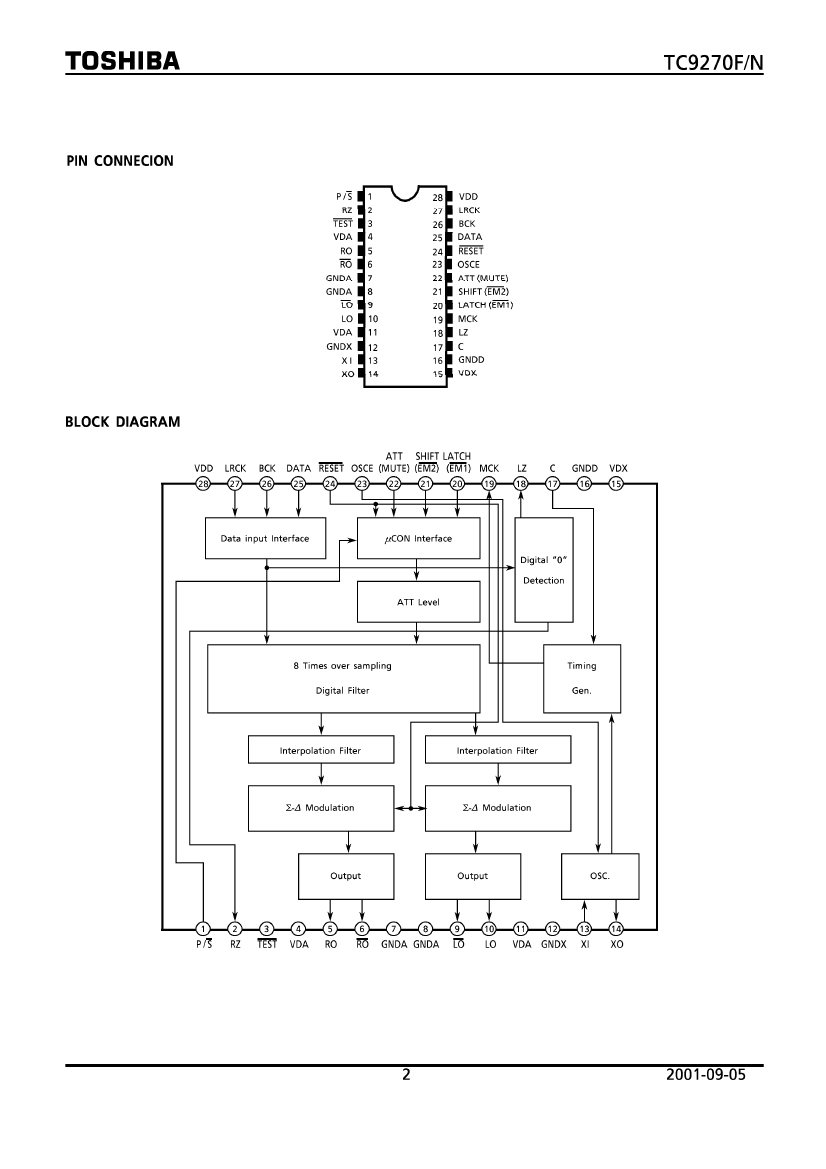

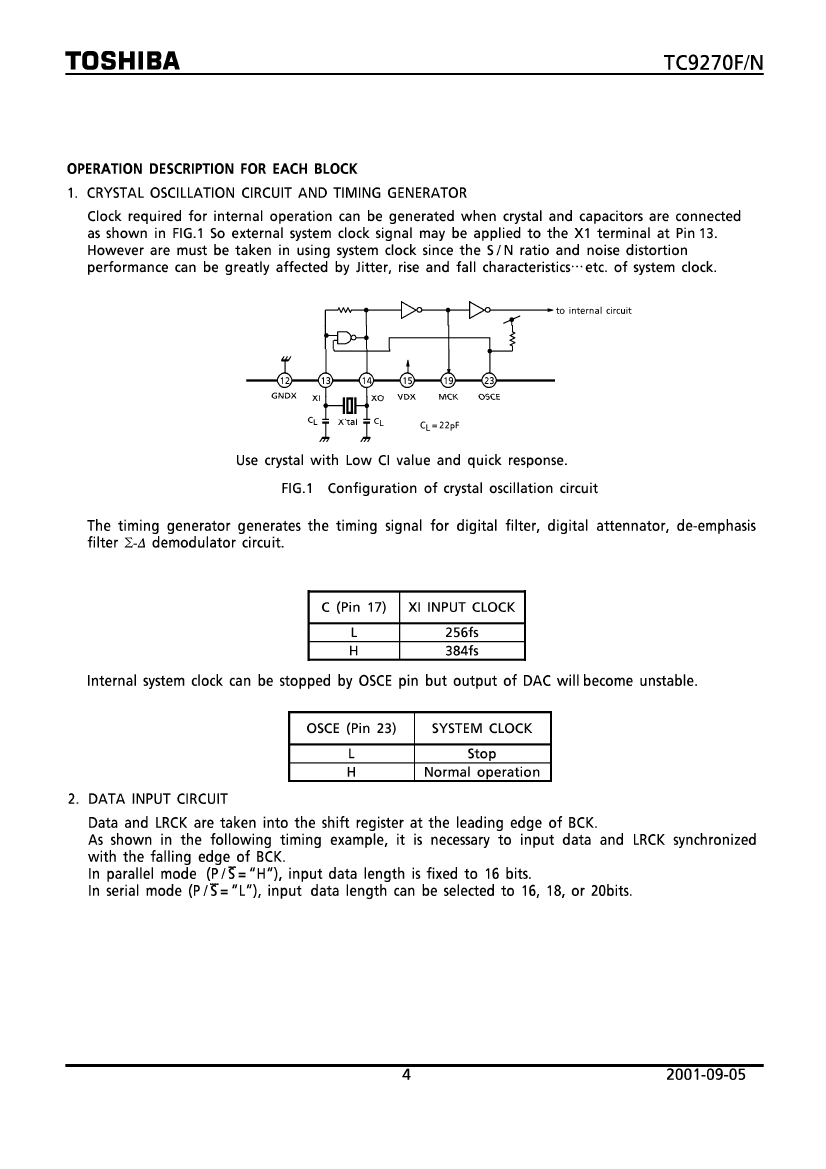

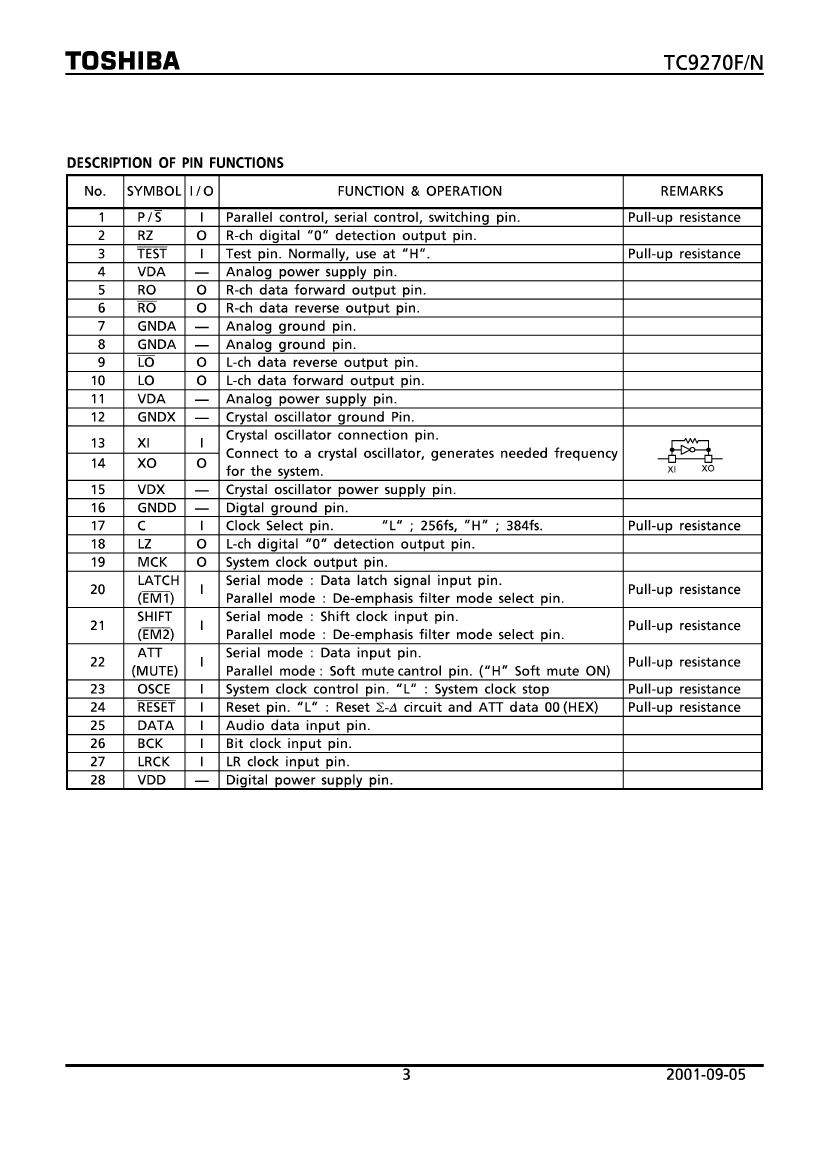

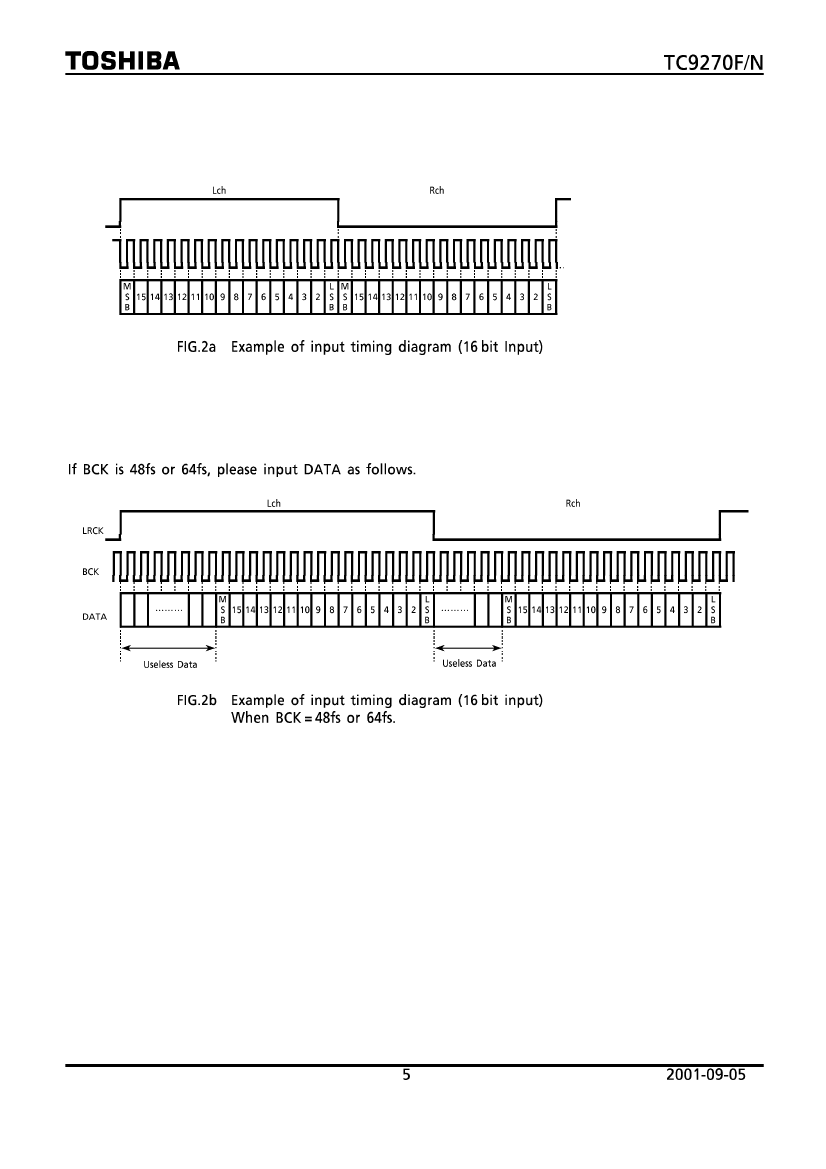

TC9270F Overview

TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	28
Reach Compliance Code	unknow
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	SERIAL
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	18.5 mm
Number of digits	1
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.7 mm
Nominal supply voltage	5 V
surface mount	YES
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	8.8 mm

	TC9270F	TC9270N
Description	TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC	TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	DIP
package instruction	SOP,	SDIP,
Contacts	28	28
Reach Compliance Code	unknow	unknow
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY
Input format	SERIAL	SERIAL
JESD-30 code	R-PDSO-G28	R-PDIP-T28
JESD-609 code	e0	e0
length	18.5 mm	25.6 mm
Number of digits	1	1
Number of functions	1	1
Number of terminals	28	28
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SDIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.7 mm	4.1 mm
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
Temperature level	OTHER	OTHER
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.778 mm
Terminal location	DUAL	DUAL
width	8.8 mm	10.16 mm
