SS-I
Features
• Sleek, low-profile design.
• Addressable-analog communica-
tion.
• Stable communication technique
with noise immunity.
• Low standby current.
• Two-wire SLC connection.
• Rotary, decimal addressing (1 –
99).
• Optional remote, single-gang LED
accessory (RA400Z).
• Dual LED design provides 360°
viewing angle.
• Visible bicolor LEDs blink green
every time the detector is ad-
dressed, and illuminate steady red
on alarm.
• Remote test feature from the
panel.
• Built-in functional test switch
activated by external magnet.
• Built-in tamper-resistant feature.
• Sealed against back pressure.
• Constructed of off-white
Bayblend®, designed to commer-
cial standards, and offers an
attractive appearance.
• 94-5V plastic flammability rating.
• SEMS screws for wiring of the
separate base.
• Optional relay, isolator, or sounder
bases.
• Backward-compatible.
Intelligent Addressable Plug-In
Ionization Smoke Detector
Description
Gamewell’s
intelligent
SmartScan
TM
plug-in smoke
detector with integral commu-
nication provides features
that surpass conventional de-
tectors. Detector sensitivity
can be programmed in the
control panel software. Sen-
sitivity is continuously moni-
tored and reported to the
panel. Point ID capability al-

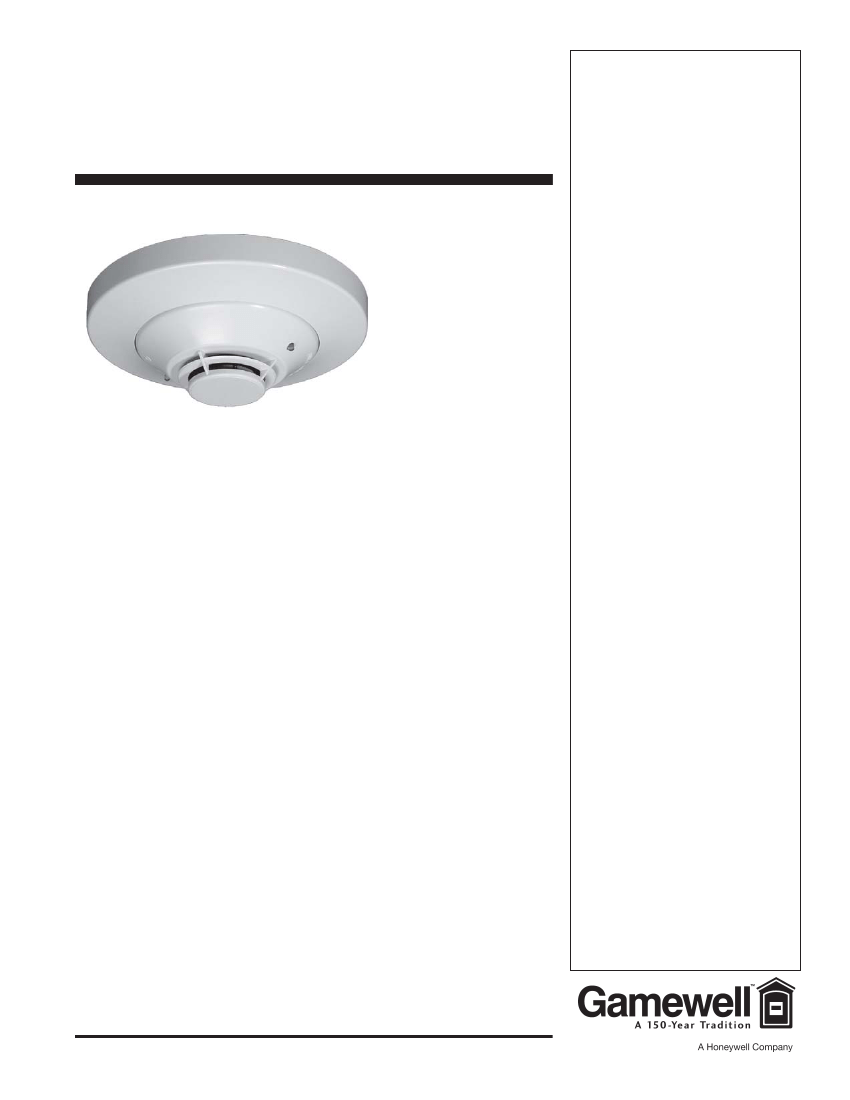

SS-I with SS-B6 base
lows each detector’s address
to be set with decade address
switches, providing exact de-
tector locations for selective maintenance when chamber contamination reaches
an unacceptable level. The
SS-I ionization detector
incorporates a unique single-
source, dual-chamber design to respond quickly and dependably to a broad range of
fires. The SS-I detector is compatible with Gamewell’s 602, 610, 632, 654 and 658
FACPS with a SmartScan
TM
SLC.
Installation
The SS-I plug-in detector uses a separate base to simplify installation, service, and
maintenance. A special tool allows maintenance personnel to plug in and remove
detectors without using a ladder.
Mount base on an electrical backbox which is at least 1.5" (3.81 cm) deep. Suitable
mounting back boxes include:
• 4.0" (10.16 cm) square box.
• 3.5" (8.89 cm) or 4.0" (10.16 cm) octagonal box.
• Single-gang box
(except for relay or isolator base).
•
With B501BH or B501BHT base,
use a 4.0" (10.16 cm) square box.
•
With B224RB or B224BI base,
use a 3.5" (8.89 cm) octagonal box, or a 4.0"
(10.16 cm) octagonal or square box.
NOTES: 1)
Because of the inherent supervision provided by the SLC loop,
end-of-
line resistors
are not required. Wiring “T-taps” or branches are permitted for Style 4
(Class “B”) wiring.
2)
When using
relay or sounder bases,
consult data sheet CS-
2464 (SS-LI) for device limitations between isolator modules and isolator bases.
Listings
Listings and approvals below
apply to the SS-I Intelligent Plug-In
Ionization Smoke Detector. In
some cases, the detector may not
be listed by certain approval
agencies, or listing may be in
process. Consult factory for latest
listing status.
• UL Listed: file S1195.
• CSFM approved:
file 7271-1288:168.
Bayblend®
is a registered trademark of Bayer Corporation.
SS-I
CS-2459 09/01/06
Page 1 of 2
Product Line Information
SS-I:
Low-profile intelligent ionization
M02-09-00:
Test magnet with telescope
smoke detector. Must be mounted to one stick.
of the bases listed below.
XR2B:
Detector removal tool. Allows
Bases:
installation and/or removal of SS-I
detector heads from base in high ceiling
SS-B6:
Standard U.S. low-profile base,
installations.
UL Listing.
B501BP:
Standard European flangeless
T55-127-000:
Detector removal tool
without pole.
base, pkg. of 10.
XP-4:
Extension pole for XR2B. Comes
B501BH:
Sounder base, includes B501
in three 5-ft. sections.
base above.
B501BHT:
Same as B501BH, but
Detector Guards:
includes temporal sounder.
NOTE:
The following guards are not UL
B224RB:
Intelligent relay base.
listed with the SS-I detectors. Consult AHJ.
STI 9601:
Low-profile, flush-mount smoke
Accessories:
detector guard, wire.
RA400Z:
Remote LED annunciator. 3 –
32 VDC. Fits U.S. single-gang electrical
STI 9602:
Low-profile, surface-mount,
smoke detector guard, wire.
box.
Supported by SS-B6 and B501
STI 9609:
High-profile, flush-mount, smoke
bases only.
SMK400:
Surface mounting kit provides detector guard, wire.
STI 9605:
High-profile, surface-mount,
for entry of surface wiring conduit.
For
smoke detector guard, wire.
use with B501 base
only.
STI 9604:
Flush-mount heat detector
RMK400:
Recessed mounting kit.
For
guard, wire.
use with B501 base
only.
SMB600:
Surface mounting kit for use
STI 9610:
Surface-mount heat detector
with SS-B6.
guard, wire.
BCK-200B:
Black detector covers, box of
STI-8200-SS:
Flush-mount stainless
10. Use with SS-I.
steel smoke detector guard
M02-04-01:
Test magnet.
STI-8230-SS:
Surface-mount stainless
steel smoke detector guard
Specifications
Size
2.1" (5.3 cm) high x 4.1" (10.4 cm)
diameter installed in B501 base, 6.1"
(15.5 cm) diameter installed in SS-B6
base.
Shipping weight
5.4 oz. (154 g).
Operating temperature
0°C to 49°C (32°F to 120°F).
UL-Listed velocity range:
ION:
0 – 1200 ft./min. (365.76 m/min.).
Relative humidity
10% – 93% noncondensing.
DETECTOR SPACING:
Gamewell recommends spacing detec-
tors in compliance with NFPA 72. In low
airflow applications with smooth ceilings,
space detectors 30 feet (9.144 m). For
specific information regarding detector
spacing, placement, and special applica-
tions, refer to NFPA 72.
System Smoke
Detector Application Guide,
document
A05-1003, is available at
systemsensor.com.
ELECTRICAL SPECIFICATIONS:
Voltage range
15 - 32 volts DC peak.
Standby current (max. avg.)
200 µA @ 24 VDC (without communica-
tion); 300 µA @ 24 VDC (one communi-
cation every 5 seconds with LED
enabled).
LED current (max.)
6.5 mA @ 24 VDC (“ON”).
BASES AVAILABLE:
SS-B6:
6.1" (15.5 cm) diameter.
B501:
4.1" (10.4 cm) diameter.
B501BH or B501BHT:
Sounder base
assembly. Includes B501 base.
B224RB Relay Base:
Screw terminals:
up to 14 AWG (2.0 mm²).
Relay type:
Form-C.
Rating:
2.0 A @ 30 VDC
resistive; 0.3 A @ 110 VDC inductive; 1.0
A @ 30 VDC inductive.
Dimensions:
6.2" (15.748 cm) x 1.2" (3.048 cm).
B224BI Isolator Base:
Dimensions:
6.2" (15.748 cm) x 1.2" (3.048 cm).
Maximum:
25 devices between isolator
bases.

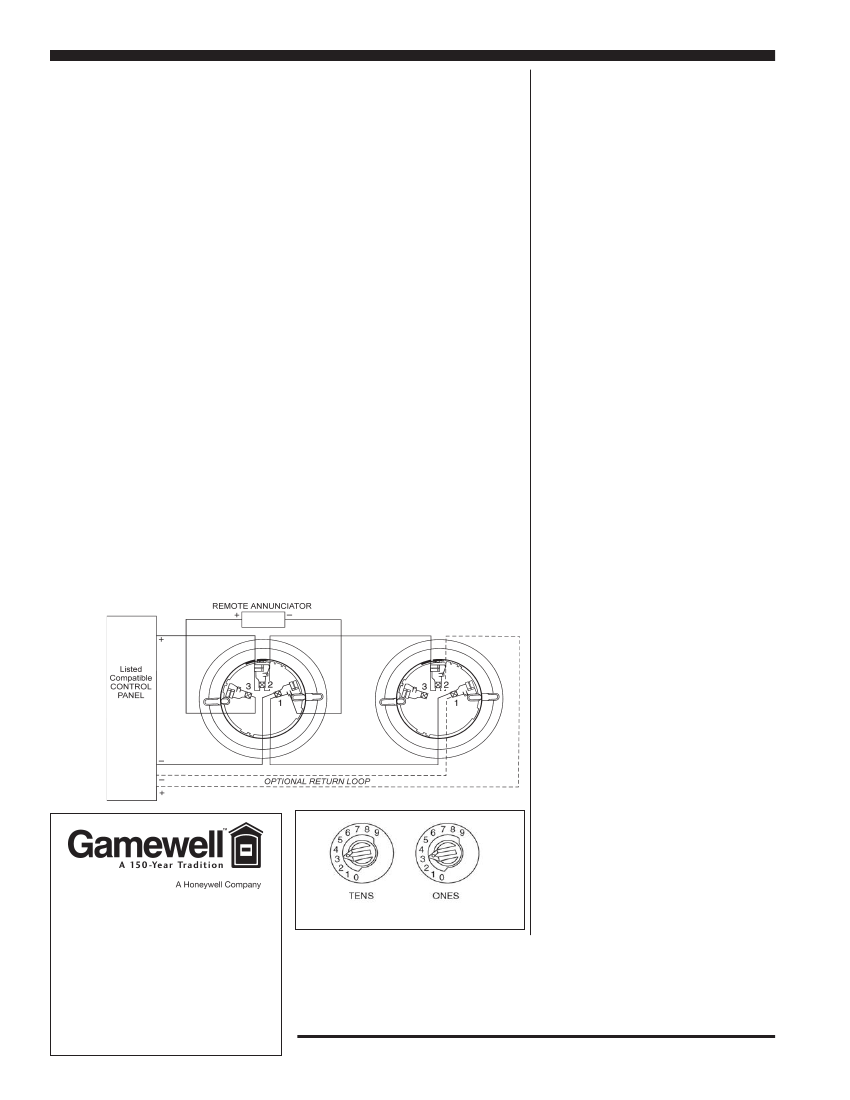

Wiring Diagrams
Gamewell-FCI
12 Clintonville Road
Northford, CT 06472-1610
Phone: 203-484-7161
Fax: 203-484-7118
www.gamewell-fci.com
A Honeywell Company
© 2006 Gamewell-FCI
Address dial on back of detector.
Specifications and wiring information are provided for information only and are believed
to be accurate. Gamewell-FCI assumes no responsibility for their use.
Data and design are subject to change without notice. Installation and wiring instructions
shipped with the product shall always be used for actual installation. For more
information, contact Gamewell-FCI.
Page 2 of 2
SS-I
CS-2459
09/01/06
