3502F

Description
Bridge Rectifier Diode, 3 Phase, 50A, 200V V(RRM), Silicon
File Size172KB,2 Pages
ManufacturerVOLTAGE MULTIPLIERS INC.
Websitehttp://www.voltagemultipliers.com/
Download Datasheet Parametric Compare View All

3502F Overview

Bridge Rectifier Diode, 3 Phase, 50A, 200V V(RRM), Silicon

3502F Parametric

Parameter NameAttribute value
Objectid1940935488
package instructionR-XUFM-D5
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationBRIDGE, 6 ELEMENTS
Diode component materialsSILICON
Diode typeBRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)1.5 V
JESD-30 codeR-XUFM-D5
Maximum non-repetitive peak forward current375 A
Number of components6
Phase3
Number of terminals5
Maximum operating temperature150 °C
Maximum output current50 A
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum repetitive peak reverse voltage200 V
Maximum reverse recovery time0.15 µs
surface mountNO
Terminal formSOLDER LUG
Terminal locationUPPER

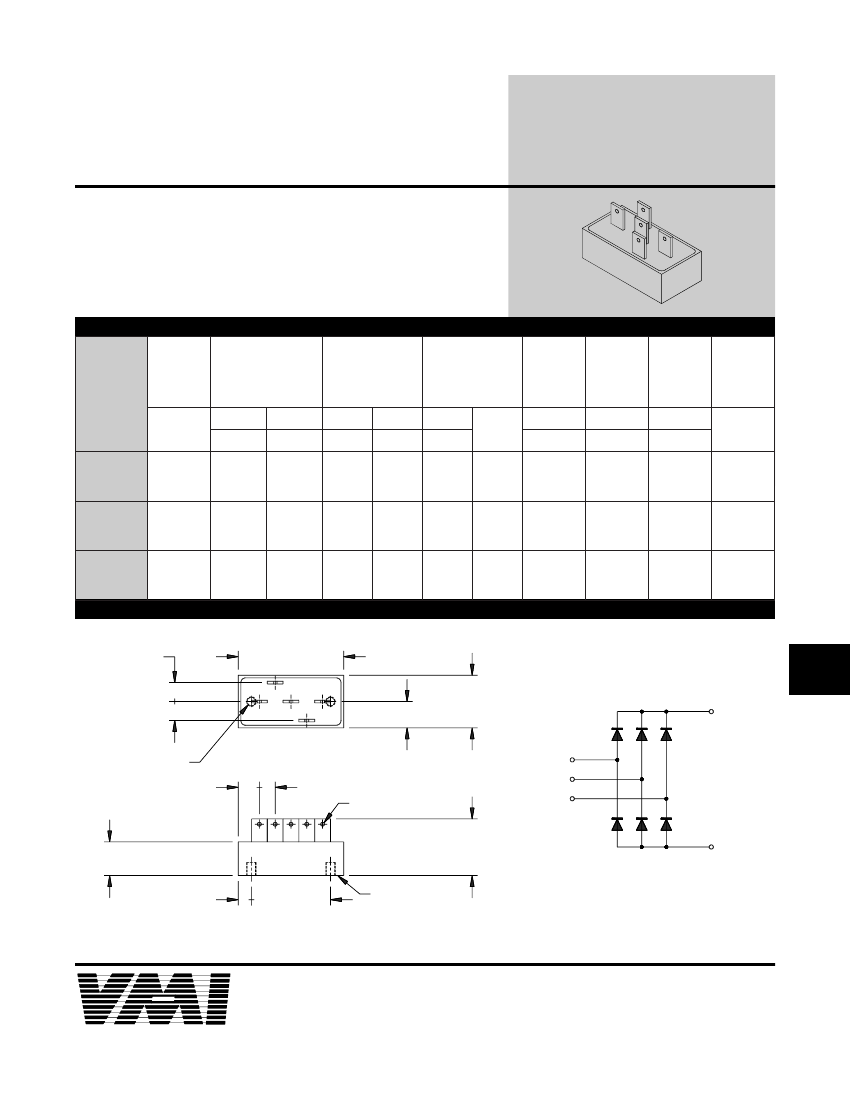

200 V - 1,000 V Three Phase Bridge
40.0 A - 60.0 A Forward Current
70 ns - 3000 ns Recovery Time
3502 - 3510
3502F - 3510F
3502UF - 3510UF
ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS
Part Number
Working
Reverse
Voltage
(Vrwm)
Average
Rectified
Current
@TC
(Io)
55°C
Volts
3502
3506
3510
3502F
3506F
3510F
3502UF
3506UF
3510UF
Amps
100°C
Amps
Reverse
Current
@ Vrwm
(Ir)
25°C
µA
100°C
µA
25°C
Volts
Amps
Forward
Voltage
1 Cycle
Surge
Current
tp=8.3ms
(Ifsm)
25°C
Amps
Repetitive
Surge
Current
(Ifrm)
25°C
Amps
Reverse
Recovery
Time
(1)
(Trr)
25°C
ns
°C / W
Thermal
Impd.
(Vf)
u
J-C
200
600
1000
200
600
1000
200
600
1000
60.0
60.0
60.0
50.0
50.0
50.0
40.0
40.0
40.0
44.0
44.0
44.0
37.0
37.0
37.0
29.0
29.0
29.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
75
75
75
75
75
75
75
75
75
1.1
1.1
1.2
1.5
1.5
1.8
1.7
1.7
2.1
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
375
375
375
375
375
375
375
375
375
70
70
70
70
70
70
70
70
70
3000
3000
3000
150
150
150
70
70
70
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
(1)Trr Testing: If=0.5A, Ir=1.0A, Irr=0.25A *Op. Temp. & Stg. Temp. = -55°C to +150°C Isolation Voltage: 2000V
.36(9.14)
(2 PL)
2.00(50.8)
+
.500(12.7)
10-32 UNC-2B
.25(6.35) DP
.400
(2PL)
(10.16)
AC
AC
1.00
(25.4)
11
+
AC
AC
AC
_
.30(7.62) (5PL)
.071(1.80) DIA.
_
AC
.64(16.26)
.250(6.35)
1.500
(38.1)
1.25(31.75)
MAX.
Aluminum
Case
Dimensions: In. (mm) • All temperatures are ambient unless otherwise noted. • Data subject to change without notice.
VOLTAGE MULTIPLIERS INC.
8711 W. Roosevelt Ave.
Visalia, CA 93291
TEL
559-651-1402
FAX
559-651-0740
www.voltagemultipliers.com
