AND4OA
Ultra Bright LED Lamps: Type 2
Weight: 2.0 mg
Unit: mm
AND4OA
Cathode
Index
1.25
1.1
0.6
InGaAlP Ultra Bright Orange Light
Emission
Surface Mount Package
Features
• RoHS Compliant
• Small package size
• 2.0 (l) x 1.25 (w) x 1.1 (h) size
• Suitable for DIP and REFLOW soldering
• Recommended Forward Current: 10 mA
Maximum Ratings (T
a
= 25°C)
Characteristics
Symbol
I
F
V
R
P
D
T
Opr
T
Stg
2.0
1.4
Rating
25
4
62.5
-30 to 85
-30 to 85
Unit
mA
V
mW
°C
°C
0.4±0.2
Forward Current
Reverse Voltage
Power Dissipation
Polarity
R0.2
Operating Temperature Range
Storage Temperature Range
Electro-Optical Characteristics (T
a
= 25°C)
Characteristics
Forward Voltage
Reverse Current
Luminous Intensity
Peak Emission Wavelength
Spectral Line Half Width
Dominant Wavelength
Full Viewing Angle
Precaution
Symbol
V
F
I
R
I
V
l
P
∆λ
λ
d
θ
Test Condition
I
F
= 20 mA
V
R
= 4 V
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
V
= 1/2 Peak
Minimum
–
–
27
–
–
–
–
Typical
2.0
–
60
612
15
605
140
Maximum
2.8
100
–
–
–
–
–
Unit
V
µA
mcd
nm
nm
nm
degree
Please be careful of the following:
1. Manual soldering: maximum temperature of iron tip: 260°C max.
Soldering time: within 5 sec. per solder-land
Soldering portion of lead: up to 1.6 mm from the body of the device
2. Reflow solder: recommended condition is as follows:
10 sec. max.
Temperature
140 - 160°C
230°C max.
Product specifications contained herein may be
changed without prior notice. It is therefore
advisable to contact Purdy Electronics before
proceeding with the design of equipment
incorporating this product.
The following soldering patterns are
recommended for reflow and dip soldering
Reflow
Dip
1.75
1.25
1.1
1.25
6/12/07
more than 2 min.
Time
4°C/sec.
max.
1.25
1.1
1.25
Purdy Electronics Corporation • 720 Palomar Avenue • Sunnyvale, CA 94085
Tel: 408.523.8200 • Fax: 408.733.1287 • sales@purdyelectronics.com • www.purdyelectronics.com
1.1
AND4OA

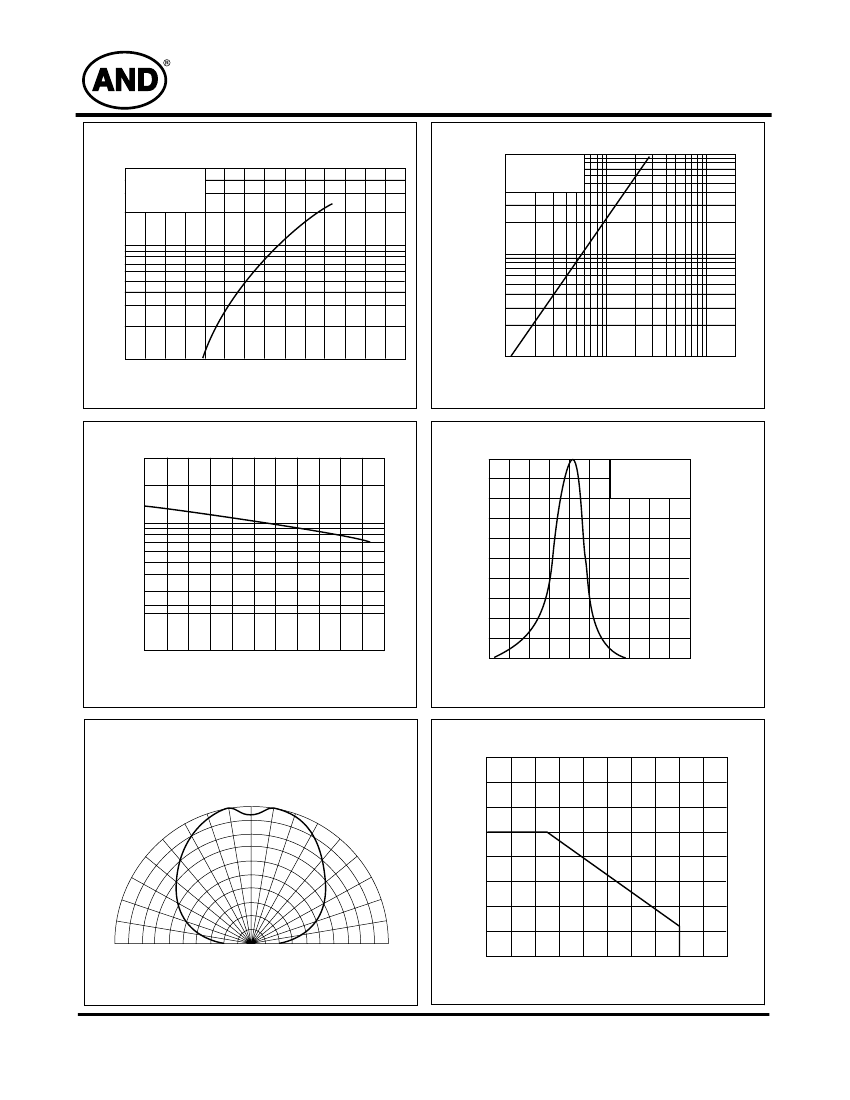

InGaAlP Ultra Bright Orange Light Emission
I
F
– V
F
50
Forward Current I
F
(mA)
30
Luminous Intensity I
V
(mcd)
Ultra Bright LED Lamps: Type 2
I
V
– I
F
100
50
30
T
a
= 25°C
T
a
= 25°C
10
5
3
10
5
3
1
1.5
1
1.6
1.7
1.8
1.9
2.0
2.1
2.2
1
3
Forward Voltage V
F
(V)
10
5
30 50
Forward Current I
F
(mA)
100
I
V
– T
C
3
Relative Luminous Intensity
1.0
Relative Luminous Intensity – Wavelength
I
F
= 20 mA
T
a
= 25°C
Relative Luminous Intensity
0.8
1
0.5
0.3
0.6
0.4
0.2
0
570
0.1
-20
0
20
40
60
80
590
610
630
650
670
Case Temperature T
C
(°C)
Wavelength
λ
(nm)
Radiation Pattern
40
10°
0°
Ta = 25°C
20°
30°
40°
50°
60°
70°
80°
90°
0
0.2
0.4
0.6
0.8
0
0
Allowable Forward Current I
F
(mA)
I
F
– T
a
20°
30°
40°
50°
60°
70°
80°
90°
10°
30
20
10
20
40
60
80
Ambient Temperature T
a
(°C)
100
Purdy Electronics Corporation • 720 Palomar Avenue • Sunnyvale, CA 94085
Tel: 408.523.8200 • Fax: 408.733.1287 • sales@purdyelectronics.com • www.purdyelectronics.com
6/12/07
