AND190HGP
Ultra Bright LED Lamps: Type 3
Weight: 1.0 g
Unit: mm

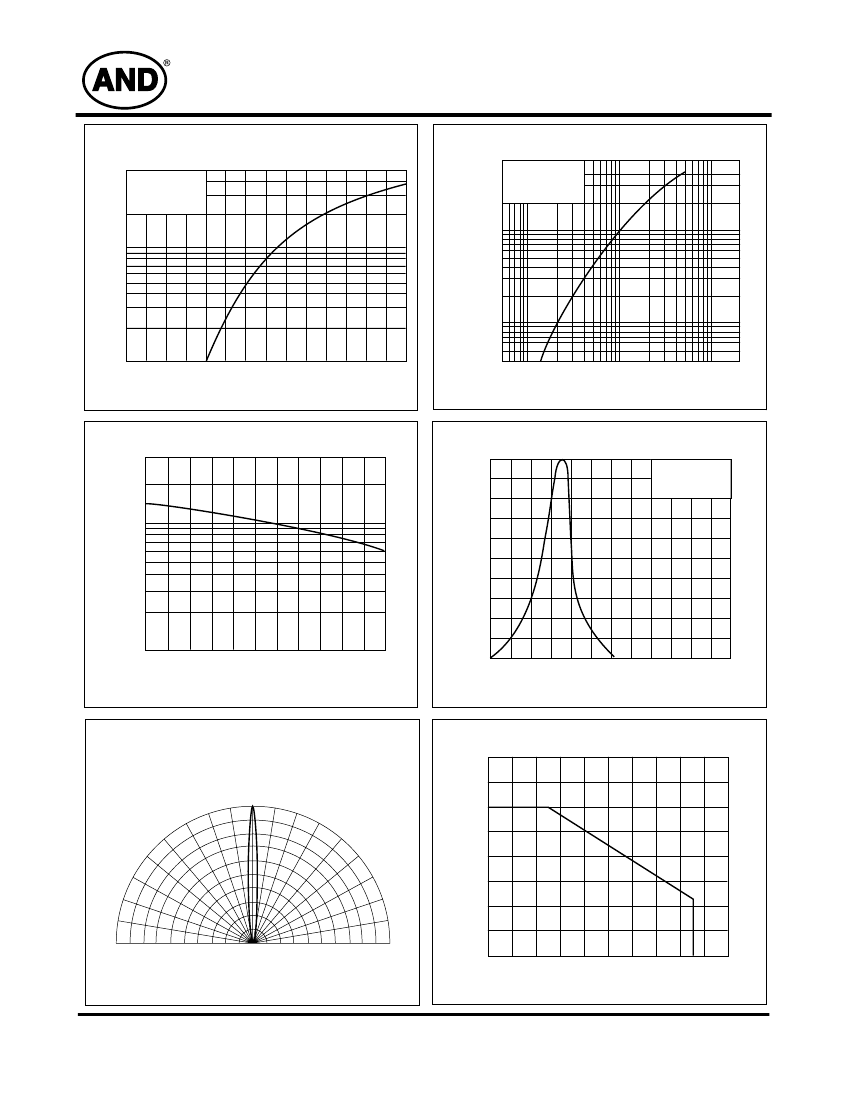

AND190HGP
InGaAlP High Brightness Green Light Emission
T-3 Package (10 mm)
Features
• New emission material (InGaAlP) green LED
• Peak wavelength (
λ
p = 574 nm) high bright emission
• All plastic mold type, clear colorless lens
• Low drive current, (forward current = 2 to 20 mA)
• Excellent On-Off contrast ratio
• Fast response time, capable of pulse operation
• High power luminous intensity
• Suitable for Outdoor Message Signboards
• RoHS Compliant
Maximum Ratings (T
a
= 25°C)
Characteristics
2.54
13.5
0.5
1.5 TYP
10.0
2.0
24.0 MIN.
11.0
Symbol
I
F
V
R
P
D
T
Opr
T
Stg
Rating
30
4
125
-25 to 85
-25 to 100
Unit
mA
V
mW
°C
°C
Forward Current
Reverse Voltage
0.5
Power Dissipation
1. Anode
2. Cathode
1
2
Operating Temperature Range
Storage Temperature Range
Electro-Optical Characteristics (T
a
= 25°C)
Characteristics
Forward Voltage
Reverse Current
Luminous Intensity
Peak Emission Wavelength
Spectral Line Half Width
Dominant Wavelength
Full Viewing Angle
Symbol
V
F
I
R
I
V
l
P
∆λ
λ
d
θ
Test Condition
I
F
= 20 mA
V
R
= 4 V
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
V
= 1/2 Peak
Minimum
–
–
1,200
–
–
–
–
Typical
2.1
–
2,000
574
13
571
8
Maximum
2.8
50
–
–
–
–
–
Unit
V
µA
mcd
nm
nm
nm
degree
Precaution
Please be careful of the following:
1. Soldering temperature: 260°C max
Soldering time: 5 sec. max
Soldering portion of lead: up to 1.6 mm from the body of the device
2. The lead can be formed up to 5 mm from the body of the device without forming stress.
Soldering should be performed after the lead forming.
Product specifications contained herein may be changed without prior notice.
It is therefore advisable to contact Purdy Electronics before proceeding with the design of equipment incorporating this product.
Purdy Electronics Corporation • 720 Palomar Avenue • Sunnyvale, CA 94085
Tel: 408.523.8200 • Fax: 408.733.1287 • sales@purdyelectronics.com • www.purdyelectronics.com
7/18/07
AND190HGP
InGaAlP High Brightness Green Light Emission
I
F
– V
F
5000
50
3000
Luminous Intensity I
V
(mcd)
Forward Current I
F
(mA)
30
T
a
= 25°C
T
a
= 25°C
Ultra Bright LED Lamps: Type 3
I
V
– I
F
1000
500
300
10
5
3
100
50
0.5
1
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
1
3
5
10
30 50
100
Forward Voltage V
F
(V)
Forward Current I
F
(mA)
I
V
– T
C
3
Relative Luminous Intensity
1.0
Relative Luminous Intensity – Wavelength
I
F
= 20 mA
Relative Luminous Intensity
0.8
T
a
= 25°C
1
0.5
0.3
0.6
0.4
0.2
0
540
0.1
-20
0
20
40
60
80
560
580
600
620
640
660
Case Temperature T
C
(°C)
Wavelength
λ
(nm)
Radiation Pattern
40
10°
0°
Ta = 25°C
20°
30°
40°
50°
60°
70°
80°
90°
0
0.2
0.4
0.6
0.8
0
0
Allowable Forward Current I
F
(mA)
I
F
– T
a
20°
30°
40°
50°
60°
70°
80°
90°
10°
30
20
10
20
40
60
80
Ambient Temperature T
a
(°C)
100
Purdy Electronics Corporation • 720 Palomar Avenue • Sunnyvale, CA 94085
Tel: 408.523.8200 • Fax: 408.733.1287 • sales@purdyelectronics.com • www.purdyelectronics.com
7/18/07
