Z9218

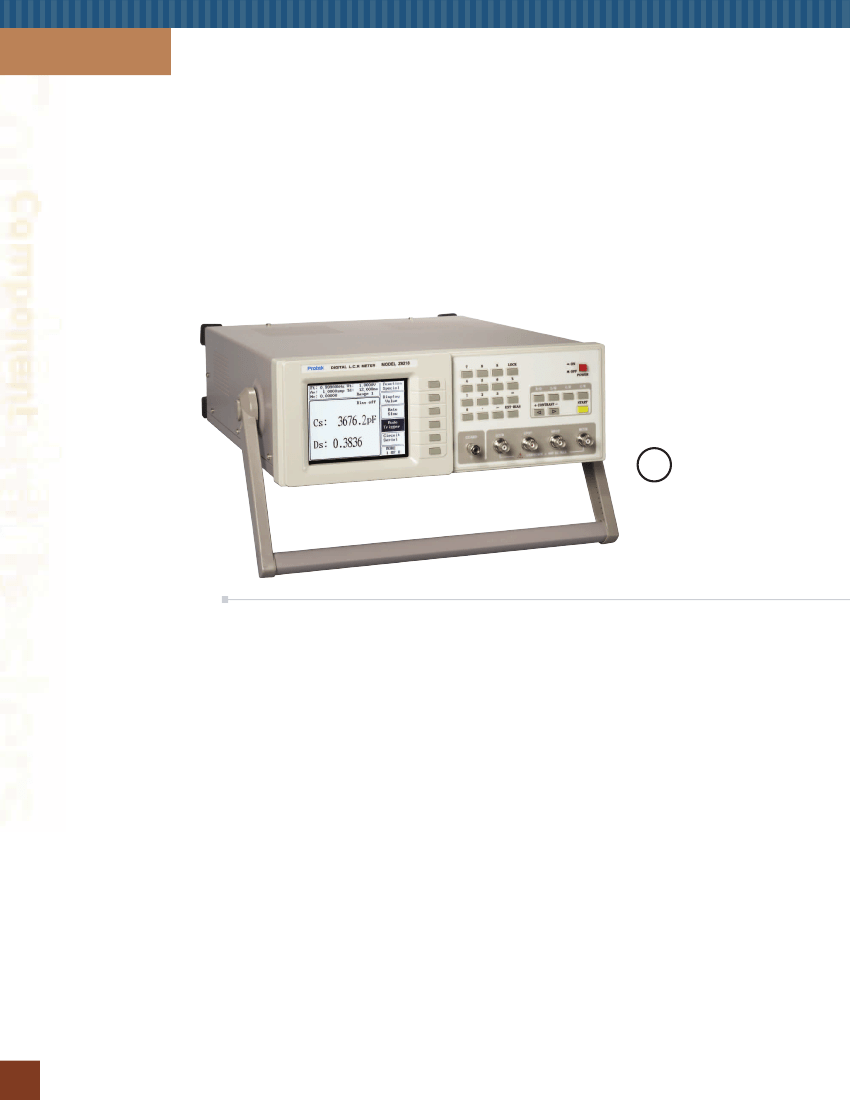

High Accuracy, Wide Range LCR Meter
with LCD Readout
0.02% Basic accuracy
Wide measurement Ranges for Capacitors, Resistors and Inductors
Menus and parameters are displayed on an easy to read 320x 240 Graphics LCD with backlight
Measurement Rates to 12 times per second
500 Test Frequencies from 12Hz to 100KHz
Open and short-circuit compensation for accurate zeroing
Binning and Pass/Fail operation
Measurement averaging from 1 to 255
Optional GPIB and handler interface
LCD displays measured values, Q/D, Absolute
and %
CE
Z9218
SPECIFICATIONS
Measured Components
L(Inductance),C(Capacitance), R(Resistance)
Measurement Circuit configurations:
Series and Parallel
Measurements
Resistance:
Measured Parameter:
R+Q
Measurement Ranges:
R: 10µΩ to 100MΩ
Q: 0.0001 to 9,999
Inductance:
Measured Parameter:
L+Q
Measurement Range:
L: 0.01µH to 99,999 H
Q: 0.0001 to 9,999
Capacitance:
Measured Parameters:
C+D and C+R
Measurement Range:
C: 0.00001pF to 99,999µF
D: 0.0001 to 9,999
R: 0.0001Ω to 9,999KΩ
Display
Display Type:
320x 240 Graphics LCD W/Backlight
Display value:
5 digit LCR and a 4 digit Q/D measurement
Parameters Displayed:
Measured values, absolute
and %
Test Environment
Test Frequencies:
500 test frequencies from
12Hz to 100KHz
Test Voltage:
5mV to 1.275V in 5mV increments
Test Voltage Accuracy:
±(5% + 5mV) (1 + 001 x F2)
Measurement rates:
Slow 1 Meas/sec
Medium: 5 Meas/sec
Fast: 12 Meas/sec
Measurement Delay:
from 1ms to 99,999ms
Ranging:
Auto or Manual.
DC Bias:
Internal: 2V, External: 0 to 60V
Triggering:
Continuous or Triggered
Zeroing correction:
Open and short circuit
Averaging:
1 to 255 Avgs
Measurement Accuracy
Basic accuracy:
± >0.02% at 23°C ±5°C (73°F ±9°F),
(See user manual for all accuracy conditions)
Remote Operation:
GPIB and Handler (Optional)
General Specifications
AC Voltage input:
120 or 220 Volts
Frequency:
50/60 Hz
Power Consumption:
20Watts (Max)
Operating Temperature:
0 to 50°C (32 to 122°F) at 85% Relative Humidity
Size:
5.5" (H) x 15" (W) x 18" (D)
Weight:
17.6 lbs
Accessories:
Manual, Line Cord, Kelvin leads with bag,
GPIB Handler (Optional)
32
Protek Test & Measurement
45 Smith Street, Englewood, NJ 07631 Tel: 201-818-7711 Fax: 201-760-9888
Website: www.protektest.com Email: sales@protektest.com

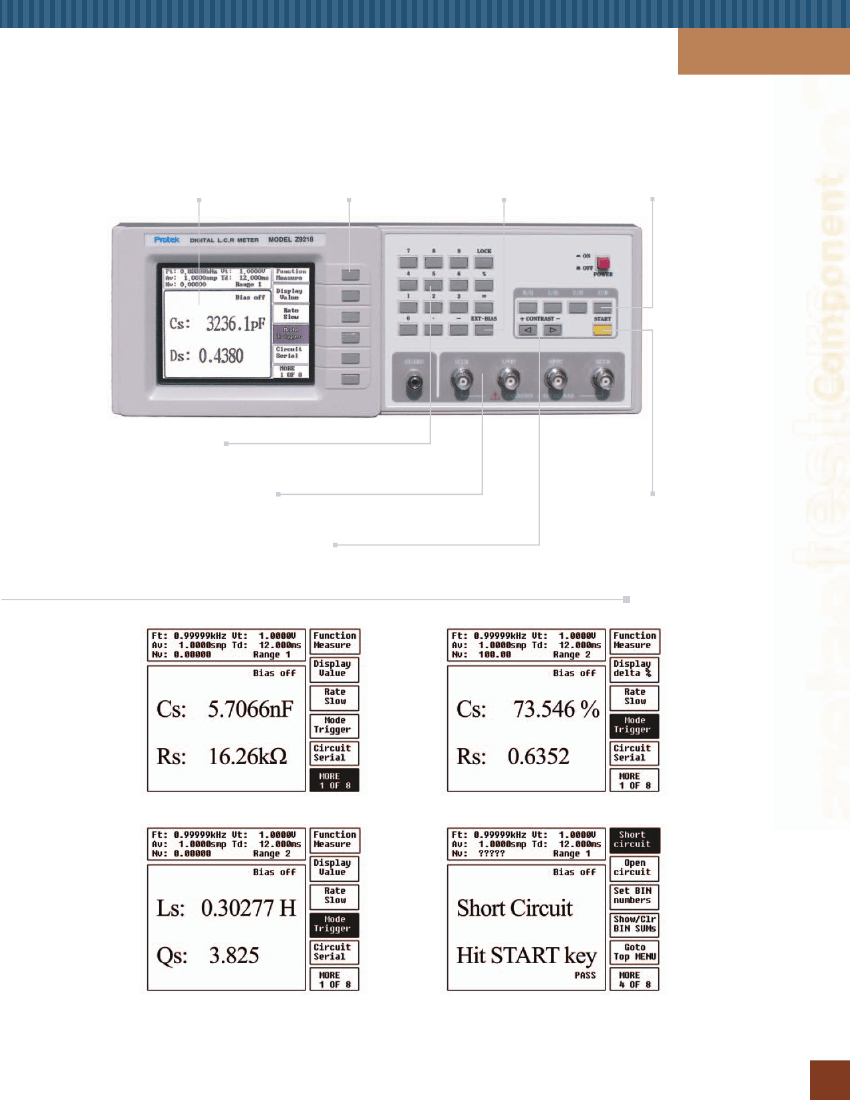

High Accuracy, Wide Range LCR Meter
320 x 240 pixel LCD for displaying the
component value along with its Q or D
value in a absolute, or % display.
Test Frequency, Test voltage,
Circuit mode, Number of averages, Binning
and the Soft Keys for selecting these
parameters are also displayed.
The function Keys select the
operating parameters displayed on
the LCD. Trigger mode,
Measurement rate, Component
value in absolute, or % are
some of the functions that may be
selected.
Z9218
EXT Bias key when in the C+D or C+R
mode allows an external bias voltage
up to 60V to be applied to the
capacitor under test. This is normally
used to stabilize a High value
Electrolytic for an accurate reading.
Selects the type of component and
parameter to be measured.
R&Q, L&Q, C&D, C&R or Auto
may be selected.
Numeric keyboard for entering Test
Frequency, Voltage values, Number of
averages, Cal Data Measurement delay
and Nominal values.
Four wire input: 2 inputs supply the drive
signal and 2 inputs are for input sensing,
thereby removing errors caused by lead
length.
These two keys are used to adjust the
contrast of the LCD display.
The start key initiates a
measurement in the
triggered mode.
SCREENS
C/R MEASUREMENT SCREEN
C/R
% MEASUREMENT SCREEN
L/Q MEASUREMENT SCREEN
SHORT CIRCUIT CALIBRATION SCREEN
