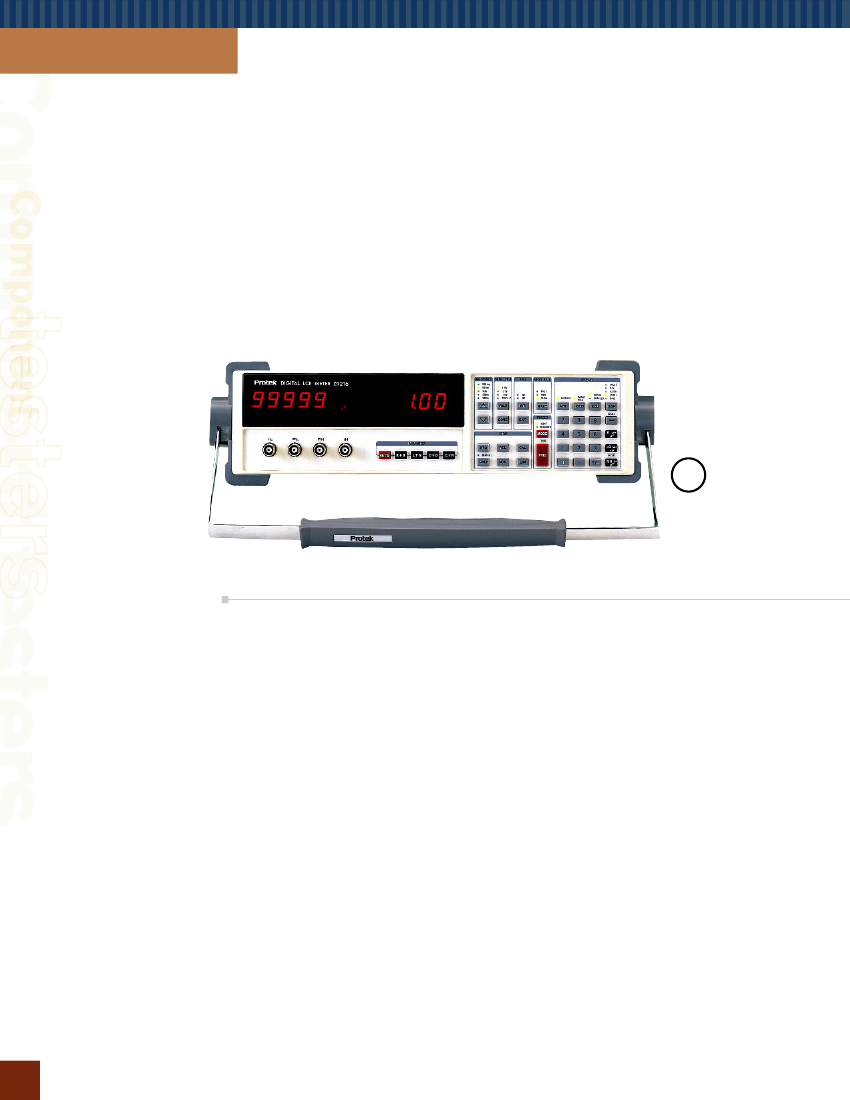

Z9216
High Accuracy, Wide Range LCR Meter
0.2% basic accuracy
Wide measurement range over13 orders of magnitude
Store and recall 9 instrument setups
Measurement rates to 20 times per second
Test frequencies are 100Hz, 120Hz, 1kHz, 10kHz and 100kHz
Displays component value and Q or Dissipation factor
Averaging for 2 to 10 measurements
RS-232 and optional GPIB and Handler interface
Open and short circuit compensation for accurate zeroing
Easy to use and calibrate
Built-in calibration procedures
Binning capabilities
CE
Z9216
SPECIFICATIONS
Measured Components
L (inductance)
C (capacitance)
R (resistance)
Measured Circuit Configurations:
series and parallel
Measurements
Resistance
Measured Parameter:
R + Q
Measurement Ranges:
R: 0.0001
Ω
to 2000 MΩ
Q: 0.00001 to 50
Inductance
Measured Parameter:
L + Q
Measurement Range:
L: 0.0001 µH to 99999 H
Q: 0.0001 to 50
Capacitance
Measured Parameters:
C + D and C + R
Measurement Range:
C: 0.0001 pf to 99999 µF
D: 0.00001 to 10; R: 0.00001 KΩ to 9999 KΩ
Display:
Values, % deviation, or bin number
Test Environment
Test Frequencies:
100Hz, 120Hz, 1kHz, 10kHz and 100kHz
Frequency Accuracy:
±100 PPM
Drive Voltages:
Fixed: 0.10, 0.25, 1.0 V RMS;
Vernier: 0.1 to 1.0 V RMS (50 mV resolution)
Drive Voltage Accuracy:
±2%
Measurement Rates:
(For test frequencies of 1kHz or greater):
Slow: 2 measurements/Sec
Medium: 10 measurements/Sec
Fast: 20 measurements/Sec
(For test frequencies of 100Hz and 120Hz):
Slow: 0.6 measurements/Sec
Medium: 2.4 measurements/Sec
Fast: 6 measurements/Sec
Bias Voltage:
Internal: +2.0 V DC ±2%;
External: 0 to +40 V DC
Input Protection:
0.25A/250V Fuse
Ranging:
Auto or manual
Triggering:
Continuous, manual or remote (from the RS-232,
GPIB or handler interface)
Measurement Accuracy
Basic Accuracy:
± 0.2% with the following conditions:
1. An ambient temperature of 23°C ±5°C after a 30 minute
warm up period.
2. The short and open Cal has been performed.
3. D < 0.1 for capacitance, Q < 0.1 for resistance and Q > 10 for
inductance.
The component value, measurement rate and frequency
determine the actual measurement accuracy. (See the user
manual).
Zeroing Correction:
Open and short circuit compensation
Remote Operation:
Interfaces: RS-232 (25 pin D female
conductor) Standard GPIB and Handler (25 pin D male
connector optional)
General Specifications
AC Voltage Input:
120/220 Volts
Frequency:
50/60Hz
Power Consumption:
20 Watts
Operating Temperature:
0 to 50°C at < 80% Relative Humidity
Size:
4.3" H × 14.3" W × 14.5" D
Weight:
18 lbs.
Supplied Accessories:
Manual, Line cord, Axial lead adapter
Optional Accessories:
GPIB and Handler interface, Kelvin
clips, SMD tweezers
30
Protek Test & Measurement
40 Boroline Road, Allendale, NJ 07401 Tel: 201-760-9898 Fax: 201-760-9888
Website: www.protektest.com E-Mail: sales@protektest.com
High Accuracy, Wide Range LCR Meter
Z9216

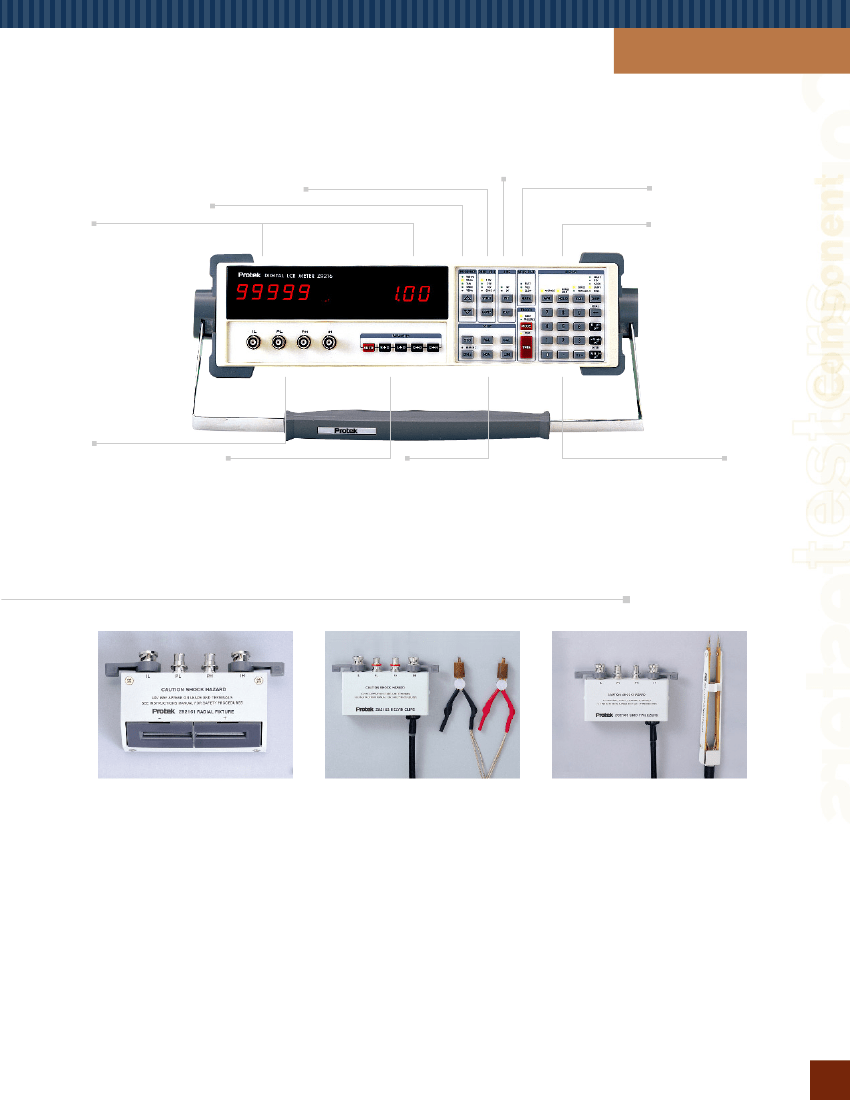

Display
5 digit primary LED Display
for reading component
values
5 digit secondary display for
reading Q, D or R
Frequency
Five measurement
frequencies
(100Hz, 120Hz, 1kHz,
10kHz and 100kHz)
Drive Voltages
4 preset drive voltages
from 0.1 to 1V and
constant voltage output
Bias
Internal or external bias for
measuring capacitors
Meas. Rate
Measurement rates of 2, 10 or 20
measurements per second in
continuous or triggered mode
Display
2 to 10 measurement average
Range hold mode
Series or parallel circuit
models
Display component value,
Deviation, % deviation and Bin
number displays
Parameter entry keys
Output terminals
4-wire output: 2 terminals supply
the drive signal and 2 terminals
for sensing, thereby removing
lead error
Parameter Keys
Auto key, automatic selection of the
appropriate component
Resistance + Q
Inductance + Q
Capacitance + D
Capacitance + R
Setup
Store and recall 9 setups
Binning parameter setup
Calibration performs open and short calibration
Standard calibration
Internal self-tests
Vernier amplitude drive voltages from 0.1 to 1V
in 50mV increments
Setting settling time
Numeric keyboard
For entering measurement
conditions and values.
ACCESSORIES
The standard accessory supplied with the Z9216. This
unit adapts to the Z9216 input BNC terminals and
facilitates easy measurement of Axial or Radial lead
components.
The Kelvin clips provide a 4-wire connection to
components that have large or odd shaped leads. This
removes any error caused by voltage drops in the
leads.
The SMD tweezers are used to
measure small surface mount or odd
shaped components.
