SF10LC20U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SF10LC20U

SF10LC20U: Descriptionsuper fast recovery rectifiers(200v 10a); CategoryDiscrete semiconductor diode; File Size231KB，6 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

SF10LC20U Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SF10LC20U	-	-	View	Buy Now

SF10LC20U Overview

super fast recovery rectifiers(200v 10a)

SF10LC20U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHINDENGEN
Parts packaging code	TO-220AB
package instruction	R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW NOISE, FREE WHEEL
application	SUPER FAST RECOVERY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Humidity sensitivity level	2
Maximum non-repetitive peak forward current	80 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	10000 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

SHINDENGEN

Super Fast Recovery Rectifiers

Dual

SF10LC20U

200V 10A

FEATURES

●

Low noise

●

trr35ns

●

Fully Isolated Molding

●

Dielectric strength 2kV guaranteed

OUTLINE DIMENSIONS

Case : FTO-220

Unit : mm

APPLICATION

●

Switching power supply

●

Free Wheel

●

Home Appliances, Office Equipment

●

Telecommunication, Factory Automation

RATINGS

●Absolute Maximum Ratings (If not specified Tc=25℃)

Item

Symbol

Conditions

Storage Temperature

Tstg

Operating Junction Temperature

Maximum Reverse Voltage

Average Rectified Forward Current

50Hz sine wave, R-load, Rating for each diode Io/2, Tc=124℃

FSM

50Hz sine wave, Non-repetitive 1 cycle peak value, Tj=25℃

Peak Surge Forward Current

Dielectric Strength

Vdis

Terminals to case, AC 1 minute

Mounting Torque

0.3N½m)

TOR

(Recommended torque：

●Electrical Characteristics (If not specified Tc=25℃)

Item

Symbol

Conditions

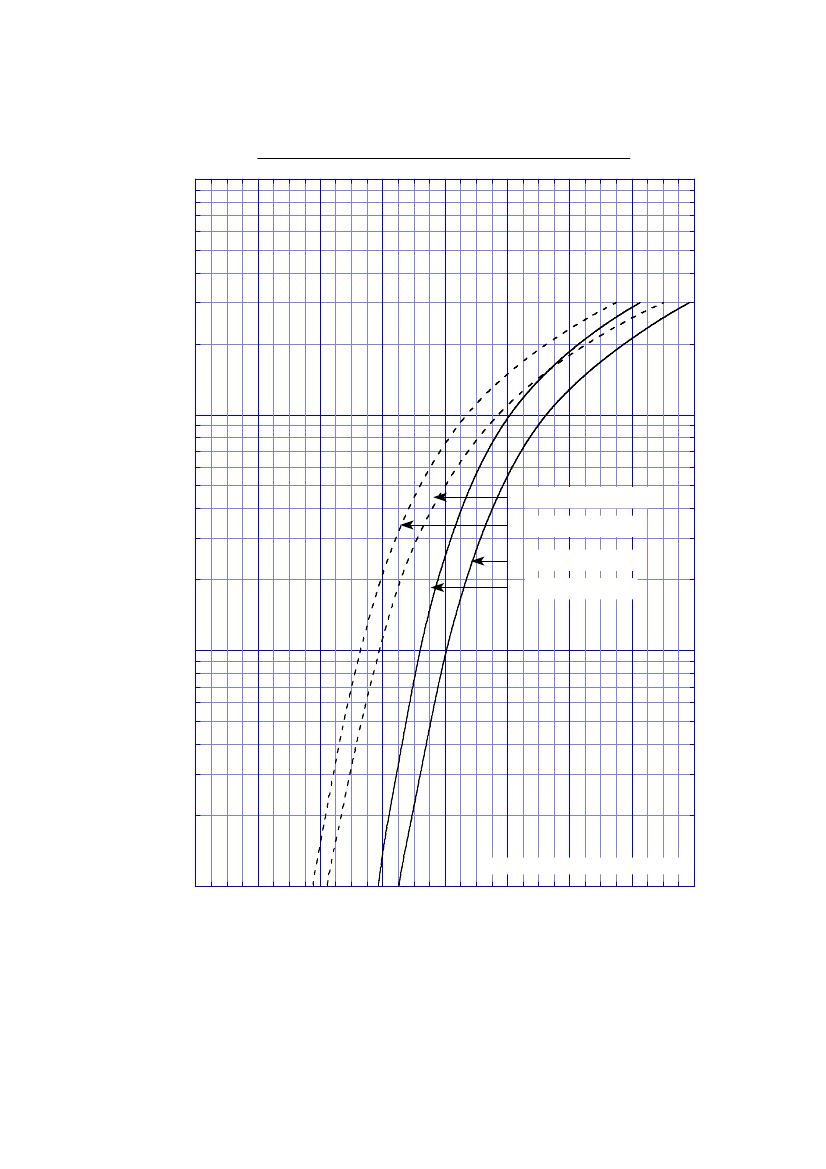

Forward Voltage

=5.0A, Pulse measurement, Rating of per diode

, Pulse measurement, Rating of per diode

Reverse Current

=0.5A, I

=1A, Rating of per diode

Reverse Recovery Time

trr

Thermal Resistance

θjc

junction to case

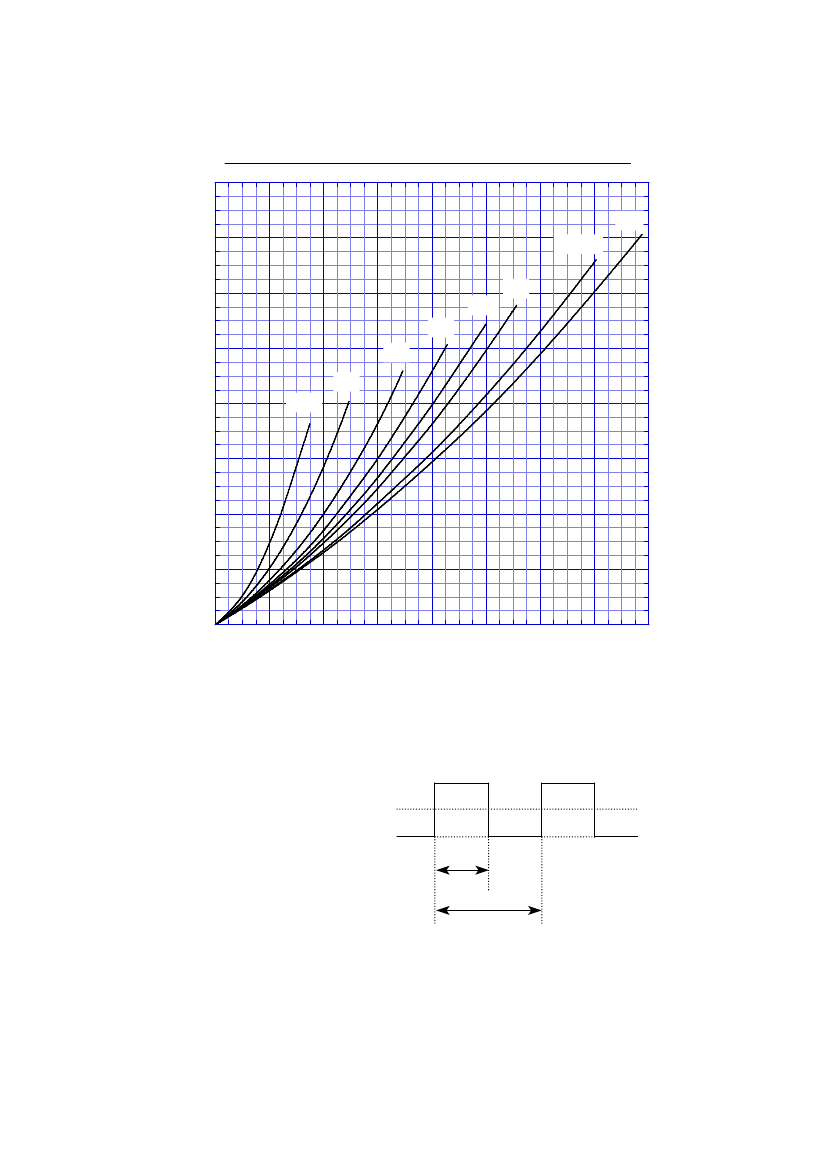

Ratings

-40∼150

150

200

0.5

Ratings

Max.0.98

Max.10

Max.35

Max.2.3

Unit

℃

N½m

Unit

μA

℃/W
