SF10LC40

Description
super fast recovery rectifiers(400v 10a)
CategoryDiscrete semiconductor    diode
File Size231KB,6 Pages
ManufacturerSHINDENGEN
Websitehttps://www.shindengen.com
Download Datasheet Parametric View All

SF10LC40 Online Shopping

Suppliers Part Number Price MOQ In stock
SF10LC40 - - View Buy Now

SF10LC40 Overview

super fast recovery rectifiers(400v 10a)

SF10LC40 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSHINDENGEN
Parts packaging codeTO-220AB
package instructionR-PSFM-T3
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLOW NOISE
applicationSUPER FAST RECOVERY
Shell connectionISOLATED
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.3 V
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
JESD-609 codee0
Humidity sensitivity level2
Maximum non-repetitive peak forward current80 A
Number of components2
Phase1
Number of terminals3
Maximum operating temperature150 °C
Maximum output current5 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)240
Certification statusNot Qualified
Maximum repetitive peak reverse voltage400 V
Maximum reverse current10000 µA
Maximum reverse recovery time0.05 µs
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
SHINDENGEN
Super Fast Recovery Rectifiers
Dual
SF10LC40
400V 10A
FEATURES
Low noise
trr50ns
Fully Isolated Molding
Dielectric strength 2kV guaranteed
OUTLINE DIMENSIONS
Case : FTO-220
Unit : mm
APPLICATION
Switching power supply
Free Wheel
Home Appliances, Office Equipment
Telecommunication, Factory Automation
RATINGS
●Absolute Maximum Ratings (If not specified Tc=25℃)
Item
Symbol
Conditions
Storage Temperature
Tstg
Operating Junction Temperature
Tj
V
RM
Maximum Reverse Voltage
Average Rectified Forward Current
I
O
50Hz sine wave, R-load, Rating for each diode Io/2, Tc=115℃
Peak Surge Forward Current
I
FSM
50Hz sine wave, Non-repetitive 1 cycle peak value, Tj=25℃
Dielectric Strength
Vdis
Terminals to case, AC 1 minute
Mounting Torque
0.3N½m)
TOR
(Recommended torque:
●Electrical Characteristics (If not specified Tc=25℃)
Item
Symbol
Conditions
V
F
I
F
=5A,
Pulse measurement, Rating of per diode

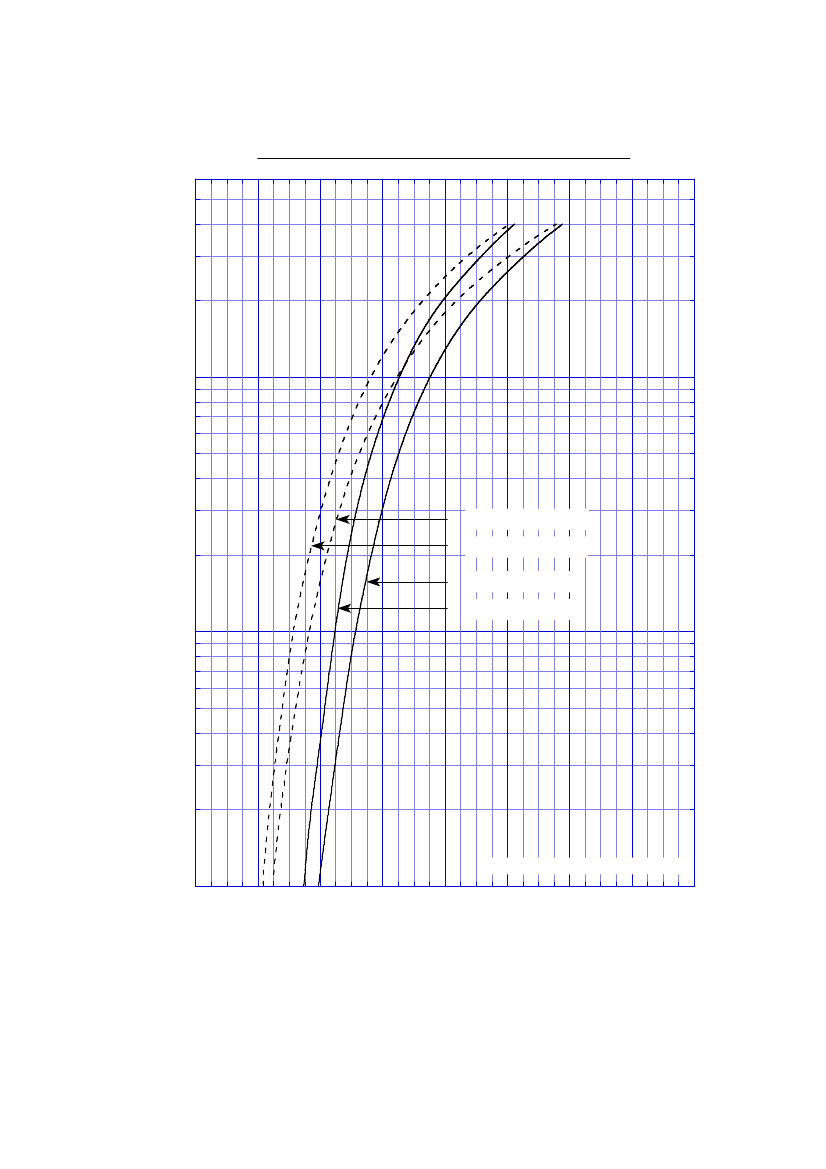

Forward Voltage
I
R
V
R
=V
RM
, Pulse measurement, Rating of per diode
Reverse Current
I
F
=0.5A,  I
R
=1A,  Rating of per diode
Reverse Recovery Time
trr
Thermal Resistance
θjc
junction to case
Ratings
-40∼150
150
400
10
80
2
0.5
Ratings
Max.1.3
Max.10
Max.50
Max.2.3
Unit
V
A
A
kV
N½m
Unit
V
μA
ns
℃/W

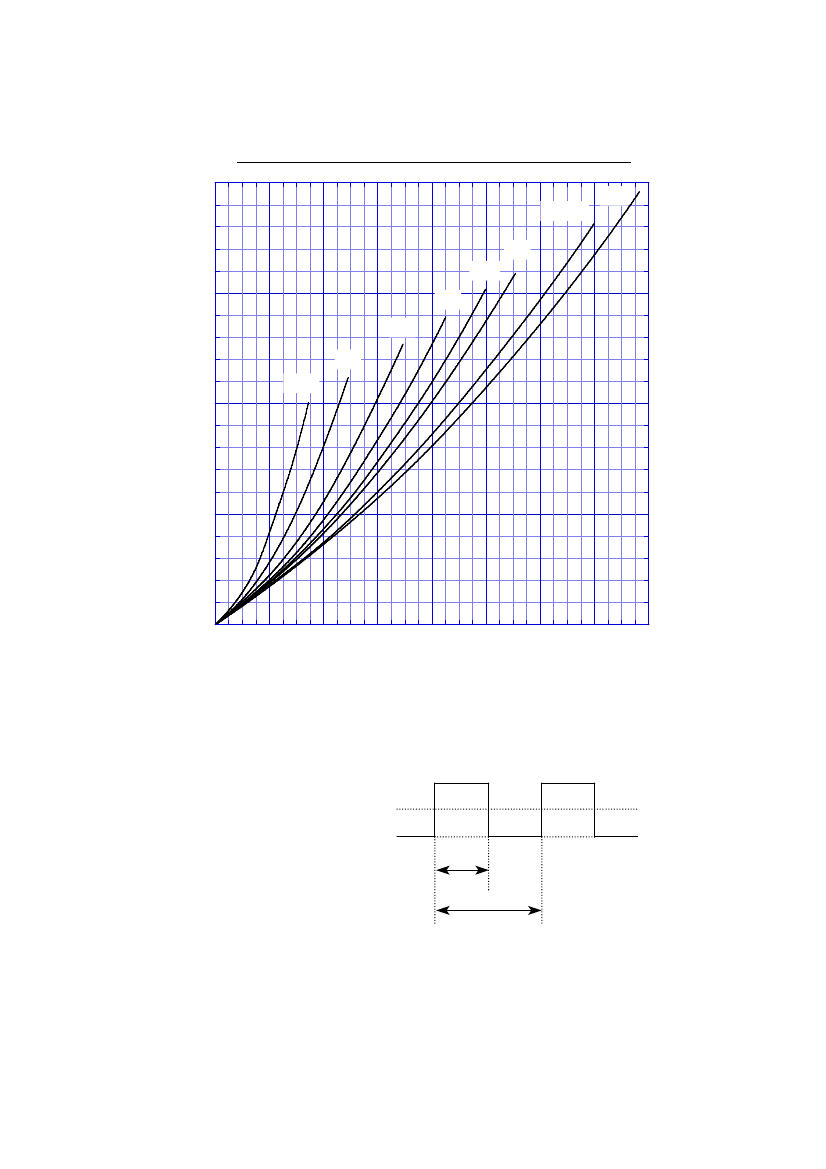

Copyright & Copy;2000 Shindengen Electric Mfg.Co.Ltd
