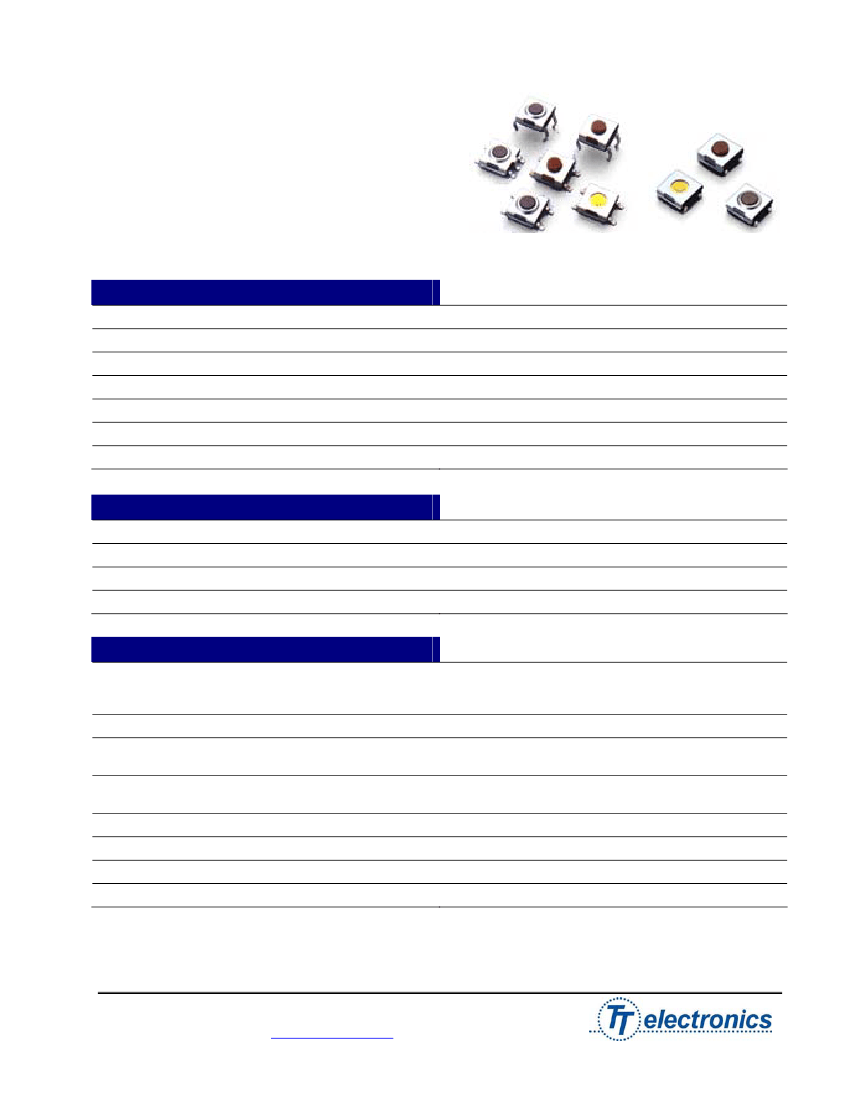

MODEL SWTW
Tactile Switches
6 x 6 mm and 8 x 8mm
Sealed, Washable
RoHS Compliant
STYLES AVAILABLE
Top Actuation SMD – G Pin, 6 x 6 mm
Top Actuation SMD – G pin with Ground, 6 x 6 mm
Top Actuation SMD – J pin, 6 x 6 mm
Side Actuation SMD – J pin, 6 x 6 mm
Top Actuation Through Hole, 6 x 6 mm
Side Actuation Through Hole, 8 x 8 mm
Top Actuation Through Hole, 8 x 8 mm
SWTW-G
SWTW-X
SWTW-J
SWTW-S
SWTW-H
SWTW-R
SWTW-K
ELECTRICAL
Contact Resistance
Insulation Resistance
Dielectric Strength
Rating
100 milli
Ω
max
100 M
Ω
min. at 500VDC
AC 250VAC / Minute
DC 12V / 50 mA ( DC 50V/50mA for SWTW-R only )
ENVIRONMENTAL (MIL-R-39023)
Life Mechanical (range)
100K Cycles : Stem heights 1 & 2, 500K Cycles : Others
(200K cycles : SWTW-S only)
(1 Millions cycles : SWTW-R and SWTW-K only)
130 gf – 360 gf
-25ºC – 70ºC,
( -40ºC to +90ºC for SWTW-R and SWTW-K only )
-30ºC – 80ºC,
( -40ºC to +90ºC for SWTW-R and SWTW-K only )
Vertical Static Load of 3Kg continuously for 15 sec
Mil-STD-202F, Method 201A
Mil-STD-202F, Method 213B Condition A
Profile available upon request
Operating Force Range (refer to ordering information)
Operating Temperature Range
Storage Temperature Range
Stop Strength
Vibration
Shock
Soldering
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
August 9, 2010
Website:
www.bitechnologies.com
page 1 of 6
BI technologies
MODEL SWTW
ORDERING INFORMATION
1
6 x 6 mm (G, X, J, and H styles only)
SWTW - G 1 S
Model Series
Style
G – Top Actuation SMD – G Pin,
6 x 6 mm
X – Top Actuation SMD – G pin
with Ground, 6 x 6 mm
Available in Stem Height “2” &
Color “N” only
J – Top Actuation, SMD J pin
H –Top Actuation, Through hole
Stem Height (Colors Available)
1 – 2.3mm, available in Silver (S) only
2 – 3.1mm, available in Brown (N) only
3 – 3.5mm, available in N, R, T
4 – 3.8mm, available in N, R, T
5 – 4.5mm, available in N, R
6 – 5.2mm, available in N, R, T
TR
Packaging
Blank – 75 pcs,/tube,
Style H
only
TR – Tape and Reel
Style G & X
Stem Height 1 & 2 – 2000 pcs
Stem Height 3 & 4 – 1900 pcs
Stem Height 5 & 6 – 900 pcs
Style J
Stem Height 1 – 2700 pcs
Stem Height 2 – 1900 pcs
Stem Height 3 & 4 – 1800 pcs
Stem Height 5 & 6 – 900 pcs
Color / Force
N – Brown, 160 gf for Stem 2, 180 gf for others
S – Silver, 160 gf
R – Red, 260 gf
T – Transparent, 360 gf
6 x 6 mm (S style only)
SWTW - S 1
Model Series
Style
S – Side Actuation,
SMD J pin style
W B B TR
Packaging
TR – Tape and Reel
Without Pick & Place tab – 600 pcs
With Pick & Place tab – 550 pcs
Stem Height: (H)
1 – 2.8mm
2 – 4.35mm
3 – 2.3mm
4 – 4.0mm
Stem Color / Force
W - White, 185 gf
R - Red, 260 gf
V - White, 260 gf
X – Red, 185 gf
Pick & Place Tab
A – Without tab
B – With tab
Front Solder Pad
A – Without pad
(Option, Consult Factory)
B – With pad
1
Contact our customer service for custom designs and features.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
August 9, 2010
Website:
www.bitechnologies.com
page 2 of 6
BI technologies
MODEL SWTW
ORDERING INFORMATION
8 x 8 mm (R and K styles only)
SWTW - R 7
G
Model Series
Packaging
500 pcs/bag
Style
R – Side Actuation, Through hole, 8 x 8mm
K – Top Actuation, Through hole, 8 x 8mm
Color / Force
G – Green, 130gf
Stem Height
7 – 5.8mm
8 – 4.7mm
OUTLINE DRAWINGS

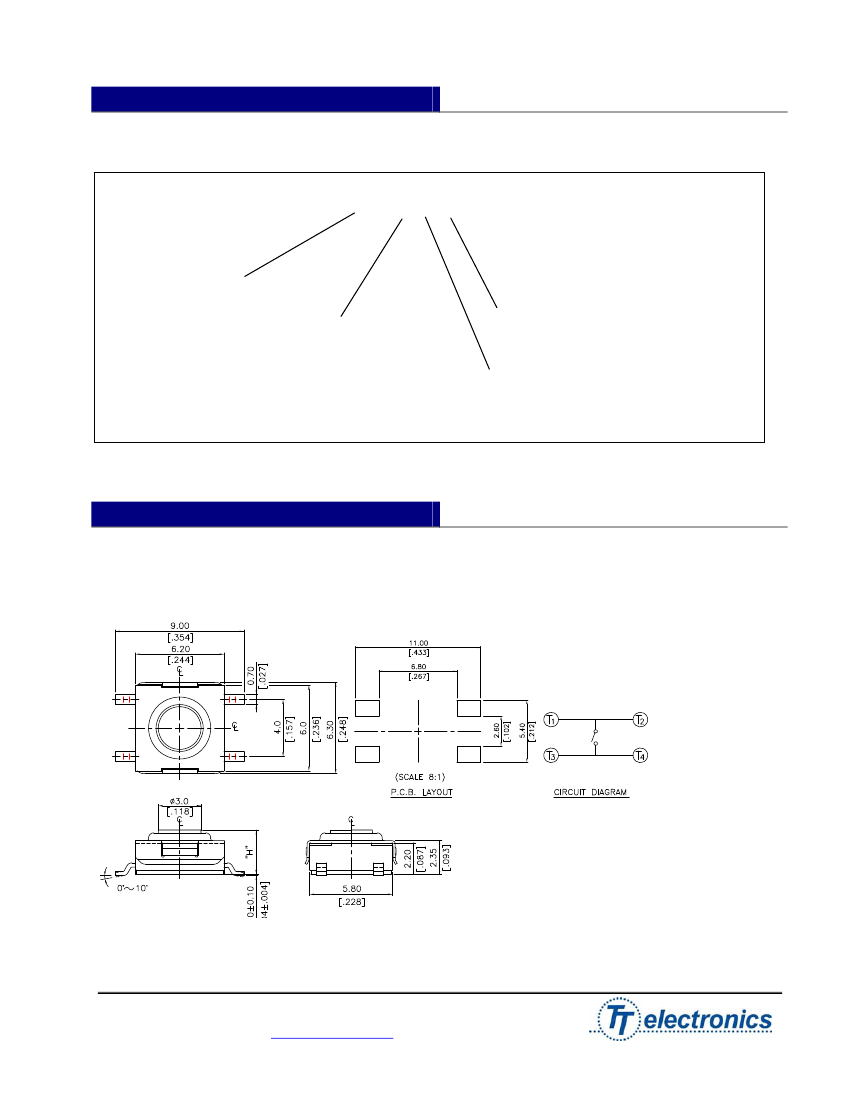

Model SWTW-G
(
Top Actuation,
SMD G pin style, 6 x 6 mm)
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
August 9, 2010
Website:
www.bitechnologies.com
page 3 of 6
BI technologies
MODEL SWTW

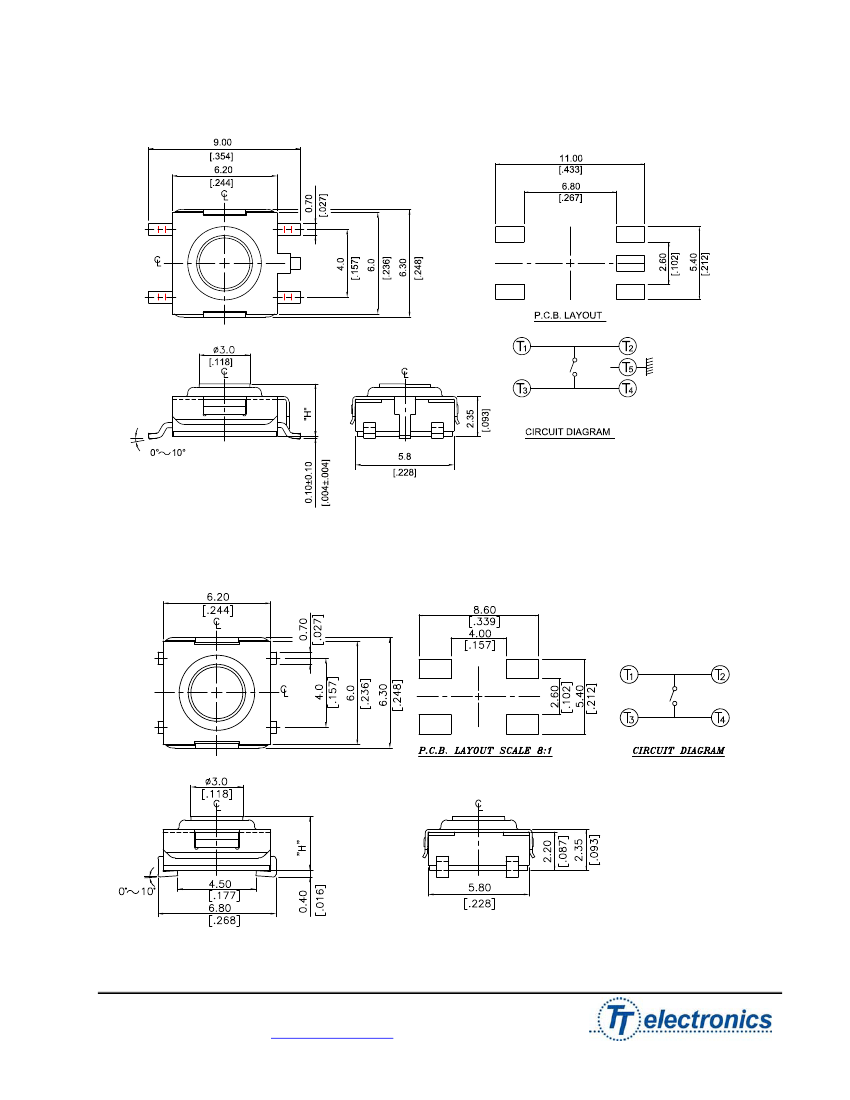

Model SWTW-X
(
Top Actuation,
SMD G pin style with ground, 6 x 6 mm, Stem Height 2, H = 3.1 mm)
Model SWTW-J
(
Top Actuation,
SMD J pin style, 6 x 6 mm)
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
August 9, 2010
Website:
www.bitechnologies.com
page 4 of 6
BI technologies
MODEL SWTW

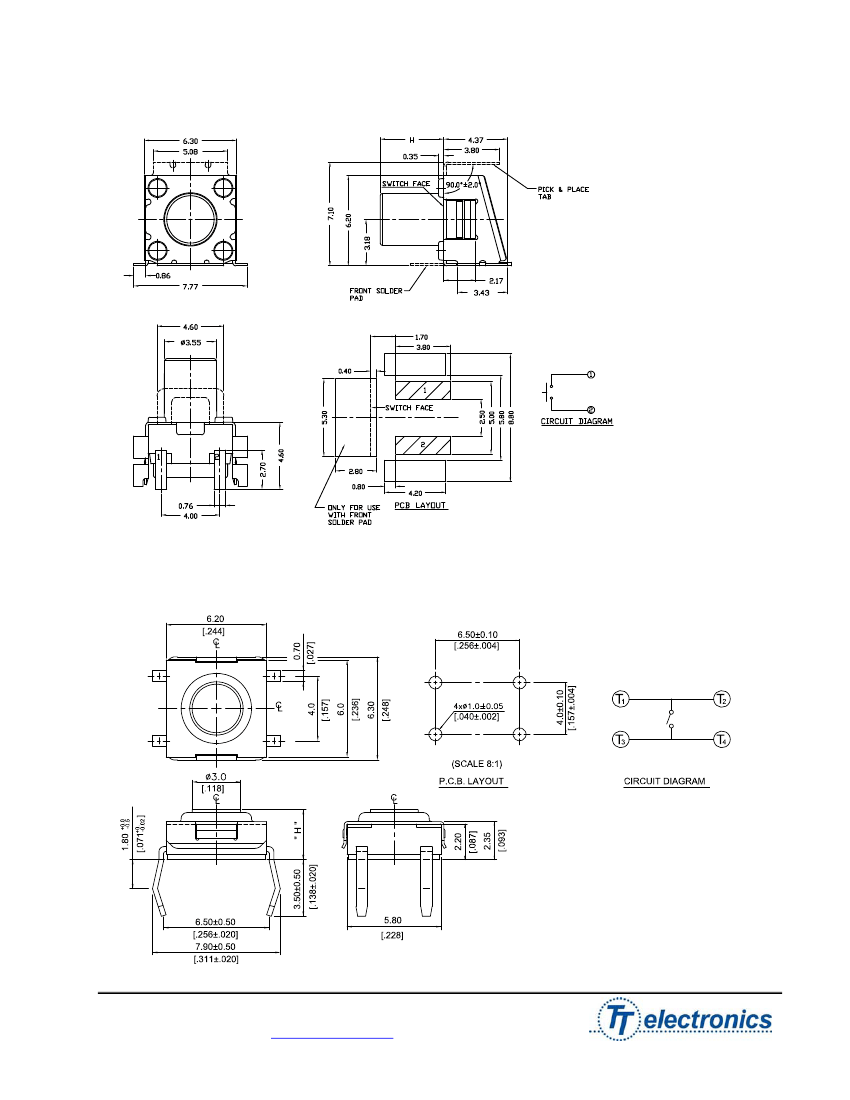

Model SWTW-S
