RF AMPLIFIER
MODEL
BXMP1034
Features
!
!
!
!
!
High Output Power: +36 dBm Typical
High Third Order Intercept: +61 dBm Typical
High Second Order Intercept: +90 dBm Typical
Operating Temp. - 55 ºC
to +85
ºC
Environmental Screening Available
TYPICAL
Ta= 25 ºC
50 - 450 MHz
11.0
+36.0
-17.0
1.9:1
1.9:1
+62
+90
5.5
+15
2500
MIN/MAX
Ta = -55 ºC to +85 ºC
50 - 450 MHz
10.0 Min.
+35.0 Min.
-15.0 Max.
2.0:1 Max.
2.0:1 Max.
+59 Min.
+85 Min.
7.0 Max.
+15
3000 Max.
Available as:
BXMP1034, SMA Connectorized Housing
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point........+95 dBm (Typ.)
Second Order Two Tone Intercept Point.........+90 dBm (Typ.)
Third Order Two Tone Intercept Point.............+61 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Output Intercept point:
3rd Order
2nd Order
Noise figure (dB)
Power
Vdc
mA
Maximum Ratings
Ambient Operating Temperature ................ -45ºC to +100 ºC
Storage Temperature ................................. -50ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +17 Volts
Continuous RF Input Power .................................. +24 dBm
Short Term RF Input Power .... 400 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.

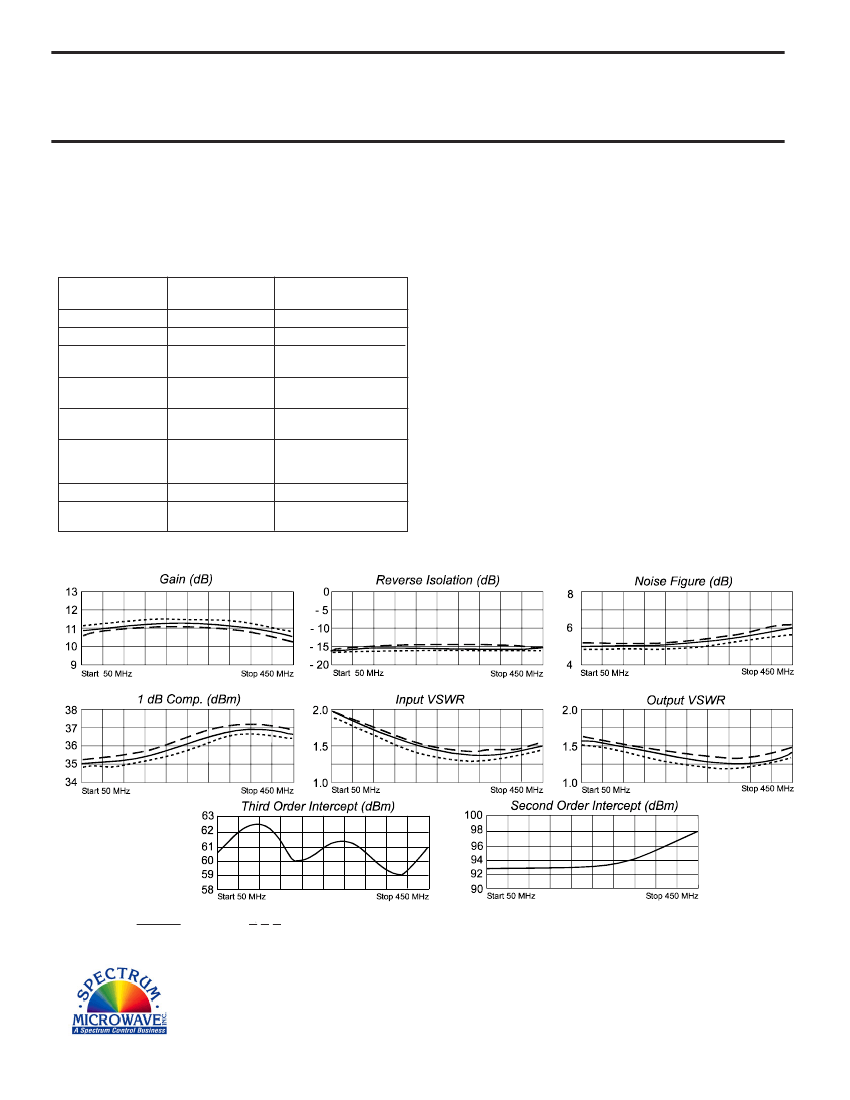

Typical Performance Data
Legend
+25 ºC
+85ºC - - - - - -55 ºC
