BR1203-80-1W

Description
silicon fast recovery bridge rectifier
CategoryDiscrete semiconductor    diode
File Size855KB,2 Pages
ManufacturerEDAL
Websitehttp://www.edal.com/
Download Datasheet Parametric Compare View All

BR1203-80-1W Overview

silicon fast recovery bridge rectifier

BR1203-80-1W Parametric

Parameter NameAttribute value
MakerEDAL
package instructionS-PUFM-W4
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationBRIDGE, 4 ELEMENTS
Diode typeBRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)1.3 V
JESD-30 codeS-PUFM-W4
Maximum non-repetitive peak forward current400 A
Number of components4
Number of terminals4
Maximum output current35 A
Package body materialPLASTIC/EPOXY
Package shapeSQUARE
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum repetitive peak reverse voltage800 V
Maximum reverse recovery time0.5 µs
surface mountNO
Terminal formWIRE
Terminal locationUPPER

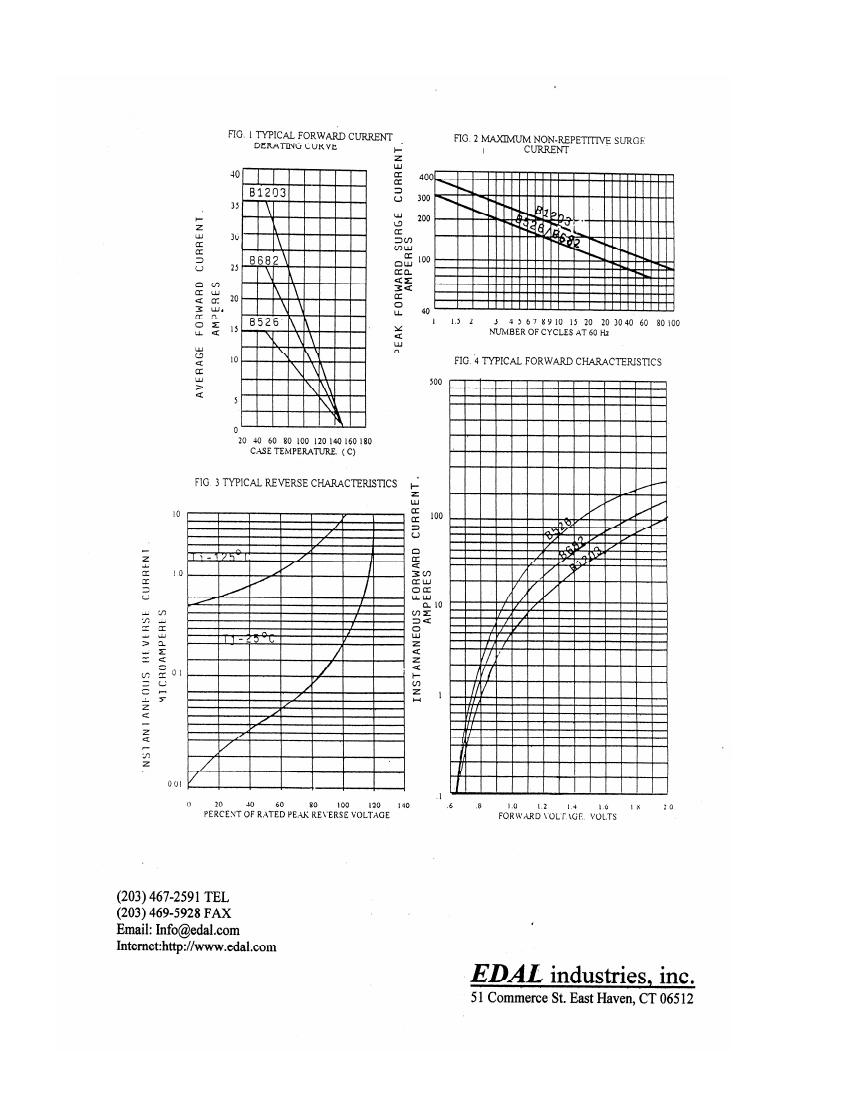

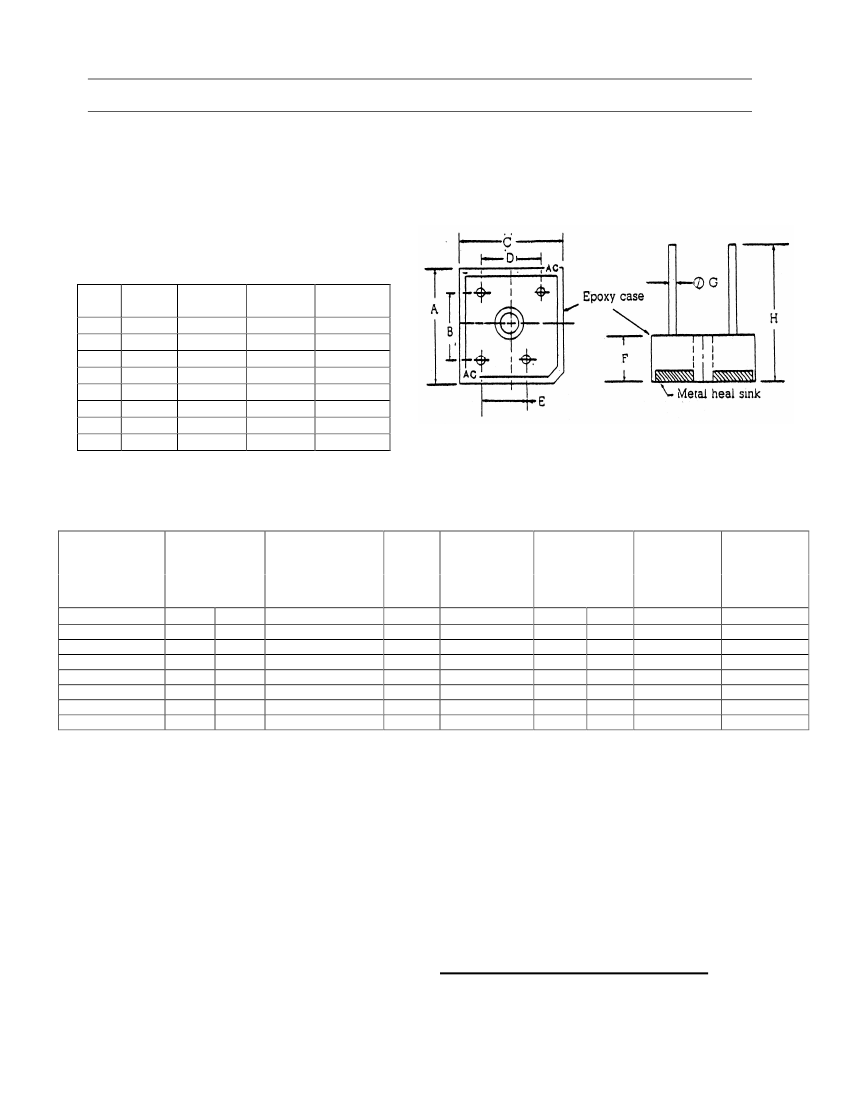

Edal
SERIES BR1203 with Wire Leads 35 AMP
SILICON FAST RECOVERY BRIDGE RECTIFIER
(PLASTIC CASE WITH METAL HEAT SINK)
INCHES
MIN.
MAX.
1.12
0.692
1.12
0.692
0.43
0.28
0.038
1.2
1.13
0.732
1.13
0.732
0.47
0.31
0.042
MILLIMETERS
MIN.
MAX
28.4
17.6
28.4
17.6
10.9
7.3
0.97
30.5
28.7
18.6
28.7
18.6
11.9
7.9
1.07
DIM
.
A
B
C
D
E
F
G
H
PART
NUMBER
MAX AVG.
RECT
CURRENT
If (AV) @ TAR
LOAD
INPUT
VOLTAGE
RECOMMENDED
Vrms
PIV
Vrrm
MAX.
FORWARD
PEAK SURGE
CURRENT
Ifsm
MAX.
FORWARD
VOLTAGE
@
Ta = 25o C Ir
MAX. REV
CURRENT
@
Ta = 25o C Ir
MAX.
REVERSE
RECOVERY
TIME
Trr
(A)
BR1203-5-1-W
BR1203-10-1W
BR1203-20-1W
BR1203-40-1W
BR1203-60-1W
BR1203-80-1W
BR1203-100-1W
35
35
35
35
35
35
35
(C)
55
55
55
55
55
55
55
(V)
20
40
80
125
250
380
440
(V)
50
100
200
400
600
800
1000
(A)
400
400
400
400
400
400
400
(V)
1.3
1.3
1.3
1.3
1.3
1.3
1.3
(A)
17.5
17.5
17.5
17.5
17.5
17.5
17.5
(uA)
10
10
10
10
10
10
10
(nS)
150
150
150
150
250
500
500
THE PLASTIC MATERIAL CARRIES U/L RECOGNITION 94 V-O
(203) 467-2591 TEL
(203) 469-5928 FAX
Email: Info@ edal.com
Internet:http://www.edal.com
EDAL
industries, inc.
51 Commerce St. East Haven, CT 06512

BR1203-80-1W Related Products

BR1203-80-1W BR1203-40-1W BR1203-60-1W
Description silicon fast recovery bridge rectifier silicon fast recovery bridge rectifier silicon fast recovery bridge rectifier
Maker EDAL EDAL EDAL
package instruction S-PUFM-W4 S-PUFM-W4 S-PUFM-W4
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Configuration BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS
Diode type BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF) 1.3 V 1.3 V 1.3 V
JESD-30 code S-PUFM-W4 S-PUFM-W4 S-PUFM-W4
Maximum non-repetitive peak forward current 400 A 400 A 400 A
Number of components 4 4 4
Number of terminals 4 4 4
Maximum output current 35 A 35 A 35 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape SQUARE SQUARE SQUARE
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 800 V 400 V 600 V
Maximum reverse recovery time 0.5 µs 0.15 µs 0.25 µs
surface mount NO NO NO
Terminal form WIRE WIRE WIRE
Terminal location UPPER UPPER UPPER
