1 Pole To 3 Pole 10 Amp Plug In Relay
PC703

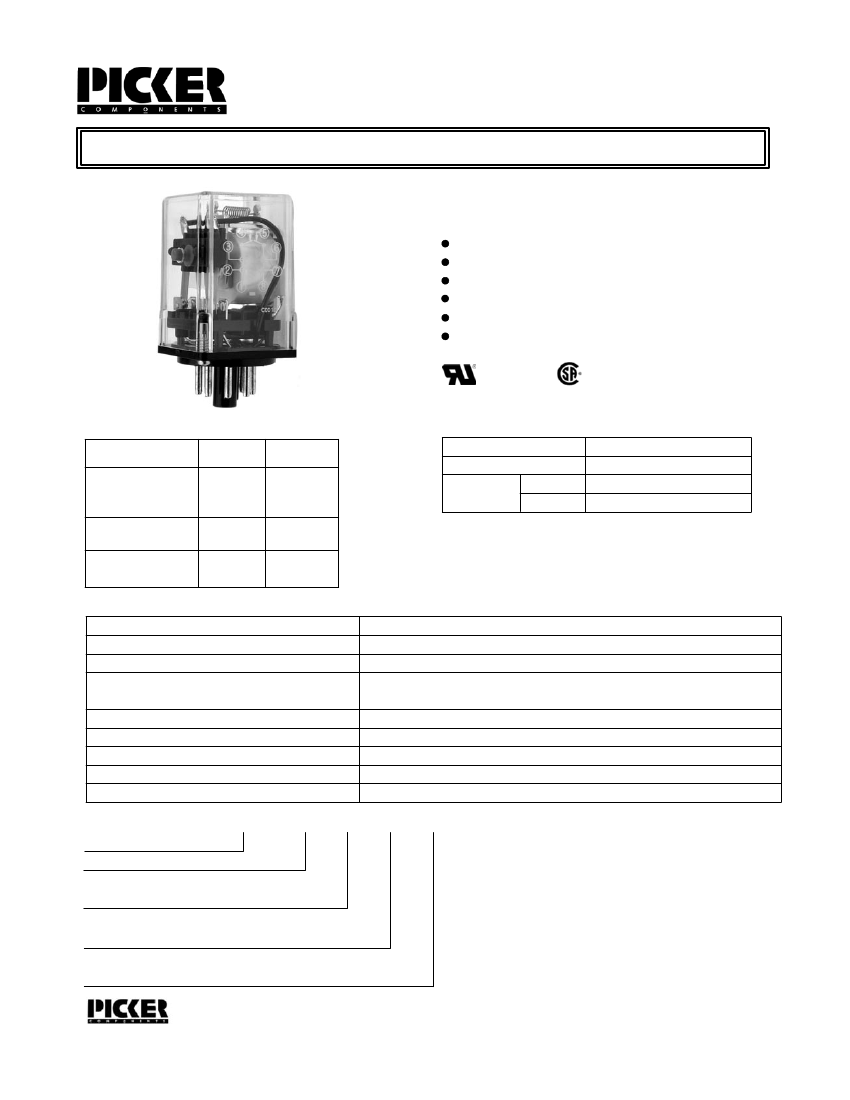

FEATURES
Industry standard octal type base
Up to 10 amp switching capacity
Up to 1/3 horsepower rating
Available with indicator light
Available with push to test button
Sockets available from Picker Components
File # E93379
Certificate # LR 109231
UL/CSA RATINGS
Load Type
Voltage
120 VAC
240 VAC
28 VDC
120 VAC
240 VAC
240 VAC
120 VAC
All Versions
All Contacts
10 A
5A
10 A
10 A
5A
1/3 HP
1/6 HP
CONTACT DATA
Material
Initial Contact Resistance
Service Life
Mechanical
Electrical
AgCdO (Silver Cadmium Oxide)
50 milliohms max @ 1A, 6VDC
1 X 10
7
Operations
1 X 10
5
Operations
General Purpose
Resistive
Motor
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Power Consumption
Ambient Temperature Range
Weight
20 ms. Max.
20 ms. Max.
1,000 megohms min, at 500VDC, 50%RH
1500 Vrms, 1 min. between coil and contacts
500 Vrms, 1 min. between open contacts
1500 Vrms, 1 min. between contact poles
10 g, 11ms, functional; 100 g, destructive
DA 1.5mm, 10-55 Hz
DC coil 1.2 W, AC coil 2 VA
-45 to 70 C, -40 to 130 C storage
79 grams approx.
ORDERING INFORMATION
Example:
Model
Contact Form
1C, 2C, or 3C
Options
Nil: None; L: Indicator light; M: Push to test
Coil Voltage
XXX VDC or XXX VAC
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888)997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PC703 Rev A 4-29-02
PC703
2C-
LM
120 A
PAGE 1
PC703
COIL DATA
Voltage
Type
Coil Voltage
6
12
DC
24
48
110
125
6
12
24
AC
48
110
120
220
240
Resistance
ohms + 10%
32
120
472
1800
10000
10000
6.0
21.0
85.0
350
1980
2250
8400
9110

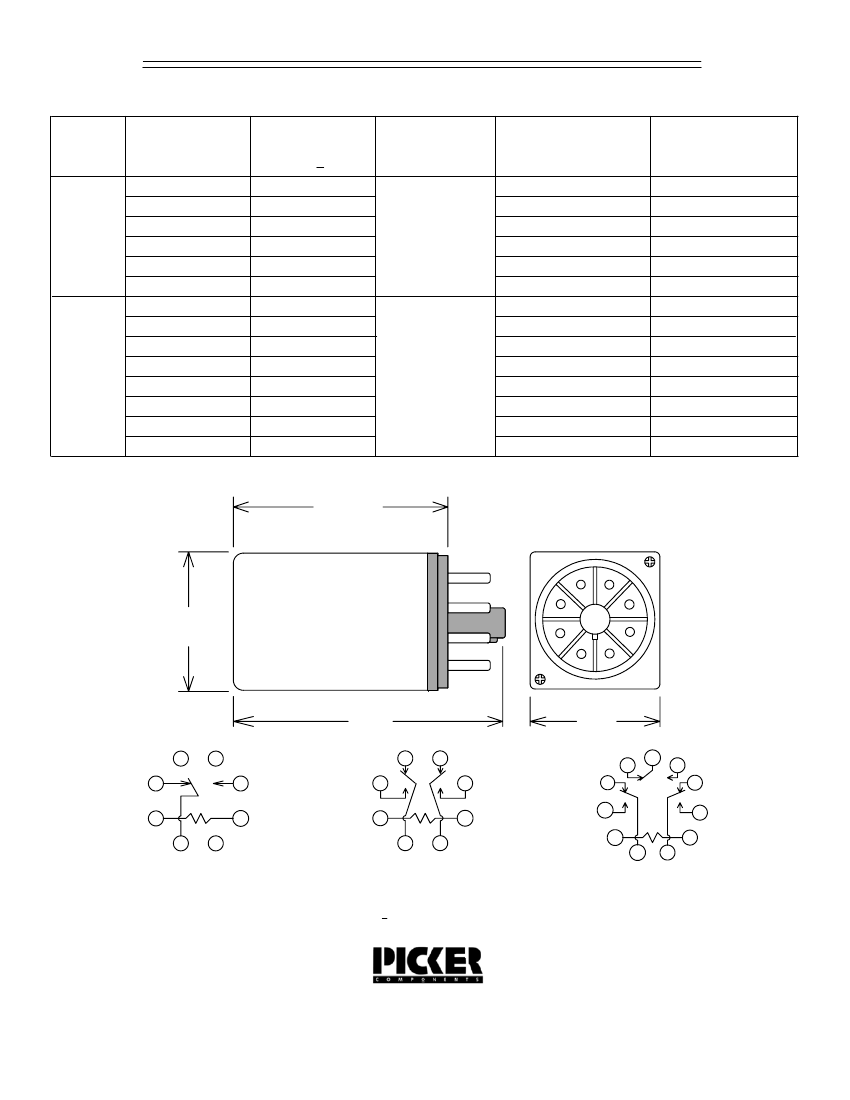

Dimensions in Inches (Millimeters)
2.15
(54.6)
2.0 VA
1.2 W
Coil
Power
Must Operate
Voltage Max.
4.5
9.0
18
36
82.5
93.75
4.8
9.6
19.2
38.4
93.5
102
187
204
PC703
Must Release
Voltage Min.
0.6
1.2
2.4
4.8
11.0
12.5
0.6
1.2
2.4
4.8
11.0
12.0
22.0
24.0
Note: Custom coil voltages within the ranges shown are available on special order.
1
8
2.73
(69.3)
4
3
2
1
8
5
6
7
3
2
1
8
4
5
6
7
1.29
(32.8)
5
4
3
2
1
11
10
6
7
8
9
SPDT
DPDT
Notes:
Tolerances + .010 unless otherwise noted
8 Pin octal shown for simplicity
3PDT
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888) 997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net
PAGE 2
7
1.37
(34.8)
6
5
4
3
2
