Oscilent Corporation RF SAW Filter | 802-RF1472.0M-A
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
802-RF1472.0M-A
.
TYPE :
3.0 x 3.0 SMD
RF Band Pass
Mar. 2, 2007
RF Band Pass SAW Filter
PART NUMBER :
802-RF1472.0M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Attenuation:
Condition
-
1452.0~ 1492.0 MHz
DC~ 1300.0 MHz
1300.0~ 1410.0 MHz
1560.0~ 1620.0MHz
1620.0~ 2500.0 MHz
2500.0~ 3000.0 MHz
Source Impedence (single ended)*
Load Impendance (single ended)*
VSWR
Amplitude Ripple
Maximum DC Voltage
Maximum Input Power
Operating Temperature
-
-
1452.0~ 1492.0 MHz
1452.0~ 1492.0 MHz
-
-
-
Minimum
-
-
50
40
37
35
30
-
-
-
-
-
-
-30
Typical
1472.0
3.5
60
50
42
45
37
50
50
1.5
0.9
-
-
-
Maximum
-
4.5
-
-
-
-
-
-
-
2.0
2.0
5
15
+85
ohm
ohm
-
dBp-p
V
dBm
ºC
dB
Units
MHz
dB
* No Matching Network(Ref. Testing Enviroment Circut as shown below)
.

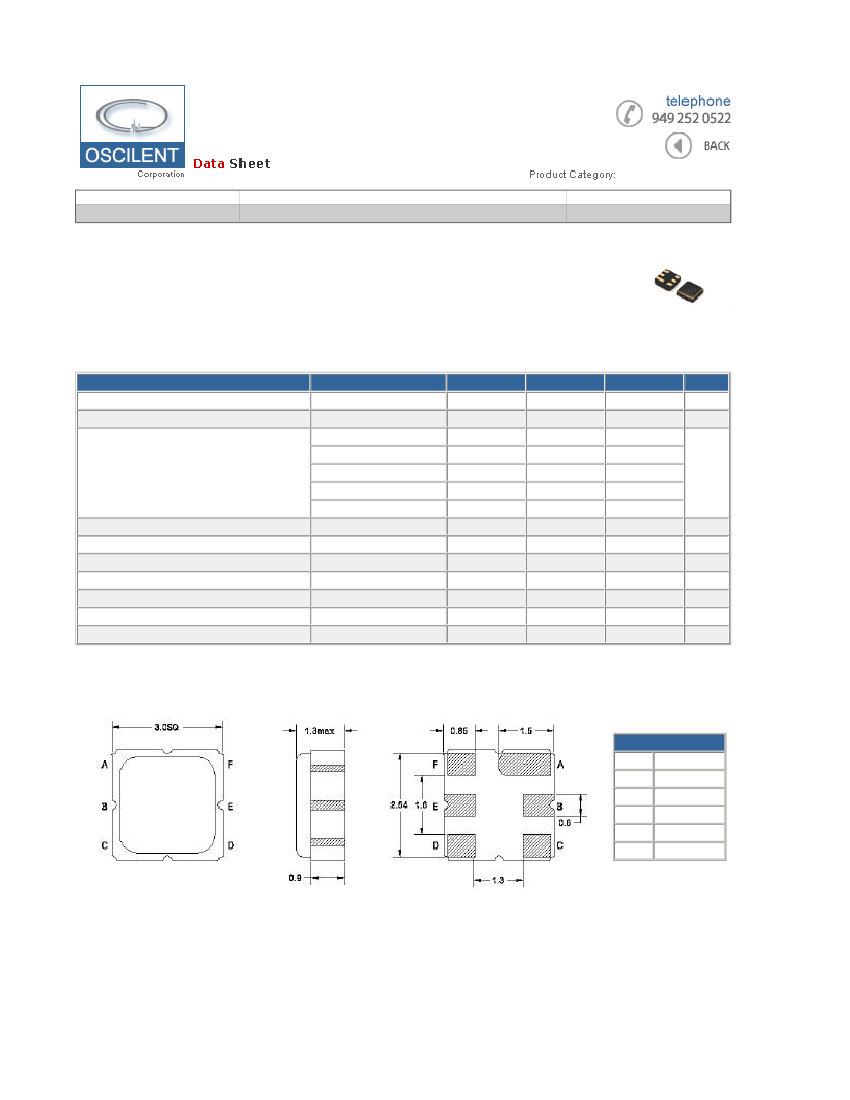

PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
Ground
Out
Ground
Ground
In
Ground

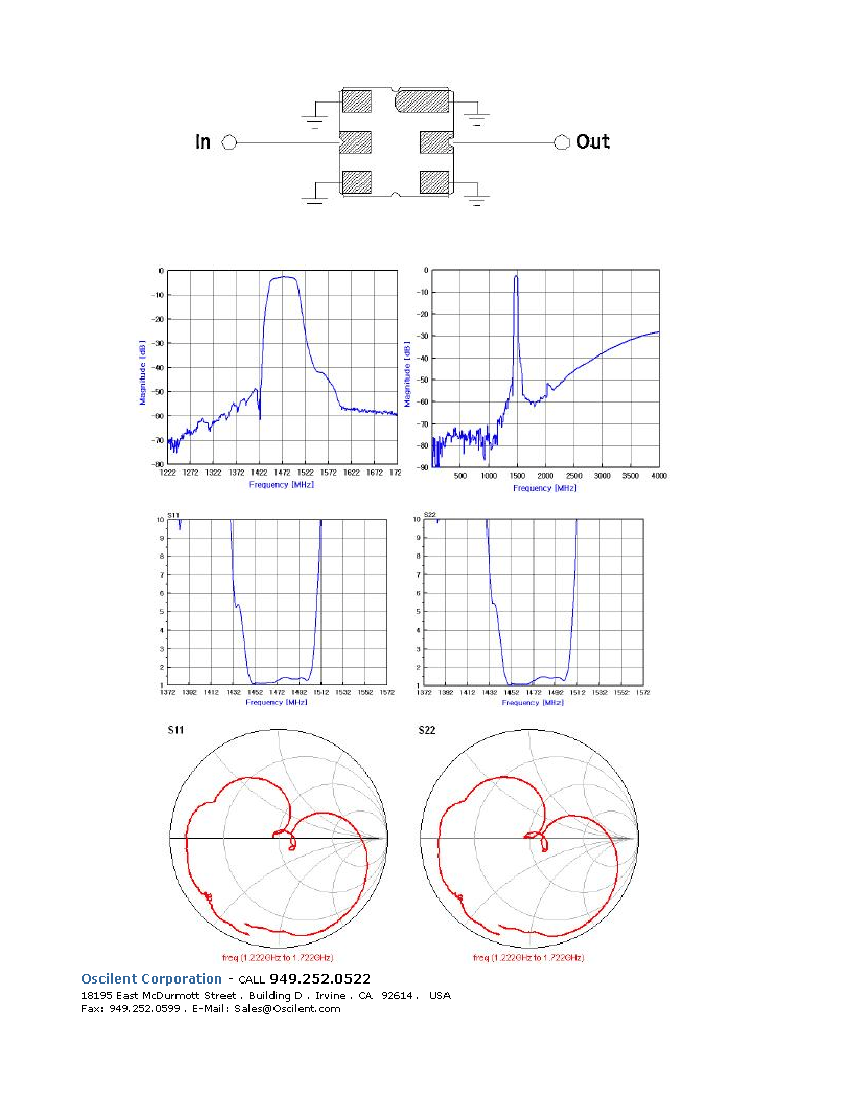

TEST FIXTURE
