GOG9xx04C

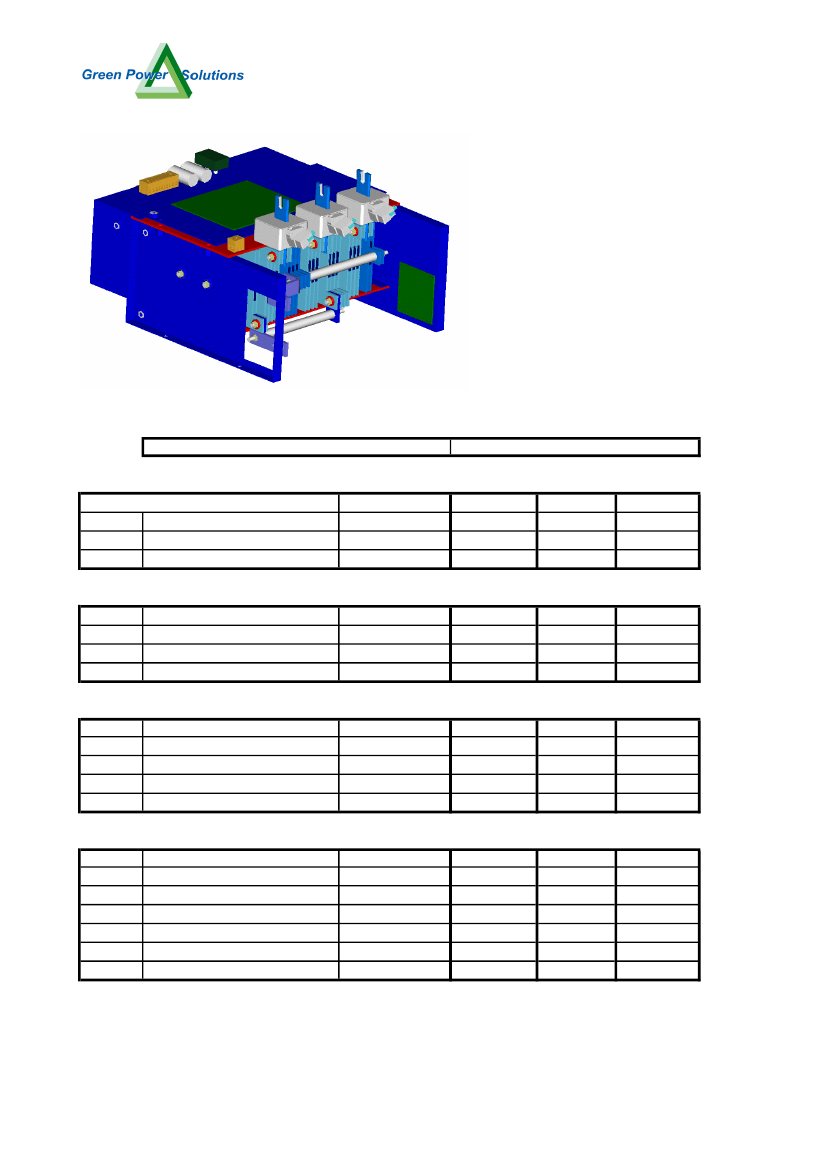

THREE PHASE AC-DC BRIDGE
Fuse protection
Blown fuse indicators with microswitch
Over temperature switches
Fan loss detection circuit
Snubber for SCR's protections
Compact design
LINE VOLTAGE UP TO 500V
DC OUTPUT CURRENT400A
GOG94004C GOG95004C
Line to line voltage
400
500
Characteristic
I
DC
V
INS
(rms)
DC output current
Insulation voltage
Conditions
Value
400 A
3000 V
Value
400 A
3000 V
THYRISTOR TRIGGERING CHARACTERISTICS
V
GT
I
GT
dV/dt
VRRM
Gate trigger voltage
Gate trigger current
Critical rate of rise off-state voltage
Blocking Voltage
T
j
= 25 °C, V
D
= 5 V
T
j
= 25 °C, V
D
= 5 V
Tj= 125 °C
Tj = 125 °C
3 V
300 mA
1000 V/us
1200 V
3 V
300 mA
1000 V/us
1600 V
FUSE TYPE SIBA 2062432.450
V
NF
I
NF
P
VF
I²t
Rated voltage
Rated current
Power loss
Total I t
2
690 V
450 A
At rated current
At 660V
75 W
110 kA2s
690 V
450 A
75 W
110 kA2s

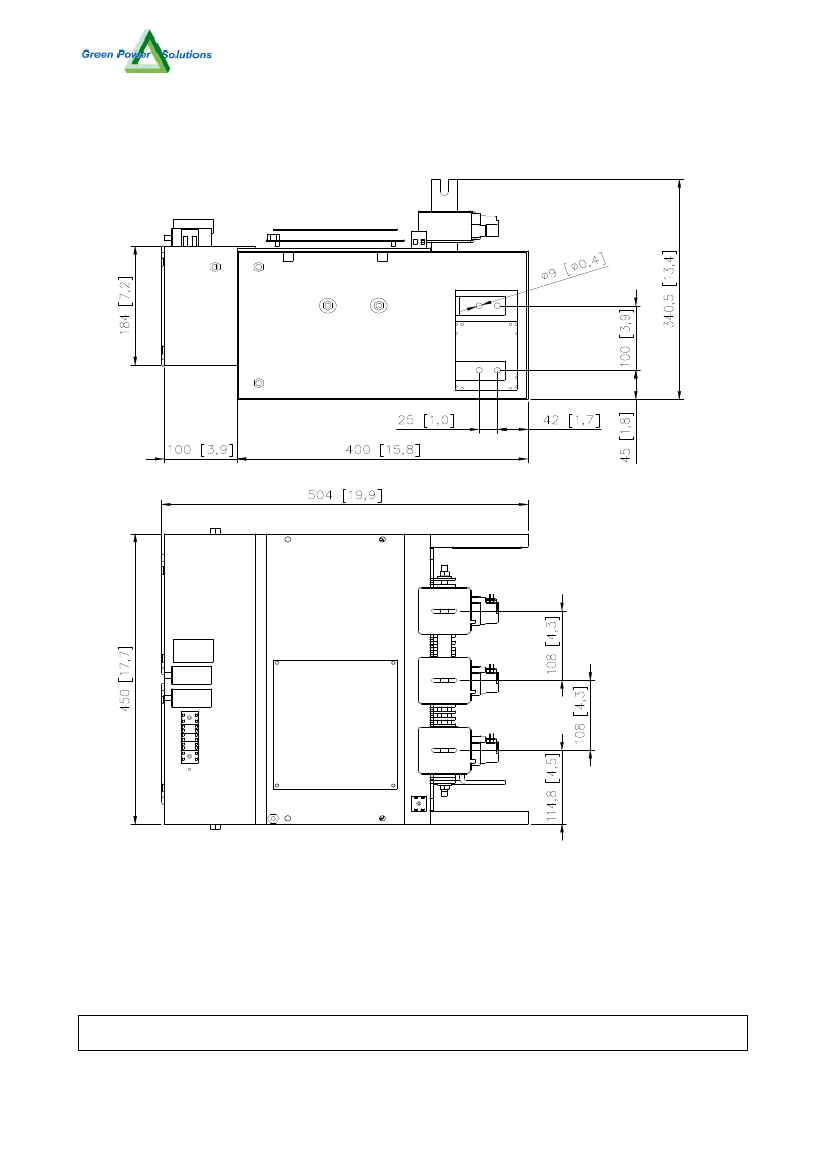

MECHANICAL AND THERMAL CHARACTERISTICS
Width
Depth
Height
Mass
Ta max
Tstg
Max amb. op. Temp.
Storage temperature
400 mm
340 mm
500 mm
30 Kg
40 °C
-40/ +60 °C
450 mm
340,5 mm
500 mm
30 Kg
40 °C
-40/ +60 °C
Document GOG9xx04CT002
THREE PHASE AC-DC BRIDGE
GOG9xx04C
The part numbering system is reported at the beginning of the Open Assembly section.
Customisations are available on request. Please contact factory.
I
n the interest of product improvement Green Power Solutions reserves the right to change any specification given in this data sheet
without notice.
Document GOG9xx04CT002
THREE PHASE AC-DC BRIDGE
GOG9xx04C

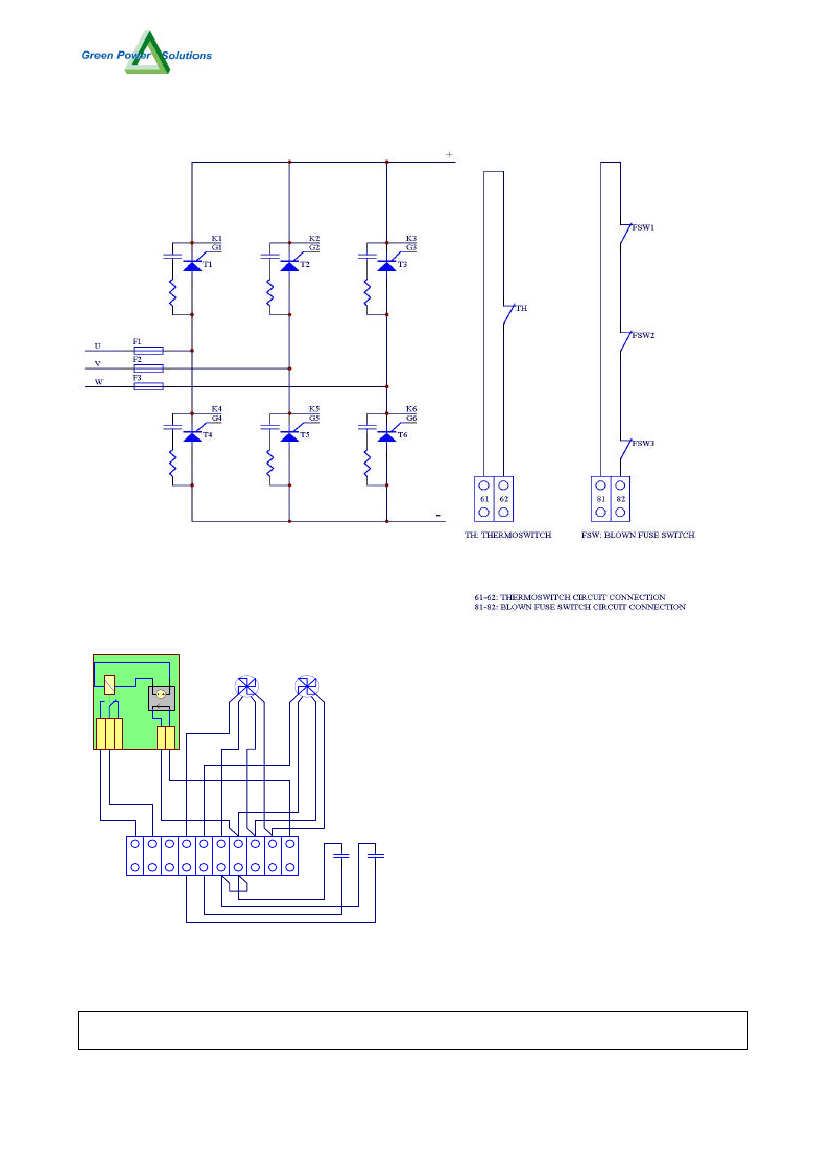

FAN BOARD
FAN 1
FAN 2
BLUE
GREEN/YELLOW
BLUE
GREEN/YELLOW
BROWN
BLACK
NO
COM
NC
AC
AC
BROWN
BLACK
Cooling:
FAN CAPACITOR
FAN CAPACITOR
31
32
U3
PE
V3
Fan type:
Number of fans:
Voltage:
Current:
Frequency:
Noise:
single phase axial
2
230 V
0.4 A
50/60 Hz
62 dBA
1
2
U3-V3: MAIN SUPPLY
PE: GROUND CONNECTION (GND)
31-32: FAN BOARD CONTACT (CLOSED WHEN FAN RUNNING)
I
n the interest of product improvement Green Power Solutions reserves the right to change any specification given in this data sheet
without notice.
Document GOG9xx04CT002
2
1
