ISPA20
DESCRIPTION
The ISPA20 is a 1-Form A solid state relay in a
space saving 4 pin DIL package. The ISPA20
utilises MOSFET technology that is optically
coupled to a highly efficient GaAlAs infrared
light emitting diode.
A20
FEATURES
•

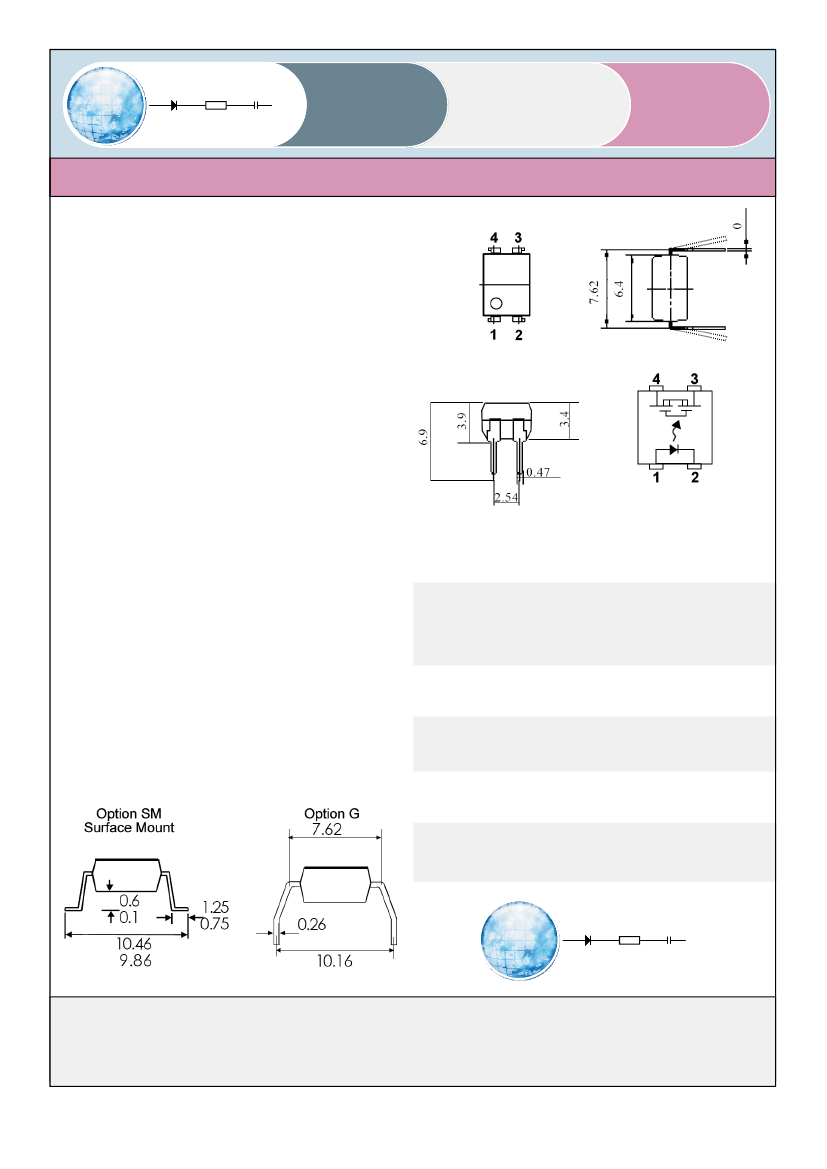

Options :-
•
10mm lead spread - add G after part
no.
•
Surface mount - add SM after part no.
•
Tape&reel - add SMT&R after part no.
High Load Current ( 200mA )
High Load Volatge ( 200V )
High Isolation Voltage (3.75kVRMS )
No moving parts
High reliability
Arc-Free without snubber circuits
All electrical parameters 100% tested
Custom electrical selections available
•
•
•
•
•
•
•
•
ABSOLUTE MAXIMUM RATINGS
(25°C unless otherwise specified)
Storage Temperature
-40°C to + 100°C
Operating Temperature
-40°C to + 85°C
Lead Soldering Temperature
(1/16 inch (1.6mm) from case for 10 secs) 260°C
APPLICATIONS
•
•
•
•
Telecommunications
Industrial systems controllers
Measuring instruments
Signal transmission between systems of
different potentials and impedances
INPUT DIODE
Forward Current
Reverse Voltage
50mA
5V
OUTPUT MOSFET
Load Voltage ( AC peak or DC ) 200V
Continuous Load Current
200mA
Peak Current ( 10mS ) 400mA
ISOCOM
COMPONENTS
ISOCOM COMPONENTS LTD
Unit 25B, Park View Road West,
Park View Industrial Estate
Hartlepool, TS25 1YD England Tel: (01429)863609
Fax : (01429) 863581 e-mail sales@isocom.co.uk
ISOCOM COMPONENTS ASIA LTD
Hong Kong Office, 1712-1713
Laurels Industrial Centre, 32 Tai Yau Street,
San Po Kong, Kowloon, Hong Kong.
Tel: +852 2995 9217 Fax : +852 8161 6292
e-mail sales@isocom.com.hk
http://www.isocom.com
ISOCOM Components 2007
ELECTRICAL CHARACTERISTICS ( T
A
= 25°C Unless otherwise noted )
PARAMETER
Input
Forward Voltage (V
F
)
Reverse Current (I
R
)
Output
On state Resistance ( Ron )
Off state Leakage Current (I
LK
)
Turn-On Time ( Ton )
Turn-Off Time ( Toff )
Ouput Capacitance
0.2
0.03
150
6
MIN
1.0
TYP MAX UNITS TEST CONDITION
1.4
10
V
µ
A
I
F
= 10mA
V
R
= 5V
I
F
= 10mA, I
L
= 200mA
I
F
= 0mA, I
V
= 200V
I
F
= 10mA, I
L
= 200mA
I
F
= 10mA, I
L
= 200mA
f = 1MHz
10
1
0.5
0.3
Ohm
uA
mS
mS
pF
Coupled
Capacitance
Isolation Voltage
Isolation Resistance
3750
5
1.0
pF
Vrms
Gohm
f = 1MHz
1 minute ( Note 1 )
DC= 500V ( Note 1 )
Note 1
Note 2
Measured with input leads shorted together and output leads shorted together.
Special Selections are available on request. Please consult the factory.
13/2/07
DC93078
