P6KE51A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> P6KE51A

P6KE51A: Description600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-15; CategoryDiscrete semiconductor diode; File Size1MB，5 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric View All

P6KE51A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P6KE51A	-	-	View	Buy Now

P6KE51A Overview

600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-15

P6KE51A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rectron Semiconductor
Parts packaging code	DO-15
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	LOW ZENER IMPEDANCE
Maximum breakdown voltage	53.6 V
Minimum breakdown voltage	48.5 V
Breakdown voltage nominal value	51 V
Shell connection	ISOLATED
Maximum clamping voltage	70.1 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	265
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	43.6 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

RECTRON

SEMICONDUCTOR

TECHNICAL SPECIFICATION

TVS

P6KE

SERIES

GPP TRANSIENT VOLTAGE SUPPRESSOR

600 WATT PEAK POWER 1.0 WATT STEADY STATE

FEATURES

Plastic package has underwriters laboratory

Glass passivated chip construction

600 watt surage capability at 1ms

Excellent clamping capability

Low zener impedance

Fast response time

DO-15

Ratings at 25

C ambient temperature unless otherwise specified.

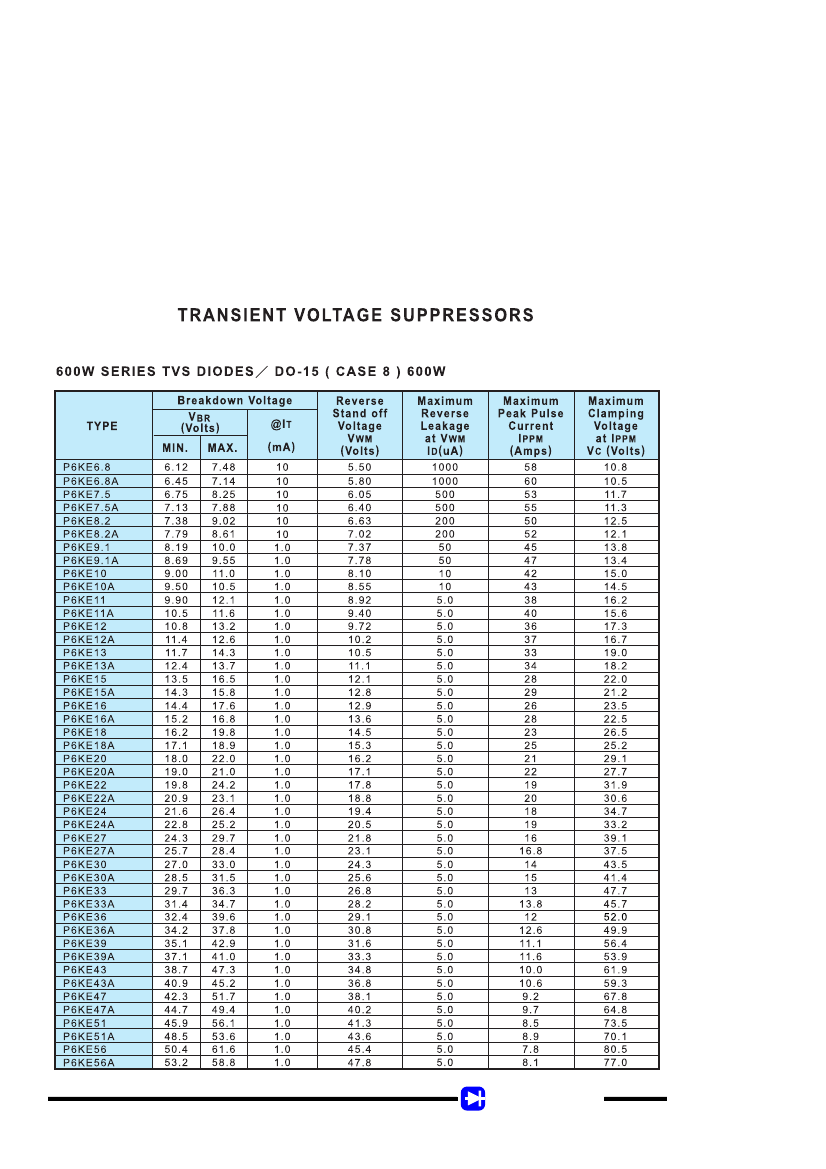

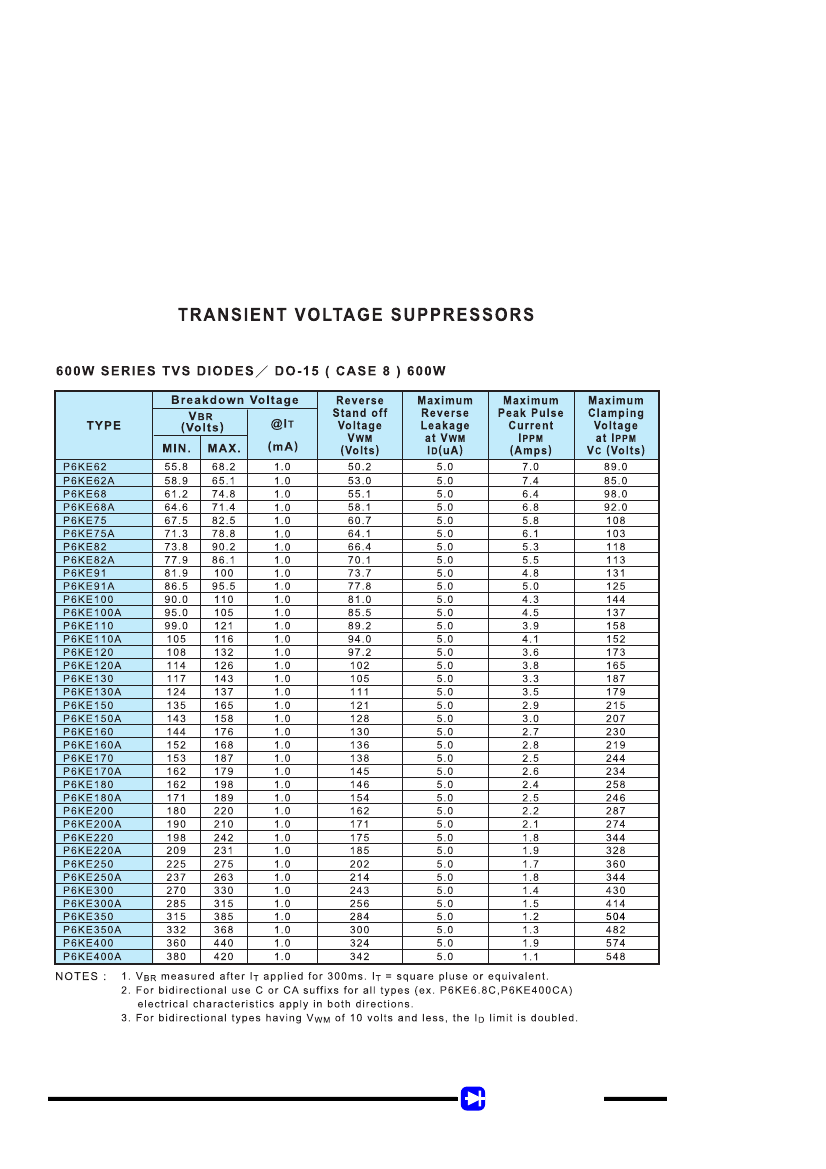

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load,

For capacitive load, derate current by 20%.

Dimensions in inches and (millimeters)

DEVICES FOR BIPOLAR APPLICATIONS

For Bidirectional use C or CA suffix for types P6KE6.8 thru P6KE400

Electrical characteristics apply in both direction

MAXIMUM RATINGS

(At T

= 25 C unless otherwise noted)

RATINGS

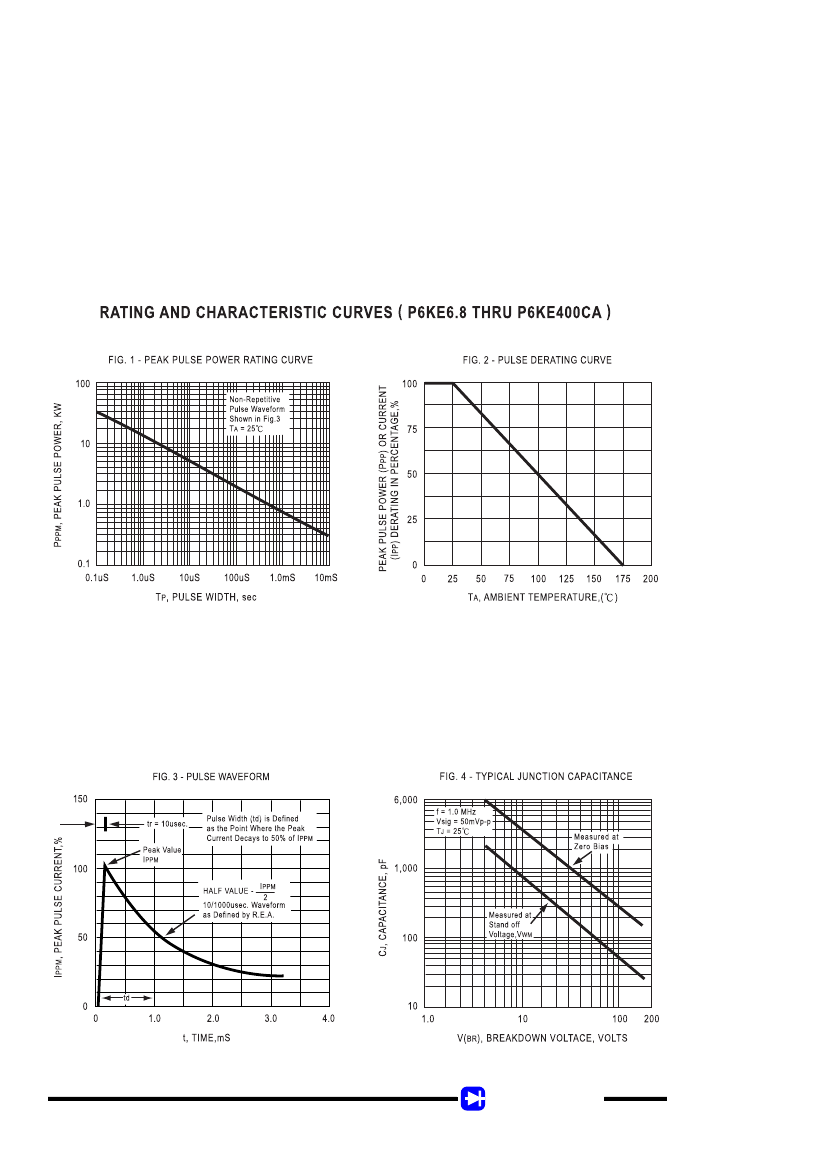

Peak power dissipation with a 10/1000uS (NOTES 1, FIG.1)

Steady state power dissipation at T

= 75 C lead lengths,

.375” ( 9.5 mm ) ( NOTES 2 )

Peak forward surge current, 8.3ms single half sine wave-

superimposed on rated load( JEDEC METHOD ) ( NOTES 3 )

Maximum instantaneous forward voltage at 50A for

unidirectional only ( NOTES 4 )

Operating and storage temperature range

SYMBOL

PPM

VALUE

Minimum 600

5.0

UNITS

Watts

FSM

100

Amps

, T

STG

3.5/5.0

-65 to + 175

Volts

1998-8

NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T

= 25 C per Fig.2.

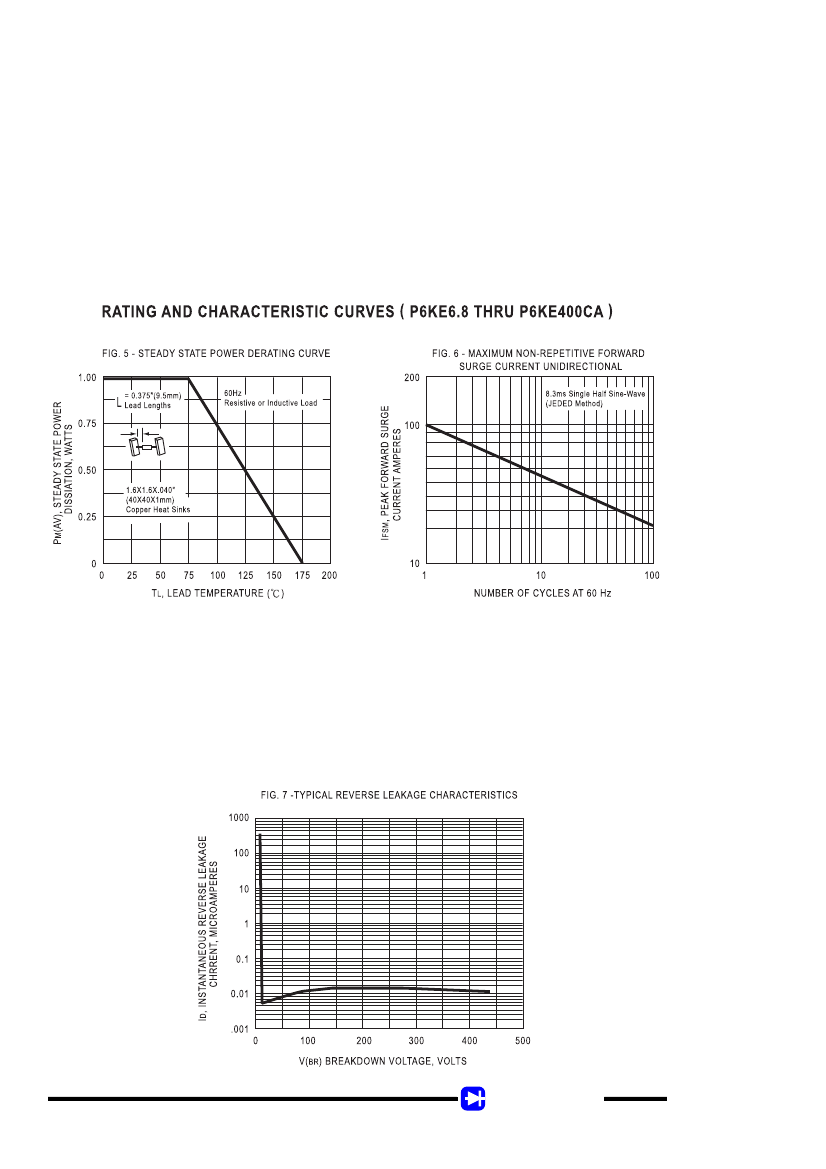

2. Mounted on copper pad area of 1.6 X 1.6”( 40X40 mm) per Fig. 5

3. Measured on 8.3ms single half sine-wave or equivalent square wave duty cycle = 4 pulses per minute maximum.

4. V

= 3.0V max. for devices of V(

) < 200V and V

= 5.0 Volts for devices of V(

) > 200V.
