INTEGRATED DIGITAL TV PROCESSORS
DVD
Digital Camera
Driving the Digital Lifestyle
Digital TV
Imaging
IP Core
Product Brief
Overview
Zoran Corporation
1390 Kifer Road
Sunnyvale, CA 94086-5305
Te l 408.523.6500
Fax 408.523.6501
www.zoran.com
The SupraTV family of highly integrated digital TV processors for
Free-To-Air and Pay TV Set-Top Boxes (STBs) and integrated digital
TVs combines the key functions required to support standard
definition digital television systems.
The SupraTV processor enables products with enhanced flexibility
and performance to be developed at low system costs. The use of
programmable DSP-based technology allows for product
differentiation, while a high performance MIPS processor provides
access to industry standard middleware, including MHEG-5 and MHP.
With a comprehensive set of software drivers, proven tool kit and
reference platforms, the SupraTV family keeps product development
times to a minimum.
SupraTV 150 Family
The ZR39150 family includes the following SupraTV ICs:
•
ZR39140
— designed for use in Free-To-Air and Pay TV Set-Top
Box applications (without Macrovision)
•
ZR39151
— designed for use in applications that require
Macrovision
•
ZR39152
— designed for use in UK Free-To-Air terrestrial markets,
including Cabot’s Aurora DVB middleware, which supports MHEG-
5 and over-air download (without Macrovision)
•
ZR39153
— designed for use in UK Free-To-Air terrestrial markets,
including Cabot’s Aurora DVB middleware, which supports MHEG-
5 and over-air download (with Macrovision)
Differences Between ZR39140, ZR39151, ZR39152 and ZR39153
Chip
ZR39140
ZR39151
ZR39152
ZR39153
Macrovision Support
NO
YES
NO
YES
Includes MHEG-5 Software
NO
NO
YES
YES
SupraTV 140 Features Summary
• MIPS 32 CPU with MMU
- 8K I-cache, 8K D-cache
- 195 MHz, Main CPU & programmable DSP operating speed
- ≥230 Dhrystone MIPS, total performance
• Programmable multi-stream transport demultiplexer
- DVB descrambling
- Support for PVR based applications
• Dual SmartCard interfaces with integrated protection
and control
• Integrated two-slot DVB-CIM controller
• MPEG-2 video decoder, ISO/IEC13818-2 (MP@ML)
- Support for bitrates up to 15Mbits/sec
• High performance graphics subsystem
- 2D graphics accelerator function supporting six planes
- 4, 8 bit CLUT, 16bit RGB with OSD, Antiflicker filtering
- Flexible down/up-scaling of video
• Integrated PAL/NTSC Video Encoder
- VBI reinsertion (Teletext, WSS, CC)
- Simultaneous Component, S-Video and RGB output
- 6 video DACs
• Audio support:
- Programmable audio DSP for MPEG layers 1 & 2, MP3 & WMA
- Two-channel audio output using I2S
- SPDIF output
- Two-channel audio input for decoded analog TV audio
• Unified SDRAM memory architecture (64Mbit - 256Mbit)
•
CCIR-601 digital video support
- Input for decoded NTSC/PAL/SECAM signals
• Guestbus with glueless interface to peripheral devices
- ATAPI, 8 or 16 bits flash memory, USB/LAN bridge
• Support for V.22bis soft modem
- Integrated codec and DAA interface
• Set-Top Box interfaces including: UARTs, I2C, IR, GPIOs
• Single crystal
- Integrated digital timing oscillator replacing external VCXO
• 256-pin PQFP package
12/06 IN
ZR39150 Family
SupraTV
®
150 Family
INTEGRATED DIGITAL TV PROCESSORS
Driving the Digital Lifestyle
Product Brief
SupraTV 150 Development Platform
A comprehensive development platform is available for the SupraTV
150 family, including evaluation boards for digital terrestrial, satellite
and cable-based products. An Integrated Development Environment
includes a proven windows based GNU tool kit, Zoran’s
SiliconSoftware
®
registration drivers, and additional applications that
add functions such as flash memory burning, high performance code
download, software protection, a sophisticated GUI development tool
(Embedded Wizard), and an automatic code generator.
The SupraTV 150 platform will significantly reduce the time taken to
develop feature rich digital television and Set-Top Box products. The
SupraTV 150 evaluation board supports all needed peripherals and
is available with a COFDM, QPSK or QAM front-end.
Single and dual tuner Digital Video Recording capabilities can
be achieved by adding a hard drive, Zoran DVR Software, additional
memory, and a second front end (for dual tuner DVR).

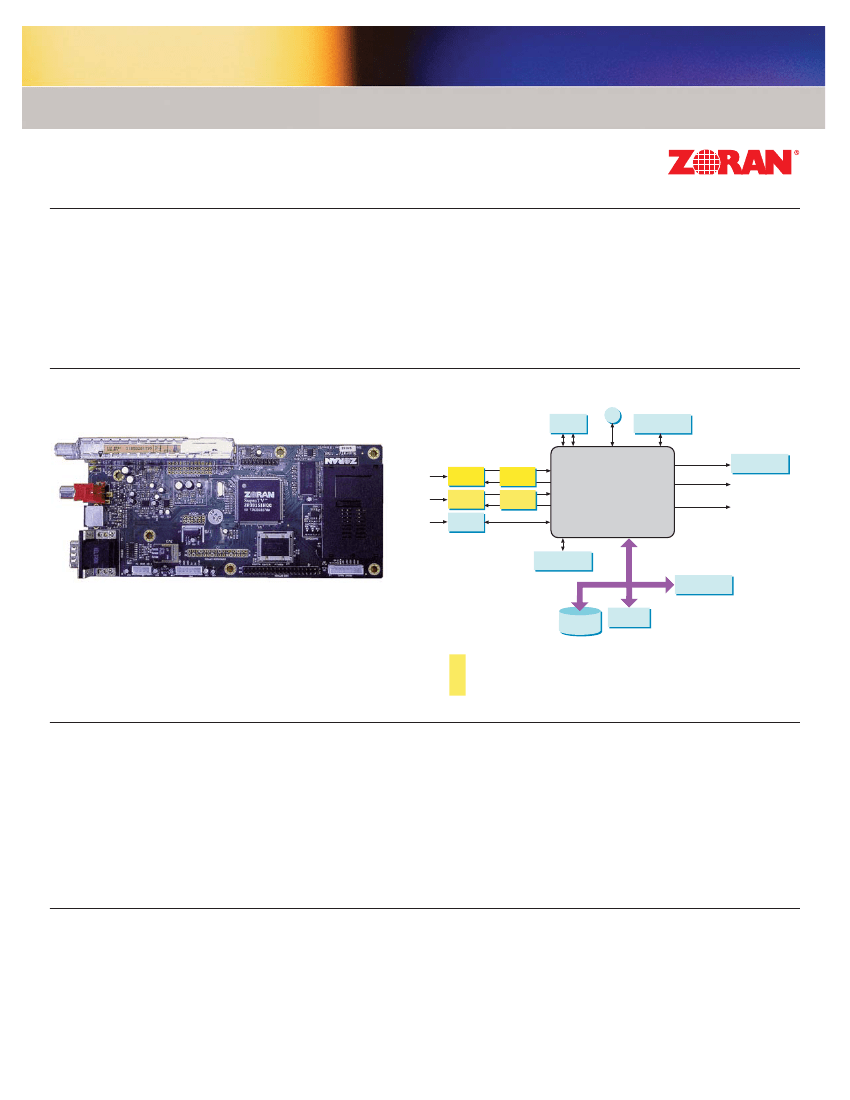

SupraTV 150 Family Reference Design and System Block Diagram
Infrared
remote
control
IR
SDRAM
LEDs/Buttons
FRONT PANEL
DIGITAL FRONT END
RF In
RF In
Phone
Line
DVB-X
Tuner
DVB-X
Tuner
DAA
(Optional )
DVB-X
Demod
DVB-X
Demod
SDRAM
CONTROLLER
TS1
I2C
TS2
TS2
I2C
IR
GPIO
Audio DAC
AUDIO
OUT
VIDEO
OUT
SupraTV
141 Processor
SPDIF
CVBS, RGB,
S-Video
OR
SOFT V.22bis MODEM
UARTs
GUESTBUS
Smart Card(s)
(Optional)
ROM/Flash
HDD
(Optional)
2 Slot CIM
(Optional)
For cable set-top boxes use DVB-C tuner & QAM demodulator
For satellite set-top boxes use DVB-S tuner & QPSK demodulator
For terrestrial set-top boxes use DVB-T tuner & COFDM demodulator
For digital televisions use combined DVB-T/analog terrestrial tuner, COFDM demodulator,
and PAL/SECAM/NTSC video decoder
Zoran SiliconSoftware® API Package
Zoran provides software support for the SupraTV 150 and a
documented Application Programming Interface. Based on the
company's extensive DVD and HDTV experience, the API provides a
stable base on which users can build their own applications.
The software stack, including the operating system (Nucleus+), is
available on a royalty-free basis. Zoran's SiliconSoftware API will be
supported on future SupraTV ICs. Software portability from one
generation to the next minimizes project design time and effort while
enabling the software to be reused.
Other components of the standard software package include an
Electronic Programming Guide (EPG) for Free-To-Air services, DVB
subtitle and OSD Teletext decoding, and DVB common interface
module software. In addition, the SupraTV 152 and 153 include a
complete UK DVB-T software stack, which includes MHEG-5 and
Over-Air Download.
For more information, contact Zoran's Sunnyvale office or the office nearest you:
Shanghai, China
Zoran China Office
Tel: 86-21-6247-6258
Fax: 86-21-6247-6260
Shenzhen, China
Zoran China Office
Tel: 86-755-8281-5777
Fax: 86-755-8322-0889
Hong Kong
Zoran Asia Pacific Ltd.
Tel: +852-2620-5838
Fax: +852-2620-5238
Israel
Zoran Microelectronics Ltd.
Te l : +972-4-8545-777
Fax: +972-4-8551-550
Japan
Zoran Japan Office
Te l : +81-3-5475-1051
Fax: +81-3-5475-1053
Korea
Zoran Korea Office
Tel: +82-2-761-7471
Fax: +82-2-761-7472
Taiwan
Zoran Taiwan Office
Te l : +886-2-2659-9797
Fax: +886-2-2659-9595
© Copyright 2006 Zoran Corporation. All rights reserved. Zoran, the Zoran logo, SiliconSoftware and SupraTV are trademarks of Zoran Corporation. All other brand product names and company names are trademarks of
their respective owners. The information in this document is believed to be reliable. However, Zoran Corporation makes no guarantee or warranty concerning the accuracy of said information and shall not be responsible
for any loss or damage of whatever nature resulting from the use of, or reliance upon it. Zoran Corporation does not guarantee that the use of any information contained herein will not infringe upon patent, trademark,
copyright, or rights of third parties. Zoran Corporation reserves the right to make changes in the product and/or specifications, or both, presented in this publication at any time without notice.
12/06 - IN
ZR39150 Family
