The SupraTV 160 family of highly integrated digital TV processors for
Free-To-Air and Pay TV Set-Top Boxes (STBs) and integrated digital
TVs supports single or dual tuner Digital Video Recording (DVR).
Combining the key functions required to support digital television
systems, the SupraTV processor enables products with enhanced
flexibility and performance to be developed at the lowest possible
system cost. The use of programmable DSP-based technology allows
for product differentiation, while a high performance MIPS processor
provides access to industry standard middleware, including MHEG-5.
With a comprehensive set of software drivers, proven tool kit and
reference platforms, the SupraTV family keeps product development
times to a minimum.
SupraTV 160 Family
• ZR39160
— designed for use in entry free-to-air and payTV
markets
• ZR39161
— designed for use in free-to-air and payTV markets
containing digital video recording and advanced copy protection
• ZR39162
— designed for use in entry UK Free-To-Air terrestrial
markets, including DTVS MHEG-5 software
• ZR39163
— designed for use in U.K. terrestrial markets containing
digital video recording and advanced copy protection, and
including DTVS MHEG-5 software
Differences Between ZR39160, ZR39161, ZR39162 and ZR39163
Chip
ZR39160
ZR39161
ZR39162
ZR39163
Target Markets
Entry Free-to-Air and PayTV
Digital Video Recording and Advanced PayTV
Entry U.K. Terrestrial
Features Includes MHEG-5 Software
Entry
Premium
*
Entry
No
No
Yes
Yes
U.K. Terrestrial with Digital Video Recording and Advanced PayTV Premium
*
SupraTV 16x Features Summary
• MIPS 32 CPU with MMU
- 8K I-cache, 8K D-cache
- 195 MHz Main CPU & programmable DSP operating speed
- ≥230 Dhrystone MIPS total performance
• 16 or 32 bit SDRAM controller (64Mbit - 256Mbit)
•
Transport stream demultiplexer
- Programmable multi-stream transport demultiplexer with DVB
descrambler
- Three transport stream interfaces
- DVB descrambling
- Dual SmartCard interfaces with integrated protection & control
- Integrated two-slot DVB-CIM controller
• MPEG-2 video decoder, ISO/IEC13818-2 (MP@ML)
- Support for bitrates up to 15Mbits/sec
• Graphics and video processing subsystem
- Advanced DMA engine to support 2D graphics
- 4, 8 bit CLUT, 16bit RGB with OSD, antiflicker filtering
- Flexible down/up-scaling of video
- 5 graphic planes
•
Digital television interfaces
- CCIR-601 digital video input for decoded NTSC/PAL/SECAM
- CCIR-601 digital video output for external scalers
- Two-channel audio input for decoded analog TV audio
• USB
- USB 2.0 Full Speed Host-Type controller and PHY
- USB based updates and MP3/JPEG playback
• Integrated PAL/NTSC/SECAM Video Encoder
- VBI (Teletext, WSS, CC) and VPS reinsertion
- Simultaneous Component, S-Video and RGB output
- 6 video DACs
• Audio support
- Programmable audio DSP for MPEG layers 1 & 2, MP3 & WMA
- Stereo audio DACs integrated
- Two-channel audio output using I2S or analog
- SPDIF output
• Single crystal
- Integrated digital timing oscillator replacing external VCXO
• Set-Top Box interfaces
- UARTs, I2C, IR, GPIOs
- Glueless Guestbus interface to 8 or 16 bit flash memory
- V.22 bis modem CODEC and DAA interface support
• Digital Video Recording
*
- Support for single and dual tuner Digital Video Recording
- Guestbus based ATAPI interface for hard drive
• Advanced security
*
- Local triple DES encrypt/decrypt engine
- 1KB OTP memory
• 256-pin PQFP package
12/06 IN
ZR39160 Family
SupraTV
®
160 Family
Integrated Digital TV Processors
Driving the Digital Lifestyle
Product Brief
SupraTV 160 Development Platform
A comprehensive development platform is available for the SupraTV
160 family, including evaluation boards for digital terrestrial, satellite
and cable-based products. An Integrated Development Environment
includes a proven windows based GNU tool kit, Zoran’s
SiliconSoftware
®
registration drivers, and applications that add
functions such as flash memory burning, high performance code
download, software protection, a sophisticated GUI development tool,
(Embedded Wizard), and an automatic code generator.
The SupraTV 160 family platform will significantly reduce the time
taken to develop feature rich digital television and Set-Top Box
products. The SupraTV 161 based evaluation board supports all
needed peripherals and is available with a COFDM, QPSK or QAM
front-end.
Single and dual tuner Digital Video Recording capabilities can be
achieved by adding a hard drive, Zoran’s DVR software, additional
memory, and a second front end (for dual tuner DVR).

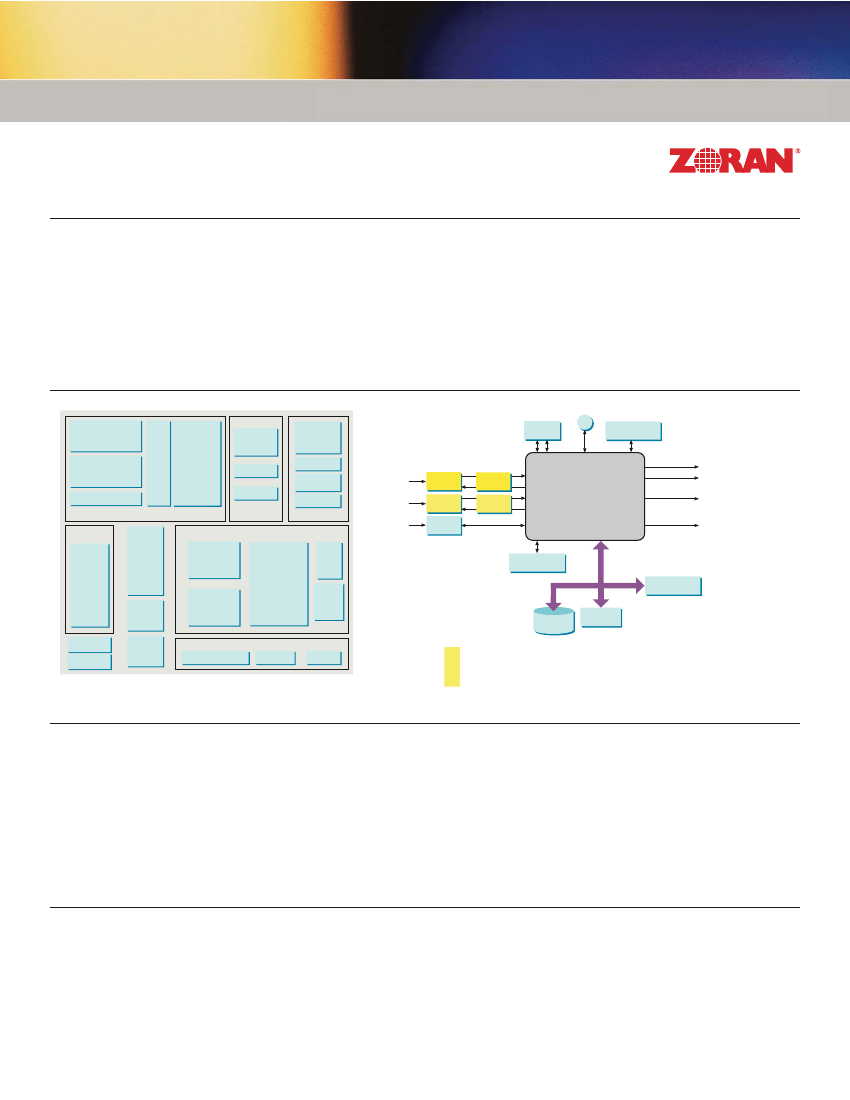

SupraTV 161 IC and Set Top Box Block Diagrams
Infrared
remote
control
Multi-stream Demux &
Descrambler (DVB) & local
encryption/decryption
FRONT PANEL
LEDs/Buttons
Serial or
Parallel TS Input
MIPS32
CPU
(170 MIPS)
Programmable
Transport
Stream
Processor
Audio DSP for
MPEG & MP3
Audio In
16/32b
SDRAM
IR
Serial or
Parallel TS Input
601 in/output
TS from HDD/DVD
DIGITAL FRONT END
RF In
RF In
Phone
Line
DVB-X
Tuner
DVB-X
Tuner
DAA
(Optional)
DVB-X
Demod
DVB-X
Demod
SDRAM
CONTROLLER
TS1
I2C
TS2
TS2
I2C
IR
GPIO
AUDIO OUT
BACK END
Stereo
SPDIF
I Cache
2 Audio
DACs
D Cache
SPDIF
Transport and CA Processing
Other I/O
System I/O
UART/I2C/SPI/IR/
GPIO/SMC/PWM
CPU
SupraTV
ZR39161
GUESTBUS
USB
VIDEO
OUT
Audio
V.22bis MODEM CODEC
Video and Graphics
General
Purpose
DMA
Engines
MPEG-2
Video Decoder
VPU
(Video Processing
Unit)
20 DMA Engine
PLL
Six
Video
DACS
OR
UARTs
USB Devices
(Flash Cards, Updates,
Broadband Modems)
CVBS, RGB,
S-Video,
CCIR601
Smart Card(s)
(Optional)
ROM/Flash
Video
Encoder
HDD
(Optional)
2 Slot CIM
(Optional)
MODEM
CODEC (V22)
EJTAG
Digital
VCXO
Major Buses
16/32b SDRAM CTRL
Guest Bus
USB 1.1
For cable set-top boxes use DVB-C tuner & QAM demodulator
For satellite set-top boxes use DVB-S tuner & QPSK demodulator
For terrestrial set-top boxes use DVB-T tuner & COFDM demodulator
For digital televisions use combined DVB-T/analog terrestrial tuner, COFDM demodulator,
and PAL/SECAM/NTSC video decoder
Zoran SiliconSoftware® API Package
Zoran provides software support for the SupraTV 160 family and a
documented Application Programming Interface. Based on the
company's extensive DVD and HDTV experience, the API provides a
stable base on which users can build their own applications.
The software stack, including the operating system (Nucleus+), is
available on a royalty-free basis. Zoran's SiliconSoftware API will be
supported on future SupraTV ICs. Software portability from one
generation to the next minimizes project design time and effort while
enabling the software to be reused.
Other components of the standard software package include an
Electronic Programming Guide (EPG) for Free-To-Air services,
DVB subtitle and OSD Teletext decoding, and DVB common
interface module software. In addition, the SupraTV 162 and 163
integrate MHEG-5 software for the U.K. terrestrial market.
For more information, contact Zoran's Sunnyvale office or the office nearest you:
Shanghai, China
Zoran China Office
Tel: 86-21-6427-6258
Fax: 86-21-6427-6260
Shenzhen, China
Zoran China Office
Tel: 86-755-8281-5777
Fax: 86-755-8322-0889
Hong Kong
Zoran Asia Pacific Ltd.
Tel: +852-2620-5838
Fax: +852-2620-5238
Israel
Zoran Microelectronics Ltd.
Tel : +972-4-8545-777
Fax: +972-4-8551-550
Japan
Zoran Japan Office
Tel : +81-3-5475-1051
Fax: +81-3-5475-1053
Korea
Zoran Korea Office
Tel: +82-2-761-7471
Fax: +82-2-761-7472
Taiwan
Zoran Taiwan Office
Te l : +886-2-2659-9797
Fax: +886-2-2659-9595
© Copyright 2006 Zoran Corporation. All rights reserved. Zoran, the Zoran logo, SiliconSoftware and SupraTV are trademarks of Zoran Corporation. All other brand product names and company names are trademarks of
their respective owners. The information in this document is believed to be reliable. However, Zoran Corporation makes no guarantee or warranty concerning the accuracy of said information and shall not be responsible
for any loss or damage of whatever nature resulting from the use of, or reliance upon it. Zoran Corporation does not guarantee that the use of any information contained herein will not infringe upon patent, trademark,
copyright, or rights of third parties. Zoran Corporation reserves the right to make changes in the product and/or specifications, or both, presented in this publication at any time without notice.
12/06 - IN
