DSA10L: Description1 A, 1000 V, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size42KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

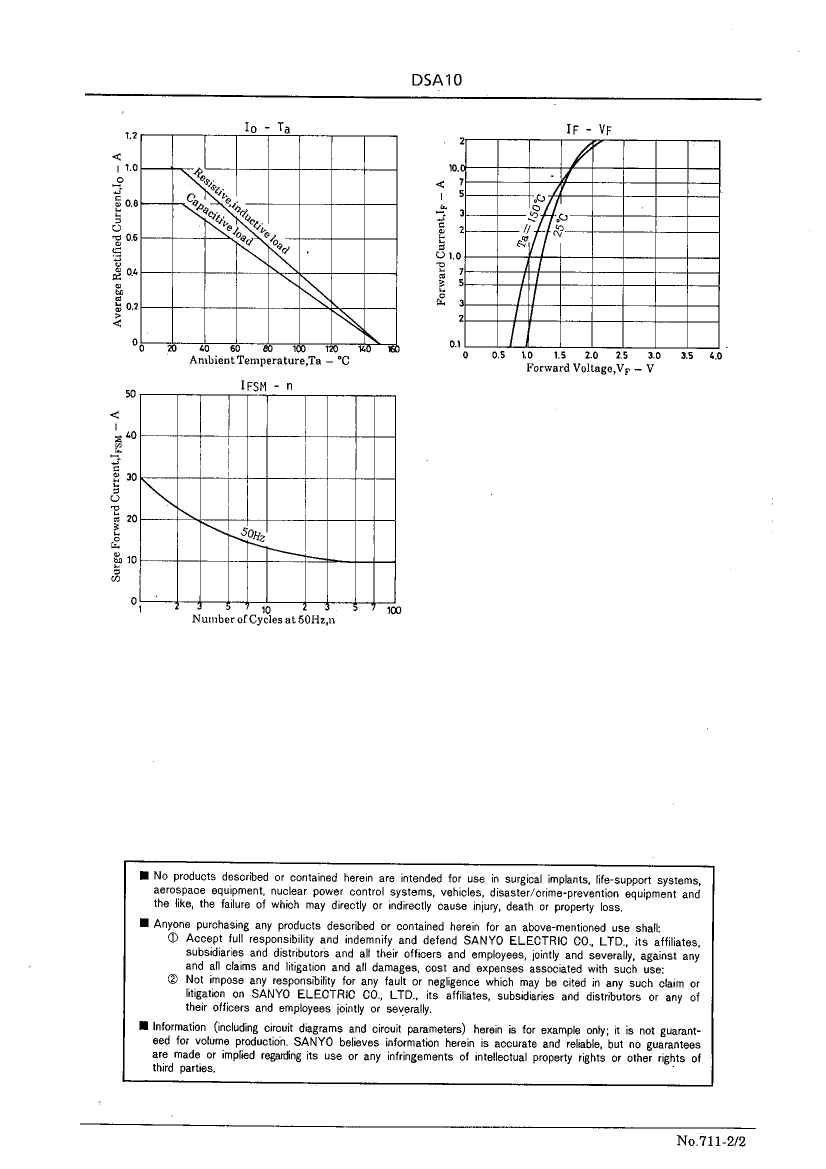

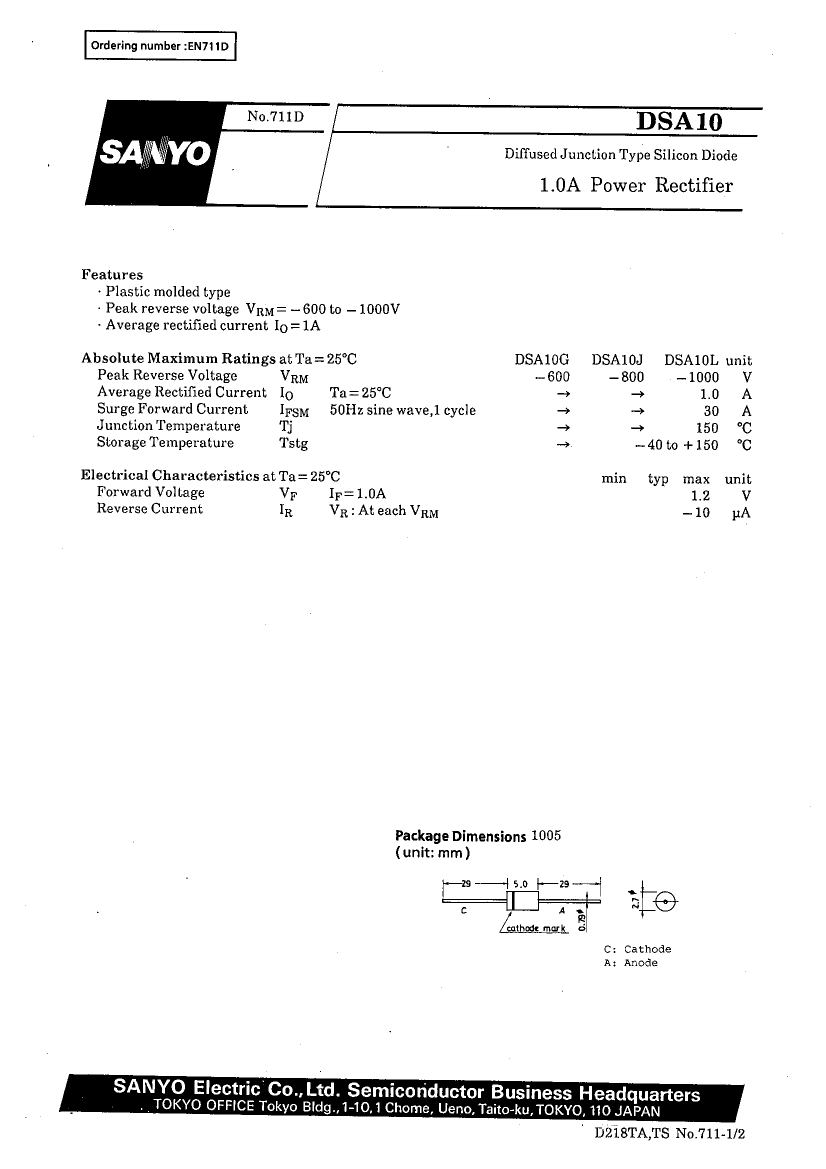

DSA10L Overview

1 A, 1000 V, SILICON, SIGNAL DIODE

Parameter Name	Attribute value
Maker	SANYO
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

	DSA10L	DSA10	DSA10G	DSA10J
Description	1 A, 1000 V, SILICON, SIGNAL DIODE	1 A, 600 V, SILICON, SIGNAL DIODE	1 A, 600 V, SILICON, SIGNAL DIODE	1 A, 800 V, SILICON, SIGNAL DIODE
Maker	SANYO	-	SANYO	SANYO
package instruction	O-PALF-W2	-	O-PALF-W2	O-PALF-W2
Contacts	2	-	2	2
Reach Compliance Code	unknow	-	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99
Shell connection	ISOLATED	-	ISOLATED	ISOLATED
Configuration	SINGLE	-	SINGLE	SINGLE
Diode component materials	SILICON	-	SILICON	SILICON
Diode type	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	-	1.2 V	1.2 V
JESD-30 code	O-PALF-W2	-	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	30 A	-	30 A	30 A
Number of components	1	-	1	1
Number of terminals	2	-	2	2
Maximum operating temperature	150 °C	-	150 °C	150 °C
Maximum output current	1 A	-	1 A	1 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	-	ROUND	ROUND
Package form	LONG FORM	-	LONG FORM	LONG FORM
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	-	600 V	800 V
surface mount	NO	-	NO	NO
Terminal form	WIRE	-	WIRE	WIRE
Terminal location	AXIAL	-	AXIAL	AXIAL
