Graphic Series Keypads
Tough keypads with ‘snap-on’ keytops
for custom graphics
• Rugged, reliable and responsive
data entry
• Available with optional integrated
LED illumination of keytops and
keytop characters
• Keytop colours and graphics
can be configured to suit almost
any application
• Sealed against water and dust to
IP54 specification
• 4,12 and 16 key formats
• Can be fixed to a flat surface
or under panel mounted for a flush,
low profile installation
• Extensive library of keytop graphics
and colour tiles available
• Custom keytop graphics can be
created and fitted 'on-site'
www.storm-interface.com
Storm Interface
products include
technology protected by
international patents
and design registration.
All rights reserved.
K Range Graphic Series Keypads
STORM Graphic Series Keypads
feature keytop legends that can be configured or customised without dismantling the keypad.
The unique ‘snap on’ keytop cover encapsulates a polymer legend tile. The legend tiles can be selected from an extensive library of
standard characters or symbols to suit many applications. Alternatively custom keytop graphics can be created using laser printed acetate
film or screen printed polymer film. Keytop colours can also be customised by backing the transparent legend film with a second, coloured
tile. When pressed into place the impact resistant keytop provides a permanent tamper resistant lens. The keytop cover protects the
encapsulated legends from wear, physical damage, water ingress and unauthorised removal. These field proven keypads are ideal for use
in a wide range of industrial and commercial applications. Also available with optional integrated LED illumination of keytops and keytop
graphics, making these keypads suitable for use in dark or subdued lighting conditions.

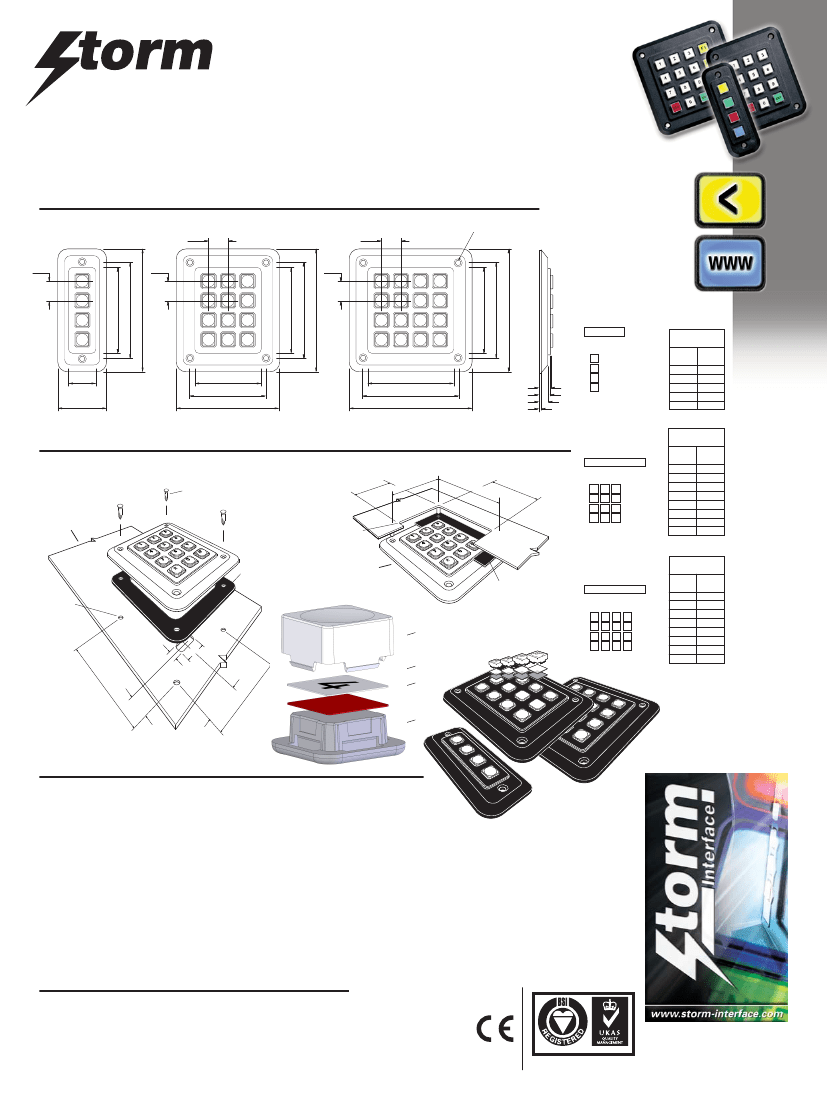

Overall Dimensions
19.00
19.00
Ø 4.5 typ
19.00
19.00
19.00
118.50
118.50
118.50
93.00
93.00
82.50
82.00
82.50
93.00
CONTACT CONNECTIONS
5 4 3 2 1
(As viewed from rear of keypad)
A 1
B
25.00
63.50
74.00
42.50
99.50
82.50
93.00
118.50
•••••
CONTACT
MATRIX
CONNEC.
ROW/
PIN
COLUMN
1
COMMON
common
D
2
C
3
B
4
A
5
C
11.1
10.50
8
2.5
D
KEY LOCATION
(As viewed from front of keypad)
Part No.s
GS04020[x] (Black)
GS12020[x] (Black)
pplied)
ingress)
GS16020[x] (Black)
[x] denotes packaging variant
Connection Details
for 12 Key Keypad
CONTACT CONNECTIONS
CONTACT
MATRIX
CONNEC.
PIN
1
2
3
4
5
6
7
8
ROW/
COLUMN
A
B
1
2
3
-
D
C
Mounting & Connection Details
Countersunk Fixing Screws
(Not Supplied)
(Threads must be sealed to prevent water ingress)
0
(4 Key
25.5.00
(12 6 Key)
64 3.00
(1
8
Key
)
)
0
(1
y)
74.0
(16 Ke
0
93.0
2 Ke
y)
93.0
0
(4,
83.0 82.5
0
0
••••••••
8 7 6 5 4 3 2 1
(As viewed from rear of keypad)
12 &
16 K
A 1
B
C
D
2
3
ey)
Panel Cut-out
Details for Top
Panel Mounting
h
R 3.75
KEY LOCATION
(As viewed from front of keypad)
Sealing
Gasket
(Not supplied with
4000 series)
Panel Cut-out
Details for Under
Panel Mounting
Connection Details
for 16 Key Keypad
Sealing
Gasket
(Not supplied with
4000 series)
CONTACT
MATRIX
CONNEC.
PIN
1
2
3
4
5
6
7
8
ROW/
COLUMN
A
B
1
2
3
4
D
C
CONTACT CONNECTIONS
••••••••
8 7 6 5 4 3 2 1
(As viewed from rear of keypad)
Ø 4.5
A 1
Transparent
Key Cap
2
3
4
B
C
D
KEY LOCATION
(As viewed from front of keypad)
3
5
24
93
.00
6
(1
y)
Ke
Coloured Tile
1
4
2
Transparent
Legend Tile
6
8
CONTACT CONNECTIONS
5 4 3 2 1
(As viewed from rear of keypad)
All
•
dimensions are in mm
• •••
CONTACT
MATRIX
Electrical
Contact Bounce
Contact Resistance
Insulation Resistance
Breakdown Voltage
Operating Voltage
Operating Current
5ms (max)
100 ohms (max)
50 Mohms (min)
500V AC (max 60 secs.)
24V DC (max)
50mA (max)
37
46 .00
.50
Connection Details
for 4 Key Keypad
y)
Ke y)
2 e
(1 6 K
(1
74
.00
Key Base
Environmental
Water / Dust Sealed
Operational Temperature
IP54 (when mounted
to suitable enclosure)
-20
o
C to +60
o
C (Dry)
Mechanical
Operational Life
2 million cycles (min) per key
Keytop Travel
1.4mm nominal
Actuation Force
180gms nominal
Connector
0.1" pitch, gold plated square pin,
male connector
Material
Casing
Keytops
Contact Circuit
General Service Polymer
(black or mid grey)
General Service Polymer
(transparent)
Gold on Nickel plated FR4
Whilst every effort is made to ensure details
are correct at time of print, specifications
are subject to change without notice.
*
2
(1
y)
Ke
9
0
7
#
For details of available STORM Graphic Series keytop
character sets, please request the legend tile character
library, document ref. GFX-LEG1-01
Storm is a trademark of Keymat Technology Ltd
Storm Interface is a trading name of Keymat Technology Ltd
003
Designed & produced by
NIK Design
www.nikdesign.co.uk
GFX-LIT-01 Rev 4
Nov 2008
FM 39602
Storm Interface products include
technology protected by international patents
