UF4001 ... UF4007
UF4001 ... UF4007
Ultrafast Switching Si-Rectifiers – Ultraschnelle Si-Gleichrichter
Version 2006-04-26
Nominal current
Nennstrom
Ø
2.6
-
0.1
1A
50...1000 V
DO-41
DO-204AL
0.4 g
Repetitive peak reverse voltage
Periodische Spitzensperrspannung
Plastic case
Kunststoffgehäuse
Weight approx.
Gewicht ca.
±0.5
Type
62.5
5.1
-0.1
Ø
0.8
±0.05
Plastic material has UL classification 94V-0
Gehäusematerial UL94V-0 klassifiziert
Standard packaging taped in ammo pack
Standard Lieferform gegurtet in Ammo-Pack
Dimensions - Maße [mm]
Maximum ratings
Type
Typ
UF4001
UF4002
UF4003
UF4004
UF4005
UF4006
UF4007
Max. average forward rectified current, R-load
Dauergrenzstrom in Einwegschaltung mit R-Last
Repetitive peak forward current
Periodischer Spitzenstrom
Peak forward surge current, 50/60 Hz half sine-wave
Stoßstrom für eine 50/60 Hz Sinus-Halbwelle
Rating for fusing – Grenzlastintegral, t < 10 ms
Junction temperature – Sperrschichttemperatur
Storage temperature – Lagerungstemperatur
Repetitive peak reverse voltage
Periodische Spitzensperrspannung
V
RRM
[V]
50
100
200
400
600
800
1000
T
A
= 50°C
f > 15 Hz
T
A
= 25°C
T
A
= 25°C
I
FAV
I
FRM
I
FSM
i
2
t
T
j
T
S
Grenzwerte
Surge peak reverse voltage
Stoßspitzensperrspannung
V
RSM
[V]
50
100
200
400
600
800
1000
1 A
1
)
10 A
1
)
30/33 A
4.5 A
2
s
-50...+175°C
-50...+175°C
1
Valid, if leads are kept at ambient temperature at a distance of 10 mm from case
Gültig, wenn die Anschlussdrähte in 10 mm Abstand vom Gehäuse auf Umgebungstemperatur gehalten werden
http://www.diotec.com/
© Diotec Semiconductor AG
1
UF4001 ... UF4007
Characteristics
Type
Typ
UF4001 ... UF4003
UF4004
UF4005 ... UF4007
Leakage current
Sperrstrom
Thermal resistance junction to ambient air
Wärmewiderstand Sperrschicht – umgebende Luft
Thermal resistance junction to leads
Wärmewiderstand Sperrschicht – Anschlussdraht
Reverse recovery time
Sperrverzugszeit
t
rr
[ns]
1
)
< 50
< 50
< 75
T
j
= 25°C
T
j
= 100°C
Kennwerte
Forward voltage
Durchlass-Spannung
V
F
[V]
< 1.0
< 1.25
< 1.7
V
R
= V
RRM
V
R
= V
RRM
I
R
I
R
R
thA
R
thL
at / bei
I
F
= [A]
1
1
1
< 10 µA
< 50 µA
< 45 K/W
2
)
< 15 K/W
120
[%]
100
10
[A]
UF4001...3
1
80
UF4004
UF4005...7
60
0.1
40
10
-2
20
I
FAV
0
0
T
A
50
100
150
[°C]
1
I
F
10
-3
T
j
= 25°C
V
F

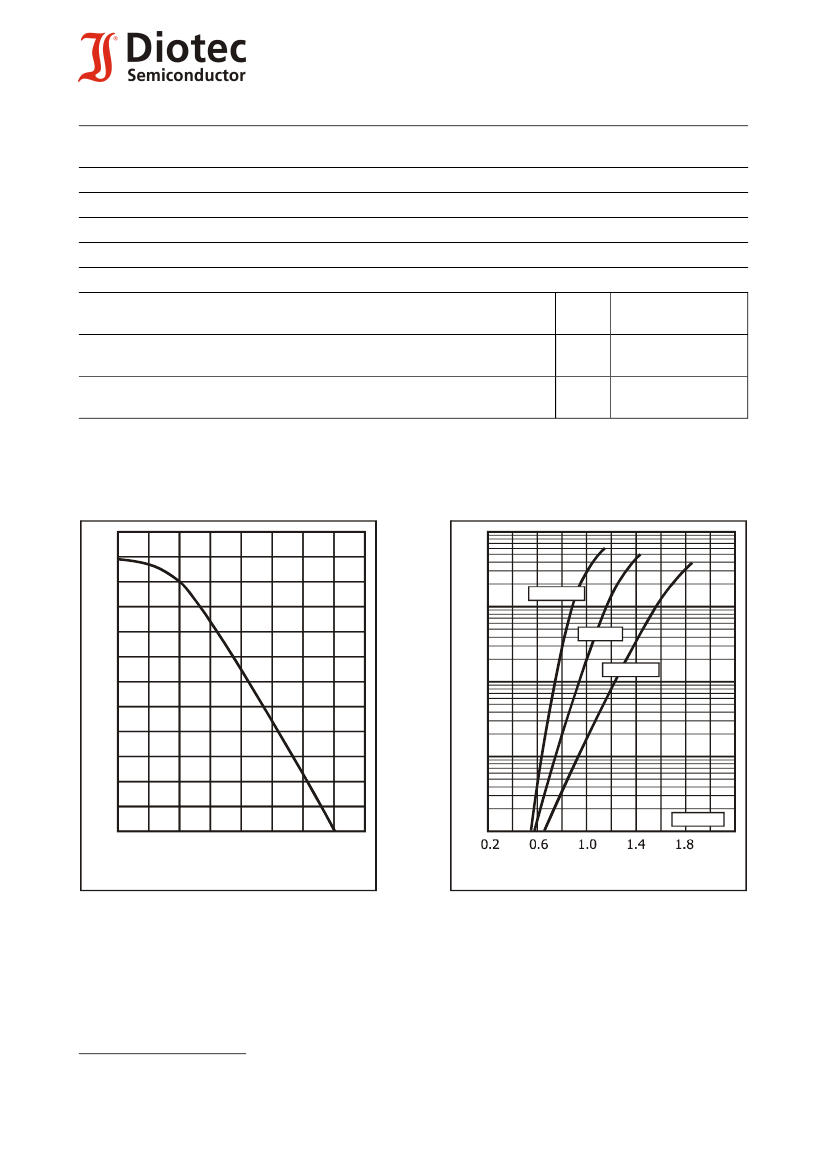

Forward characteristics (typical values)
Durchlasskennlinien (typische Werte)
[V]
Rated forward current versus ambient temperature )
Zul. Richtstrom in Abh. von der Umgebungstemp.
1
)
1
2
I
F
= 0.5 A through/über I
R
= 1 A to/auf I
R
= 0.25 A
Valid, if leads are kept at ambient temperature at a distance of 10 mm from case
Gültig, wenn die Anschlussdrähte in 10 mm Abstand vom Gehäuse auf Umgebungstemperatur gehalten werden
