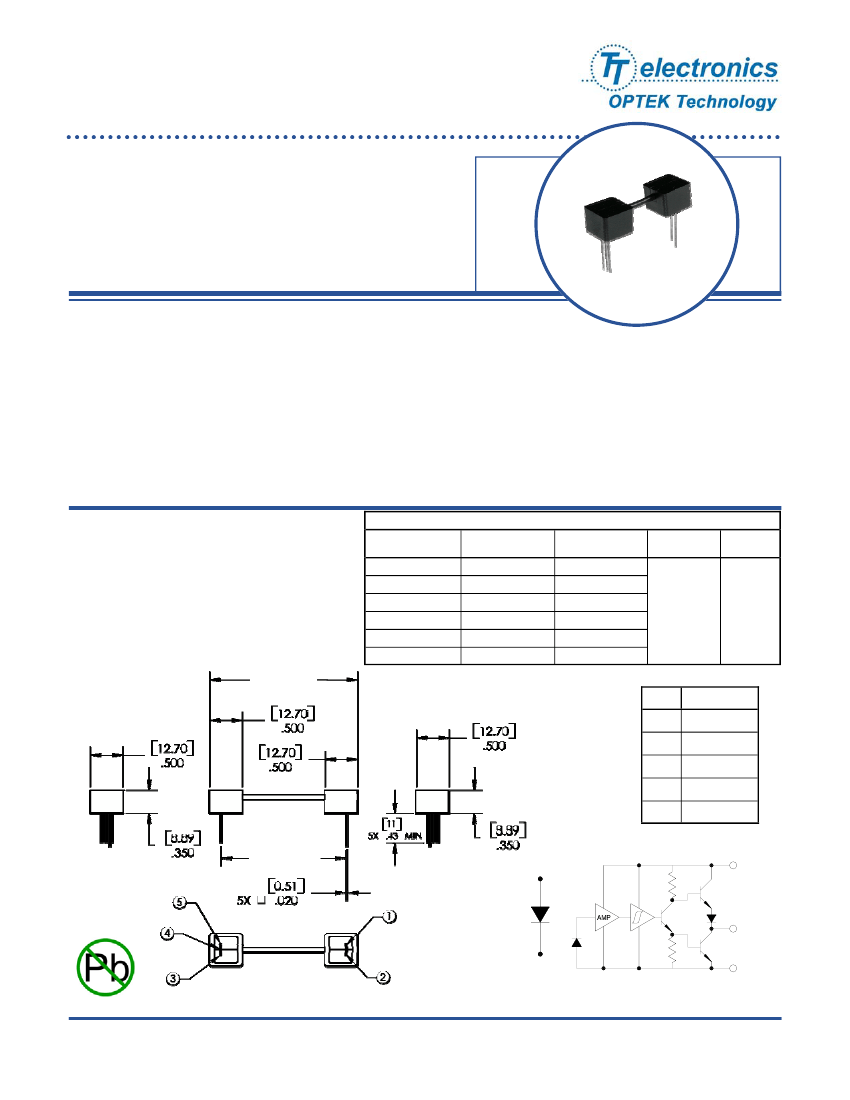

Fiber Optic Isolator—Photologic
®
Sensor
OPI1290 Series
Features:
•
•
•
•
•
•
Opaque plastic housings
High noise immunity
Visible Red LED with Phototranisitor Output
0.05” (1.27 mm) lead spacing
Data Transfer through plastic fiber optic cable
Isolation voltage 15 KV (OPI1290-032), Longer versions higher
Description:
Each
OPI1290
consists of a visible Red LED and a Photologic
®
Totem-Pole output sensor, which are housed in separate
opaque molded plastic housings and coupled by plastic fiber optic cable. The heavy-duty opaque housing shields the optical
signal from dust, making this series of devices ideal for dust contaminated environments.
The
OPI1290
series are designed for applications that require high voltage isolation between input and output or signal
communication over short distances. Depending on the length of the fiber optic cable, the emitter does not have to be optically
in-line with the sensor. The isolation voltage is greater than 10 K volts per inch (Isolation distance between components) for all
versions of the
OPI1290.
Custom electrical, wire and cabling and connectors are available. Contact your local representative or OPTEK for more
information.
Applications:
•
Requiring High Voltage isolation between input
•
•
•
•
and output
Electrical isolation in dirty environments
Industrial equipment
Medical equipment
Office equipment
Ordering Information
Part
Number
OPI1290-018
OPI1290-026
OPI1290-032
OPI1290-040
OPI1290-066
OPI1290-080
Isolation
Distance
0.71” [18 mm]
1.02” [26 mm]
1.26” [32 mm]
1.57” [40 mm]
2.60” [66 mm]
3.15” [80 mm]
Device
Length
1.26” [32.0 mm]
1.57” [40.0 mm]
1.80” [45.8 mm]
2.12” [53.8 mm]
3.15” [80.0 mm]
3.69” [93.8 mm]
645 nm
0.45”
[11.4 mm]
LED Peak
Wavelength
Lead
Length
Device
Pin #
1
2
3
4
5
LED
Anode
Cathode
V
CC
Output
Ground
Device
Length
-
[9.0]
-.355
Anode
V
CC
Output
Cathode
Ground
RoHS
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.2
08/07
Page 1 of 2
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Fiber Optic Isolator—Photologic
®
Sensor
OPI1290 Series
Absolute Maximum Ratings
(T
A
=25°C unless otherwise noted)
Storage Temperature Range
(note 3)
Operating Temperature Range
(note 3)
Lead Soldering Temperature [1/16 inch (1.6 mm) from case for 5 seconds with soldering iron]
Power Dissipation
(2)
-40
o
C to +80
o
C
-20° C to +75° C
260° C
(1)
100 mW
Electrical Characteristics
(T
A
= 25°C unless otherwise noted)
SYMBOL
PARAMETER
MIN
TYP
MAX
UNITS
TEST CONDITIONS
LED
(See OP240 for additional information)
V
F
I
R
On-State Collector Current
Collector-Dark Current
0.9
-
-
-
1.5
80
V
µA
I
F
= 20 mA
V
R
= 3.0 V
Photologic
®
Sensor
(See OP550 for additional information)
SYMBOL
V
CC
I
CC
E
eT(+)
PARAMETER
Operating Supply Voltage
Peak-to-Peak V
CC
Ripple Necessary to Cause
False Triggering of Output
Supply Current
(4)
Positive-Going Threshold Irradiance
(2)
MIN
4.5
-
-
.25
1.50
V
CC
-
2.1
TYP MAX
-
-
8
-
2
-
0.25
-55
1
25
16
2
15
2.4
2.5
-
0.4
-100
100
70
UNITS
V
V
mA
TEST CONDITIONS
-
V
CC
= 5 V DC, f = DC to 50 MHz
E
E
= 0 or 3 mW/cm
2
, V
CC
= 5.5 V
mW/cm
2
V
CC
= 5 V, T
A
= 25° C
E
eT(+)/
E
eT(-)
Hysteresis Ratio
-
V
V
mA
µA
ns
-
I
OH
= -1 µA, E
E
= 1 mW/cm
2
V
CC
= 4.5 V, I
OL
= 12.8 mA, E
E
= 0
V
CC
= 5.5 V, Output = GND,
E
E
= 3 mW/cm
2
V
CC
= 4.5 V, V
OH
= 30 V,
E
E
= 3 mW/cm
2
V
CC
= 5 V, T
A
= 25° C, E
E
= 0 or 3
mW/cm
2
, f = 10 kHz, DC = 50%
RL = 8 TTL loads
V
CC
= 5 V, T
A
= 25° C,
E
E
= 0 or 3 mW/cm
2
, R
L
= 8 TTL
loads, f = 10 kHz, DC = 50%
V
CC
= 5 V, T
A
= 25° C, E
E
= 0 or 3
mW/cm
2
, R
L
= 360
Ω,
f = 10 kHz,
DC = 50%
DC = 50%, R
L
= 10 TTL Loads
V
OH
V
OL
I
OS
I
OH
T
R
& T
F
Operating Supply Voltage
Low Level Output Voltage
Short Circuit Output Current
High Level Output Current
(2)
Output Rise & Fall Time
-
-20
-
-
tpE
eT
(+)
Propagation Delay Positive–Going
-
2.5
5.0
µs
tpE
eT
(-)
t
PLH
, T
PHL
Propagation Delay Negative–Going
Propagation Delay (Low-High/High-Low)
-
-
2.5
5.0
5.0
-
µs
µs
Notes:
(1) Derate linearly 2.5 mW/° C above 25° C for all devices in the OPL550, OPL551, OPL560, OPL561, OPL562 and OPL563 series.
(2) Irradiance measurements are made with
λi
= 935 nm.
(3) Storage and Operating temperature values are based on the plastic optical interface temperature ratings. Please reference
UL1577 and UL file AVLVZ.E89328
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.2 08/07
Page 2 of 2
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
