OPA741 Series
12 Watt Light Ring on
Anotherm Linear Heat Spreader with Lens
OPA741 Series
•
•
•
•
•
12, 1 watt LEDs per cylindrical substrate
Mono-color per strip (Blue, Green, Red, Yellow, White)
Component beam angle 23°
Universal connector (Tyco 2-292173-2 mates with 173977-2)
RoHS Compliant

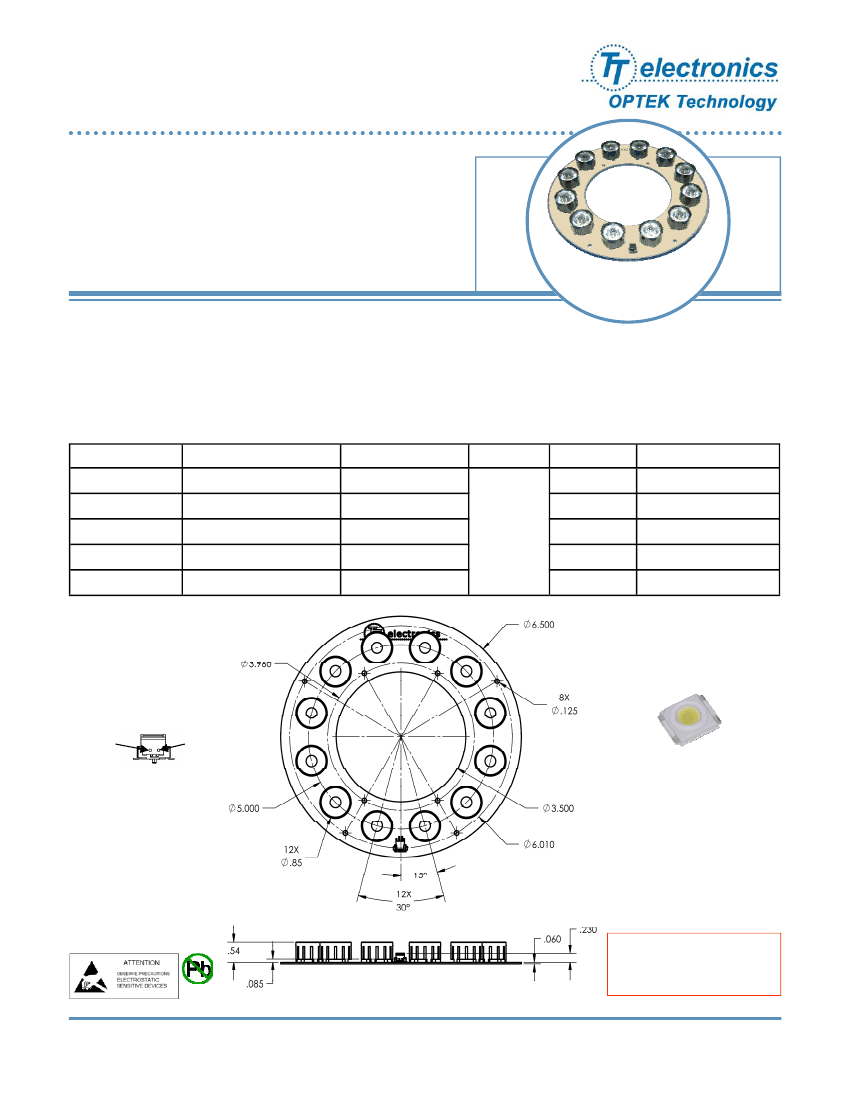

Product Photo Here
OPA741_ (23° Beam Angle)
The
OPA741
Series are designed for areas where lighting intensity and reliability
are essential. The light beam angle of 23° is ideal for illuminating areas close or a long distances from the device
while requiring minimal space. A patented substrate is used to ensure the best heat dissipation of any light
assembly in the industry.
For custom colors and design contact your OPTEK representative.
Electrical / Optical Characteristics: T
A
=25°C, I
F
=700mA
Part Number
Typical Forward Voltage (V)
Luminous Flux (lm)
Beam Angle
Color
Dominant Wavelength
587 nm
470 nm
530 nm
625 nm
6,500°K
OPA741Y23
OPA741B23
OPA741G23
OPA741R23
OPA741W23
15.0
21.6
21.6
15.0
21.6
357
92
490
265
490
23°
Yellow
Blue
Green
Red
White
+ Voltage
Ground
OPA741_
See OVSP_BCR4 for
component specifications
DO NOT LOOK DIRECTLY AT LED
WITH UNSHIELDED EYES OR
DAMAGE TO RETINA MAY
OCCUR.
RoHS
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A
04/06
Page 1 of 1
