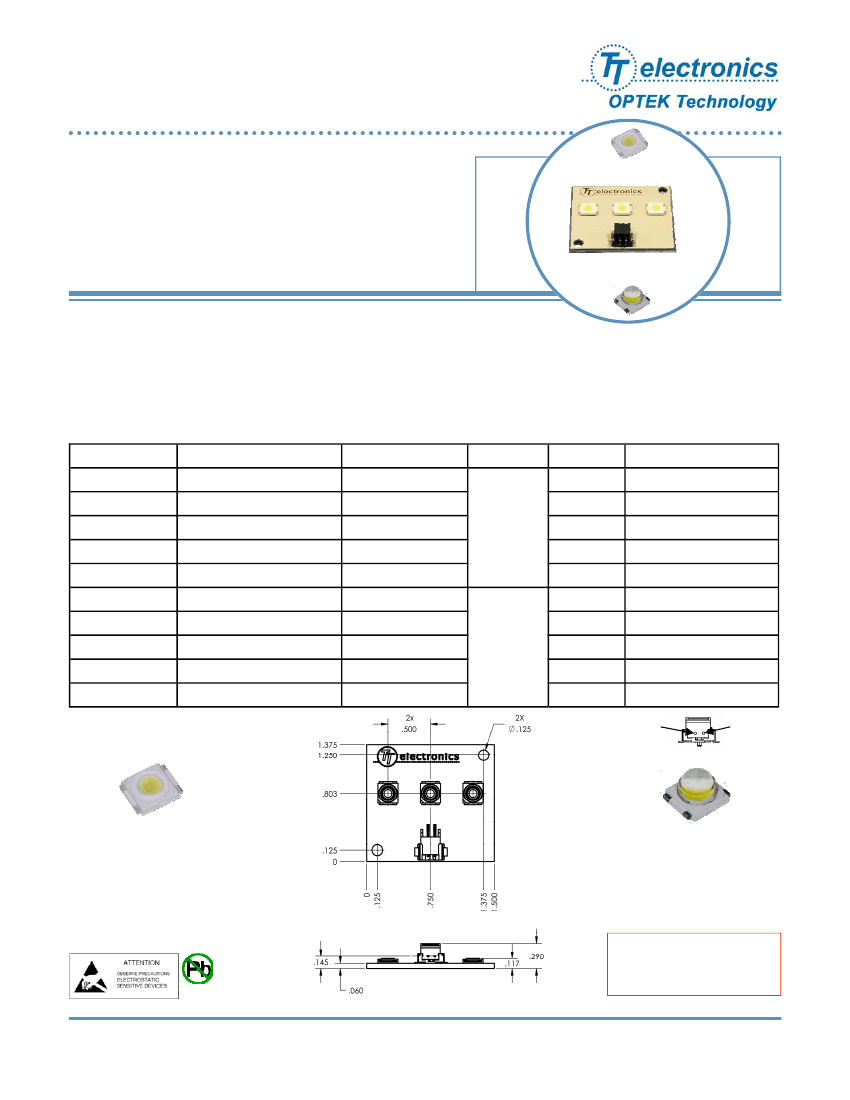

OPA739 Series
3 Watt Light Bar on
Anotherm Heat Spreader
OPA739 Series
•
•
•
•
•
3-1 watt LED on square substrate
Mono-color per strip (Blue, Green, Red, Yellow, White)
Two component beam angle options (120° or 40°)
Universal connector (Tyco 2-292173-2 mates with 173977-2)
RoHS Compliant
OPA739_ (120° Beam Angle)
Product Photo Here
OPA739_D (40° Beam Angle)
The
OPA739
Series are designed for areas where lighting intensity and reliability
are essential. The light beam angles of 40° and 120° are ideal for illuminating small and medium size areas while
requiring minimal space. A patented substrate is used to ensure the best heat dissipation of any light assembly in
the industry.
For custom colors and design contact your OPTEK representative.
Electrical / Optical Characteristics: T
A
=25°C, I
F
=350mA
Part Number
OPA739Y
OPA739B
OPA739G
OPA739R
OPA739W
OPA739YD
OPA739BD
OPA739GD
OPA739RD
OPA739WD
Typical Forward Voltage (V)
7.5
10.8
10.8
7.5
10.8
7.5
10.8
10.8
7.5
10.8
Luminous Flux (lm)
105
27
144
78
144
105
27
144
78
144
Beam Angle
Color
Yellow
Blue
Dominant Wavelength
587 nm
470 nm
530 nm
625 nm
6,500°K
587 nm
470 nm
530 nm
625 nm
6,500°K
+ Voltage
Ground
120°
Green
Red
White
Yellow
Blue
40°
Green
Red
White
OPA739_
See OVSP_BCR4 for
component specifications
OPA739_D
See OVSP_4CR44 for
component specifications
DO NOT LOOK DIRECTLY AT LED
WITH UNSHIELDED EYES OR
DAMAGE TO RETINA MAY
OCCUR.
RoHS
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A
02/07
Page 1 of 1
