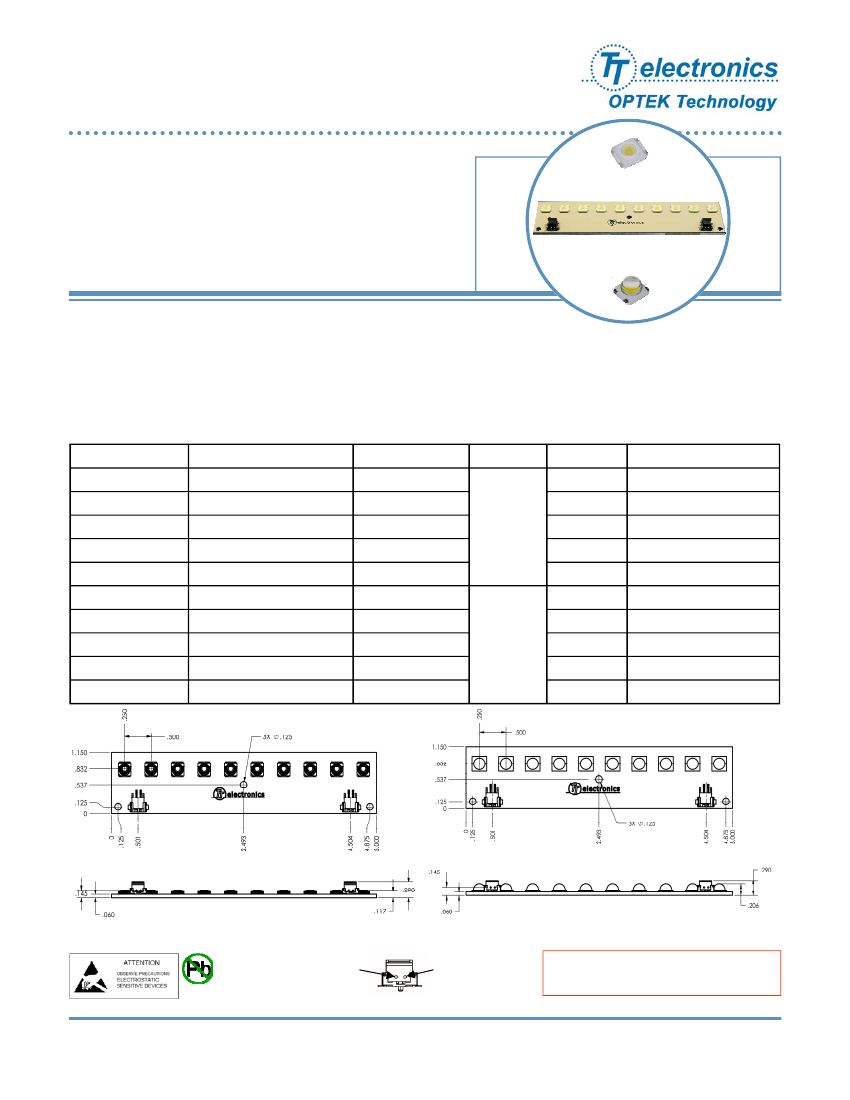

OPA729 Series
10 Watt Light Bar on
Anotherm Linear Heat Spreader
OPA729 Series
•
•
•
•
•
•
10, 1 watt LEDs per strip, can be linked with other OPA729’s
Mono-color per strip (Blue, Green, Red, Yellow, White)
Two component beam angle options (120° or 40°)
Power connected to either end
Universal connector (Tyco 2-292173-2 mates with 173977-2)
RoHS Compliant
OPA729_ (120° Beam Angle)
Product Photo Here
OPA729_D (40° Beam Angle)
The
OPA729
Series are designed for areas where lighting intensity and reliability
are essential. The light beam angles of 40° and 120° are ideal for illuminating small and medium size areas while
requiring minimal space. A patented substrate is used to ensure the best heat dissipation of any light assembly in
the industry.
For custom colors and design contact your OPTEK representative.
Electrical / Optical Characteristics: T
A
=25°C, I
F
=700mA
Part Number
OPA729Y
OPA729B
OPA729G
OPA729R
OPA729W
OPA729YD
OPA729BD
OPA729GD
OPA729RD
OPA729WD
Typical Forward Voltage (V)
12.5
18.0
18.0
12.5
18.0
12.5
18.0
18.0
12.5
18.0
Luminous Flux (lm)
350
90
480
260
480
350
90
480
260
480
40°
120°
Beam Angle
Color
Yellow
Blue
Green
Red
White
Yellow
Blue
Green
Red
White
Dominant Wavelength
587 nm
470 nm
530 nm
625 nm
6,500°K
587 nm
470 nm
530 nm
625 nm
6,500°K
See OVSP_BCR4 for component specifications
See OVSP_4CR44 for component specifications
OPA729_
+ Voltage
RoHS
OPA729_D
Ground
DO NOT LOOK DIRECTLY AT LED WITH
UNSHIELDED EYES OR DAMAGE TO RETINA
MAY OCCUR.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A
04/06
Page 1 of 1
