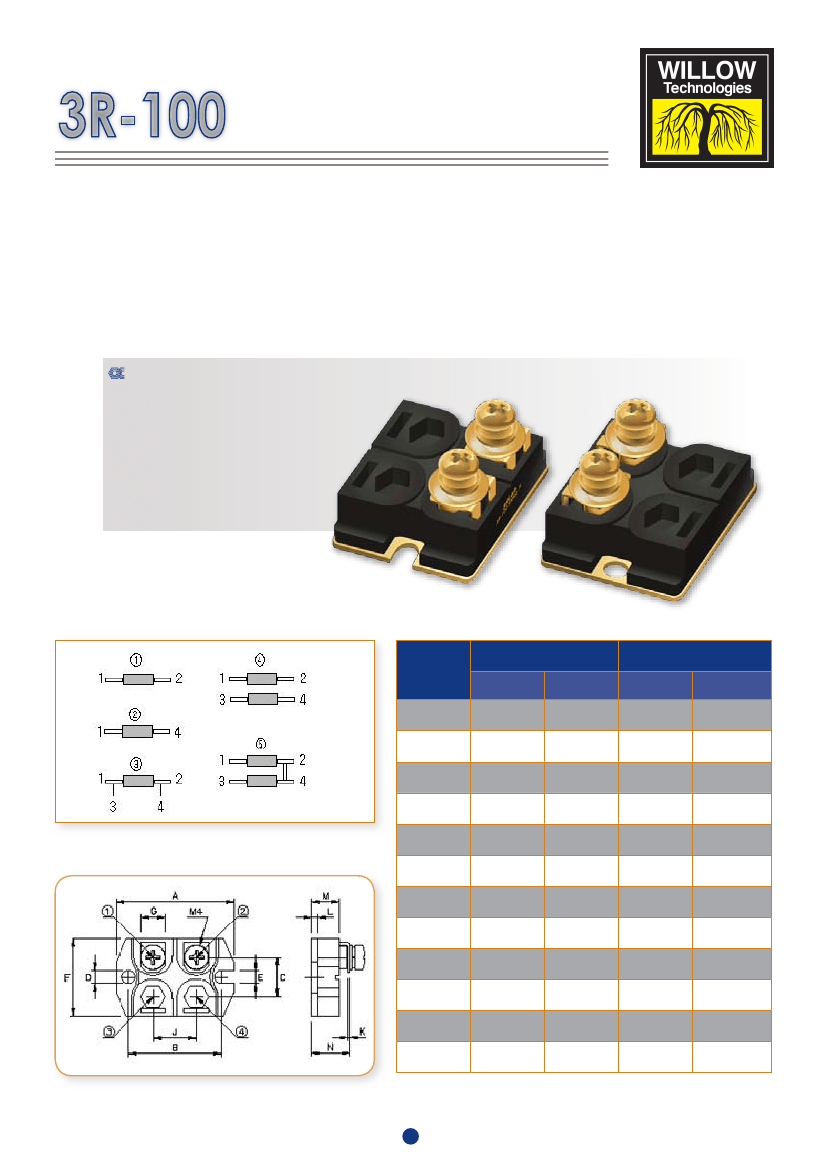

3R-100
100Watt Mountable
Non-Inductive,High Frequency Resistors
3R-100(TO-227, SOT-227, ISOTOP) Non-Inductive design these elements are ideally suites for high frequency and pulse load
applications. By direct mounting on a heatsink significant cost advantages can be reailzed.
3R-100(TO-227) can be supplied in a 2-terminal or 4- terminal version double or max. 3- fold resistors are available. Main
applications are Variable speed Drives, Power Supplies, Control Devices, Telecom, Robotics, Motor Controls, Dynamic
Braking, and other switching designs, RF Applications, soft start.
3R-100 ( TO-227 )Device, Non-
Inductive 100Watt Power Resistor
·Heat Sink Mountable
·RF Termonal
·Shunt
·Inverter
·Motor Braking
·Pulse & Plasma
·Medium Voltage
V
ERSIONS
Dim
A
B
C
D
Millimeters ±1
Min.
38.00
30.10
12.60
4.10
4.10
24.40
7.80
14.9
0.75
1.95
8.9
11.8
Inches
Min.
1.496
1.185
0.496
0.157
0.161
0.960
0.307
0.586
0.029
0.076
0.350
0.464
Max.
38.20
30.30
12.80
N/A
4.30
25.40
8.20
15.0
0.85
2.05
9.1
12.2
Max
1.503
1.192
0.503
0.157
0.169
1.023
0.322
0.594
0.033
0.078
0.358
0.480
D
IEMENSION
E
F
G
J
K
L
M
N
3R-100
D

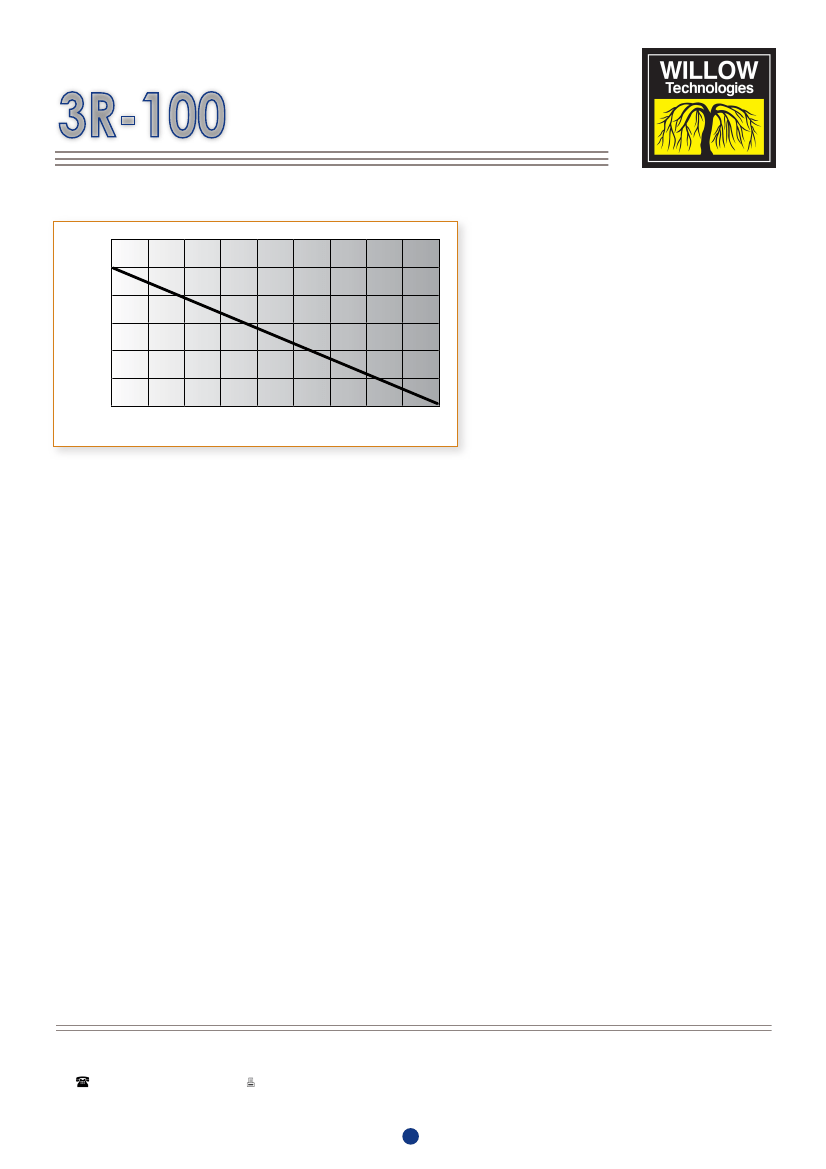

ERATING CURVE
Rated Power or Voltage%
100Watt Mountable
Non-Inductive,High Frequency Resistors
S
PECIFICATIONS
Tolerance :
5%, 10% std. (1% ,2% custom)
TCR :
± 100ppm/℃
std.
Power rating :
100W at 25 °C Tap Temperature
Working Voltage : less than
1kV rms
( higher voltage see "DON-15" package
device)
Resistance range :
1R to 5Meg
Voltage Proof :
Dielectric strength 4kVdc
against ground
Inductance :
≤50 nH
Capacitance :
≤ 40pF
Working temp. range :
-55°C to +155°C
Max. torque for contacts (static) :1.3Nm
Max. torque for base plate (static) :
1.5Nm
Resistive material :
Thick Film
Resistive Substrates :
Alumina
Tap Material : Ni Plated Copper Plates
Housing :
EMC
Terminal : Tinned Copper;
2-pin,3-pin,4-pin
Partial Discharging :
2kV rms / 80pC
0
00
80
60
40
0
5
40
55
70
85
00
5
30
45
55
Tap Temperature (˚C)
cf.: The described specifications & dimensions subject to change without notice.
