FEATURES:
VERY HIGH CURRENT,
LOW DROPOUT
VOLTAGE REGULATORS
5176
SERIES
(315) 701-6751
4707 Dey Road Liverpool, N.Y. 13088
Electrically Isolated Top Tab or Z Tab SIP
Extremely Low Dropout Voltage: 425mV @ 7.5 Amps
Available in +1.5V,+1.7V,+1.9V,+2.5V,+3.3V,+5.0V and +12.0V
TTL Level Enable Pin: Zero Current Shutdown Mode
Reverse Battery and Load Dump Protection
Low Ground Current: 130mA Typical at Full Load
1% Maximum Guaranteed Accuracy
Output Current to 7.5 Amps
Contact MSK for MIL-PRF-38534 Qualification Status
DESCRIPTION:
The MSK 5176 series voltage regulators are available in +1.5V,+1.7V,+1.9V,+2.5V,+3.3V,+5.0V and +12.0V
configurations. All boast ultra low dropout specifications due to the utilization of a super PNP output pass transistor
with monolithic technology. Dropout voltages of 425mV at 7.5 amps are typical in this configuration, which drives
efficiency up and power dissipation down. Accuracy is guaranteed with a 1% maximum output voltage tolerance.
The series also offers a TTL/CMOS compatible on/off enable function. The MSK 5176 series is packaged in a space
efficient 5 pin power SIP available in two styles with three lead bend options.
EQUIVALENT SCHEMATIC
TYPICAL APPLICATIONS
High Efficiency, Ultra High Current Linear Regulators
Constant Voltage/Current Regulators
System Power Supplies
Switching Power Supply Post Regulators
Battery Powered Equipment
1
PIN-OUT INFORMATION
1
2
3
4
5
Enable
Vin
Ground
Vout
NC
Rev. A 2/06
ABSOLUTE MAXIMUM RATINGS
V
INP
V
IN
V
EN
I
OUT
9
T
J
ELECTRICAL SPECIFICATIONS
Parameter
Test Conditions
1 3
Group A
Subgroup
1
Output Voltage Tolerance
2
MSK 5176H/E SERIES
Min.
-
-
-
-
-
-
-
-
-
-
-
-
2.4
-
-
-
-
-
-
Typ.
±0.5
±1.0
80
425
±0.2
±0.3
±0.05
±0.5
9.5
45
130
260
1.2
1.2
100
-
10
0.9
135
Max.
±1.0
±2.0
200
600
±1.0
±2.0
±0.5
±1.0
15
85
-
-
-
0.8
600
2
500
1.3
-
MSK 5176 SERIES
Min.
-
-
-
-
-
-
-
-
-
-
-
-
2.4
-
-
-
-
-
-
Typ.
±0.5
-
80
425
±0.2
±0.3
±0.05
±0.5
9.5
45
130
260
1.2
1.2
100
-
10
0.9
135
Max.
±1.0
-
225
625
±1.2
-
±0.6
-
15
90
-
-
-
0.8
600
2
500
1.5
-
Units
%
%
mV
mV
%
%
%
%
A
mA
mA
µV
V
V
µA
µA
µA
°C/W
°C
I
OUT
=10mA; V
IN
=V
OUT
+1V
2,3
∆V
OUT
=-1%; I
OUT
=250m
A
∆V
OUT
=-1%; I
OUT
=7.5A
V
IN
=V
OUT
+1.5V
10mA
≤
I
OUT
≤
7A
(V
OUT
+1V)
≤
V
IN
≤
26V
I
OUT
=10mA
1
1
1
2,3
1
2,3
-
-
-
-
1
1
1
1
-
-
-
Dropout Voltage
2
Load Regulation
8
Line Regulation
Output Current Limit
2
Ground Current
Output Noise
2
2
2
V
OUT
=0V; V
IN
=V
OUT
+1V
V
IN
=V
OUT
+1V; I
OUT
=4A
V
IN
=V
OUT
+1V; I
OUT
=7.5A
C
L
=33µF; 10Hz
≤
f
≤
100KHz
HIGH/ON
LOW/OFF
Enable Input Voltage
Enable Input Current
2
HIGH/ON
LOW/OFF
V
ENABLE
≤
0.8V
Junction to Case @ 125°C
T
J
Shutdown Output Current
2
Thermal Resistance
2
Thermal Shutdown
2
NOTES:
1 Output decoupled to ground using 33µF minimum capacitance unless otherwise specified.
2 This parameter is guaranteed by design but need not be tested.
Typical parameters are representative of actual device performance but are for reference only.
3 All output parameters are tested using a low duty cycle pulse to maintain T
J
= T
C
.
4 Industrial grade and "E" suffix devices shall be tested to subgroup 1 unless otherwise specified.
5 Military grade devices ('H' suffix) shall be 100% tested to subgroups 1,2 and 3.
6 Subgroup 1
T
C
=+25°C
Subgroup 2
T
J
=+125°C
Subgroup 3
T
A
=-55°C
7 Please consult the factory if alternate output voltages are required.
8 Due to current limit, maximum output current may not be available at all values of V
IN
-V
OUT
and temperatures. See typical
performance curves for clarification.
9 Continuous operation at or above absolute maximum ratings may adversely effect the device performance and/or life cycle.
2
Rev. A 2/06
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
Input Voltage (100mS 1%D.C.) -20V to +60V
Input Voltage
26V
Enable Voltage
-0.3V to 26V
Output Current
8A
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
T
ST
T
LD
Storage Temperature Range -65°C to +150°C
Lead Temperature
300°C
(10 Seconds Soldering)
Operating Temperature
MSK 5176 Series
-40°C to +85°C
MSK 5176H/E Series
-55°C to +125°C
APPLICATION NOTES
REGULATOR PROTECTION:
The MSK 5176 series is fully protected against reversed input
polarity, overcurrent faults, overtemperature conditions (Pd) and
transient voltage spikes of up to 60V. If the regulator is used
in dual supply systems where the load is returned to a negative
supply, the output voltage must be diode clamped to ground.
HEAT SINK SELECTION:
To select a heat sink for the MSK 5176, the following formula
for convective heat flow may be used.
Governing Equation:
Tj = Pd x (R
θ
jc + R
θ
cs + R
θ
sa) + Ta
WHERE:
Tj = Junction Temperature
Pd = Total Power Dissipation
R
θ
jc = Junction to Case Thermal Resistance
R
θ
cs = Case to Heat Sink Thermal Resistance
R
θ
sa = Heat Sink to Ambient Thermal Resistance
Ta = Ambient Temperature
First, the power dissipation must be calculated as follows:
Power Dissipation = (Vin - Vout) x Iout
Next, the user must select a maximum junction temperature.
The absolute maximum allowable junction temperature is 125°C.
The equation may now be rearranged to solve for the required
heat sink to ambient thermal resistance (R
θ
sa).
EXAMPLE;
An MSK 5176-3.3 is configured for Vin=+5V and
Vout=+3.3V. Iout is a continuous 1A DC level. The ambient
temperature is +25°C. The maximum desired junction tem-
perature is 125°C.
R
θ
jc = 1.3°C/W and R
θ
cs = 0.15°C/W for most thermal greases
Power Dissipation = (5V - 3.3V) x (1A)
= 1.7 Watts
Solve for R
θ
sa:
R
θ
sa =
125°C - 25°C
- 1.3°C/W - 0.15°C/W
1.7W
= 57.37°C/W
In this example, a heat sink with a thermal resistance of no
more than 57°C/W must be used to maintain a junction tem-
perature of no more than 125°C.
OUTPUT CAPACITOR:
The output voltage ripple of the MSK 5176 series voltage regu-
lators can be minimized by placing a filter capacitor from the
output to ground. The optimum value for this capacitor may
vary from one application to the next, but a minimum of 33µF
is recommended for optimum performance. This capacitor need
not be an expensive low ESR type: aluminum electrolytics are
adequate. In fact, extremely low ESR capacitors may contrib-
ute to instability. Tantalum capacitors are recommended for
systems where fast load transient response is important. Tran-
sient load response can also be improved by placing a capaci-
tor directly across the load.
LOAD CONNECTIONS:
In voltage regulator applications where very large load cur-
rents are present, the load connection is very important. The
path connecting the output of the regulator to the load must be
extremely low impedance to avoid affecting the load regulation
specifications. Any impedance in this path will form a voltage
divider with the load.
ENABLE PIN:
The MSK 5176 series of voltage regulators are equipped with a
TTL compatible ENABLE pin. A TTL high level on this pin acti-
vates the internal bias circuit and powers up the device. A TTL
low level on this pin places the controller in shutdown mode
and the device draws approximately 10µA of quiescent cur-
rent. If the enable function is not used, simply connect the
enable pin to the input.
DEVICE/CASE CONNECTION:
The MSK 5176 series are highly thermally conductive devices
and the thermal path from the package heat sink to the internal
junctions is very short. Since the case is electrically isolated
from the internal circuitry, the package can be directly con-
nected to a heat sink.
3
Rev. A 2/06

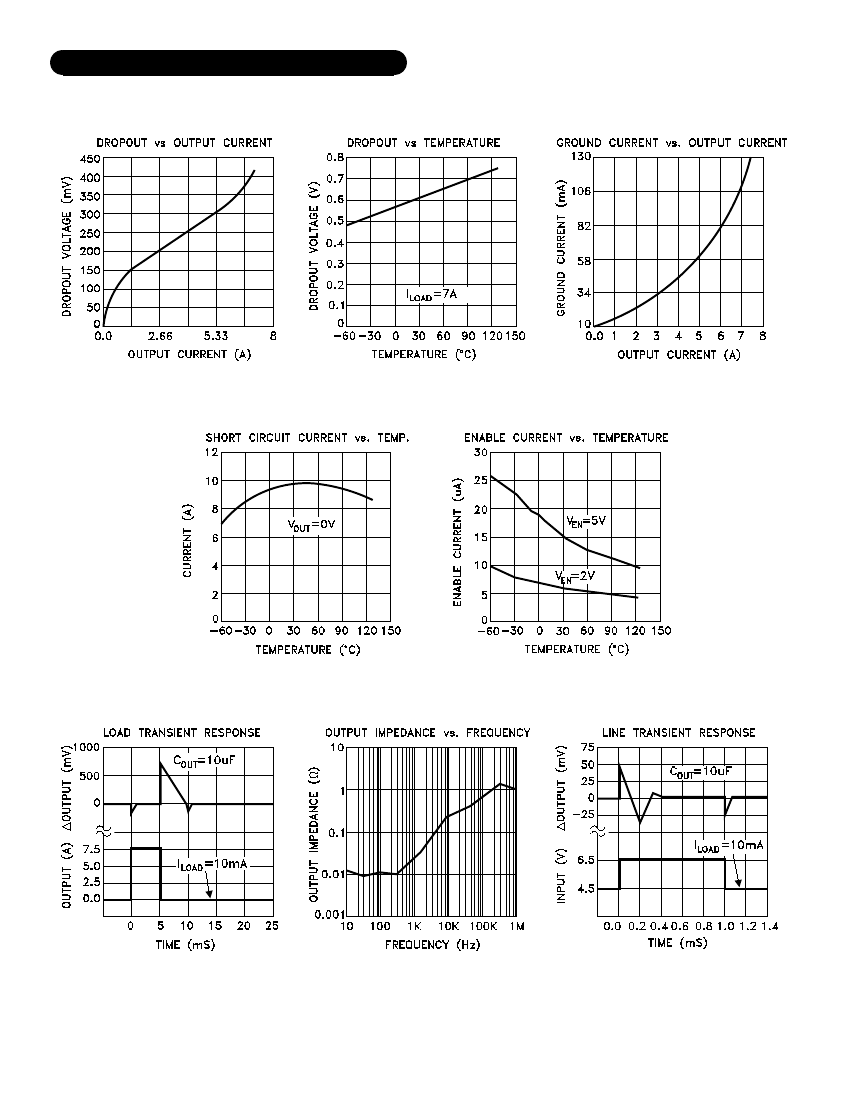

TYPICAL PERFORMANCE CURVES
4
Rev. A 2/06
MECHANICAL SPECIFICATIONS
NOTE: ALL DIMENSIONS ARE ±0.010 INCHES UNLESS OTHERWISE LABELED.
ESD Triangle indicates Pin 1.
ORDERING INFORMATION
MSK5176-3.3 H T U
LEAD CONFIGURATIONS
S= STRAIGHT; U= BENT UP; D= BENT DOWN
PACKAGE STYLE
T= TOP TAB; Z= Z PACK
SCREENING
BLANK= INDUSTRIAL; E=EXTENDED RELIABILITY
H=MIL-PRF 38534 CLASS H
OUTPUT VOLTAGE
1.5=+1.5V; 1.7=+1.7V; 1.9=+1.9V; 2.5=+2.5V
3.3=+3.3V; 5.0=+5.0V; 12=+12.0V
GENERAL PART NUMBER
The above example is a +3.3V, Military regulator using the top tab package with leads bent up.
M.S. Kennedy Corp.
4707 Dey Road, Liverpool, New York 13088
Phone (315) 701-6751
FAX (315) 701-6752
www.mskennedy.com
The information contained herein is believed to be accurate at the time of printing. MSK reserves the right to make
changes to its products or specifications without notice, however, and assumes no liability for the use of its products.
Please visit our website for the most recent revision of this datasheet.
Contact MSK for MIL-PRF-38534 qualification status.
