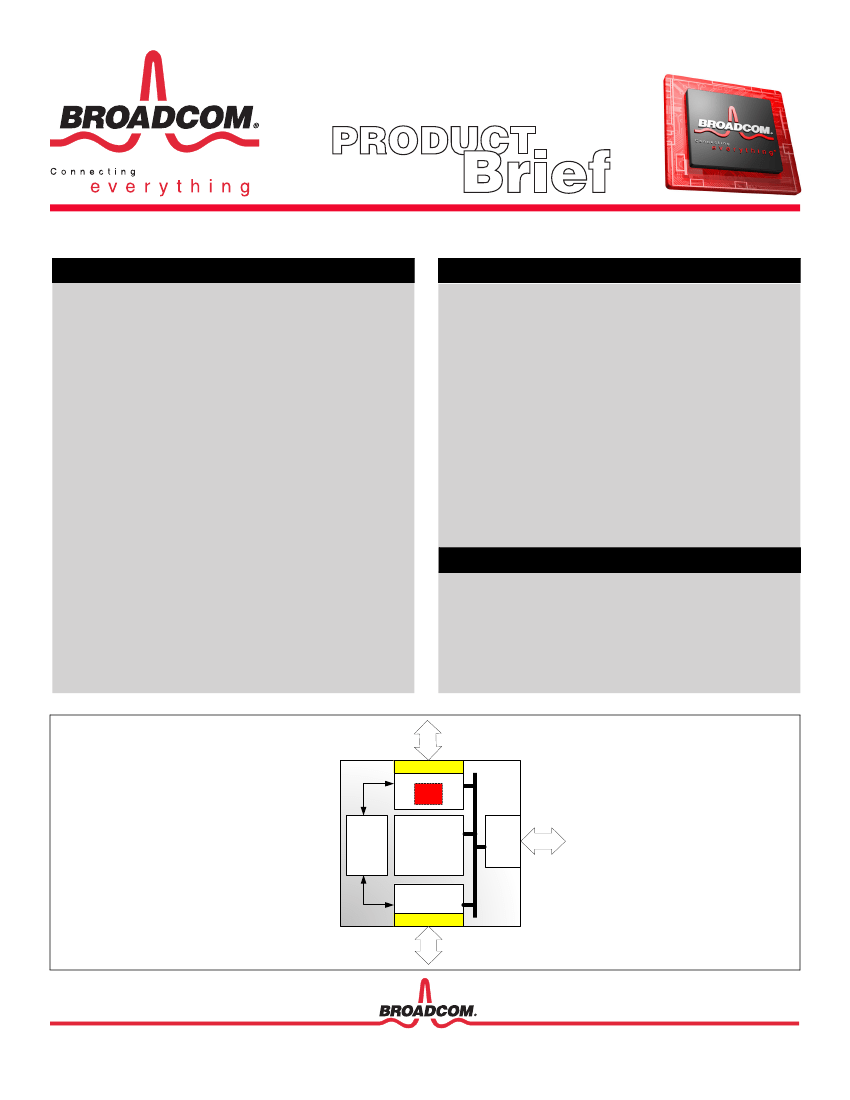

BCM5674
®
MULTILAYER 2-PORT 10 GIGABIT ETHERNET AND HiGig™ SWITCH
FEATURES
•
•
•
•
•
One 10 Gbps IEEE 802.3ae compliant Ethernet port
One HiGig™ port configurable for 10 Gbps speed
Integrated on-chip 512 KB packet buffer memory
Integrated on-chip layer 2/3 tables
SUMMARY OF BENEFITS
•
Enables system vendors to build scalable high-performance
•
•
•
•
•
•
switches with 10 Gigabit Ethernet support
Built-in double VLAN tagging enables seamless integration of
enterprise networks and service provider networks.
Provides hardware support for a number of multicast
applications, such as video and audio conferencing, web
training
Multiple classes of service (CoS) enable the switch to prioritize
latency-sensitive applications, such as VoIP and video
applications
Built-in 10 Gigabit Ethernet/XAUI SerDes, in addition to
integrated data and address memory, reduces overall system
cost and design complexity
Broadcom Switch API compatibility enables software reuse
and faster time to market
Small package and low-power enables cost effective and high
performance system design
Supports wire speed switching for all packet sizes, including
jumbo frames (up to 9 KB)
•
Supports eight class of service (CoS) queues
•
Supports advanced packet flow control:
•
Head-of-line blocking prevention
•
Full-duplex flow control (IEEE 802.3x compatible)
•
ContentAware™ network processing per port:
•
Line rate deep packet classification
•
Supports IEEE 802.1p, ToS/DiffServ, rate limiting, policing,
priority tagging, and re-mapping
•
Provides hardware support for IP multicast and IP multicast
replication
•
Support for double VLAN tagging with loopback feature
TARGET APPLICATIONS
•
High performance 10 Gigabit Ethernet multilayer switching
applications targeting the following types of systems:
•
Stand-alone systems
•
Stackable systems
•
Modular chassis systems
•
High-end server blades
•
•
•
•
Support for 128 StrataXGS™ devices using module remapping
Supports port mirroring across the stack
Feature parity with BCM5695 multilayer switch
Low power ~4 W
10 Gbps Ethernet
XPIC
FFP
PCI
Functional Design of BCM5675-Based 48-Port GE Switch With
66 MHz
GE Ports and Stacking
2
I
2
C
x 10
ARL
MMU
CMIC
CPU Bus
IPIC
10 Gbps HiGig™
OVERVIEW
Functional Design of 48-Port Gigabit Ethernet Switch Based on BCM5674 with 2×10 GbE Ports and Stacking
2× 10 GbE
2× HiGig
TM
SDRAM
BCM5675
PCI
FLASH
BCM8703
BCM5674
CPU
BCM5695
BCM5464
BCM5695
BCM5464
BCM5695
BCM5464
BCM5695
BCM5464
12× GbE
12× GbE
12× GbE
12× GbE
The BCM5674 10-Gigabit Ethernet switch is a scalable, multilayer
switch-on-chip member of the StrataXGS family. The BCM5674 is a
dual-port switch, which supports a 10 Gigabit Ethernet (IEEE 802.3ae)
port and a HiGig™ uplink port. The 10 Gigabit Ethernet port can be
used to interface to the XENPAK module via the XAUI interface.
The HiGig uplink expansion port supports explicit priority and
mirroring functions across the stack. The HiGig port can be used to
interconnect up to 128 switching devices, which enables high port
density switching applications.
The BCM5674 supports VLAN double tagging that is compatible with
other StrataXGS™ devices. The switch can also be used in loopback
mode enabling VLAN double tagging support for the Gigabit Ethernet
ports on the BCM5695.
The built-in Fast Filter Processor (FF) provides ContentAware™
network processing. The FFP supports functions such as ToS/DiffServ
mapping, rate limiting, policing, priority tagging, and metering
functions. The enhanced packet classification feature of the FFP enables
cutting-edge applications such as VoIP and firewalls.
The BCM5674 provides hardware support for IP multicast as well as IP
multicast replication. This enables a number of multicast applications,
such as Web training and audio/video conferencing.
The BCM5674 supports advanced packet flow control, such as head-of-
line blocking prevention and IEEE 802.3x compatible full-duplex
control.
For additional information on the BCM5674, please contact your local
sales representative.
Broadcom
®
, the pulse logo,
HiGig™, StrataXGS™, ContentAware™
and
Connecting everything
®
are
trademarks of Broadcom Corporation and/or its subsidiaries in the United States and certain other
countries. All other trademarks mentioned are the property of their respective owners.
®
BROADCOM CORPORATION
16215 Alton Parkway, P.O. Box 57013
Irvine, California 92619-7013
© 2004 by BROADCOM CORPORATION. All rights reserved.
5674-PB00-R
03/29/04
Phone: 949-450-8700
Fax: 949-450-8710
E-mail: info@broadcom.com
Web: www.broadcom.com
