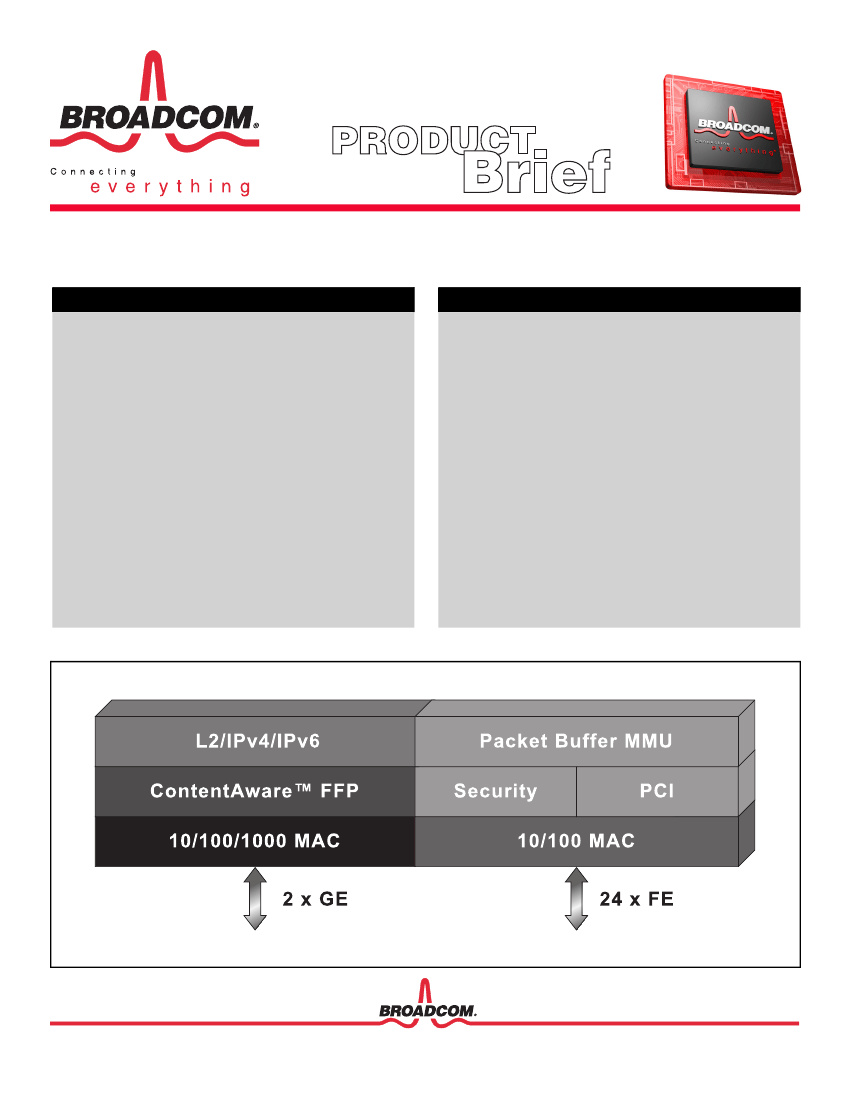

BCM56100
®
24-PORT FAST ETHERNET AND 2-PORT GIGABIT ETHERNET
MULTILAYER SWITCH
FEATURES
•
Twenty-four 10/100 Mbps and two 10/100/100 Mbps Ethernet
ports supporting both copper and fiber connections
•
Fifth generation of StrataSwitch
®
and StrataXGS
®
product
line
•
Line-rate switching for all packet sizes and conditions
SUMMARY OF BENEFITS
•
Highly scalable BroadScale™ architecture evolved from five
•
•
•
•
•
•
generations of switching experience provides rich features,
scalability, and future-proof solutions.
Optimized for secure switching and convergence of
applications and services in the networks.
System vendors can build scalable high-performance, high-
port density FE LAN switches in several form factors.
Multiple CoS and low latency enable the support of VoIP and
other voice, video, and data applications.
Built-in high-speed serial interfaces with Broadcom-unique
SerDes technology ease and accelerate system design, while
reducing cost and conserving board space.
Broadcom switch API compatibility enables software reuse
and faster time-to-market.
Small package and low power enable cost-effective and high-
performance system design.
•
On-chip data packet memory and table memory
•
IPv6 routing and tunneling
•
Advanced Fast Filter Processor (FFP) ContentAware™
classification
•
Advanced security features in hardware
•
Port trunking and mirroring supported across stack
•
Advanced packet flow control:
•
Head-of-line blocking prevention
•
Back pressure support
•
Eight QoS queues per port with hierarchical minimum/
maximum shaping per Classes of Service (CoS) per queue per
port
•
Standard compliant 802.1ad provider bridging
24-Port Fast Ethernet and 2-Port Gigabit Ethernet Multilayer Switch

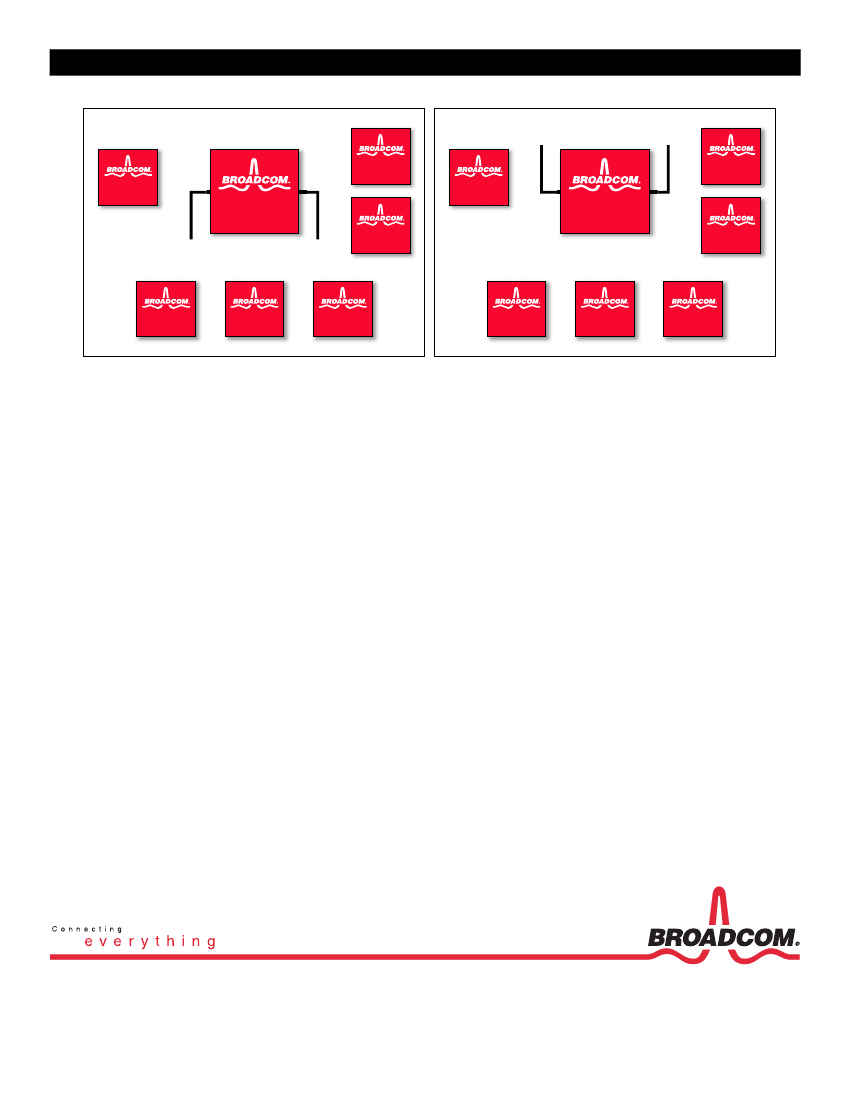

OVERVIEW
BCM5461
BCM5836
BCM5836
BCM5461
BCM56102
BCM5461
BCM56102
BCM5461
BCM5248U
BCM5248U
BCM5248U
BCM5248U
BCM5248U
BCM5248U
24 10/100 and 2 10/100/100 + Two 10xGbE
Stand-alone
The BCM56102 is the fifth generation of the highly-integrated and cost-
effective Broadcom StrataSwitch and StrataXGS product line in a single-
chip solution, with 24 FE, two GbE, and two 10-GbE/HiGig+ uplink
ports. The uplink ports can operate in two modes:
•
10-GbE switching mode
•
HiGig+ uplink mode
The integrated 10-GbE switching ports are CX-4 compliant XAUI
interfaces. The HiGig+ uplink interface is used to connect to other
StrataXGS devices in a larger stacking system or to the BCM5675/
BCM5676 Switch Fabric via a backplane in a multislot redundant
chassis system.
With high-integration and high-port density, the BCM56102 family is
ideal for Enterprise applications in stand-alone, stackable, and chassis
configurations. The BCM56102 configurations are applicable in the
edge, aggregation, and core areas of the Enterprise. The BCM56102 is
also ideal for embedded switch applications like the Blade Server
Switch, ATCA chassis, IPDSLAM, 3G Wireless Base Station, and
others.
The BCM56102 integrates sophisticated advanced L3 switching features
for cost-effective highly manageable enterprise networks. The
BCM56102 performs IPv6 routing and transition services in hardware,
allowing IT managers to deploy L3 switches that are future-proof, highly
manageable L3 networks and to enable cost-effective transition from
IPv4 to IPv6.
24 10/100 and 2 10/100/100 + Two HiGig+
Stackable
The ContentAware classification feature of the StrataSwitch and
StrataXGS has been further enhanced in the BCM56102 with unmatched
flexibility and programmability. The ContentAware engine could be
used for applications such as policy-based routing, access control list,
dynamic adaptation to changes in virus threats, and so on.
The BCM56102 has built-in security functions for highly secure
Enterprise networks including BroadSAFE™. Utilizing hardware-based
identity management and authentication coupled with key management
software that directs and manages clients, BroadSAFE Security provides
exceptionally strong network security without impacting network
performance.
The BCM56102 integrates sophisticated metering, statistics, and traffic
management features, optimizing the QoS in the Enterprise networks for
voice, video, and data convergence. The BCM56102 also provides rate
adjustable hardware-based sFlow implementation and flexible multiple
session remote port mirroring functionality for efficient network
management.
The BCM56102 switch supports an I2C controller for communicating
with external devices such as serial EEPROM, flash PROM memories,
and parallel port devices, and also supports a serial interface for the MII
management of physical layer devices.
The BCM56102 switch interfaces to a host CPU via a 32-bit PCI bus
running at up to 66 MHz. Bus mastering and advanced DMA are
supported for efficient exchange of packet data between CPU memory
and the BCM56102 switch.
