BCM3352
PRODUCT
Brief
O F
B E N E F I T S
QAMLINK™ SINGLE-CHIP 4-CHANNEL V
O
IP BROADBAND GATEWAY IC
B C M 3 3 5 2
F E AT U R E S
S U M M A R Y
is the world’s
integrated,
•
The BCM3352 lowest-power, most highlysolution for
lowest-cost and
single-chip
cable residential gateway’s providing four-channels of
VoIP/FoIP and 32 Mbps home
phone line networking.
•
The BCM3352 Integrates:
•
Designed for primary line and second line cable
telephony products
•
Expandable to 16+ line MDU applications
•
Integrated patented 16-channel
DOCSIS/EuroDOCSIS 1.1 PacketSync™ engine
•
•
•
•
•
•
•
obviates VoIP packet delay
Propane software support for enhanced upstream
efficiency and performance
Integrated HomePNA 2.0 MAC supports high speed
multimedia services over phone lines
Available with Certifiable DOCSIS/EuroDOCSIS
1.0/1.1 and CablexChange VoIP Software
Full IPv6 IPSec module to support advanced
applications such as Virtual Private Networking
(VPN) and Secure Voice Services
Included in the comprehensive BCM93352V and
BCM93352VCM reference designs
Integrated CablexChange VoIP/FoIP software
Full 12 Mbps, USB 1.1 compliant interface to enable
simple Plug and Play external PC gateway
implementations
• Enhanced VoIP DOCSIS/EuroDOCSIS 1.1/1.0 MAC with 16
upstream queues
• Payload header suppression(PHS) engine
• 120 Dhrystone 2.1 MIPS32 CPU
• Four-channel VoIP DSP
• Four-channel G.712/V.90 FlexiVoice™ CODEC
• IpV6 IPSec processor
• 4-256 QAM receiver with Annex A,B,C FEC
• 4/16 QAM burst modulator
• 32-bit 100 MHz SDRAM controller
• 16-bit expansion bus interface
• iLine32 32 Mbps HPNA 2.0 phone line networking MAC
• 10/100 Ethernet MAC with MII
• 12 Mbps USB 1.1 interface
• Extensive chip power management
• 1.8/3.3V -40 to 85c operation
• 484-pin BGA package

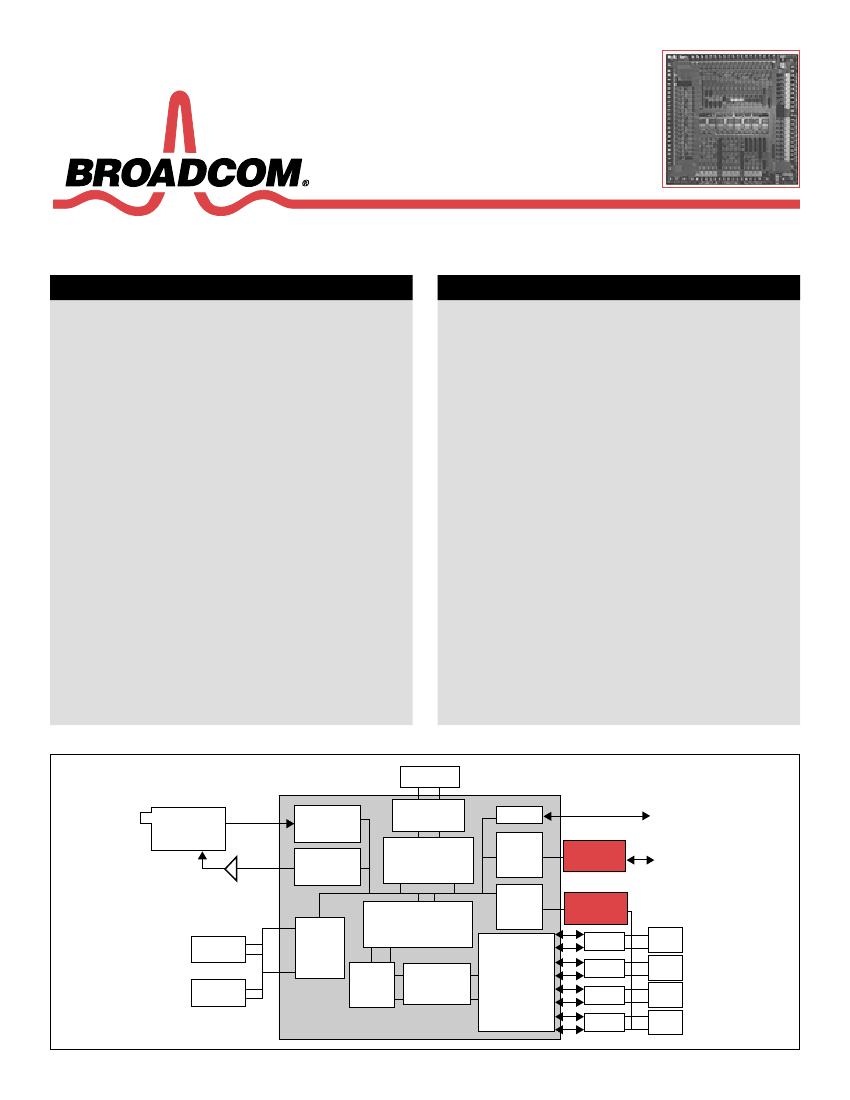

BCM3352 Application Block Diagram
SDRAM
SDRAM
Controller
120 MIPS
MIPS32
CPU
Tuner
256 QAM
Receiver
4/16 QAM
Modulator
USB 1.1
10/100
MAC
USB 1.1
BCM5221
10/100 PHY
10/100
Ethernet
Enhanced
DOCSIS/
EuroDOCSIS 1.1 MAC
Flash
EBI
Packet
Sync™
200+ MIPS
DSP
iLine32
MAC
BCM4100
HPNA AFE
SLIC
SLIC
SLIC
SLIC
RJ-11
RJ-11
RJ-11
RJ-11
DSP
Flexi-Voice™
Codec
B C M 3 3 5 2

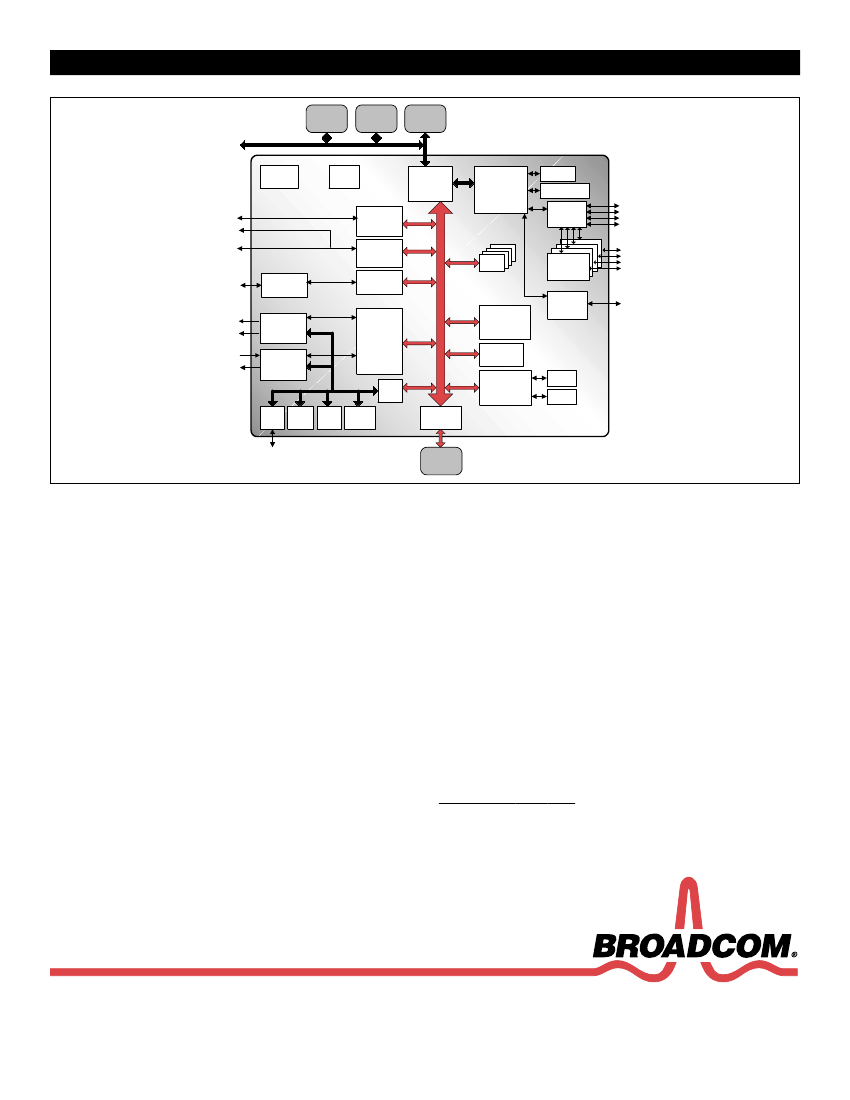

O V E R V I E W
EEPROM
(Optional)
SRAM
(Optional)
FLASH
EBI
Expansion
Clock
Generation
Module
48K words
Data SRAM
140MHz 16-bit
Dual MAC
DSP Core
80K words
Program SRAM
Audio
Processor
& SLIC I/F
Ch0
Ch1
Ch2
Ch3
JTAG
16-bit
External Bus
Interface
HPNA 2.0
802.3u MII
802.3u
Twisted Pair
USB 1.1
Twisted Pair
iLine32
MAC
SLIC Control /
Hook Detect
802.3u
Ethernet
MAC
DMA
Voice AFE
with 14bit
A/D-D/A
Ch0
Ch1
Ch2
Ch3
Four-wire
Differential
USB 1.1
Transceiver
USB 1.1
MAC
Internal
System
Bus
IPSec/HMAC/RC4
Encryption
Engine
PCM Hwy/
IOM-2
Interface
PCM Hwy/
0—65 MHz RF
Amp Ctl
36/44 MHz IF
Tuner Ctl
QPSK/16QAM
Upstream
Modulator
with 10bit D/A
64/256QAM
Downstream
Demodulator
with 10bit A/D
Enhanced
DOCSIS/
EuroDOCSIS 1.1
MAC
with BPI+
Power
Management
Controller
100 MHz R3000
MIPS Core
with MIPS32
Extensions
16/32-bit
SDRAM
Interface
4 KB
I-Cache
4 KB
D-Cache
Peripheral Bus
PB
Bridge
GPIO
Timers
Dual
UART
Interrupt
Control
BCM3352
LEDs/Misc
100 MHz
SDRAM
The Broadcom
BCM3352
represents a new and unprecedented
level of integration for PacketCable Multimedia Terminal
Adapters (MTA.) The BCM3352 provides a unique solution for
low power and cost effective MTAs that can deliver primary line
VoIP cable telephony and broadband data services over phone
lines worldwide.
Key modules integrated in the
BCM3352
include:
• Enhanced VoIP DOCSIS/EuroDOCSIS 1.0/1.1 based MAC
integrating a wirespeed DES encryption/decryption engine,
full DOCSIS/EuroDOCSIS 1.1 QoS, support for 16 SIDS in
the downstream, 256 multicast/and Unicast DA CAM,
16 independent DMA controlled upstream queues, as well as
extended network management MIB and diagnostic features.
• 200+ MIPS VoIP/FoIP DSP with patented PacketSync™
delivering four channels of compressed voice packets,
including G.711, G.726, G.729a/b/e, and G.728 Vocoders,
plus T.38 Fax Relay.
• Integrated iLine32™ HPNA 2.0 home phone line interface
that eliminates hundreds of dollars worth of additional
telephone and Ethernet wiring.
Broadcom
®
,
the pulse logo and
QAMLink
are registered trademarks of Broadcom Corporation
and/or its subsidiaries in the United States and certain other countries.
iLine32, FlexiVoice,
Propane
and
PacketSync
are trademarks of Broadcom Corporation.
• High-performance 120 MIPS, 100-MHz MIPS32 processor
with a 4K two-way set associative I-cache and a 4K two-way
associative D-cache.
• Broadcom Propane™ software support for enhanced
bandwidth efficiency and turbo modem performance.
• Integrated 10/100 Ethernet MAC for support of small
business integrated access device applications.
• IPSec module with single-DES (CBC & ECB modes), triple-
DES (CBC & ECB modes), MD-5 and SHA authentication
in hardware, providing support for Virtual Private Networks
(VPNs).
• Integrated four-channel FlexiVoice™ Voice Codec with
individual line programmable filter coefficients, providing
optimum performance for both V.90 modem and voice
applications.
Ordering Information:
BCM93352V
BCM93352VCM
Reference Design
Reference Design
For more information please contact us at:
Phone: 949-450-8700, FAX: 949-450-8710
Email: info@broadcom.com
Visit our web site at: www.broadcom.com
© 2000 BROADCOM CORPORATION
3352-PB03-R-12.14.00
BROADCOM CORPORATION
16215 Alton Parkway, P.O. Box 57013
Irvine, California 92619-7013
