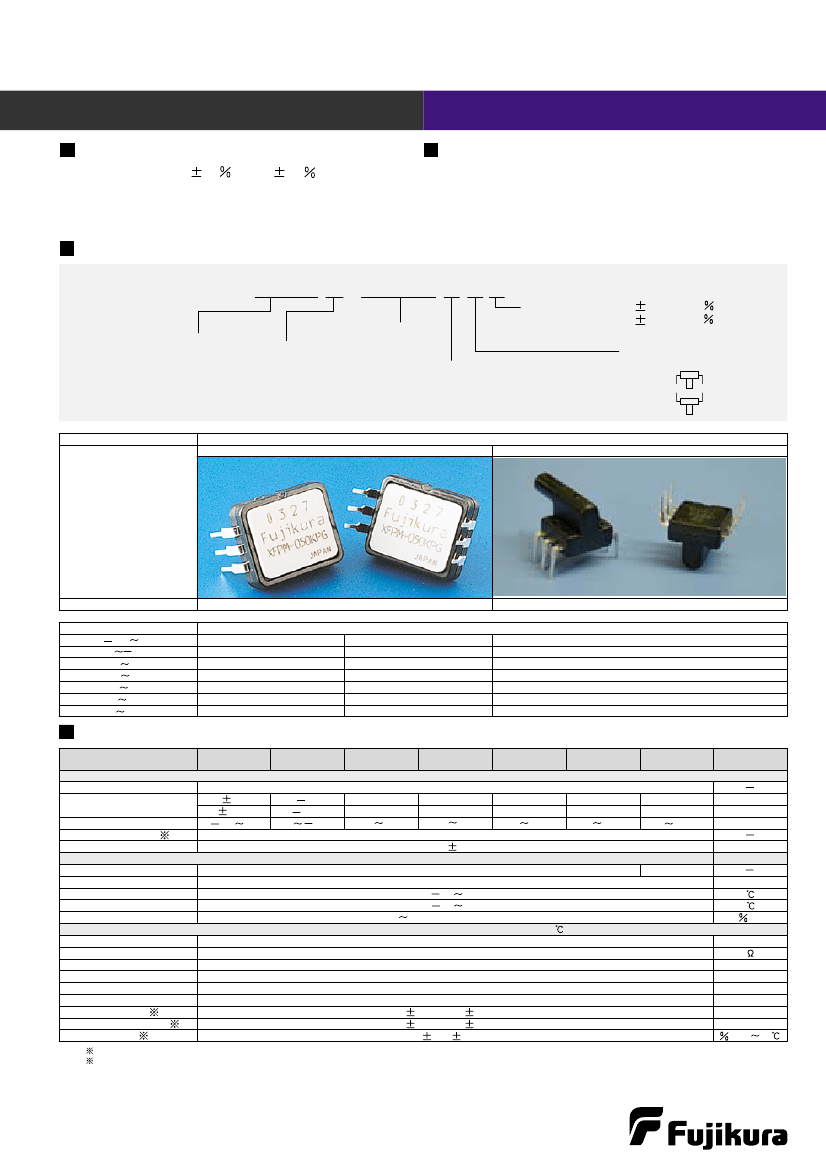

Pre-amplified/5V Excitation/Gauge
Features
.
.
.
.
.
Two accuracy ranks, 1.5 FS and 2.5 FS available
Volt level output
On-chip amplification and temperature compensations
Pre-calibration of offset voltage and span
Non-corrosive liquid measurable (XFPMC, XFHMC only)
XFPM,XFHM Data sheet
Applications
. Industrial instrumentation
. Pressure switch, Pneumatic device
. Medical device
Part number for ordering
XFPM C - 025KP G R H
Accuracy No mark :
H
:
Model
XFPM
XFHM
Rated pressure (Pa)
Available pressure media
No mark : Non-corrosive gas only Pressure type
C : Non-corrosive gas and liquid G : Gauge (Positive pressure)
(Contact us about availability)
GV : Gauge (Negative pressure)
GW : Gauge (Bipolar pressure)
Pressure type
XFPM
Gauge pressure
XFHM
2.5 FS
1.5 FS
(Contact us about availability)
Terminal leads direction
(See Outline Diagram)
No mark :
R
:
Model
Package configuration
Measurable pressure range (kPa)
100 100
0
100
0 25
0 50
0 100
0 200
0 1000
Dual-In-line-Package (DIP)
Part number for ordering
XFPM-100KPGWR
XFPM-100KPGVR
XFPM-025KPGR
XFPM-050KPGR
XFPM-100KPGR
XFPM-200KPGR
XFPM-001MPGR
Horizontal pressure port DIP
XFPM-100KPGW
XFPM-100KPGV
XFPM-025KPG
XFPM-050KPG
XFPM-100KPG
XFPM-200KPG
XFPM-001MPG
XFHM-100KPGWR
XFHM-100KPGVR
XFHM-025KPGR
XFHM-050KPGR
XFHM-100KPGR
XFHM-200KPGR
XFHM-001MPGR
Specifications
Model/Rated pressure
100KPGW
100KPGV
025KPG
050KPG
100KPG
200KPG
001MPG
Unit
Recommended operating conditions
Pressure type
Gauge pressure
100
100
25
50
100
200
1000
Rated pressure
1.020
1.020
0.255
0.510
1.020
2.040
10.20
Measurable pressure range
100 100
0
100
0 25
0 50
0 100
0 200
0 1000
Pressure media 1
XFPM, XFHM : Non-corrosive gas only, XFPMC, XFHMC : Non-corrosive gas and liquid
Excitation voltage
5.0 0.25
Absolute maximum rating
1.5times of rated pressure
Maximum load pressure
Twice of rated pressure
Maximum excitation voltage
8
Operating temperature
40 125
Storage temperature
40 125
Operating humidity
30 80 (No dew condensation)
Electric performances/characteristics(Excitation voltage Vcc=5.0V constant, Ambient temperature Ta=25 )
Current consumption
less than 10
Output impedance
less than 10
Source current
less than 0.2
Sink current
less than 2
Mechanical response time
2 (For the reference)
Full scale span voltage
4.5
Offset voltage 1.2
0.2 0.1125, 0.2 0.0675(H)
Full scale span voltage 1.2
4.7 0.1125, 4.7 0.0675(H)
Accuracy 1.2
2.5, 1.5(H)
Note ;
1) Please consult us available when you choose the C models and the H models.
2) Excluding input voltage error.
kPa
kg/cm
2
kPa
VDC
VDC
RH
mA
mA
mA
msec
V
V
V
FS/0 85
1
Pre-amplified/5V Excitation/Gauge

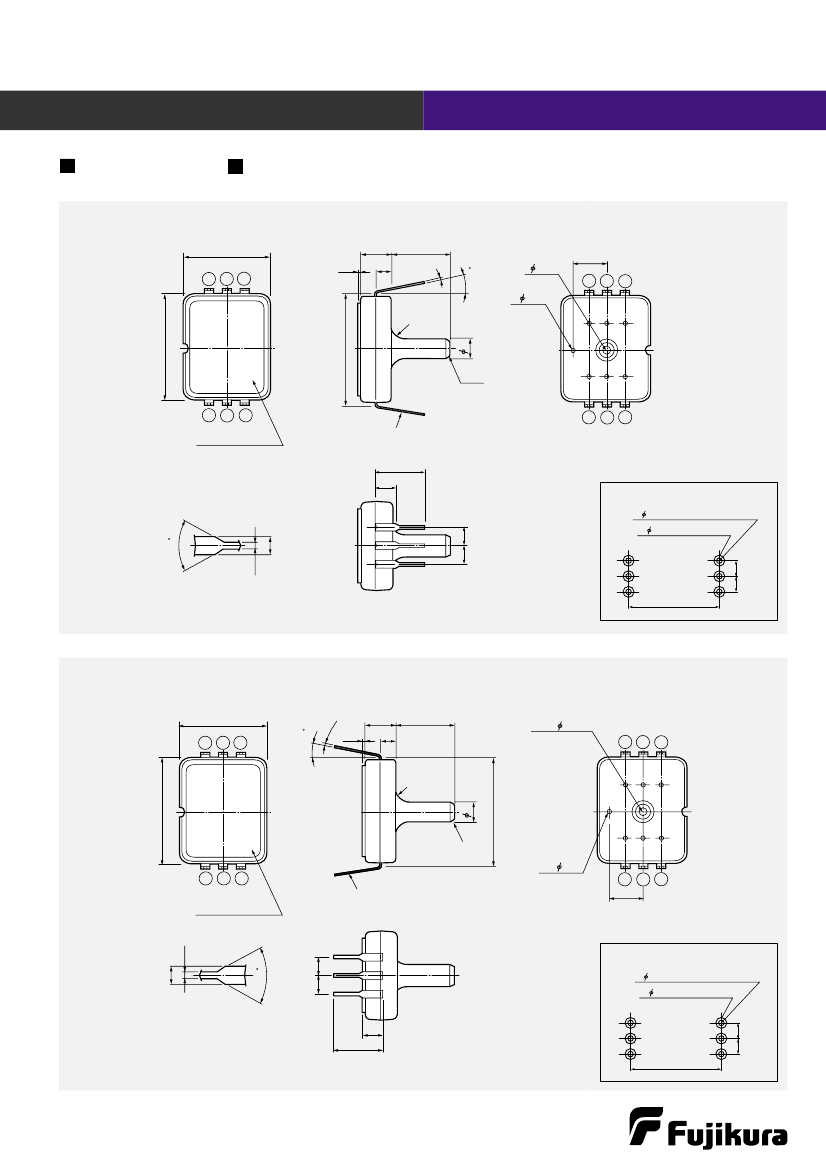

Outline dimensions
XFPM,XFHM Data sheet
unit : mm
XFPM
12
0.5
6
5
4
4
2.2
8
5
0.2
max 15
Pressure port
0.8
0.6
Vent hole
4.5
4
5
6
15.24(600mil)
R1.5
3
C0.5
14
1
2
3
Terminal leads
3
2
1
Labelled faceplate
6.8
2.8
Recommended footprint for PCB
6- 0.9(Diameter of through holes)
2.54 2.54
6- 1.8(Diameter of lands)
1.2
60
15.2
(unit : mm)
unit : mm
XFPM-R
0.2
12
max 15
4
0.5
2.2
8
5
6
5
4
0.8
Pressure port
4
5
6
R1.5
14
3
C0.5
1
2
3
Terminal leads
Labelled faceplate
0.6
Vent hole
3 2
4.5
1
0.5
15.24(600mil)
2.54 2.54
Recommended footprint for PCB
6- 0.9(Diameter of through holes)
6- 1.8(Diameter of lands)
1.2
60
2.8
6.8
15.2
(unit : mm)
2
2.54 2.54
2.54 2.54
0.5
Pre-amplified/5V Excitation/Gauge
Connection diagram
XFPM, XFHM
Vcc
XFPM,XFHM Data sheet
Vcc(DC5V)
Vout
Vout
GND
C2
C1
GND
Remarks :
1) C1 : Connect 680pF capacitor within 2cm distance from
leads.
2) C2 : Connect 0.01 F or more capacitor within 2cm dis-
tance from leads.
3) 4 and 5 pins must be No Connection. Open them as float-
ing ones completely, and do NOT connect to other line or
each other.
Transfer Function
Vout=Vs (P
Vs=5.0volts
Notes ; The output voltage (Vout) is no perfect ratiometric with the power supply voltage.
+ ) (Pressure Error Temperature Error Multiplier
Vs)
P=Input Pressure(kPa)
Model
025KPG(D)
050KPG(D)
100KPG(D)
100KPGV
100KPGW(DW)
200KPG(D)
001MPG(D)
115KPA
pressure range
0 25kPa
0 50kPa
0 100kPa
0
100kPa
100 +100kPa
0 200kPa
0 1MPa
15 115kPa.abs
0.036
0.018
0.009
0.009
0.0045
0.0045
0.0009
0.009
0.04
0.04
0.04
0.04
0.49
0.04
0.04
0.095
Pressure Error(kPa)
0.625
1.25
2.5
2.5
5.0
5.0
25
2.5
Temperature Error Multiplier
3.5
Temperature Error Multiplier
3
2.5
2
1.5
1
0.5
0
-40
85
125
120
-20
0
20
40
Temperature
60
80
100
Note ; Please read instruction “Notes” before using the sensor.
Fujikura reserves the right to change specifications without notice.
If you have any questions regarding technical issues or specifications, please contact us.
Sensor Engineering Department 5-1 Kiba 1-chome, Koto-ku, Tokyo 135-8512, Japan
Phone +81-(0)3-5606-1072 Fax. +81-(0)3-5606-1538
4
E-mail : sensor@fujikura.co.jp
