• 1N5822 AVAILABLE IN
JAN, JANTX, JANTXV AND JANS
PER MIL-PRF-19500/620
• 3 AMP SCHOTTKY BARRIER RECTIFIERS
• HERMETICALLY SEALED
• METALLURGICALLY BONDED
1N5822
and
DSB5820 thru DSB5822
and
DSB3A20 thru DSB3A40
MAXIMUM RATINGS
0.115/0.145
Operating Temperature: -65°C to +125°C
Storage Temperature: -65°C to +150°C
Average Rectified Forward Current: 3.0 AMP @ TL = +55°C, L = 3/8”
Derating: 43 mA / °C above TL = +55°C, L = 3/8”
2.92/3.68
0.130/0.195
3.30/4.95
0.900
22.86
0.036/0.042
0.91/1.07
ELECTRICAL CHARACTERISTICS
@ 25°C, unless otherwise specified.
CDI
TYPE
NUMBER
WORKING PEAK
REVERSE
VOLTAGE
VRWM
VOLTS
MAXIMUM FORWARD VOLTAGE
VF @ 1.0 A
VOLTS
0.40
0.40
0.40
0.40
0.40
0.40
0.40
VF @ 3.0 A
VOLTS
0.50
0.50
0.50
0.50
0.50
0.50
0.50
VF @ 9.4A
VOLTS
0.70
0.70
0.70
0.70
0.70
0.70
0.70
MAXIMUM REVERSE
LEAKAGE CURRENT
AT RATED VOLTAGE
IR @ +25°C
mA
0.10
0.10
0.10
0.10
0.10
0.10
0.10
IR @ +100°C
mA
12.5
12.5
12.5
12.5
12.5
12.5
12.5
FIGURE 1
DESIGN DATA
CASE:
Hermetically sealed, “B” Body
per MIL-PRF-19500/620. D-5B
LEAD MATERIAL:
Copper clad steel
LEAD FINISH:
Tin / Lead
THERMAL RESISTANCE: (R
OJEC): 30
˚C/W maximum at L = .375 inch
THERMAL IMPEDANCE: (Z
OJX): 3
˚C/W maximum
POLARITY:
Cathode end is banded.
MOUNTING POSITION:
Any
DSB5820
DSB5821
DSB5822
J,JX,JV & JS
5822
DSB3A20
DSB3A30
DSB3A40
20
30
40
40
20
30
40
22 COREY STREET, MELROSE, MASSACHUSETTS 02176
PHONE (781) 665-1071
FAX (781) 665-7379
WEBSITE: http://www.cdi-diodes.com
E-mail: mail@cdi-diodes.com
1N5822
and
DSB5820
and
thru
thru
DSB5822
DSB3A20
10.0
DSB3A40

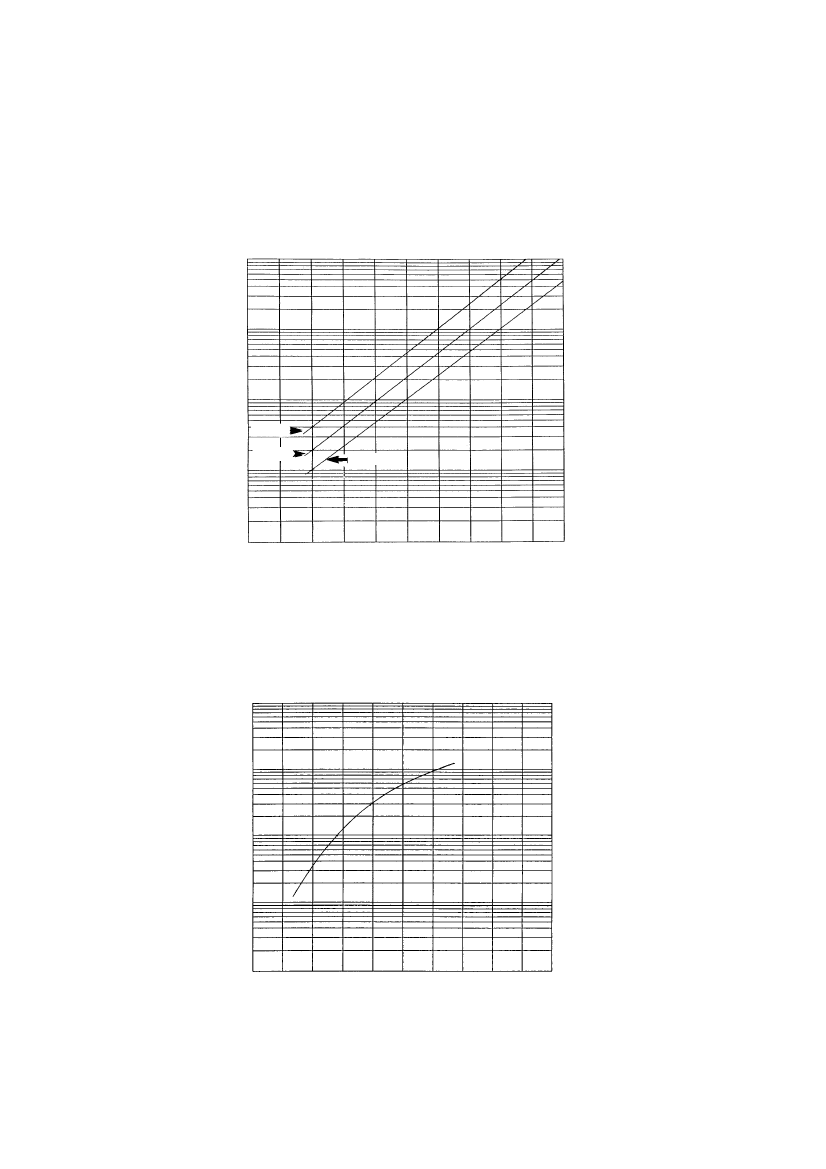

TYPICAL REVERSE LEAKAGE CURRENT AT RATED PIV (PULSED)
IR, REVERSE CURRENT (mA)
1.0
0.1
DSB5822
DSB5821
DSB5820
0.01
0.001
+25
+50
+75
+100
+125
TJ , JUNCTION TEMPERATURE (°C)
FIGURE 1
TYPICAL FORWARD VOLTAGE
IF, FORWARD CURRENT, INSTANTANEOUS (AMPS)
100.0
10.0
1.0
0.1
0.01
0.1 0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
VF, FORWARD VOLTAGE, INSTANTANEOUS (VOLTS)
FIGURE 2
