BL-R3133A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BL-R3133A

BL-R3133A: Descriptiongaasp /gap Yellow low power consumption.; CategoryLED optoelectronic/LED photoelectric; File Size144KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric View All

BL-R3133A Overview

gaasp /gap Yellow low power consumption.

BL-R3133A Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	L-087, 2 PIN
Reach Compliance Code	unknown
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	5.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.2 mm
method of packing	BULK
peak wavelength	585 nm
shape	RECTANGULAR
size	3.5 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	120 deg

Preview

Download Datasheet

View All

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BL-R3133A

●

Features:

1. Chip material: GaAsP /GaP

2. Emitted color : Yellow

3. Lens Appearance : Yellow Diffused

4. Low power consumption.

5. Most suitable for use like level indicator.

6. Excellent uniformity of light emittance.

7. Long life solid state reliability.

●

Package dimensions

3.5(.138)

2.0(.079)

3.2(.126)

1.5(.059)

MAX.

0.5(.020)

SQ.TYP.

25.4(1.00) MIN.

Cathode

1.2(.047)

8. Compatible.

9. This product don’t contained restriction

substance, compliance ROHS standard.

3.8(.150)

3.0(.118)

2.54(.100)

NOM.

1.0(.039)

MIN.

●

Applications:

1. TV set

2. Monitor

3. Telephone

4. Computer

5. Circuit board

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25mm (0.01”) unless otherwise specified.

3. Lead spacing is measured where the leads emerge from

the package.

4. Specifications are subject to change without notice.

●

Absolute Maximum Ratings(Ta=25℃)

Parameter

Power Dissipation

Forward Current

Peak Forward Current*

Reverse

Voltage

Operating Temperature

Storage Temperature

Soldering Temperature

Symbol

Topr

Tstg

Tsol

Rating

150

-40

℃

~80

℃

-40

℃

~85

℃

260

℃

(for 5 seconds)

Unit

Condition for I

is pulse of 1/10 duty and 0.1msec width.

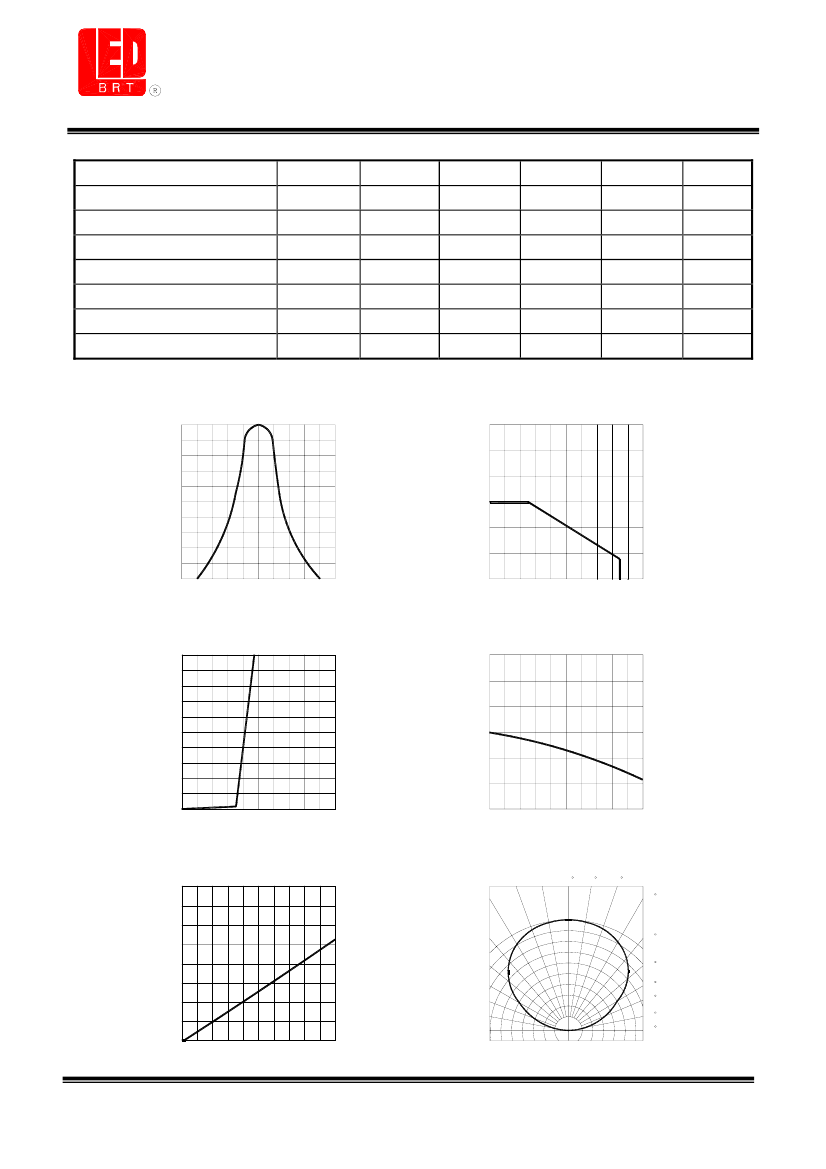

Ver.2.0 Page: 1 of 2
