BPT-RP4APK
END- LOOK PACKAGE
PHOTOTRANSISTOR
●
Features
1. Wide range of collector current.
2. Low cost plastic package.
3. Lens Appearance: Black
4. This product doesn't contain restriction
substance, comply ROHS standard
6.8(.270)
4.5(.180)
4.9(.193)
3.05(.112)
2.4(.094)
●
Package Dimensions:
1.5(.059)
A-A
5.0(.200)
1.5(.059) MAX.
13.0(.511) MIN.
0.5(.020) SQ.TYP.
1.0(.040)
●
Application
1. Mouse
2. Automatic Control System
1.0(.040) MIN.
3.0(.118) MIN.
2.54(.100) NOM.
0.61(.020)
1.27± 0.01(.050)
1
2
1
2
3
3
EMITTER (PTR A)
COLLECTOR (COM)
EMITTER (PTR B)
0.61± 0.01(.02)
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ±0.25mm (0.01’) unless otherwise specified.
3.Lead spacing is measured where the leads emerge from the package
4.Specifications are subject to change without notice
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Collector- Emitter Voltage
Emitter- Collector Voltage
Operating Temperature
Storage Temperature Range
Lead Soldering Temperature
Maximum Rating
100
30
5
-45℃~+85℃
-45℃~+100℃
Unit
mW
V
V
260℃ for 5 seconds
Rev:2.1 Page1 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BPT-RP4APK
●
Electrical Characteristics
(TA=25℃ unless otherwise noted)
PARAMETER
Collector- Emitter
Breakdown Voltage
Emitter-Collector
Breakdown Voltage
Collector- Emitter
Saturation Voltage
Rise Time
Fall Time
Collector Dark Current
On State Collector Current
SYMBOL
V
(BR)CEO
V
(BR)ECO
V
CE(SAT)
T
r
T
f
I
CEO
I
C(ON)
MIN
30
5
-
-
-
-
-
TYP
-
-
-
15
15
-
0.4
MAX
-
-
0.5
-
-
100
-
UNITS
V
V
V
μS
μS
nA
mA
TEST CONDITIONS
I
C
=0.1mA Ee=0mW/cm
2
I
R
=0.1mA Ee=0 mW/cm
2
I
C
=0.1 mA Ee=1.0 mW/cm
2
Vcc=5V R
L
=1KΩ I
C
=1mA
Vcc=5V R
L
=1KΩ I
C
=1mA
V
CE
=10V E
e
=0 mW/cm
2
V
CE
=5V E
e
=1.0mW/cm
2
●
Typical Optical-Electrical Characteristic Curves
FIG.1 Dark Current Vs.
( A)
10000
1000
Power Dissipation Pd
100
Dark Current
10
1
0.1
0.01
0
20
40
60
80
100
120 (° C)
Ambient Temperature
(mW)
120
100
80
60
40
20
0
-25
125 (° C)
FIG.2 Power Dissipation Vs.
Ambient Temperature
0
25
50
75
100
Ambient Temperature
FIG.3 Rise And Fall Time Vs.
Load Resistance
20
16
Rise and Fall Time
12
8
4
0
Tr
Ambient Temperature
FIG.4 Relative Collector Current Vs.
Irradiance
Vce=5V
Relative Collector Current
4
3
2
1
0
( s)
Vcc=5V
F=100Hz
5
Tf
0
0.2
0.4
0.6
0.8
1(K )
0
0.5
1
1.5
2
2.5
3 (mW/cm )
2
Load Resistance
Irradiance
Rev:2.1 Page 2 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BPT-RP4APK
●

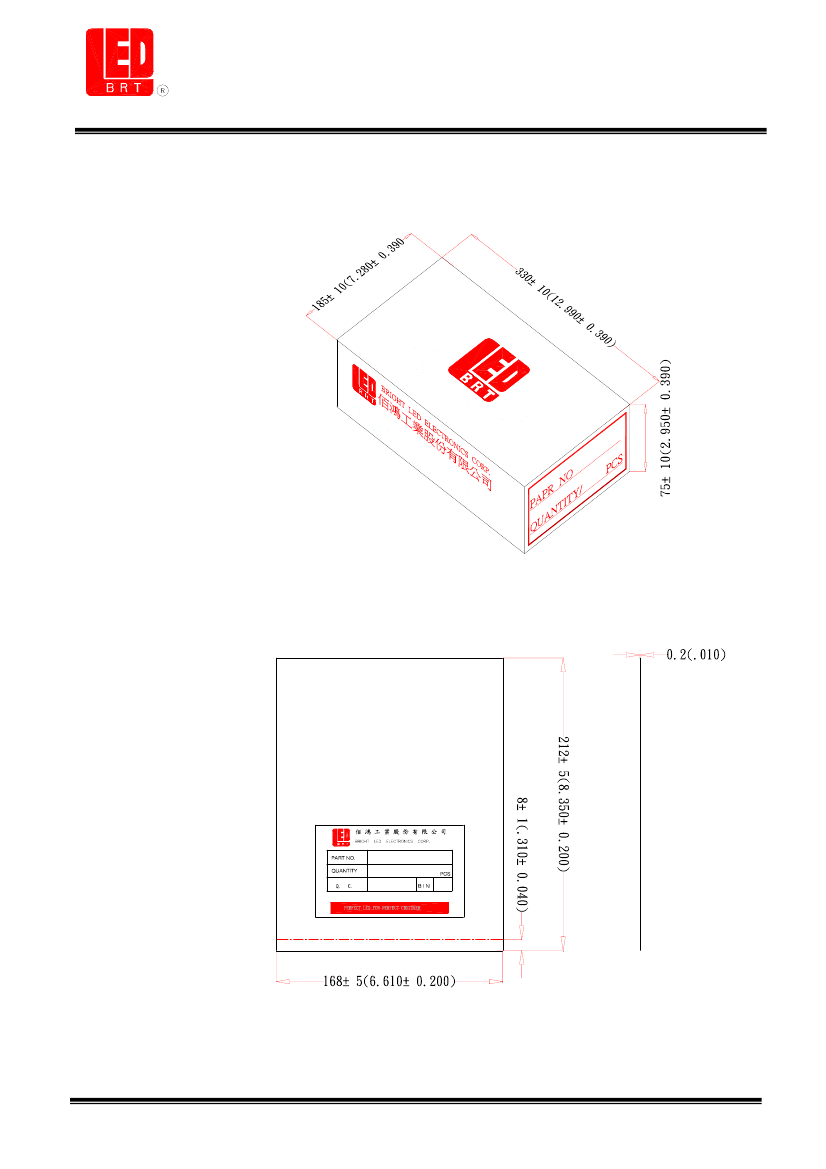

Tapping and packaging specifications(Units: mm)
Packaging Bag Dimensions
Notes:
1、1000pcs per bag, 8Kpcs per box.
2、All dimensions are in millimeters(inches).
3、Specifications are subject to change without notice.
Rev:2.1 Page 3 of 3
