Improved with Faster Measurement !
3511-50 LCR HiTESTER
Components measuring instruments
Minimum measurement time of 5 ms, built-in comparator and ±0.08% measurement accuracy
Improved for even faster and more efficient measurements !
The
3511-50 LCR HiTESTER
features both high
performance, highspeed measurements with a low prices.
The minimum measurement time of 5 ms and basic
accuracy of ±0.08% makes the instrument suitable for use
on production lines and laboratories. The built-in high-
speed comparator significantly reduces production line tact
time and allows the construction of automatic production
lines.
The very compact body features a clearly visible LED
display that facilitates easy operation and allows settings to
be confirmed at a glance.
With its high-speed measurement, highly accurate
measurement capabilities and great cost performance, this
LCR measurement instrument is bound to satisfy the needs
of a variety of users.
ISO14001
JQA-E-90091
http://www.hioki.co.jp/
HIOKI company overview, new products, environmental considerations and
other information are available on our website.
1

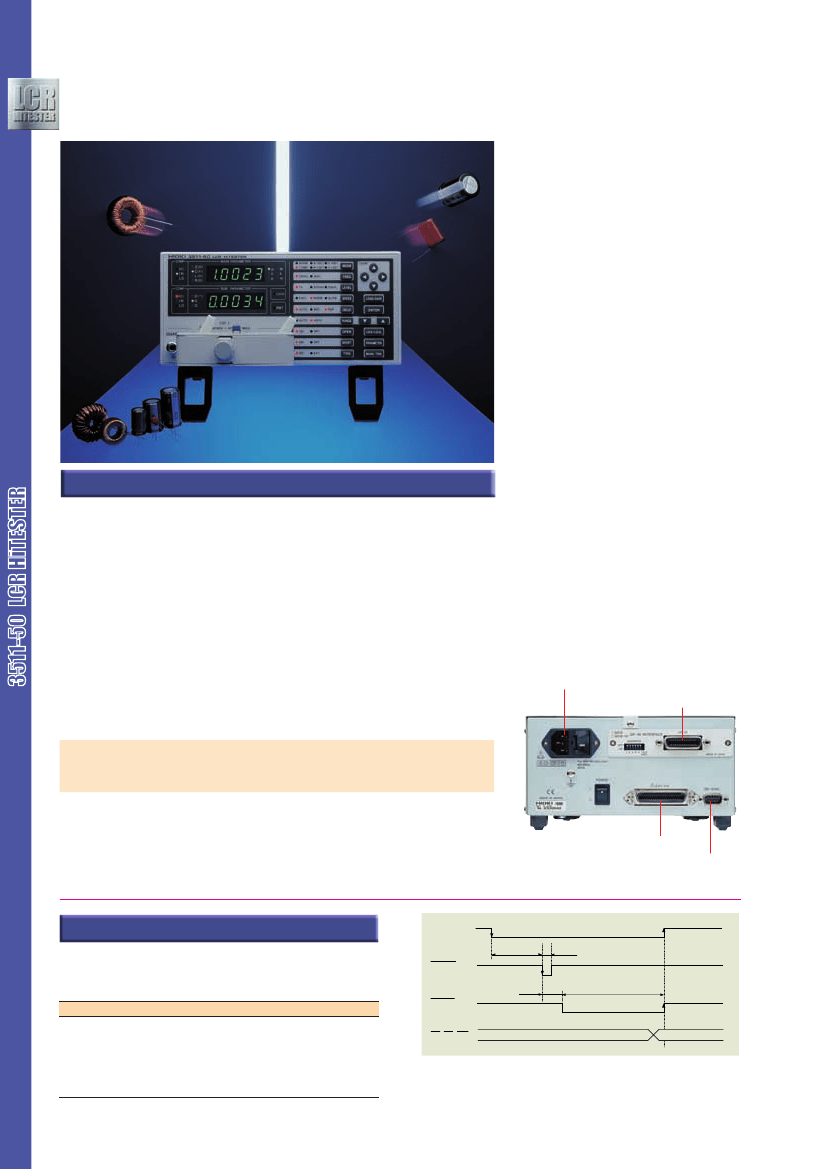

Better Speed, Better Accuracy
s
Comparator function
Upper limit and lower limit values can
be set for both the main parameters
(any of Z or C or L or R) and sub-
parameters (any of
θ
or D or Q). The
measurement results are signaled by a
buzzer and LED indication and can
also be output to an external source.
The output is separated into main- and
sub-parameter measurement results
together with AND.
s
Memory for 99 sets of
measurement conditions
Up to 99 sets of measurement
conditions, including comparator
values, provide rapid response to
constantly changing components on
flexible production lines.
These conditions can also be externally
switched via the EXT.I/O.
Powerful Functions for Greater Line Efficiency
s
Minimum measurement time of 5 ms
Three sampling rates can be selected: FAST, NORMAL and SLOW. The minimum
measurement time of 5 ms (with 1 kHz/|Z| display) gives rapid sampling for improved
production line efficiency.
(Differs with the measurement frequency and display parameters.)
s
Compact size
The small dimensions, 210 (W)
×
100
(H)
×
168 (D) mm, approximately 2.5
kg (4.00"W
×
8.30"H
×
6.60"D; 88 oz.
approx.), make it easy to incorporate
the instrument into production lines.
The AC power supply voltage is selectable :
100 V, 120 V, 220 V or 240 V AC.
9518-01 GP-IB interface can be fitted (optional).
s
High resolution and high measurement accuracy
The measurement resolution provides a full five digits, and the basic
measurement accuracy is ±0.08%.
s
RS-232C interface as standard feature
With the exception of turning the power on or off, all the basic functions can
be controlled from a PC. Use of a PC enables efficient data management,
processing, and setting of measurement conditions, plus a variety of other
functions. A GP-IB interface can also be installed as an option.
s
RS-232C interface specifications
Transmission method: Start-stop synchronization. Transmission speed: 9600 bps. Data length:
8 bits. Parity: None. Stop bit: 1 bit. Delimiter: CR+LF. Handshake: Hardware. Connector shape:
D-sub 9pin (male). Connecting cable: Reverse cable
s
EXT.I/O
Trigger signals, recording ON/OFF, and loading of measurement conditions
can be externally controlled. Complete interface allows the unit to be used as
an automatic instrument where comparator results, measurement-completed
signals, etc., can be output to an external device.
EXT.I/O
Rear view
RS-232C interface
Timing chart for EXT. I/O sequencing
The following chart shows the timing sequence of the trigger
(TRIG), and end-of-measurement (EOM) signals from the
EXT. I/O connector.
EXT. I/O signals
q
Outputs
• Internal DC power
(+5 V output)
• Comparator result
(main-/sub-
parameters together with AND output)
Chuck ON
Circuit response time
α
*
1
500
µs
Trigger minimum interval
100
µs
Measurement time 5 ms *
2
Chuck OFF
TRIG
EOM
Decision result
q
Inputs
• External DC power supply
(+5 V
to +24 V can be supplied by external device)
HI IN LO
*1
α
depends on the sample and trigger delay.
*2 Reference value for 1 kHz measurement frequency,
FAST mode, |Z| measurement.
Measurement time differs with measurement conditions.
• External trigger signal
• Analog measurement completion • Memory setting selection
(including comparator conditions)
• End-of-measurement
2

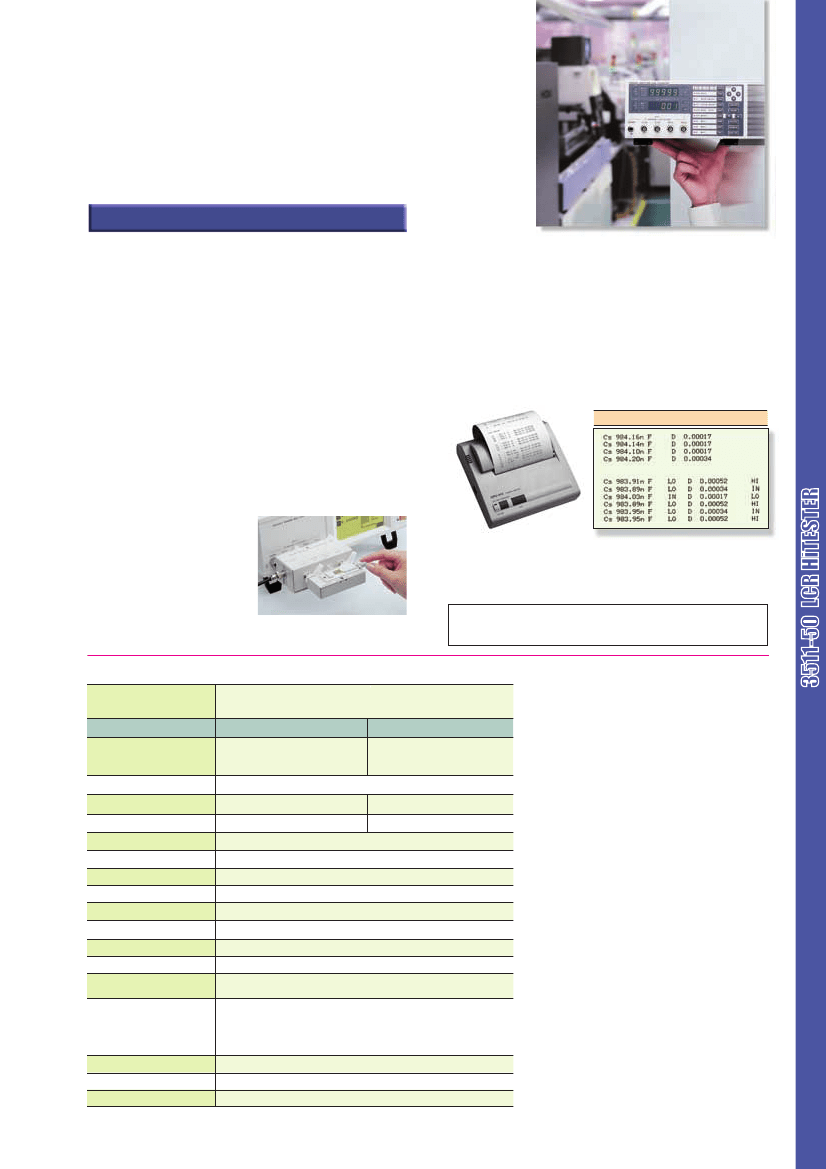

... and Better Size
!
Basic Performance
s
Seven parameters measured
The seven parameters |Z|, R,
θ,
C, L, D, and Q can be
measured. The main- and sub-displays can be combined
in five ways: |Z|-θ, C-D, L-D, L-Q, R.
s
Measurement signals
Measurement frequency: 120 Hz/1 kHz. Signal level:
50 mV, 500 mV, 1 Vrms settable.
s
Easy operation by simple selections
and LED display
To operate, simply select from the items displayed on
the panel. Selected measurement conditions are
indicated by illuminated LEDs allowing settings to be
checked at a glance. Measurement results are also
displayed by LED indication that makes it easy to check
the values even in dark locations.
s
Printer output
Measurement values and comparator results can be
printed out on the optional 9442 Printer by connecting
this via the standard RS-232C interface. This is
convenient for attaching data to inspection reports, etc.
(The optional 9444 Connection Cable and AC adapter are necessary for connecting the printer.)
Printout example
s
DC bias measurement
Using the optional 9268/9269 DC BIAS UNIT, voltage
and current bias measurements are simple.
The 9268 can be used for
voltages up to a maximum
of DC±40 V. The 9269 can
be used for currents up to a
maximum of DC±2 A.
Example of connecting the 9262 and 9268 / 9269
s
9442 PRINTER specifications
qPrinting
method
: Thermal serial dot printerqRecording
width
: 112 mm (4.41”)qPrinting
speed
: 52.5 cpsqPower
supply
: 9443 AC ADAPTER or supplied Ni-MH battery pack
(prints 3000 lines on full charge from 9443 AC ADAPTER)qDimensions
and mass:
160W
×
66.5H
×
170D mm; 580 g approx. (6.30"W
×
2.62"H
×
6.70"D; 20.46 oz. approx. )
Resulting measurement data can be output not only to a printer, but also
other media such as a PC or sequencer. Using the RS-232C interface
makes transferring the inspection data simple and convenient.
s
Specifications
Measurement parameters
Measurement frequency
(±0.01%)
Measurement time (typical values
for displaying |Z|)
Excluding time for open/short circuit
compensation, evaluation.
|Z|, C, L, R,
θ,
D, Q
* Five possible display combinations: |Z|-θ, C-D, L-D, L-Q, R.
120 Hz
FAST : 13 ms, NORMAL : 80 ms,
SLOW : 400 ms
1 kHz
FAST : 5 ms, NORMAL : 60 ms,
SLOW : 300 ms
10 mΩ to 200.00 MΩ
9.40 pF to 999.99 mF
14.00 µH∼200.00 kH
0.940 pF to 99.999 mF
1.600 µH∼20.000 kH
Measurement
ranges
|Z|
, R
C
L
θ
D
Q
Basic accuracy
Measurement signal levels
Equivalent circuit mode
Output impedance
Display method/Max. count
No. of measurement
condition memory retention
Comparator comparison
method
DC bias
External printer
External interfaces
-90.00˚
to +90.00˚
0.0001 to 1.9900
0.85 to 999.99
Z : ±0.08% rdg.
θ
± 0.05˚
Measurement range (Auto/Hold range, 5-digit display)
|Z|, R :
100 m/1/10/100/1 k/10 k/100 k/1 M/
10 M/200 MΩ
C (120 Hz) :
145 p/1.45 n/14.5 n/145 n/1.45 µ/14.5 µ/
145 µ/1.45 m/14.5 m/1 F
C (1 kHz) :
17 p/170 p/1.7 n/17 n/170 n/1.7 µ/17 µ/
170 µ/1.7 m/100 mF
L (120 Hz) :
130 µ/1.3 m/13 m/130 m/1.3/13/130/
1.3 k/13 k/200 kH
L (1 kHz) :
15.5 µ/155 µ/1.55 m/15.5 m/155 m/1.55/
15.5/155/1.55 k/20 kH
Dimensions, mass : 210H
×
100W
×
168D mm, 2.5 kg approx.
(8.30"H
×
4.00"W
×
6.60"D ; 88 oz. approx.)
Power supply :
50 mV/500 mV/1 V rms (±10% ±5 mV)
Serial- and parallel equivalent circuit mode, automatic/manual
50
Ω
LED (5-digit display, full-scale count depends on range)
Max. 99
(including comparator conditions)
Any of the main parameters (any of |Z| or C or L or R) and
sub-parameters (any of
θ
or D or Q) can be set to upper limit and lower
limit value settings. The measurement results are signaled by LED
indication and a buzzer and EXT.I/O output (main- and sub-parameter
evaluation results, AND output).
Possible when the optional 9268 (±40 V max.) or 9269 (±2 A max.) is used.
9442 PRINTER (option)
RS-232C, (GP-IB is option), EXT.I/O for sequence use.
100 V/120 V/220 V/ 240 V AC ± 10%
(selectable), 50/60 Hz
Max. rated power : 20 VA max.
Supplied accessories :
Power cord, spare fuse for power supply
(in accordance with the ordered power
specifications, either 100/120 VAC 1 A,
220/240 VAC 0.5 A)
Conformity : EMC EN61326-1:1997+A1:1998
EN61000-3-2:1995+A1:1998+A2:1998
EN61000-3-3:1995
Safety EN61010-1:1993+A2:1995
Power supply; Pollution degree 2 Overvoltage Category II
(anticipated transient overvoltage 2500 V)
Test terminals; Pollution degree 2 Overvoltage Category I
(anticipated transient overvoltage 330 V)
