BPD-BQB934: Descriptionend- look package pin photo diode; CategoryLED optoelectronic/LED photoelectric; File Size199KB，3 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/; Environmental Compliance

Download Datasheet Parametric View All

BPD-BQB934 Overview

end- look package pin photo diode

BPD-BQB934 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	BRIGHT
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
Configuration	SINGLE
Maximum dark power	30 nA
Infrared range	YES
Nominal photocurrent	0.042 mA
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
Optoelectronic device types	PIN PHOTODIODE
peak wavelength	940 nm
Minimum reverse breakdown voltage	30 V
shape	ROUND
size	5 mm

Preview

Download Datasheet

View All

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BPD-BQB934

END- LOOK PACKAGE

PIN PHOTO DIODE

Features

1. Wide receiving angle

2. Linear response vs. irradiance

3. Fast switching time

4. End-looking Package ideal for space

limited applications

5. Lens Appearance: Black

6. This product don't contained restriction

substance, compliance ROHS standard.

●

Package Dimensions:

5.0(.197)

8.6(.339)

1.0(.039)

Anode

1.5(.059) MAX.

Cathode

23.4(.921) MIN.

0.5(.020) SQ.TYP.

5.7(.224)

Description

The BPD-BQB934 device consists

of a PIN silicon photodiode molded in

a black epoxy package which allows

spectral response

infrared light wavelengths. The wide

receiving angle provides relatively even

reception over a large area. The

end-looking package is designed for

easy PC board mounting. This photodiode

is mechanically and spectrally matched to

BRIGHT’s GaAs and GaAlAs series of infrared

emitting diodes.

NOTES:

1.All dimensions are in millimeters (inches).

1.00(.039) MIN.

2.54(.100) NOM.

Anode

Cathode

2.Tolerance is ±0.25mm (0.01’) unless otherwise specified.

3.Lead spacing is measured where the leads emerge from the package

4. Specifications are subject to change without notice

Absolute Maximum Ratings(Ta=25℃)

Parameter

Power Dissipation

Reverse Breakdown Voltage

Operating Temperature

Storage Temperature Range

Lead Soldering Temperature

Maximum Rating

100

60V

-45℃~+85℃

-45℃~+100℃

Unit

260℃ for 5 seconds

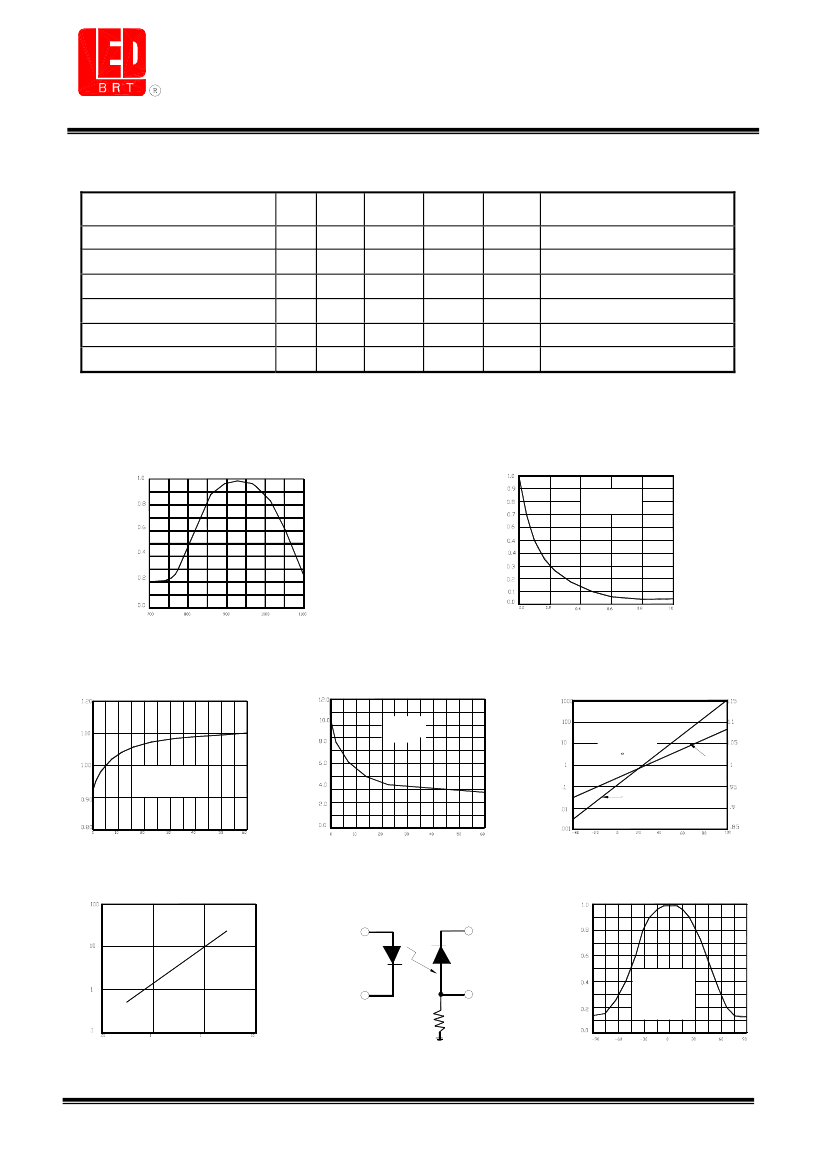

Ver.2.1

Page:1 of 3
