2CL71 Overview

high voltage, low current silicon rectifier diodes

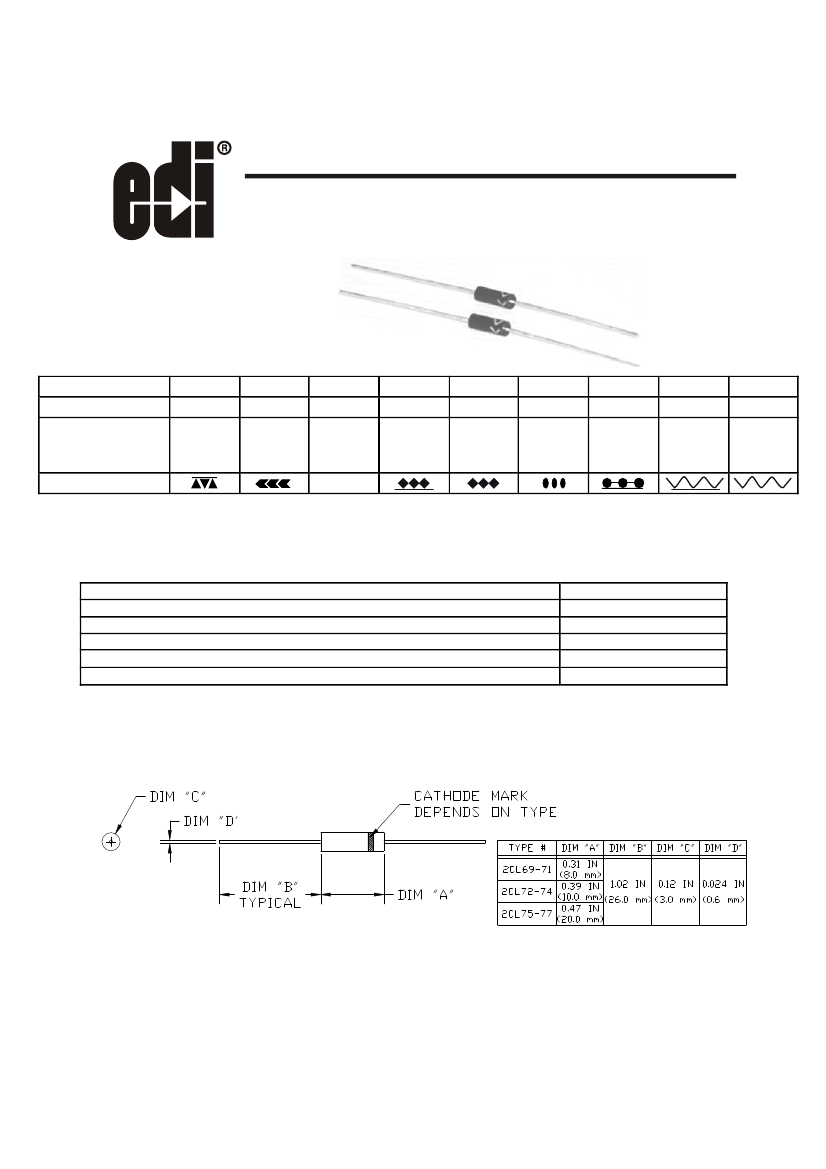

2CL69 through 2CL77
HIGH VOLTAGE, LOW CURRENT
SILICON RECTIFIER DIODES
EDI T YPE #
PRV VOLTS
Forward V
oltage
Drop at
25°C & 10mA
2CL69
4,000
20.0V
2CL70
6,000
23.0V
2CL71
8,000
25.0V
2CL72
10,000
30.0V
2CL73
12,000
37.5V
2CL74
14,000
42.5V
2CL75
16,000
50.0V
2CL76
18,000
55.0V
2CL77
20,000
62.5V
Cathode Mark
<<<
2CL FAST
RECOVERY
5.0 mA
0.5 A
2.0 µA
5.0 µA
100 nano Sec.
1.0 pico farads
ELECTRICAL CHARACTERISTIC
(at T
Air
= 25°C Unless Otherwise Specified)
Average Maximum Forward Current I
F
Max @ T
Air
= 30ºC
Max Surge Current (1 Cycle)
Max DC Reverse Current (25ºC)
Max DC Reverse Current (100ºC)
Reverse Recovery Time
Max Virtual Junction Capacitance, C
j
@ V
r
= 0 (f=1Mhz.)
NOTES: It is recommended that a proper heat sink be used on the terminals of this device between the
body and the soldering point to prevent damage from excess heat.
EDI reserves the right to change these specifications at any time without notice.
ELECTRONIC DEVICES, INC.
DESIGNERS AND MANUFACTURERS OF SOLID STATE DEVICES SINCE 1951.
21 GRAY OAKS AVENUE
* YONKERS. NEW YORK 10710 914-965-4400
* FAX 914-965-5531
* 1-800-678-0828
Ee-mail:sales@edidiodes.com
*
Wwebsite:
http://www.edidiodes.com
