BPD-BQD934 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BPD-BQD934

BPD-BQD934: Descriptionend- look package pin photo diode; CategoryLED optoelectronic/LED photoelectric; File Size262KB，3 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/; Environmental Compliance

Download Datasheet Parametric View All

BPD-BQD934 Overview

end- look package pin photo diode

BPD-BQD934 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	BRIGHT
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
Configuration	SINGLE
Maximum dark power	30 nA
Infrared range	YES
Nominal photocurrent	0.07 mA
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
Optoelectronic device types	PIN PHOTODIODE
peak wavelength	940 nm
Minimum reverse breakdown voltage	30 V
shape	ROUND
size	5 mm

Preview

Download Datasheet

View All

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BPD-BQD934(

早安

&A4G)

END- LOOK PACKAGE

PIN PHOTO DIODE

Features

1. Wide receiving angle

2. Linear response vs. irradiance

3. Fast switching time

4. End-looking Package ideal for space

limited applications

5. Lens Appearance: Black

6. This product doesn't contain restriction

substance, comply ROHS standard

●

Package Dimensions:

5.0(.197)

8.6(.339)

1.0(.039)

5.7(.224)

1.5(.059) MAX.

Anode

23.4(.921) MIN.

Cathode

Description

The BPD-BQD934 device consists

of a PIN silicon photodiode molded in

a black epoxy package which allows

spectral response

infrared light wavelengths. The wide

receiving angle provides relatively even

reception over a large area. The

end-looking package is designed for

easy PC board mounting. This photodiode

is mechanically and spectrally matched to

BRIGHT’s GaAs and GaAlAs series of infrared

emitting diodes.

0.5(.020) SQ.TYP.

1.0(.039)MIN.

2.54(.100) NOM.

NOTES:

1.All dimensions are in millimeters (inches).

2.Tolerance is ±0.25mm (0.01”) unless otherwise specified.

3.Lead spacing is measured where the leads emerge from the package

4. Specifications are subject to change without notice

Absolute Maximum Ratings(Ta=25℃)

Parameter

Power Dissipation

Reverse Breakdown Voltage

Operating Temperature

Storage Temperature Range

Lead Soldering Temperature

Maximum Rating

100

60V

-45℃~+85℃

-45℃~+100℃

Unit

260℃ for 5 seconds

Rev.1.0

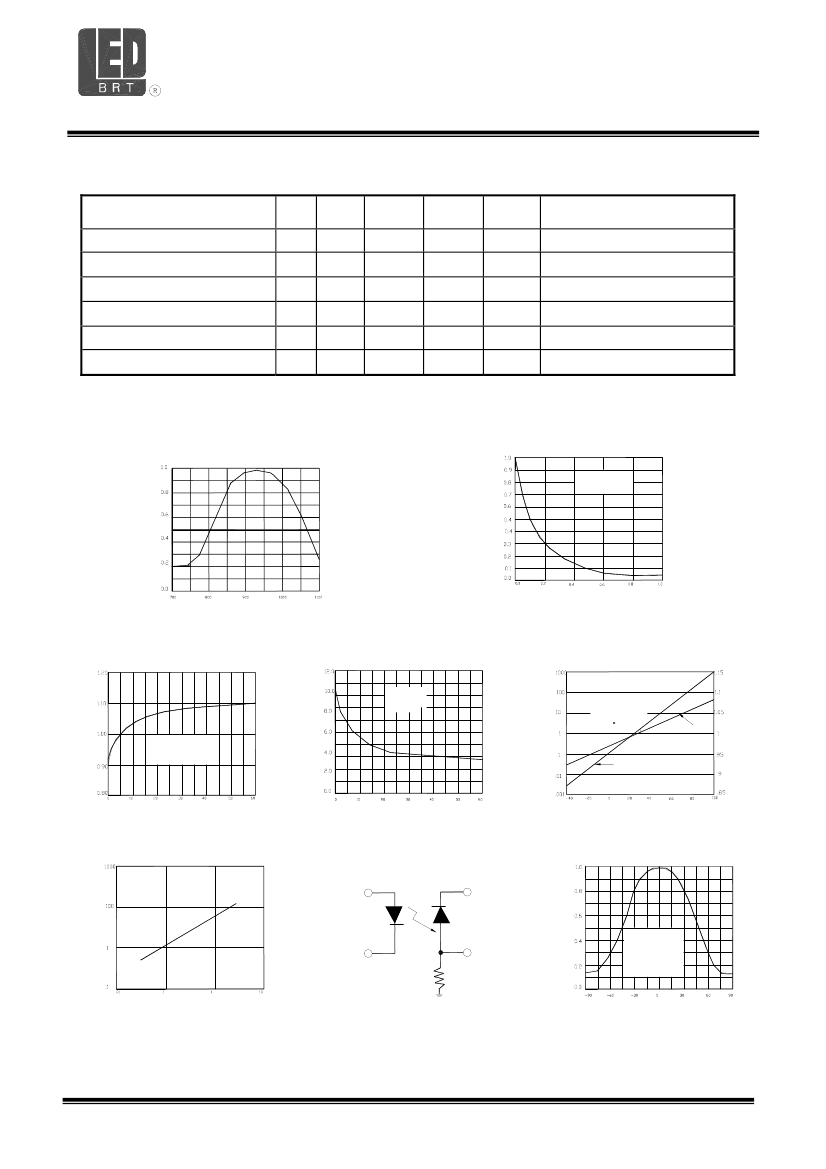

Page:1 of 3
