BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-B2141-L
●
Features:
1. Chip material: GaP/GaP
2. Emitted color : Green
3. Lens Appearance : Green Diffused
4. Low power consumption.
5. High efficiency.
6. Versatile mounting on P.C. Board or panel.
7. Low current requirement.
8. 3mm diameter package.
9. This product don’t contained restriction
substance, compliance ROHS standard.
●
Package dimensions:
3.00(.118)
0.81(.032)
5.30(.209)
1.5(.059)
MAX.
25.4(1.00) MIN.
3.80(.150)
0.5(.02)
SQ.TYP.
Flat Denotes Cathode
2.54(.100)
NOM.
1.00(.039) MIN.
●
Applications:
1. TV set
2. Monitor
3. Telephone
4. Computer
5. Circuit board
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm (0.01”) unless otherwise specified.
3. Lead spacing is measured where the leads emerge from
the package.
4. Specifications are subject to change without notice.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Reverse
Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
V
R
Topr
Tstg
Tsol
Rating
14
7
5
-40
℃
~80
℃
-40
℃
~85
℃
260
℃
(for 5 seconds)
Unit
mW
mA
V
Ver.2.0 Page: 1 of 2
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-B2141-L
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Symbol
V
F
Iv
I
R
λp
λd
∆λ
2θ
1/2
Condition
I
F
=2mA
I
F
=2mA
V
R
=5V
I
F
=2mA
I
F
=2mA
I
F
=2mA
I
F
=2mA
Min.
-
-
-
-
560
-
-
Typ.
1.8
4.0
-
568
-
30
35
Max.
2.2
-
100
-
576
-
-
Unit
V
mcd
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Viewing Angle
µA
nm
nm
nm
deg
●

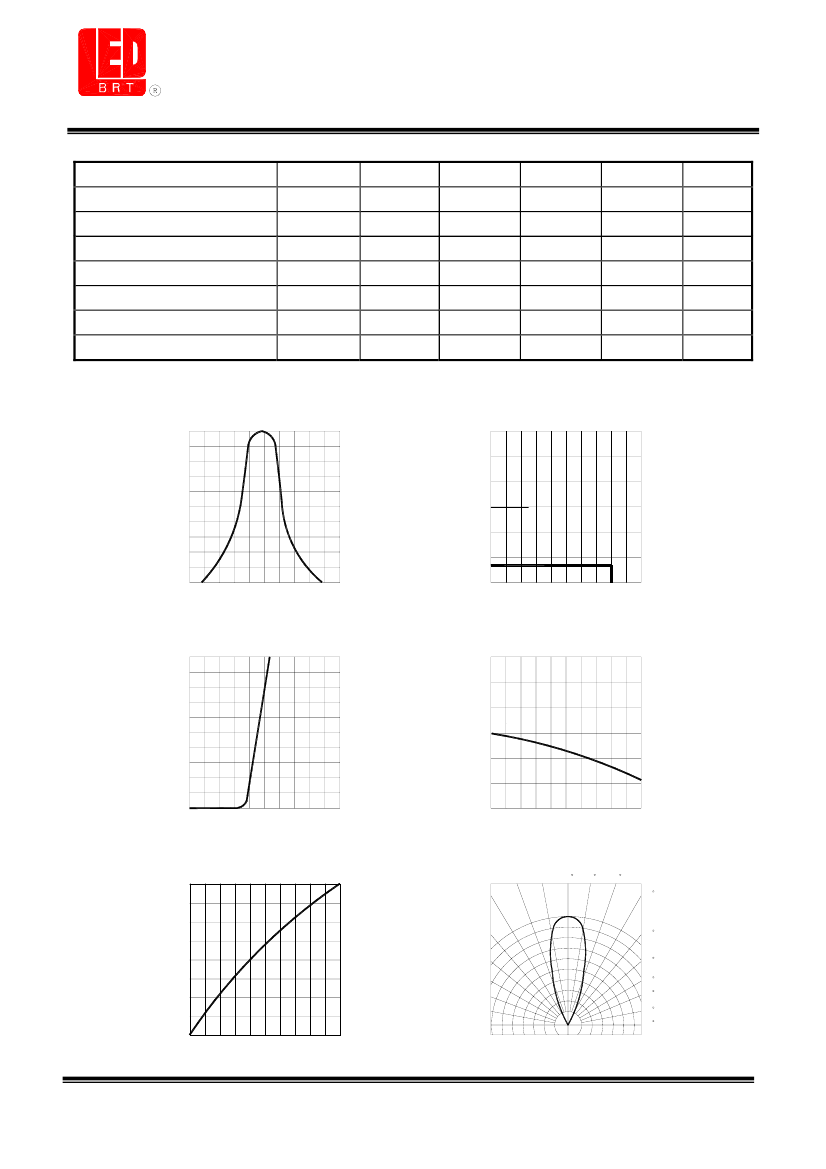

Typical electro-optical characteristics curves
Fig.1 Relative intensity vs. Wavelength
1.0
60
Fig.2 Forward current derating curve
vs. Ambient temperature
50
Relative radiant intensity
Forward current(mA)
40
0.5
30
20
10
0
520
570
620
0
20
40
60
80
100
Wavelength
λ(nm)
Ambient temperature Ta(
℃
)
Fig.3 Forward current vs. Forward voltage
50
3.0
Fig.4 Relative luminous intensity
vs. Ambient temperature
40
Relative luminous intensity
2.5
Forward current(mA)
2.0
30
1.5
20
1.0
10
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta(
℃
)
Fig.5 Relative luminous intensity
vs. Forward current
2.0
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity(@20mA)
1.5
Relative radiant intensity
1.0
40
1.0
0.9
0.8
50
60
70
0.5
0.7
80
90
0
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.2.0 Page: 2 of 2
