BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HA134C-TRB
●
Features:
1. Emitted Color : Amber
2. Lens Appearance : Water Clear.
3. Mono-color type.
4. 3.2x1.0x2.0mm(1204) standard package.
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
refold solder process.
7. Compatible with automatic placement
equipment.
8. This product doesn’t contain restriction
Substance, comply ROHS standard.
●
Package Dimensions:
●
Applications:
1.
Automotive : Dashboards, stop lamps,
turn signals.
2.
3.
Backlighting : LCDs, Key pads advertising.
Status indicators : Consumer & industrial
electronics.
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ±0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
*1
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
80
30
100
5
-25℃~80℃
-30℃~85℃
See Page6
Unit
mW
mA
mA
V
-
-
-
*1
Condition for
I
FP
is pulse of 1/10 duty and 0.1msec width.
Ver.2.0 Page 1 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HA134C-TRB
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Veiwing Angle
Symbol
Vf
Iv
I
R
λp
λd
Δλ
2θ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
-
2.4
-
-
605
-
-
Typ.
2.2
6.0
-
610
-
35
105
Max.
2.6
-
100
-
615
-
-
Unit
V
mcd
µA
nm
nm
nm
deg
●

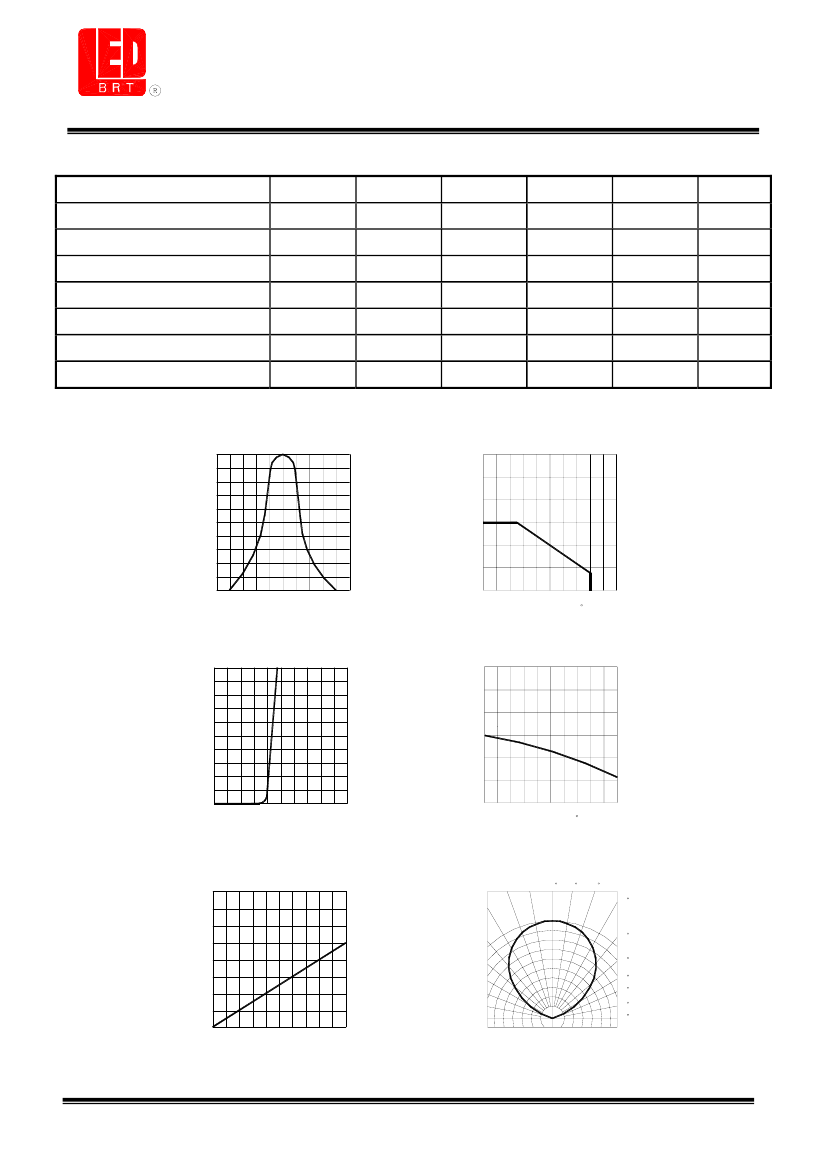

Typical Electro-Optical Characteristics Curves
Fig.1 Relative intensity vs. wavelength
1.0
60
Fig.2 Forward current derating curve
vs. ambient temperature
50
Relative radiant intensity
0.5
Forward current (mA)
40
30
20
10
0
560
610
660
0
20
40
60
80
100
Wavelength (nm)
Ambient temperature Ta( C)
Fig.3 Forward current vs. forward voltage
50
3.0
Fig.4 Relative luminous intensity vs.
ambient temperature
40
Relative Luminous intensity
(Normalized @20mA)
2.5
2.0
Forward current (mA)
30
1.5
20
1.0
10
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward voltage(V)
A
Ambient temperature Ta( C)
Fig.5 Relative luminous intensity vs. forward current
4.0
0
10
20
30
Relative luminous intensity (@20mA)
3.0
RELATIVE RADIANT INTENSITY
40
1.0
0.9
0.8
0.7
80
90
0.5
0.3
0.1
0.2
0.4
0.6
50
60
70
2.0
1.0
0
10
20
30
40
50
Forward current (mA)
Ver.2.0 Page 2 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HA134C-TRB
●

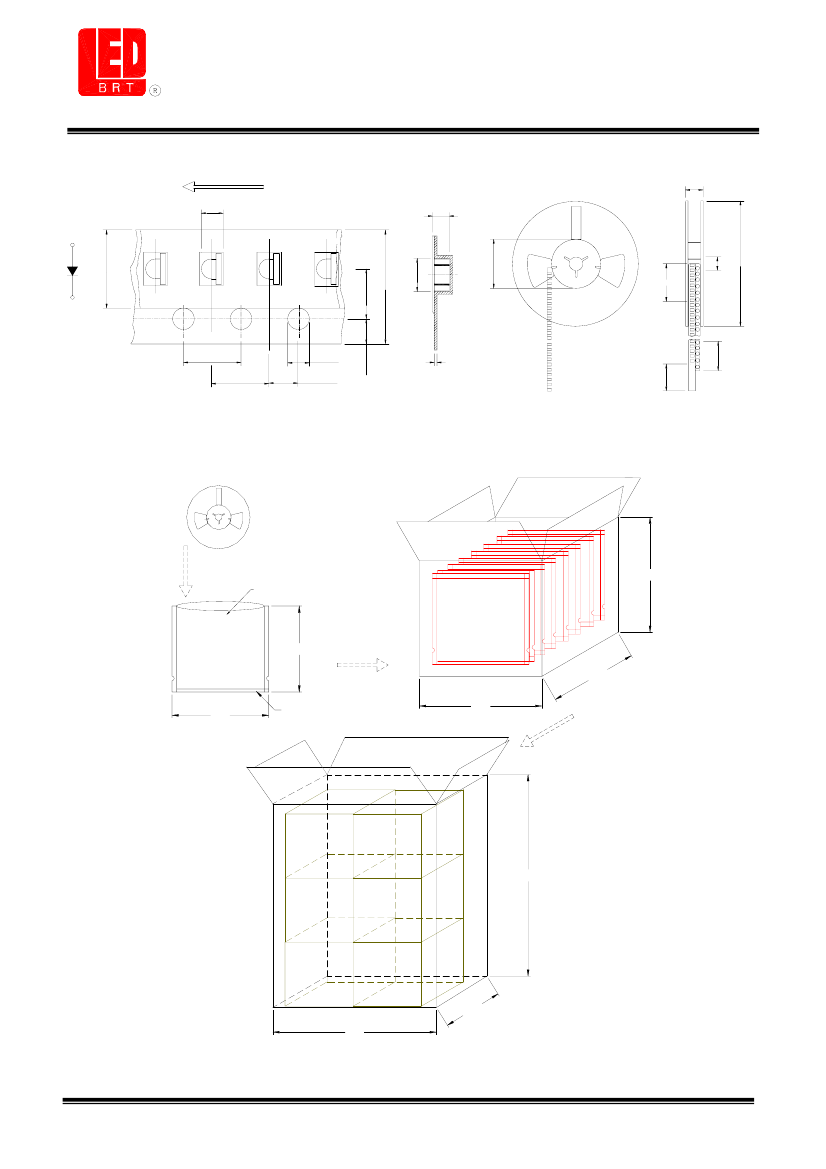

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
2.3± 0.1
ANODE
START
END
17.2± 1.2
1.3± 0.1
13.0± 0.5
71.0± 1
5.3 ± 0.05
3.5 ± 0.05
8.0 ± 0.3
3.3± 0.1
TRAILER
CATHODE
4.0 ± 0.1
4.0 ± 0.1
1.75 ± 0.1
1.5± 0.1
2.0± 0.05
LEADER
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
●
Package Method:(unit:mm) Vacuum
12 bag/box
3000 pcs/reel
215
Bar Code Label
245
230
167
220
Aluminum Foil Bag
645
6 box/carton
230
334
Ver.2.1 Page 3 of 7
179± 1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HA134C-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( A t 2 0 m A )
BIN CODE
Min. (mcd)
F
G
H
J
2.1
3.2
4.8
7.0
Max. (mcd)
4.2
6.3
9.4
14.0
●
B IN:
x
Intensity
B I N C O D E
Ver.2.0 Page 4 of 7
