9200-9300 Series/Surface Mount Reed Relays
URFA
ELAYS
S
URFACE
M
OUNT
R
EED
R
ELAYS
Ideally suited to the needs of Automated Test Equipment, Instrumentation
and Telecommunications requirements, Coto’s 9200, and 9300 Series
specification tables allow you to select the appropriate relay for your
particular application. If your requirements differ, please consult your
local representative or Coto’s Factory to discuss a custom design.
EATURES
S
ERIES
F
EATURES
u
u
u
u
High Insulation Resistance - 10
12
Ω
minimum (10
13
Ω
Typical).
High reliability, hermetically sealed contacts for long life.
Molded thermoset body on integral lead frame design.
High speed switching compared to electromechanical relays.
Series
9200 Series
u
u
Low profile - 0.19” height. Meets high board density requirements.
50
Ω
Coaxial Shield for RF and Fast Rise Time Pulse switching.
Series
9300 Series
u
Load switching (15 Watts) and high dielectric strength (500 VDC)
between contacts.

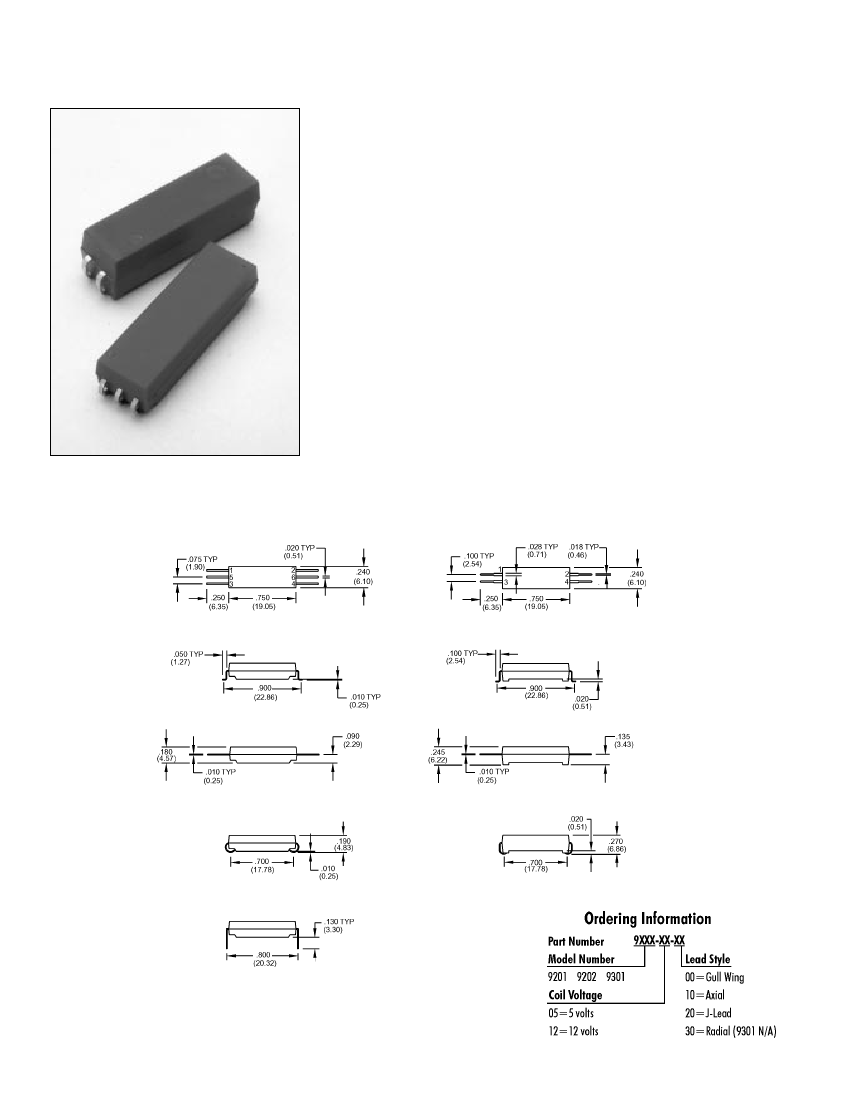

Model 9200
Model 9300
Gull Wing
Gull Wing
Axial
Axial
J-Lead
J-Lead
Radial
Dimensions in Inches (Millimeters)
Rhopoint Components Ltd
Fax: +44 (0) 1883 712938 Phone: +44 (0) 1883 717988 web: www.rhopointcomponents.com e-mail: sales@rhopointcomponents.com
9200-9300 Series/Surface Mount Reed Relays
Model Number
Parameters
COIL SPECS.
Nom. Coil Voltage
Max. Coil Voltage
Coil Resistance
Operate Voltage
Release Voltage
CONTACT RATINGS
Switching Voltage
Switching Current
Carry Current
Contact Rating
Life Expectancy-Typical
Static Contact
Resistance (max. init.)
Dynamic Contact
Resistance (max. init.)
1
9201
Test Conditions
Units
1 Form A
9202
1 Form A
50
Ω
Coaxial
5
12
6.5 15.0
150 650
3.75 9.0
0.4 1.0
9301
1 Form A
+/- 10%, 25° C
Must Operate by
Must Release by
VDC
VDC
Ω
VDC - Max.
VDC - Min.
5
12
6.5 15.0
250 650
3.75 9.0
0.4 1.0
5
12
6.5 15.0
350 1000
3.75 9.0
0.4 1.0
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Signal Level 1.0V,10mA
50mV, 10mA
0.5V, 50mA
at 100 Hz, 1.5 msec
Volts
Amps
Amps
Watts
x 10 Ops.
Ω
Ω
6
200
0.5
1.5
10
1000
0.150
0.200
200
0.5
1.5
10
1000
0.150
0.200
200
0.5
1.5
15
250
0.150
0.200
RELAY SPECIFICATIONS
Insulation Resistance
(minimum)
Capacitance - Typical
Across Open Contacts
Open Contact to Coil
Between all Isolated Pins
at 100V, 25°C, 40% RH
No Shield
Shield Floating
Shield Guarding
No Shield
Shield Floating
Shield Guarding
Contacts Open,
Shield Floating
Between Contacts
Contacts to Shield
Contacts/Shield to Coil
At Nominal Coil Voltage,
30 Hz Square Wave
Zener-Diode Suppression
4
Ω
pF
pF
pF
pF
pF
pF
pF
VDC/peak AC
VDC/peak AC
VDC/peak AC
msec.
msec.
x
10
12
x
10
12
x
10
12
0.7
-
-
1.4
-
-
-
300
-
1500
0.40
0.10
-
0.8
0.1
-
1.4
0.2
1.4
300
1500
1500
0.40
0.10
0.7
-
-
1.4
-
-
-
x
500
-
1500
0.40
0.10
3
Contact to Shield
Dielectric Strength
(minimum)
Operate Time - including
bounce - Typical
Release Time - Typical
Top View:
Dot stamped on top of relay refers to pin #1 location
Notes:
1
2
Consult factory for life expectancy at other switching loads.
Surface mount component processing temperature:
430°F(221°C) max for 1 minute dwell time. Temperature
measured on leads where lead exits molded package.
3
Higher dielectric strength available, consult factory.
4
Consists of 20V Zener-diode and 1N1002 diode in series,
connected in parallel with coil.
Environmental Ratings
Storage Temp: -35°C to +100°C;
Operating Temp: -20°C to +85°C
The operate and release voltage and the coil resistance
are specified at 25°C. These values vary by approximately
0.4%/°C as the ambient temperature varies.
Vibration: 20 G’s to 2000 Hz; Shock: 50 G’s
