1N4001 THRU 1N4007
PLASTIC SILICON RECTIFIER
VOLTAGE - 50 to 1000 Volts CURRENT - 1.0 Ampere
FEATURES
l
l
l
l
l
Low forward voltage drop
High current capability
High reliability
High surge current capability
Exceeds environmental standards of MIL-S-19500/228

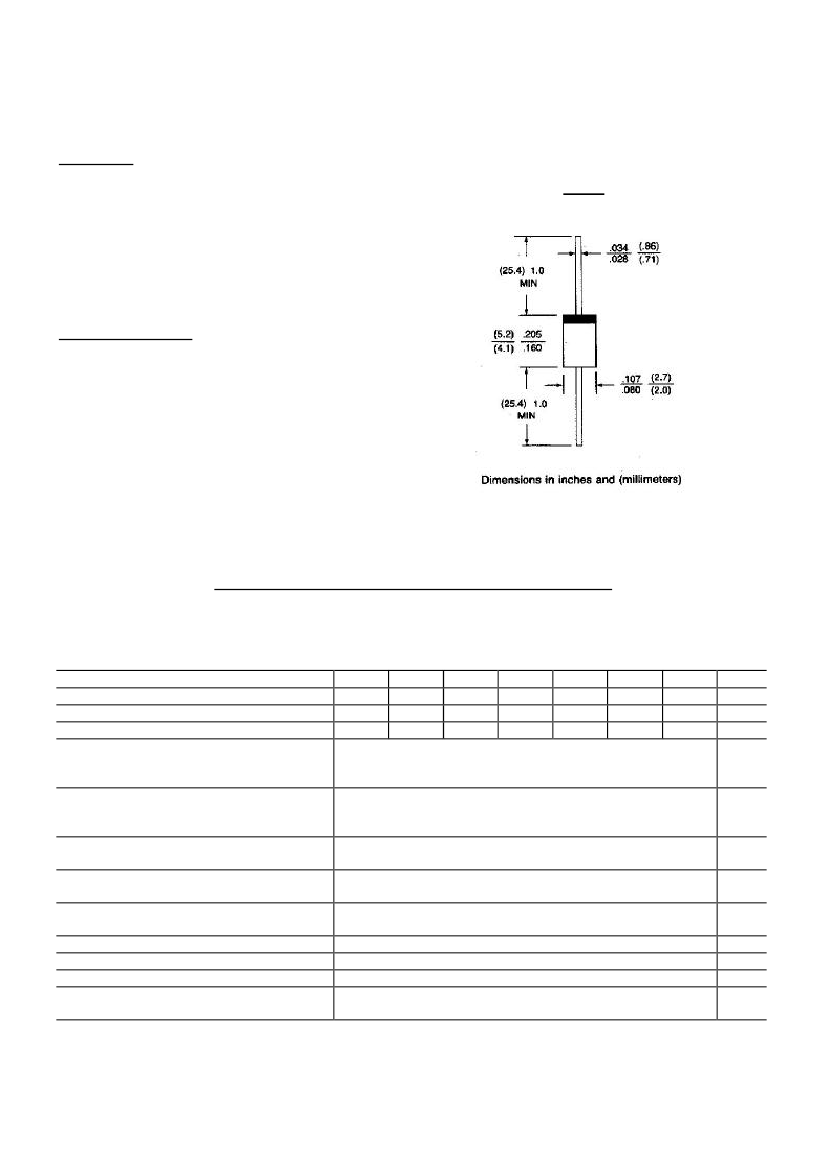

DO-41
MECHANICAL DATA
Case: Molded plastic , DO-41
Epoxy: UL 94V-O rate flame retardant
Lead: Axial leads, solderable per MIL-STD-202,
method 208 guaranteed
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight: 0.012 ounce, 0.3 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 UNITS
Maximum Recurrent Peak Reverse Voltage
50
100
200
400
600
800
1000
V
Maximum RMS Voltage
35
75
140
280
420
560
700
V
Maximum DC Blocking Voltage
50
100
200
400
600
800
1000
V
Maximum Average Forward Rectified
1.0
A
Current .375"(9.5mm) Lead Length at
T
A
=75
Peak Forward Surge Current 8.3ms single
30
A
half sine-wave superimposed on rated load
(JEDEC method)
Maximum Forward Voltage at 1.0A DC and
1.1
V
25
Maximum Full Load Reverse Current Full
30
A
Cycle Average at 75 Ambient
Maximum Reverse Current at T
A
=25
5.0
A
At Rated DC Blocking Voltage T
A
=100
500
A
Typical Junction capacitance (Note 1)
15
P
F
Typical Thermal Resistance (Note 2) R JA
50
/W
Typical Thermal resistance (NOTE 2) R JL
25
/W
Operating and Storage Temperature Range
-55 to +150
T
J
,T
STG
NOTES:
1.
Measured at 1 MHz and applied reverse voltage of 4.0 VDC.
Thermal Resistance Junction to Ambient and from junction to lead at 0.375"(9.5mm) lead length P.C.B mounted.
2.

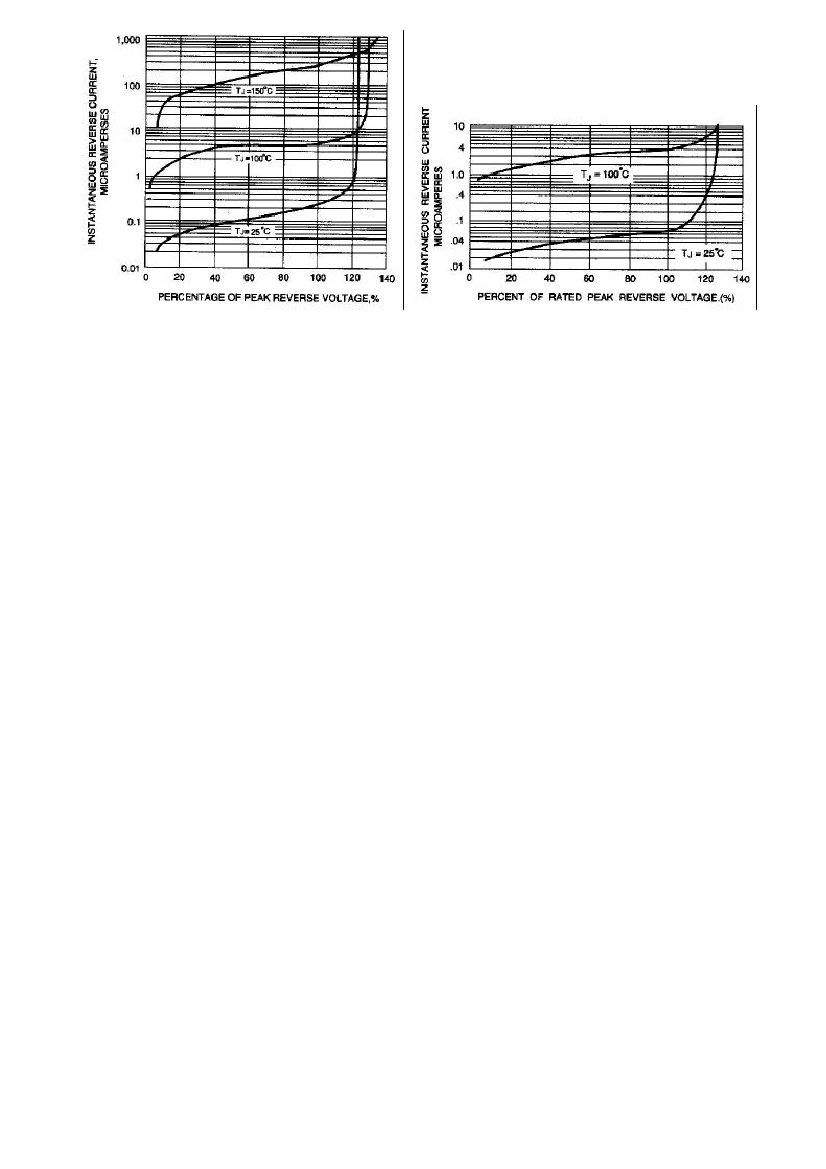

RATING AND CHARACTERISTIC CURVES
1N4001 THRU 1N4007

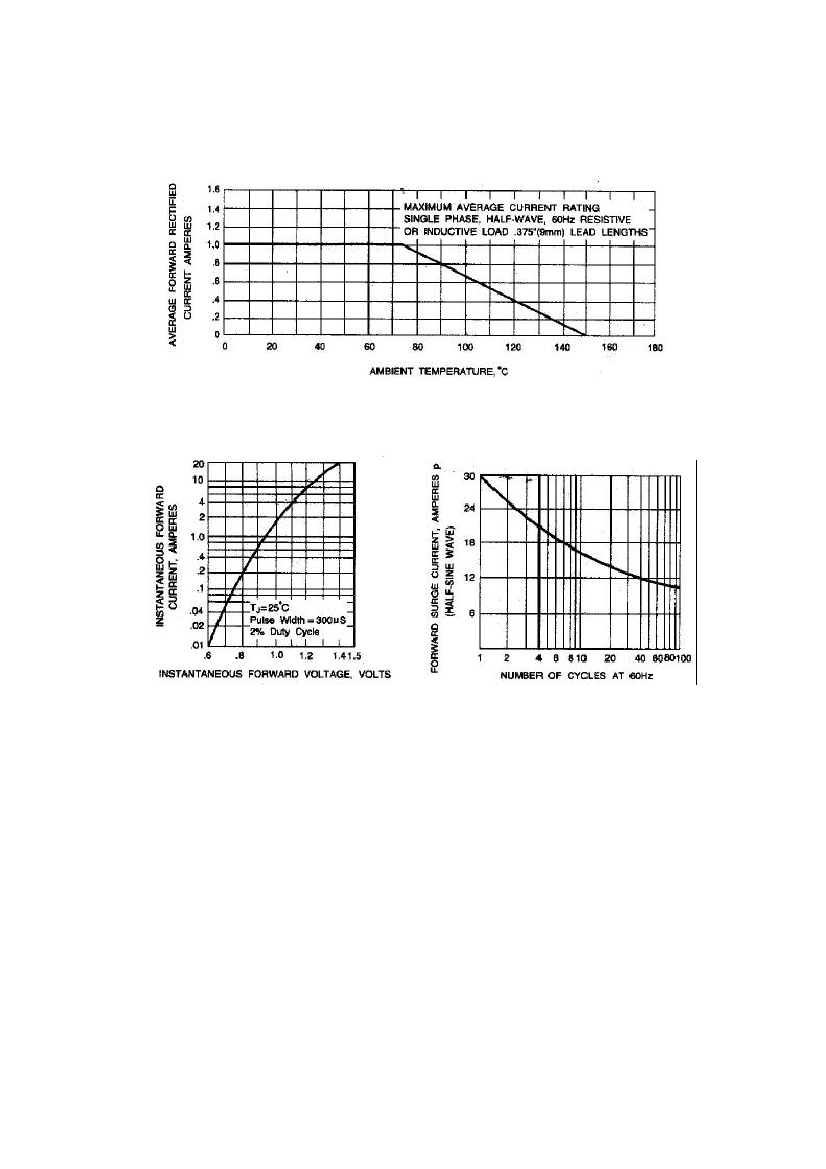

Fig. 1-TYPICAL FORWARD CURRENT DERATING CURVE
Fig. 2-TYPICAL FORWARD CHARACTERISTICS
Fig. 3-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
