224RLS050M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 224RLS050M

224RLS050M: Description+85??C low leakage radial lead aluminum electrolytic capacitors; CategoryPassive components capacitor; File Size109KB，3 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

224RLS050M Overview

+85??C low leakage radial lead aluminum electrolytic capacitors

224RLS050M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Illinois Capacitor
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	5 mm
dielectric materials	ALUMINUM (WET)
ESR	753575 mΩ
JESD-609 code	e3
leakage current	0.0004 mA
length	11 mm
Manufacturer's serial number	224RLS050M
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	8 mA
series	RLS
surface mount	NO
Delta tangent	0.1
Terminal surface	Matte Tin (Sn)
Terminal pitch	2 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

RLS

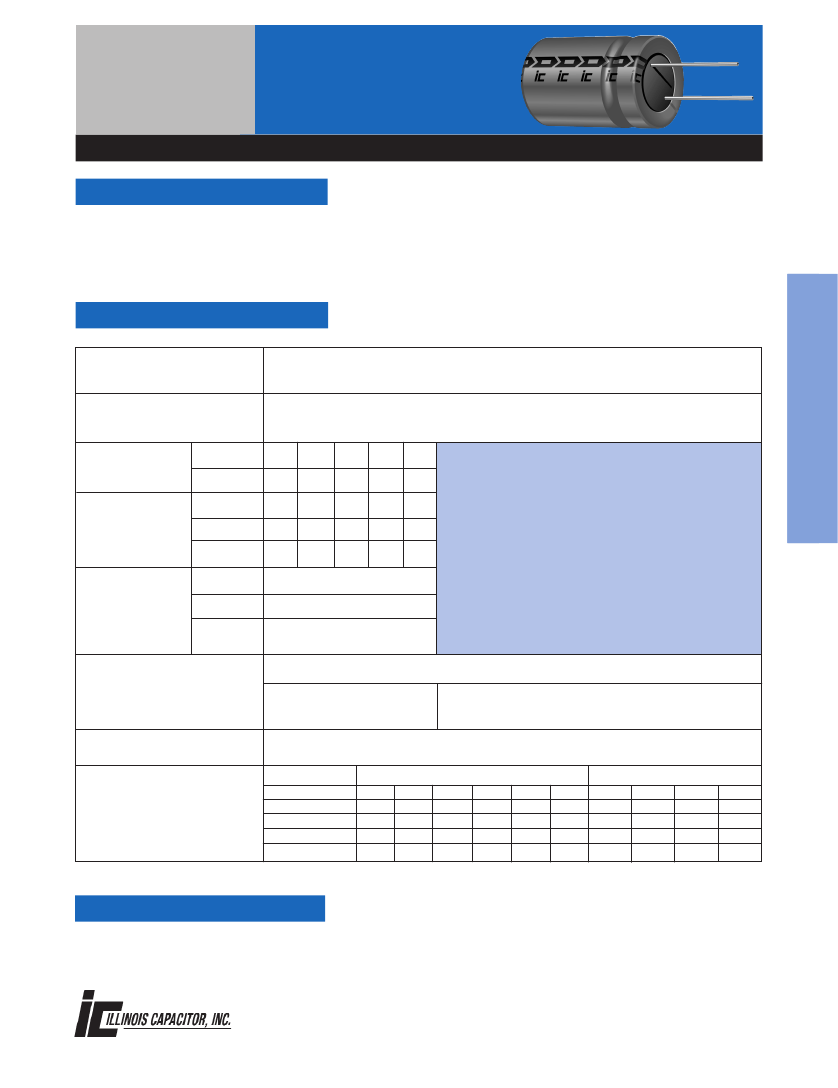

FEATURES

+85°C Low Leakage

Radial Lead

Aluminum Electrolytic

Capacitors

For timing applications

Alternative to Tantalum Capacitors

Low Leakage Current

Capacitance Range: .1 µF to 1,000 µF

SPECIFICATIONS

Voltage Range: 10 WVDC to 50 WVDC

Solvent Tolerant End Seals Standard

Aluminum Electrolytic

Capacitance Tolerance

±20% at 120Hz, 25°C

Operating Temperature Range

Dissipation Factor

120Hz, 25°C

WVDC

tan

WVDC

Impedance Ratio

(Max.) 120Hz

-25°C/25°C

-40°C/25°C

WVDC

Leakage Current

Time

-40°C to +85°C

.16

.14

.12

.10

≤

50 WVDC

2 minutes

.002CV or .4µA

whichever is greater

2,000 hours, at 85°C with rated voltage

Load Life

Capacitance change

Dissipation factor

Leakage current

≤

20% of initial measured value

≤

200% of initial specified value

≤

initial specified value

1,000 hours at + 85°C with no voltage applied.

Units will meet load life specification

Frequency (Hz)

Temperature (°C)

10K

1.65

1.48

1.35

1.25

100K

1.7

1.53

1.38

1.28

+85

1.0

+70

1.3

+60

1.5

+45

1.8

Shelf Life

Capacitance (µF)

0.8

120

1.0

400

1.3

1.23

1.16

1.11

Ripple Current Multipliers

≤

10 < C

≤

100

100 < C

≤

1000

C > 1000

1.45

1.36

1.25

1.17

SPECIAL ORDER OPTIONS

•

Special tolerances: ±10% (K), -10% + 30% (Q)

(See pages 33 thru 37)

•

Tape and Reel/Ammo-Pack

•

Cut, Formed, Cut and Formed, and Snap In Leads

3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com

224RLS050M Related Products

	224RLS050M	336RLS016M	474RLS050M	476RLS050M	477RLS010M	477RLS016M	686RLS035M	227RLS016M	154RLS050M
Description	+85??C low leakage radial lead aluminum electrolytic capacitors	85Â°C Low Leakage Radial Lead Aluminum Electrolytic Capacitors	85Â°C Low Leakage Radial Lead Aluminum Electrolytic Capacitors	85Â°C Low Leakage Radial Lead Aluminum Electrolytic Capacitors	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 470uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	85Â°C Low Leakage Radial Lead Aluminum Electrolytic Capacitors	85Â°C Low Leakage Radial Lead Aluminum Electrolytic Capacitors	+85？°C low leakage radial lead aluminum electrolytic capacitors	+85??C low leakage radial lead aluminum electrolytic capacitors
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-	-	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	-	conform to	conform to	-
Maker	Illinois Capacitor	Illinois Capacitor	Illinois Capacitor	Illinois Capacitor	-	-	Illinois Capacitor	Illinois Capacitor	-
Reach Compliance Code	compliant	compli	compli	compli	-	-	compliant	compliant	-
ECCN code	EAR99	EAR99	EAR99	EAR99	-	-	EAR99	EAR99	-
capacitance	0.22 µF	33 µF	0.47 µF	47 µF	-	-	68 µF	220 µF	-
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	-	-	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	-
diameter	5 mm	5 mm	5 mm	8 mm	-	-	8 mm	10 mm	-
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	-	-	ALUMINUM (WET)	ALUMINUM (WET)	-
ESR	753575 mΩ	8038 mΩ	352737 mΩ	3527 mΩ	-	-	2926 mΩ	1206 mΩ	-
JESD-609 code	e3	e3	e3	e3	-	-	e3	e3	-
leakage current	0.0004 mA	0.0011 mA	0.0004 mA	0.0047 mA	-	-	0.0048 mA	0.007 mA	-
length	11 mm	11 mm	11 mm	11.5 mm	-	-	11.5 mm	12.5 mm	-
Manufacturer's serial number	224RLS050M	336RLS016M	474RLS050M	476RLS050M	-	-	686RLS035M	227RLS016M	-
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-
negative tolerance	20%	20%	20%	20%	-	-	20%	20%	-
Number of terminals	2	2	2	2	-	-	2	2	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	-	85 °C	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-	-40 °C	-40 °C	-
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	-	-	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	-
Package form	Radial	Radial	Radial	Radial	-	-	Radial	Radial	-
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	-	POLARIZED	POLARIZED	-
positive tolerance	20%	20%	20%	20%	-	-	20%	20%	-
Rated (DC) voltage (URdc)	50 V	16 V	50 V	50 V	-	-	35 V	16 V	-
ripple current	8 mA	95 mA	10 mA	230 mA	-	-	200 mA	322 mA	-
series	RLS	RLS	RLS	RLS	-	-	RLS	RLS	-
surface mount	NO	NO	NO	NO	-	-	NO	NO	-
Delta tangent	0.1	0.16	0.1	0.1	-	-	0.12	0.16	-
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	-	-	Matte Tin (Sn)	Matte Tin (Sn)	-
Terminal pitch	2 mm	2 mm	2 mm	3.5 mm	-	-	3.5 mm	5 mm	-
Terminal shape	WIRE	WIRE	WIRE	WIRE	-	-	WIRE	WIRE	-
