SNC5A8

Two Channel Direct Drive Speech Controller

INTRODUCTION

SNC5A8 is a two-channel voice synthesizer IC with PWM direct drive circuit. It

built-in a 4-bit tiny controller with one 4-bit input port, two 4-bit output ports and three

4-bit I/O ports. By programming through the tiny controller in SNC5A8, user’s varied

applications including voice section combination, key trigger arrangement, output

control, and other logic functions can be easily implemented.

FEATURES

Single power supply 2.4V – 5.5V

120 seconds voice capacity are provided(@6KHZ sample rate)

Built in a 4-bit tiny controller

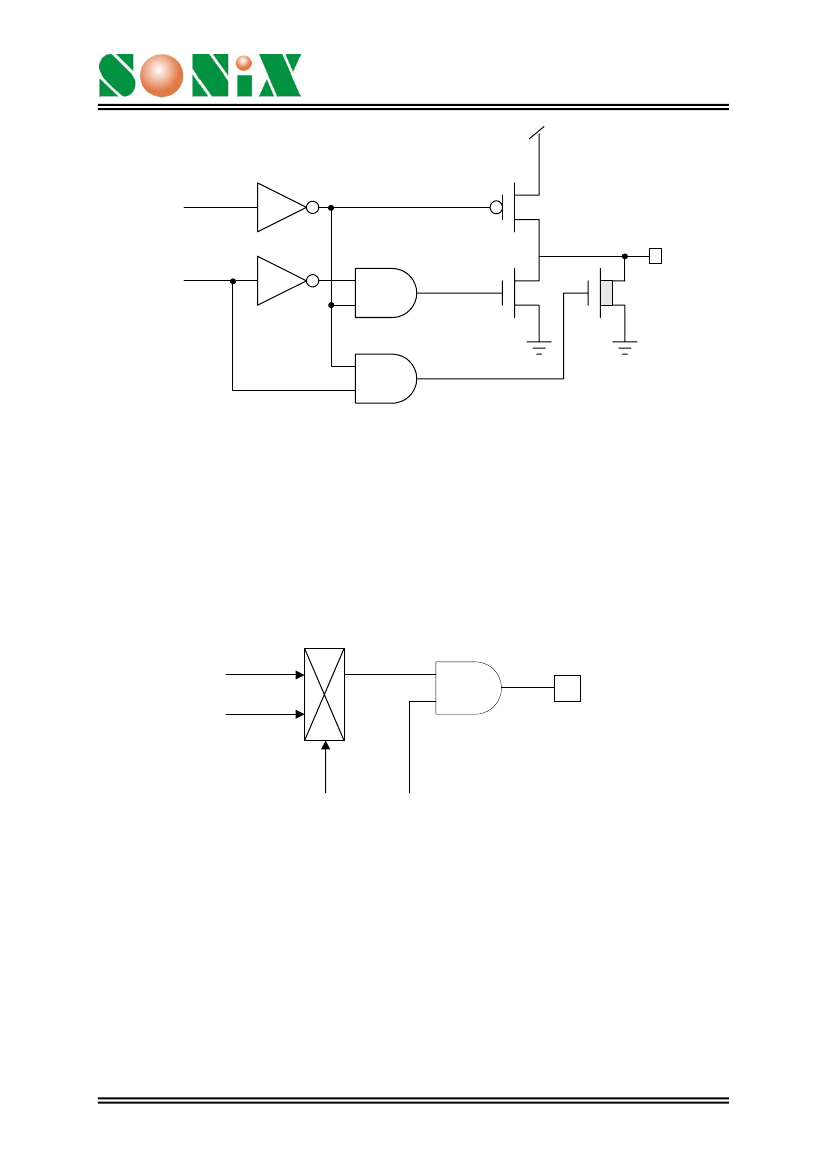

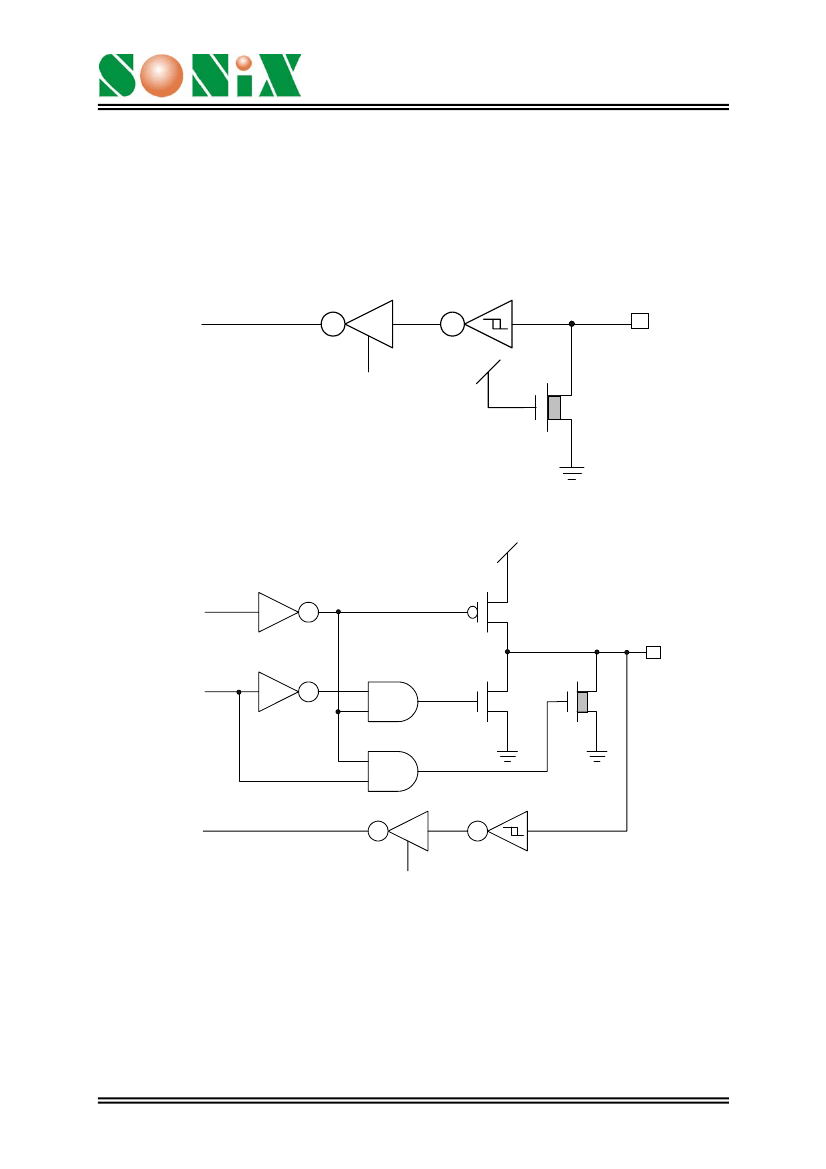

One 4-bit input port, two 4-bit output ports and three 4-bit I/O ports are provided

128*4 bits RAM are provided

384K*10 ROM size are provided for voice data and program

Maximum 16k program ROM is provided

Readable ROM code data

IR carrier signal is provided

Built in a high quality speech synthesizer

Adaptive playing speed from 2.5k-20kHz is provided

Two independent voice channels (Channel 1 + Channel 2→Buo1,Buo2)

Built in a PWM Direct Drive circuit and a fixed current D/A output

System clock : 2MHz

Low Power Reset

Ver: 1.2

November 26, 2002
